Description

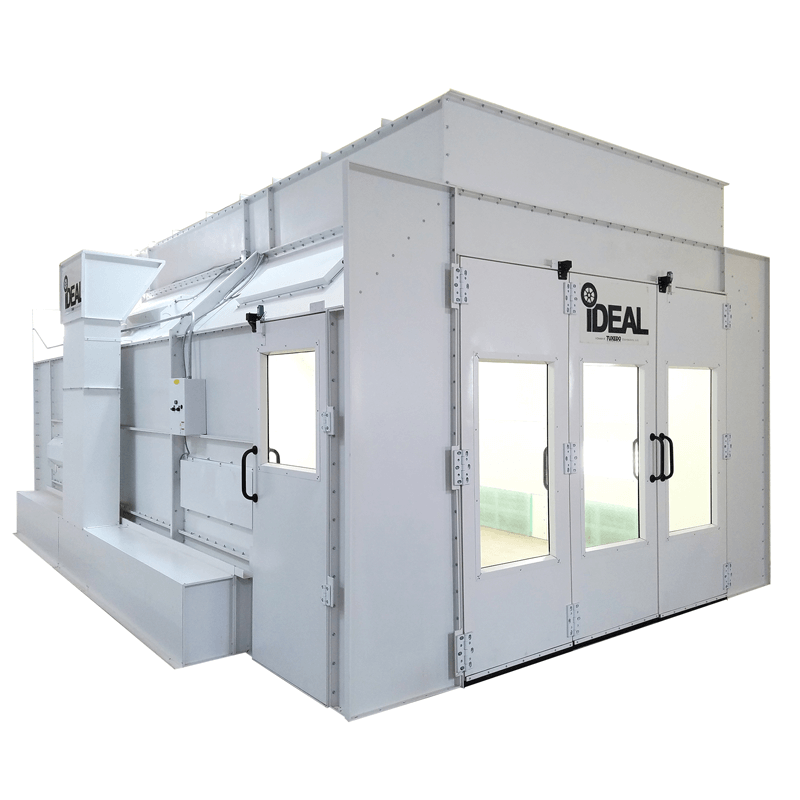

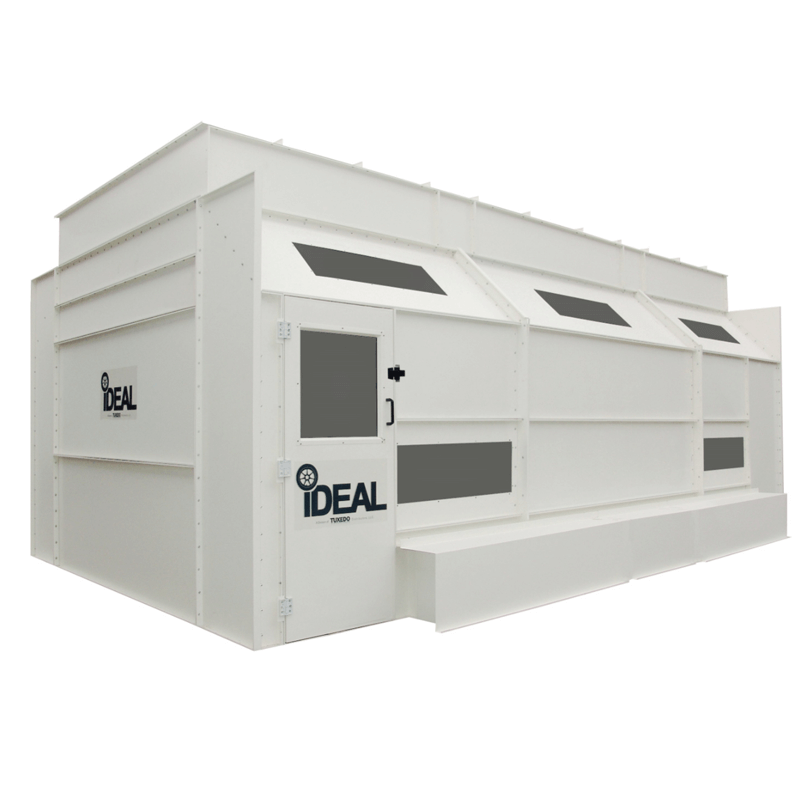

The iDeal PSB-SDD26B-AK Side Downdraft Paint Booth is a heavy-duty, commercial-grade finishing system engineered for professional, high-volume painting environments. With expansive inside dimensions of 26′ L × 14′ W × 9′3″ H, this booth provides ample working space for large vehicles and industrial equipment, ensuring efficient airflow and optimal paint results.

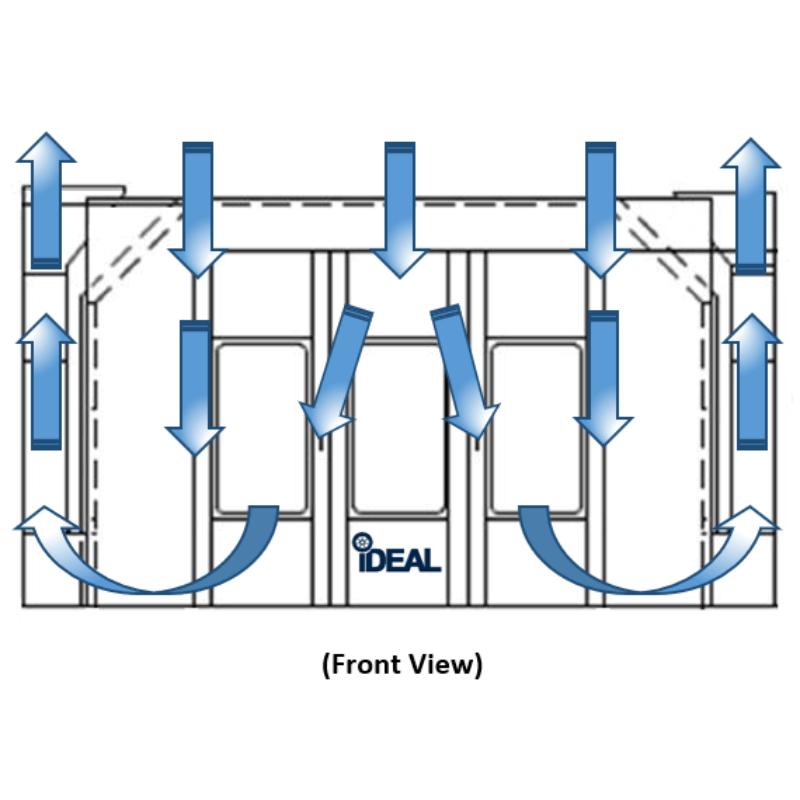

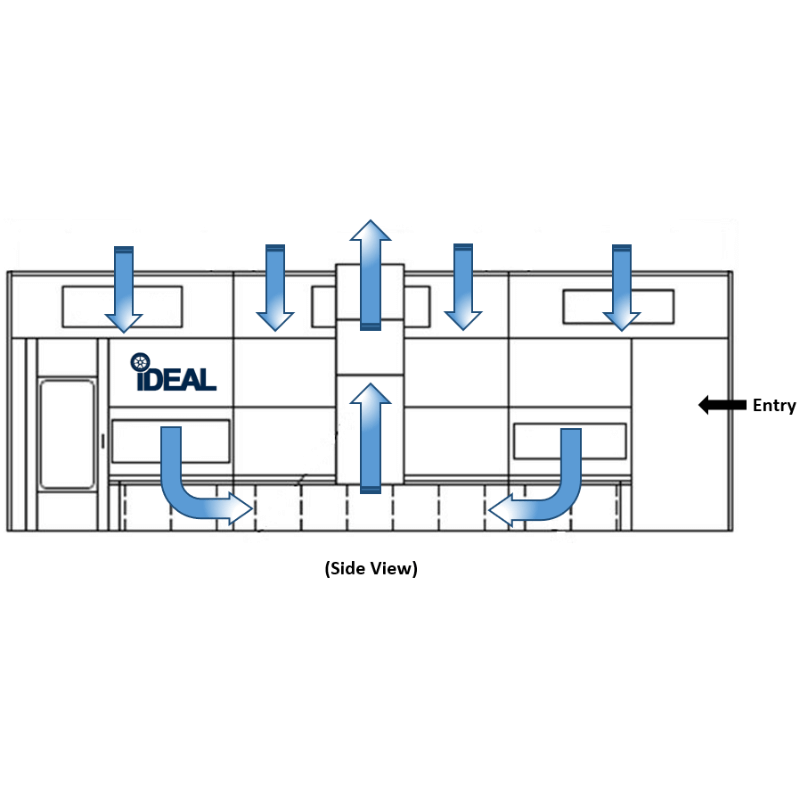

Powered by dual UL-listed Dayton 24″ tube-axial exhaust fans and NEMA-rated 2HP, 3-phase motors, the PSB-SDD26B-AK delivers an impressive 14,000 CFM at 0.5 static pressure for consistent, contaminant-free air circulation. Its side downdraft design draws air evenly across the workspace, creating a clean and controlled finishing environment.

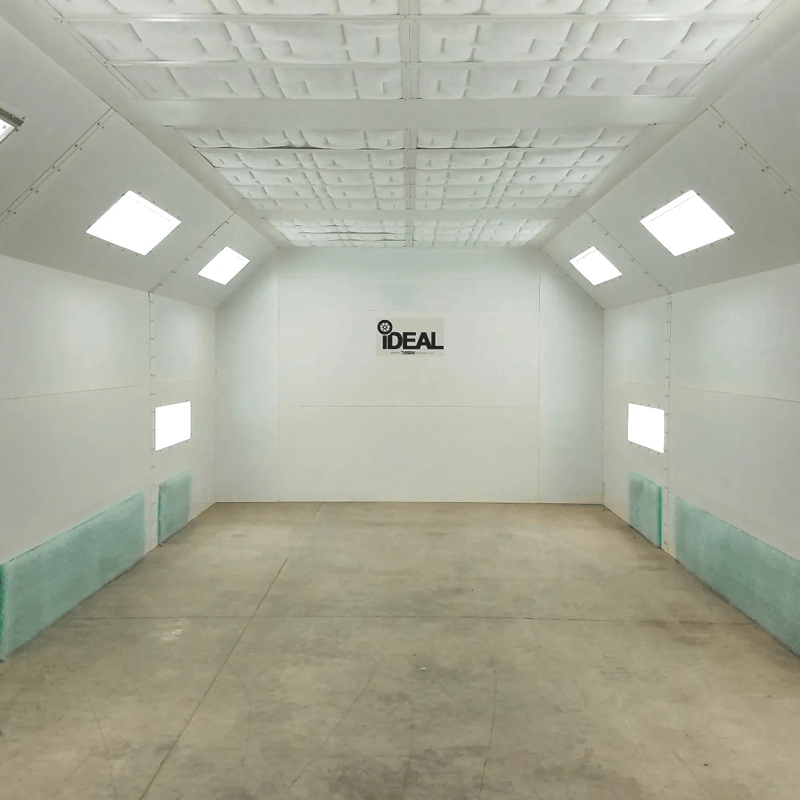

Constructed from precision-punched 18-gauge steel panels with a bright white powder-coated finish, this booth combines strength and superior light reflectivity. Ten LDPI industrial light fixtures with 5000K daylight fluorescent bulbs ensure unmatched visibility, while premium AFC intake and exhaust filters maintain air purity.
The PSB-SDD26B-AK includes a deluxe control panel, tri-fold entry doors, and a personnel door with viewing window and safety shutoff switch—all meeting NFPA 33 standards. Engineered for performance and safety, this side downdraft booth ships ready for installation.
Key Features
-
High-Performance Airflow: 14,000 CFM @ 0.5 static pressure ensures consistent downdraft ventilation.
-

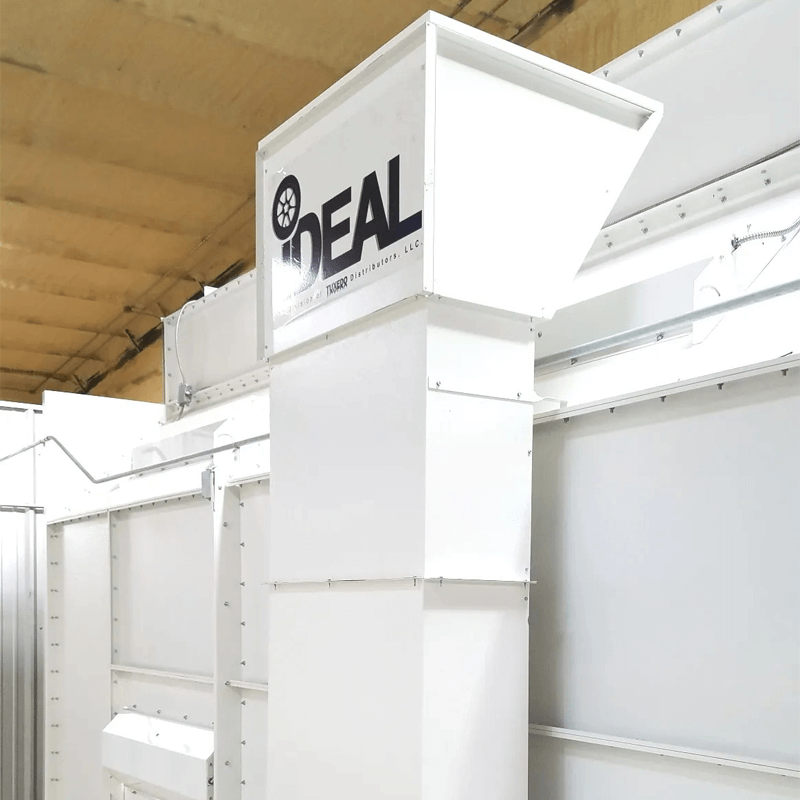

Dual Exhaust Fans: (2) UL-listed 24″ Dayton tube-axial fans with spark-resistant blades.
-
Durable Construction: Heavy-duty, 18-gauge precision-punched steel panels.
-
Superior Illumination: (10) LDPI T8 light fixtures with (40) 32W fluorescent lamps at 5000K daylight color.
-
Powder-Coated Finish: Bright white interior and exterior for enhanced light reflection.
-
Premium Filtration: AFC intake and exhaust filters maintain clean, professional air quality.
-

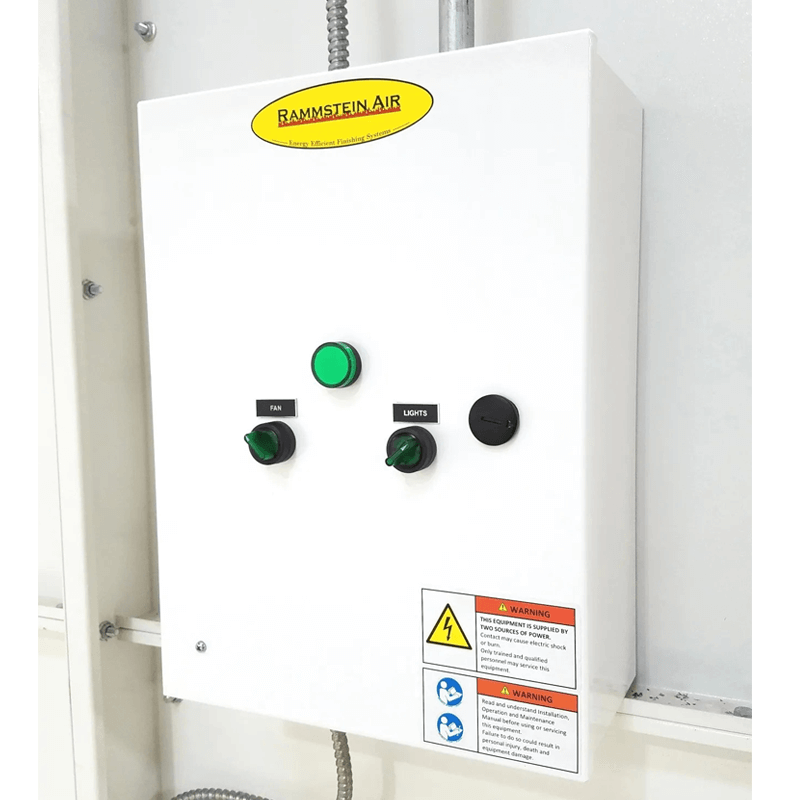

Deluxe Control Panel: Fully integrated and easy to operate.
-

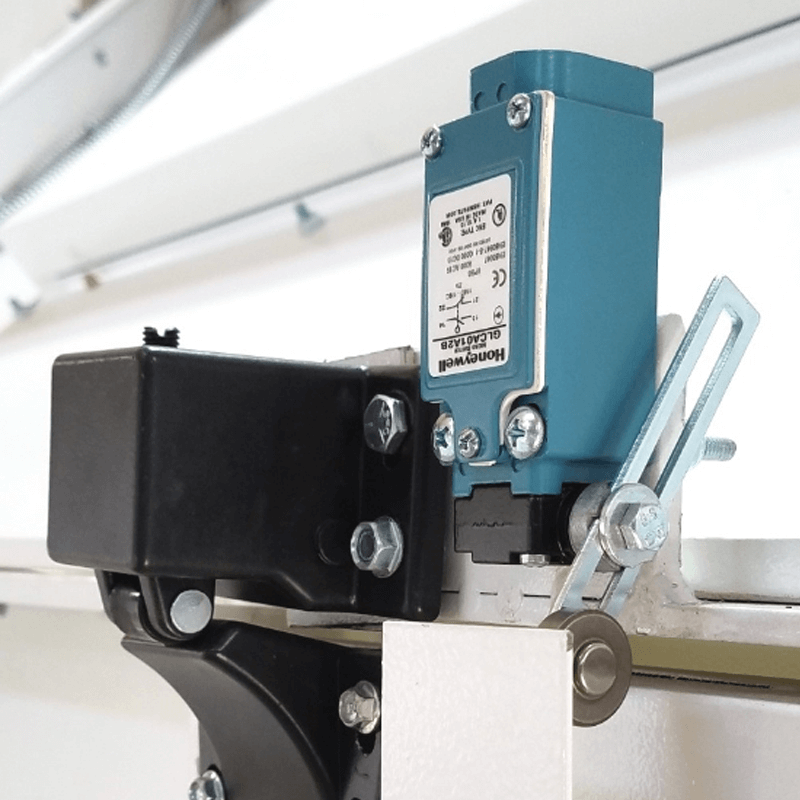

Accessible Design: Tri-fold entry doors and personnel door with viewing windows and shutoff switches.
-
Compliant & Safe: Meets or exceeds NFPA 33 safety and ventilation standards.
-
Quick Installation: Includes all hardware, sealant, manometer, and solenoid valve.
Specifications
| Specification | Details |
|---|---|
| Model | PSB-SDD26B-AK |
| Inside Dimensions | 26′ L × 14′ W × 9′3″ H |
| Outside Dimensions | 26′4″ L × 17′8″ W × 9′5″ H |
| Fan / Motor | (2) 24″ Tube Axial Fans, 2HP, 3PH, 230/460VAC, 60Hz, Non-Spark, NEMA Rated |
| Airflow | 14,000 CFM @ 0.5 Static Pressure |
| Lighting | (10) LDPI Industrial Fixtures, 4-Bulb Each |
| Lamps | (40) GE T8 Fluorescent, 32W, 5000K |
| Construction | 18-Gauge Precision-Punched Steel |
| Finish | Bright White Powder Coat (Inside & Outside) |
| Compliance | NFPA 33 |
| Included Accessories | Deluxe Control Panel, Hardware, Manometer, Sealant, Solenoid Valve |
| Doors | Tri-Fold Entry Doors & Personnel Door (with Viewing Window & Shutoff Switch) |
| Optional Add-Ons | Exhaust Extension Kits, Door Kits, Extension Panels, Gas or Electric Heaters, LED Lighting Upgrade |
| Weight | 5,100 lbs |
| Pallet Dimensions | 121″ L × 64″ W × 91″ H |
SDD26B Manual:
Ideal PSB-SDD26B-AK Detailed Diagram
