Description

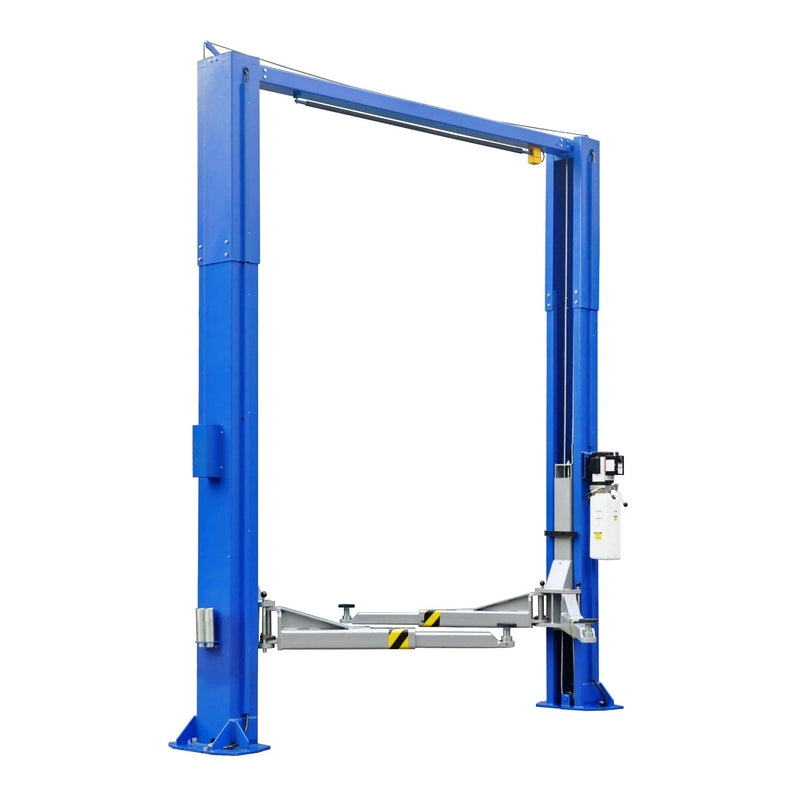

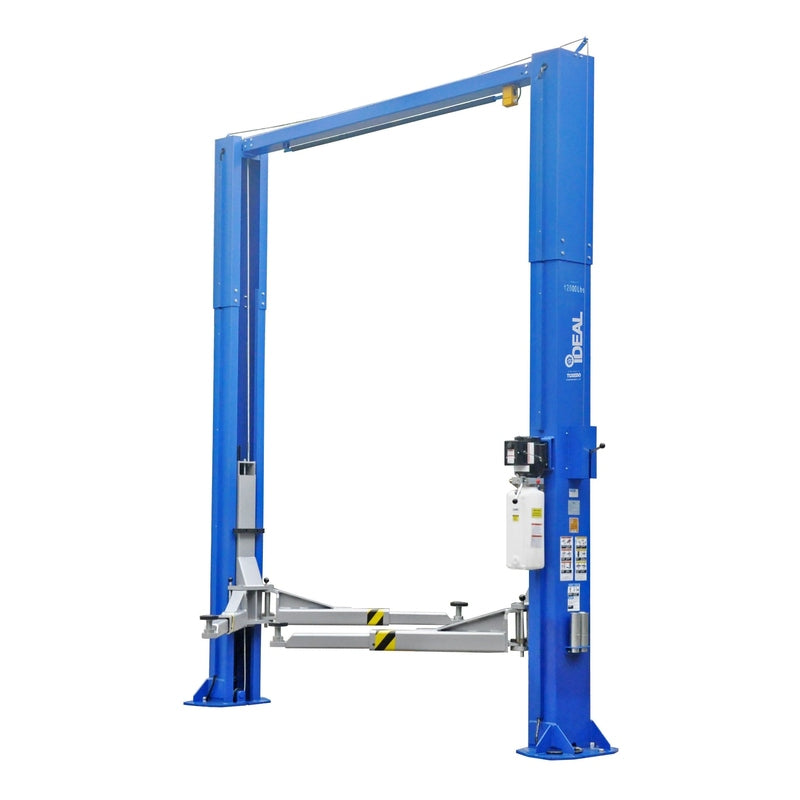

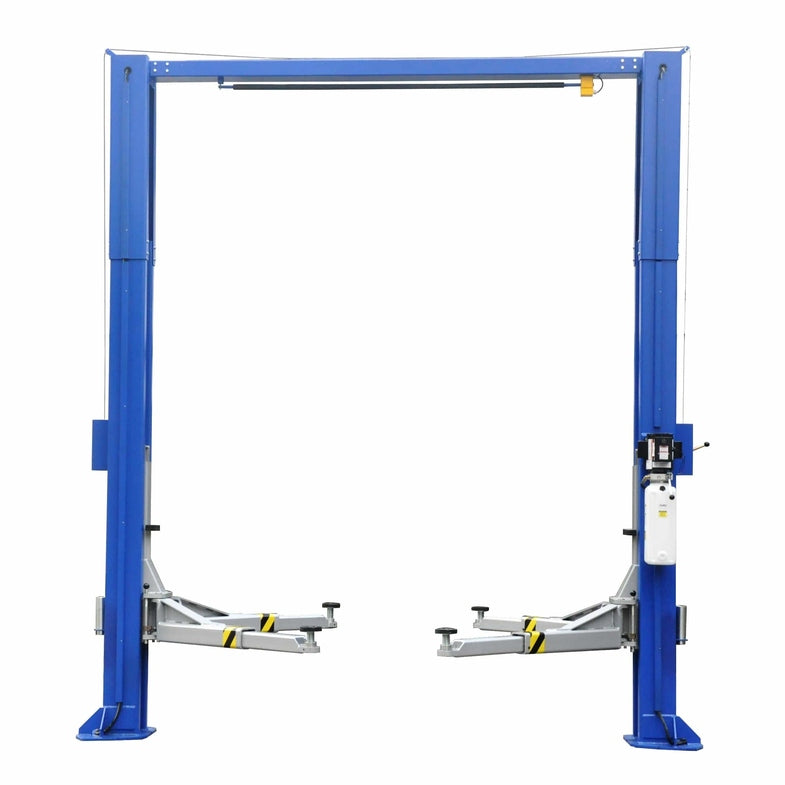

The iDEAL TP12KSC-DX 12,000 lb ALI Certified Heavy-Duty Two-Post Lift combines strength, performance, and safety in a modern, professional-grade design. Featuring a symmetric clear-floor configuration, this lift provides exceptional stability and accessibility for light- and super-duty trucks as well as most passenger vehicles.
Equipped with new low-profile swing arms, adjustable swivel pads, and stackable height adapters, the TP12KSC-DX ensures precise, flexible lifting for a wide range of vehicle types. Its single-point cable lock release and automatic arm restraints enhance operator convenience and safety, while the direct push drive hydraulic cylinders deliver smooth, consistent power.

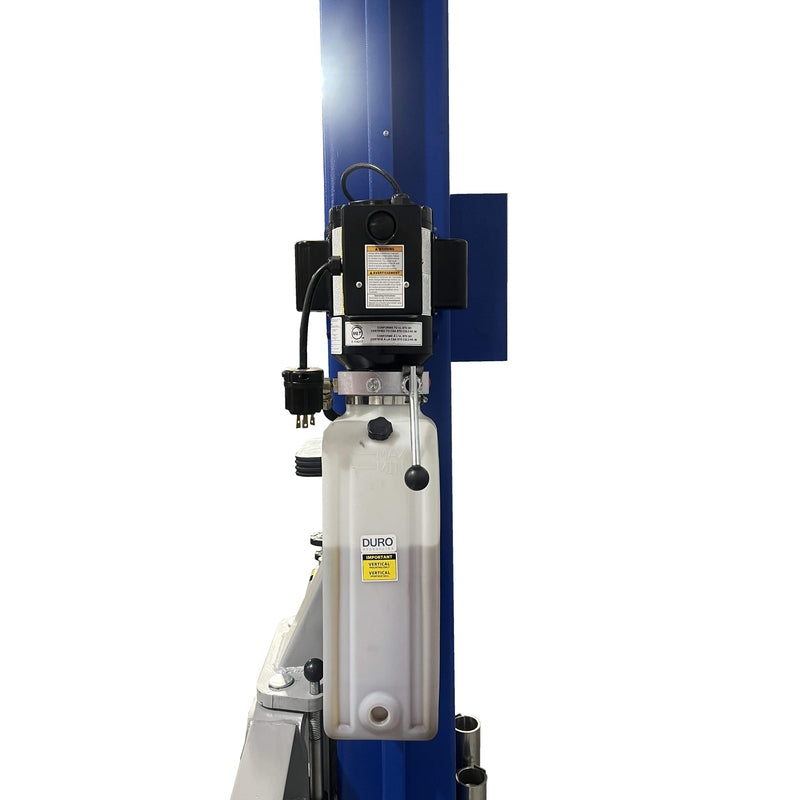

Constructed with rigid steel columns and a durable powder-coated finish, this lift is engineered for long-term reliability. The DURO UL/CSA Certified Power Unit, external hose guards, and rubber door protectors make this lift a premium solution for high-performance automotive service environments.
Key Features
-
12,000 lb Lifting Capacity — Ideal for heavy-duty trucks, vans, and passenger vehicles.
-
ALI Certified — Meets the highest standards for safety and performance.
-

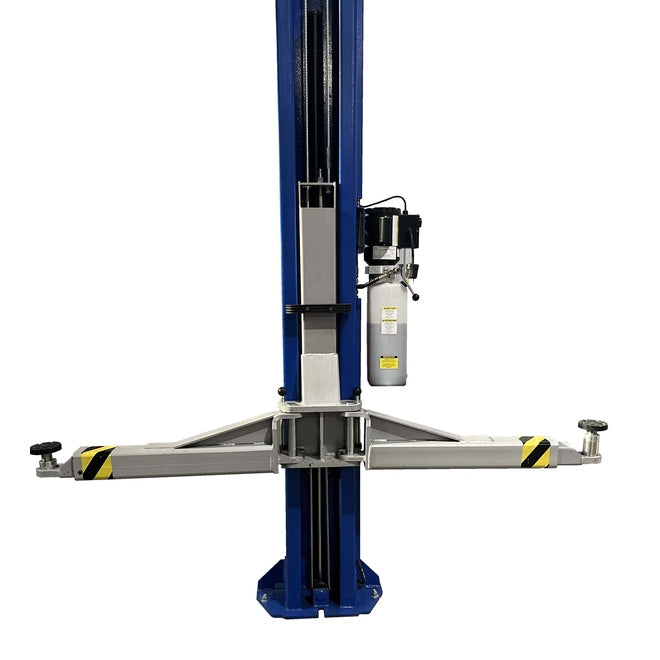

Symmetric Arm Design — Provides maximum balance and load distribution.
-

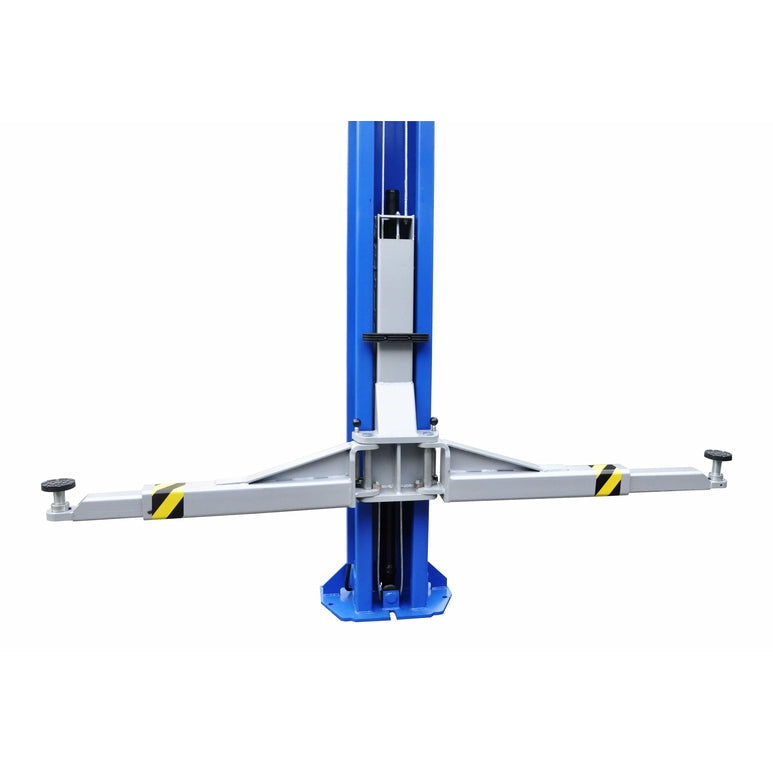

Low-Profile Swing Arms — Accommodates low-clearance vehicles with ease.
-

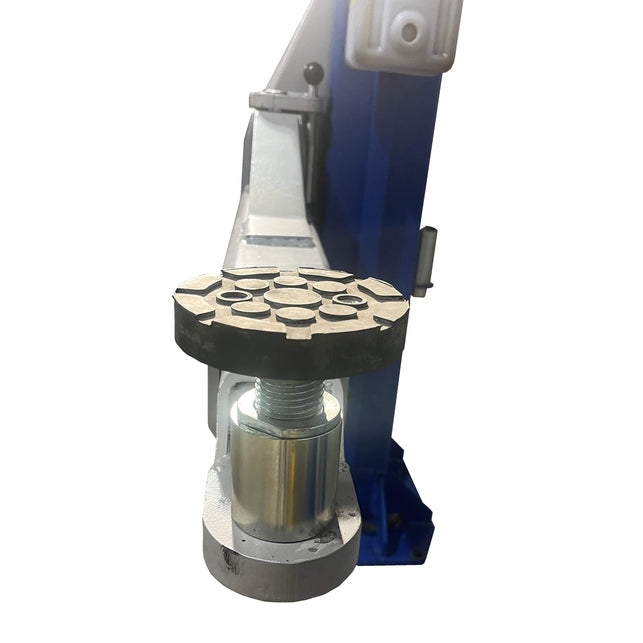

Adjustable Swivel Pads — Offer flexible vehicle contact points.
-

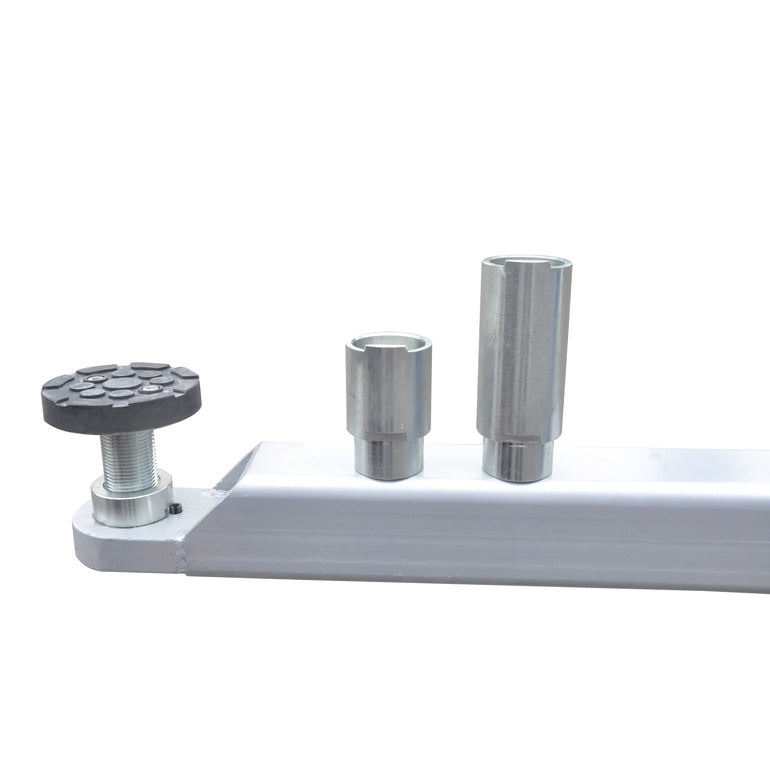

Stackable Height Adapters (2.6" & 5") — Expand lifting range for varied vehicle sizes.
-

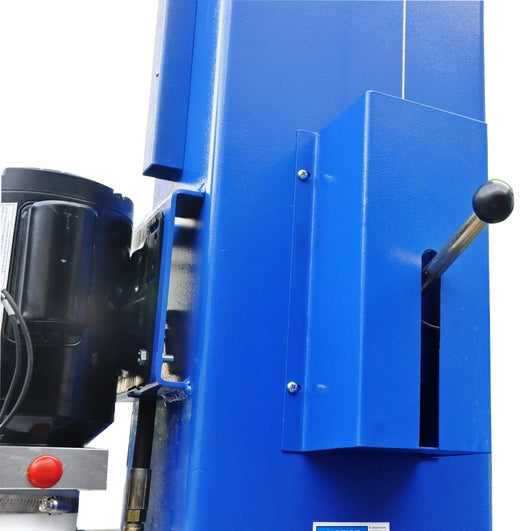

Single-Point Cable Lock Release — Simplifies operation and improves efficiency.
-
Automatic Arm Restraints — Securely lock arms during vehicle lifting.
-

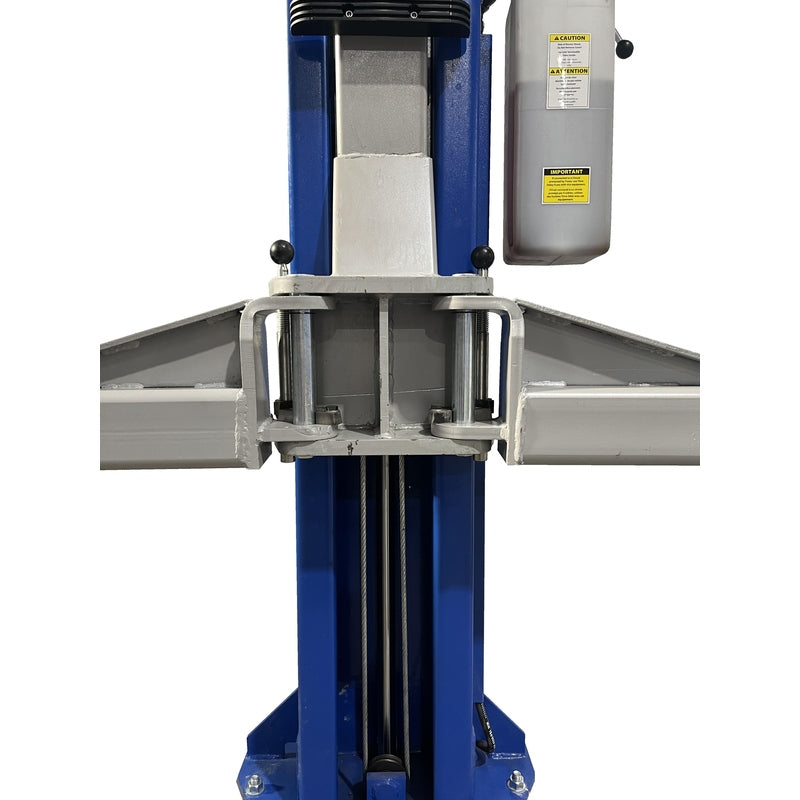

Direct Push Drive Cylinders — Provide smooth, reliable hydraulic performance.
-

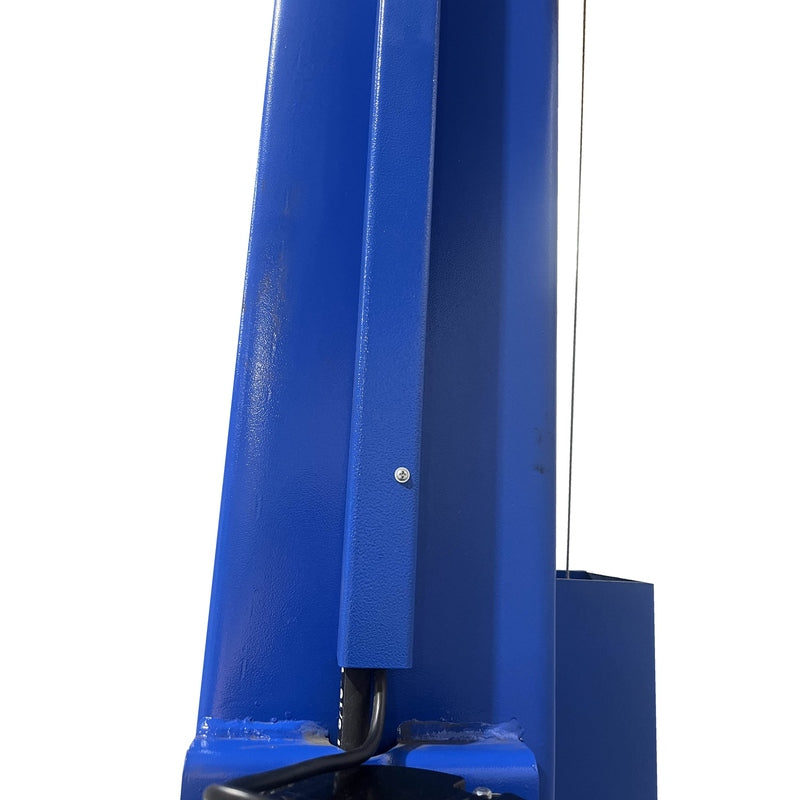

External Hose & Rubber Door Guards — Protect hoses and vehicle panels during use.
-
Durable Powder-Coat Finish — Offers corrosion resistance and professional appearance.
-
Limited Warranty — 5-Year Structural / 1-Year Parts coverage.

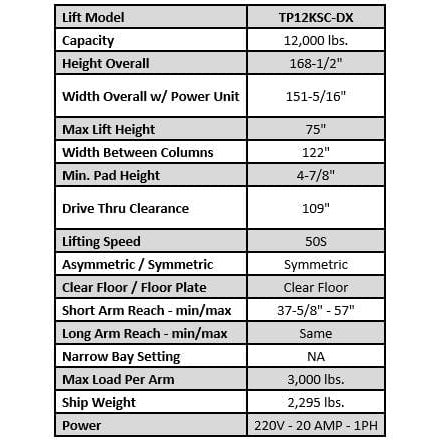

Specifications
| Specification | Details |
|---|---|
| Model | TP12KSC-DX |
| Capacity | 12,000 lbs |

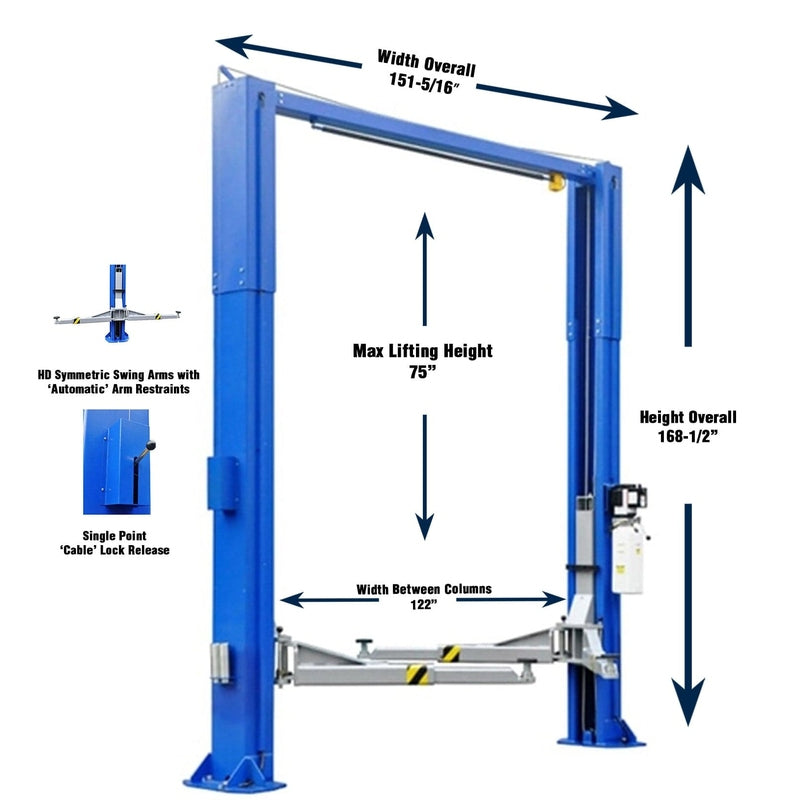

| Overall Height | 168-1/2″ |
| Overall Width (with Power Unit) | 151-3/4″ |
| Max Lift Height | 75″ |
| Width Between Columns | 122″ |
| Min. Pad Height | 4-7/8″ |
| Drive-Thru Clearance | 109″ |
| Lifting Speed | 50 seconds |
| Arm Configuration | Symmetric |
| Design | Clear Floor |
| Short Arm Reach (min/max) | 37-5/8″ – 57″ |
| Long Arm Reach (min/max) | Same |
| Max Load per Arm | 3,000 lbs |
| Required Ceiling Height | 170″ |
| Power Requirement | 220V / 20 Amp / 1PH |
| Shipping Weight | 2,295 lbs |
