Description

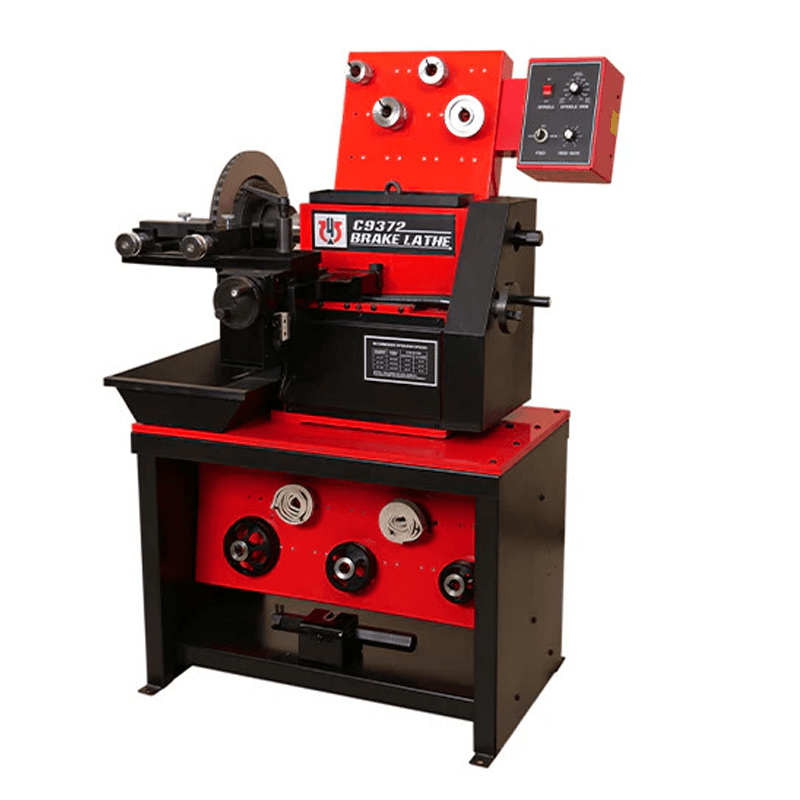

The Katool C9372 Combination Disc and Drum Brake Lathe is a durable, high-precision machine built to handle a wide range of brake components. Designed for efficiency and versatility, it accommodates various rotor and drum sizes, making it an excellent choice for automotive repair shops and service centers.
Key Features
-
Versatile Performance: Capable of machining rotors from 4" to 20" (102–508 mm) and drums from 6" to 19.5" (152–500 mm), providing wide application coverage.
-

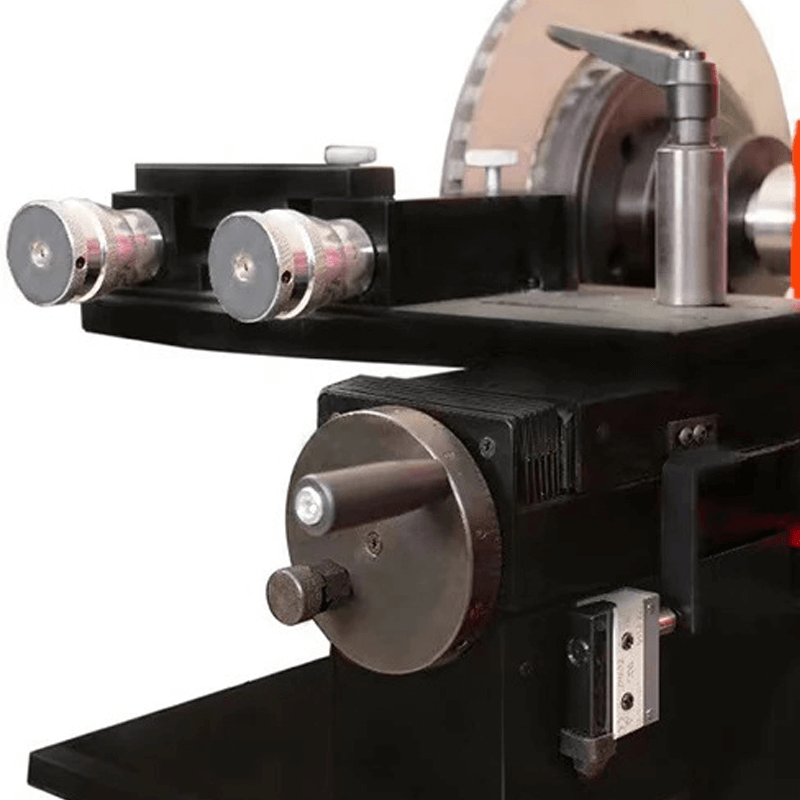

Adjustable Feed Rates: Infinitely variable feed control ensures smooth, consistent cutting for both rough and fine finishes.
-
Quick Changeover System: Easily switch between rotor and drum operations to maximize shop productivity.
-
Automatic Stop Function: Automatically halts the lathe when machining is complete, improving safety and efficiency.
-

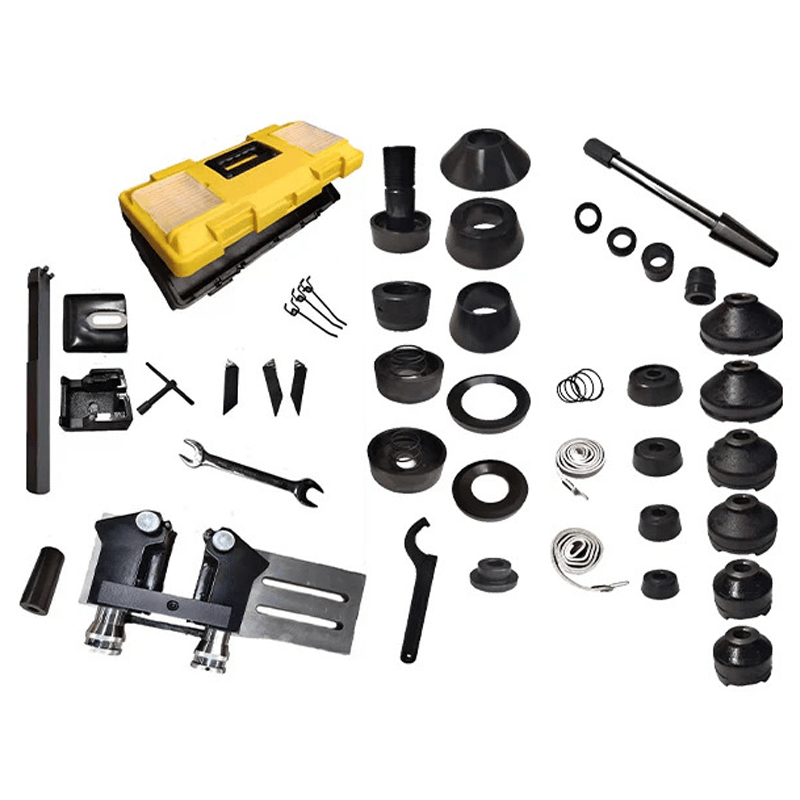

Comprehensive Adapter Set: Includes a full range of adapters to handle various rotor and drum configurations.
Specifications
| Specification | Detail |
|---|---|
| Rotor Diameter | 4”–20” (102–508 mm) |
| Max Rotor Thickness | 2.85” (73 mm) |
| Drum Diameter | 6”–19.5” (152–500 mm) |
| Drum Depth | 6.5” (165 mm) |
| Flywheel Diameter | 6”–24” (152–610 mm) |
| Spindle Capacity (1” Arbor) | 150 lbs (68 kg) |
| Spindle Speed | 70–320 RPM |
| Feed Rate (Rotor/Drum) | 0”–0.026” (0–0.66 mm) |
| Feed Rate per Minute | 2.54” (64.5 mm) |
| Motor | 110V / 220V, 50/60Hz |
| Dimensions | 43.3″ × 28.7″ × 28.3″ (1100 × 730 × 720 mm) |
| Shipping Weight | 661 lbs (300 kg) |
Warranty Information
Katool provides a 1-year limited warranty on all parts and components, covering defects in materials and workmanship.
Extended Warranty:
A 2-year extended coverage is available for Katool or M&E automotive equipment.
Warranty Includes:
-
Cylinders, power units, motors, electronics, and displays
-
Vehicle lifts include an additional 3-year structural warranty
Conditions:
-
Claims must be submitted within the warranty period with proof of purchase
-
Warranty is non-transferable
-
Replacement parts and shipping are covered (labor excluded)
-
Prior approval is required for claims; photos or videos may be requested
-
Equipment outside warranty scope or disassembled prior to review will not be covered
Resources
For more detailed information and guidance, you can download the following:
