Description

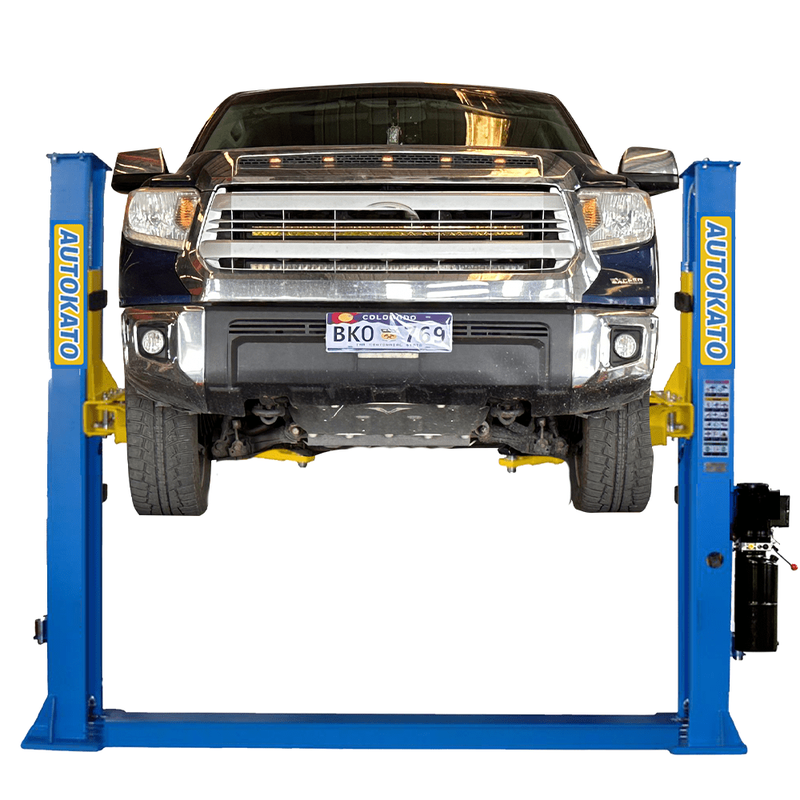

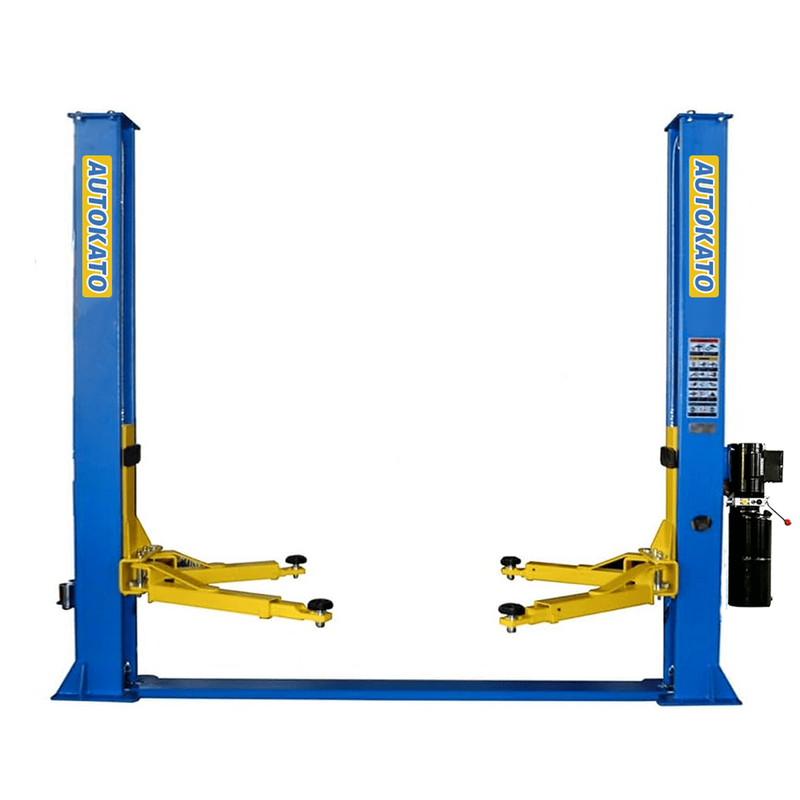

Katool AK-H115Z Two Post Vehicle Lift — 11,000 lbs Capacity
The Katool AK-H115Z Two Post Lift is engineered for strength, safety, and precision, offering a robust 11,000 lbs (5,000 kg) lifting capacity. This model is CE Approved and Certified, meeting strict international safety standards after undergoing 115% dynamic and 150% static load testing.
Designed with both functionality and durability in mind, the AK-H115Z features a manual dual-side safety release, a space-efficient base plate design, and dual hydraulic chain-drive cylinders for smooth, balanced lifting. Rubber door guards protect vehicle doors during operation, while screw-on lift pads and +100mm extension adaptors provide added flexibility for a wide range of vehicles.
Powered by a top-grade hydraulic system and a 220V/60HZ/1PH 2.2KW motor, this lift ensures reliable performance for professional workshops and garages.
Key Features
-
11,000 lbs (5,000 kg) lifting capacity
-
CE Approved and Certified — tested at 115% dynamic and 150% static load standards
-
Manual safety release from both sides
-
Sturdy base plate design for added stability
-
Dual hydraulic chain-drive cylinders for smooth lifting operation
-
Rubber pad door protection
-
Screw-on lift pads and +100mm extension adaptor set
-
High-performance hydraulic system (220V / 60HZ / 1PH)
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 11,000 lbs / 5,000 kg |
| Max. Lifting Height | 70.8" / 1800 mm |
| Min. Height | 3.9" / 100 mm |
| Overall Height | 110.9" / 2818 mm |
| Overall Width | 140.4" / 3565 mm |
| Outside Column Width | 124.8" / 3170 mm |
| Inside Column Width | 110.2" / 2800 mm |
| Drive-Thru Clearance | 98.4" / 2500 mm |
| Front Arm Reach (Min/Max) | 29.5"–46" (750–1170 mm, 2 stages) |
| Rear Arm Reach (Min/Max) | 35.4"–58.2" (900–1480 mm, 2 stages) |
| Motor | 220V AC / 60HZ / 1PH / 2.2KW |
| Net Weight | 570 kg |
