Description

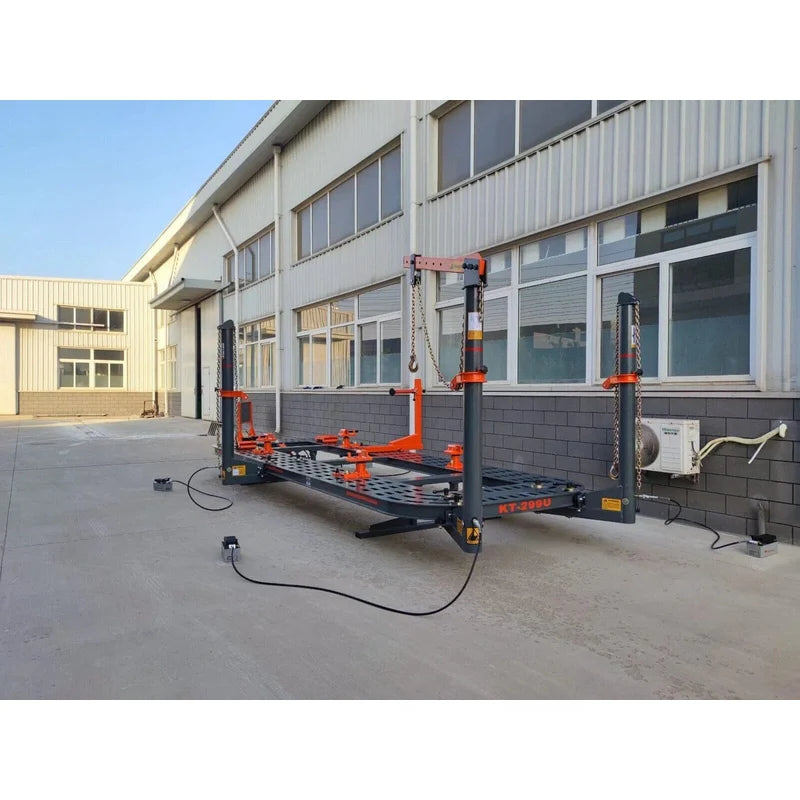

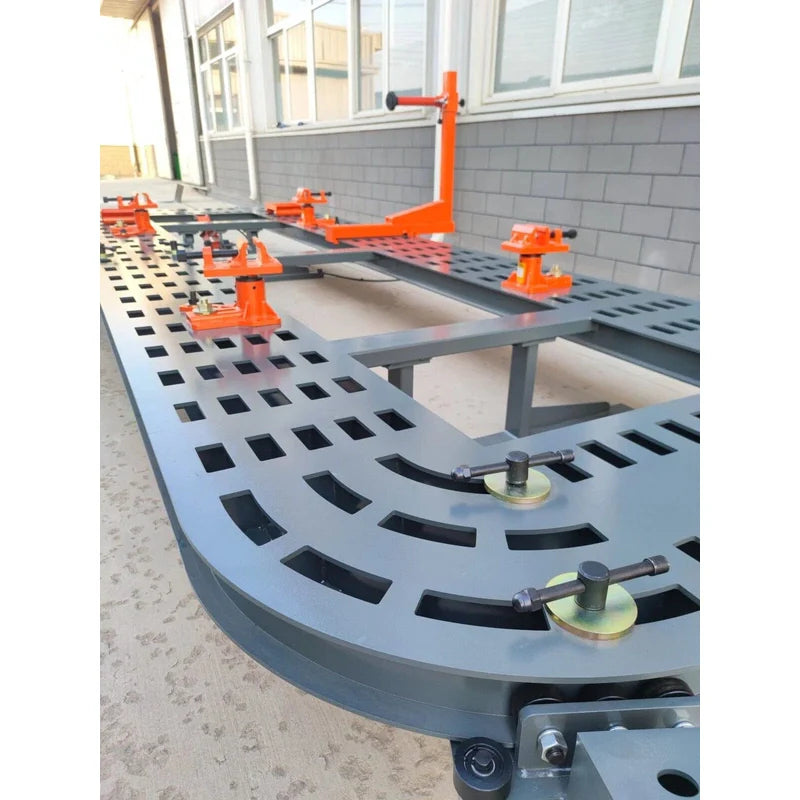

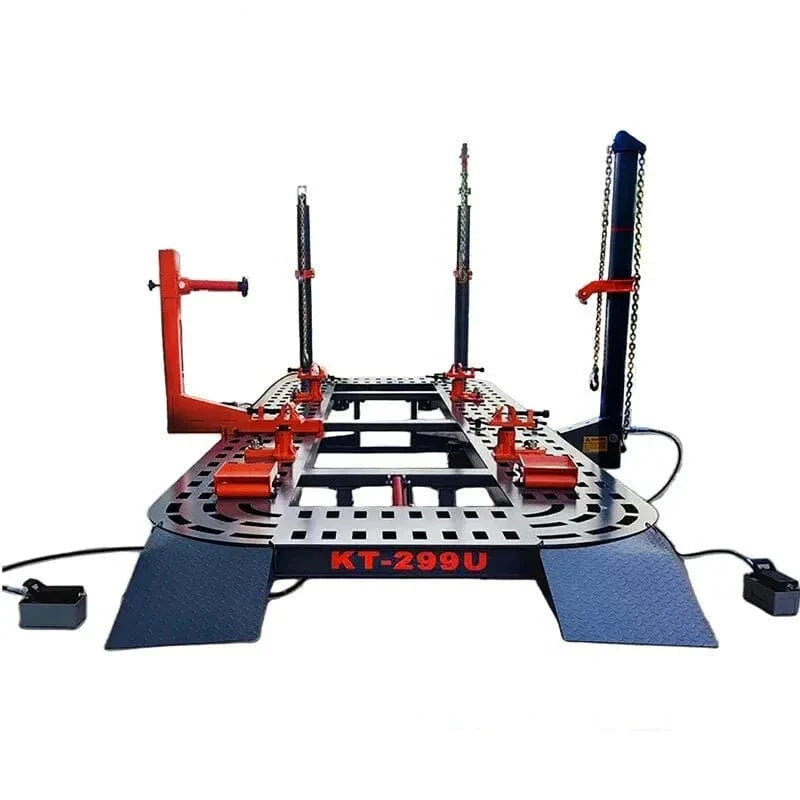

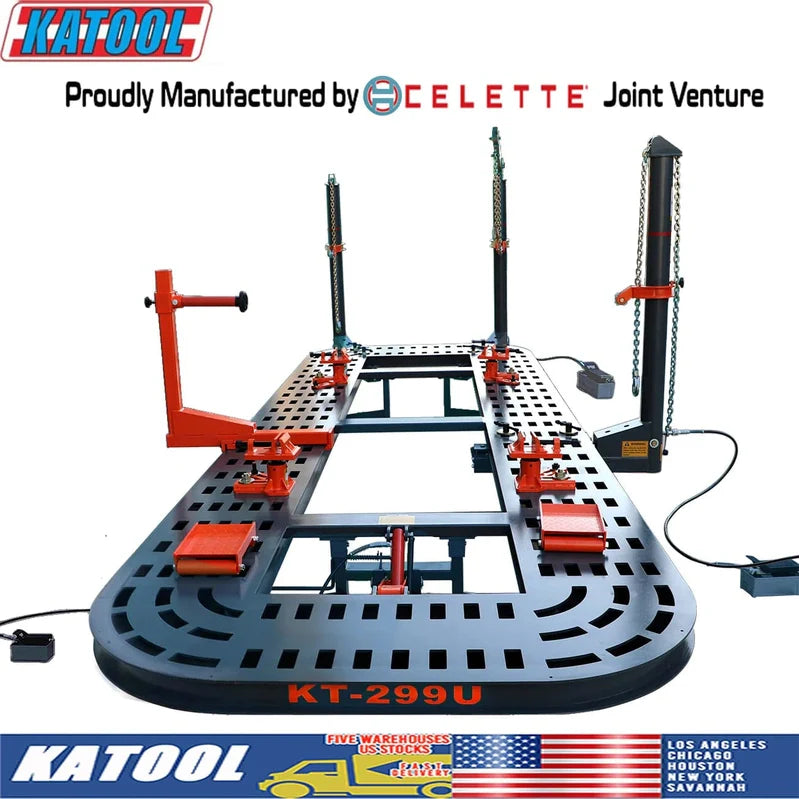

The Katool KT-299U Auto Body Frame Machine is engineered for power, precision, and efficiency in automotive body repair. Built to handle demanding jobs, it features a pulling tower with a 10-ton capacity, delivering the strength needed for accurate frame straightening and alignment.
Equipped with a positioning slot system that eliminates dead zones, this frame machine ensures exact and seamless vehicle placement every time. Its high-pressure pneumatic pump provides consistent performance for smooth, reliable operation.
Constructed from premium manganese steel and manufactured using CNC plasma cutting, CO₂ welding (Panasonic), shot blasting, and powder coating, the KT-299U is designed for exceptional strength and long-term durability. The tilt-style hydraulic lifting platform allows greater flexibility during repairs, while the 360° rotating towers—made from 10mm seamless steel pipe—provide superior accessibility from any angle.
For enhanced precision, the main clamps utilize a spiral movement design, enabling fine control during the repair process. All included accessories and tools are multi-heated and forged, ensuring maximum resilience and professional-grade performance for years of dependable use.
Features
-
10-Ton Pulling Tower: Provides powerful pulling force for efficient and precise frame straightening.
-

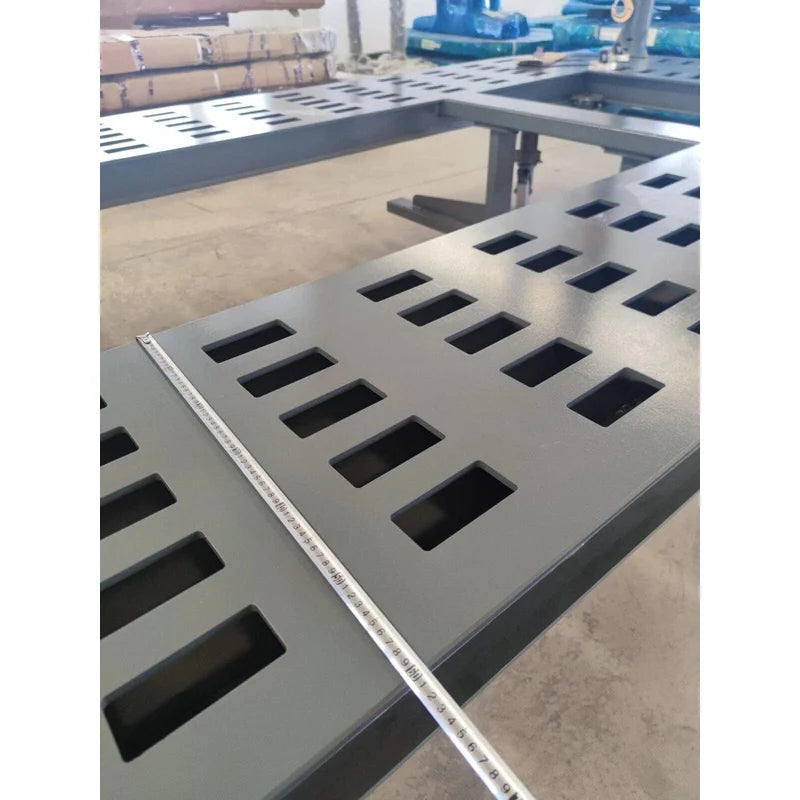

Positioning Slot System: Allows accurate vehicle placement without dead zones for optimal repair alignment.
-
High-Pressure Pneumatic Pump: Ensures consistent and reliable performance for heavy-duty applications.
-
Premium Construction: Built with high-grade manganese steel using CNC plasma cutting, Panasonic CO₂ welding, shot blasting, and durable powder coating for exceptional strength and longevity.
-

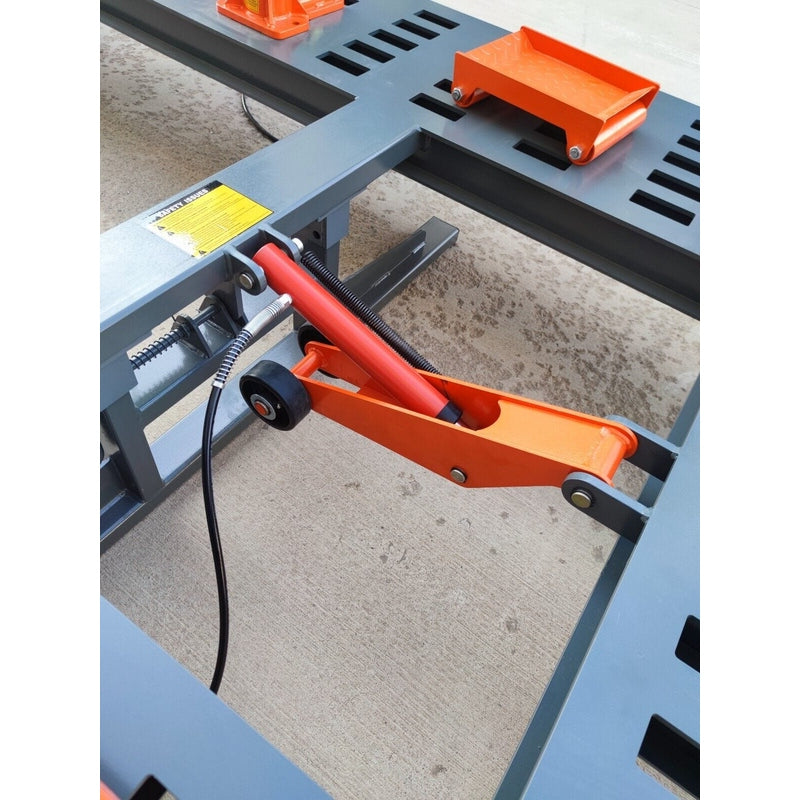

Tilt Hydraulic Lifting Platform: Offers enhanced flexibility for various repair operations.
-

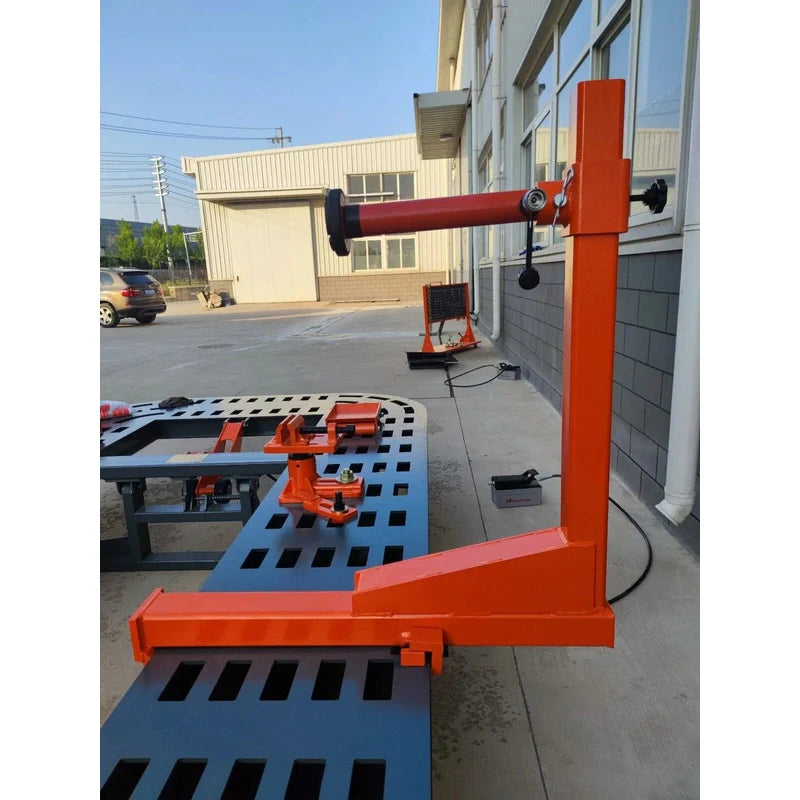

360° Rotating Towers: Made from 10mm seamless steel pipe, allowing full rotation around the platform for superior maneuverability.
-

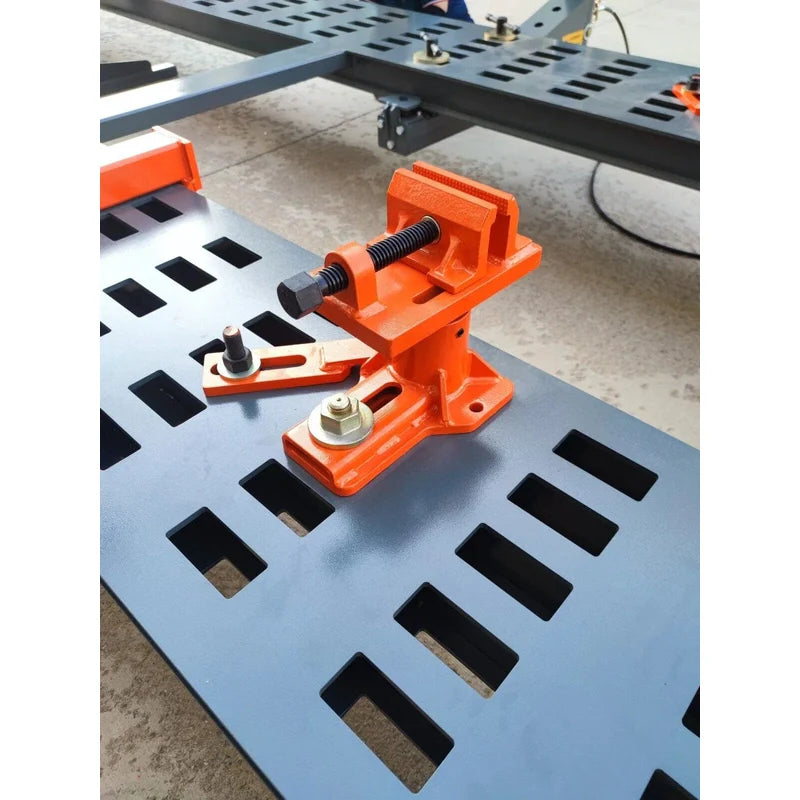

Spiral Clamp Design: Main clamps feature a unique spiral movement system for precise and controlled adjustments.
-

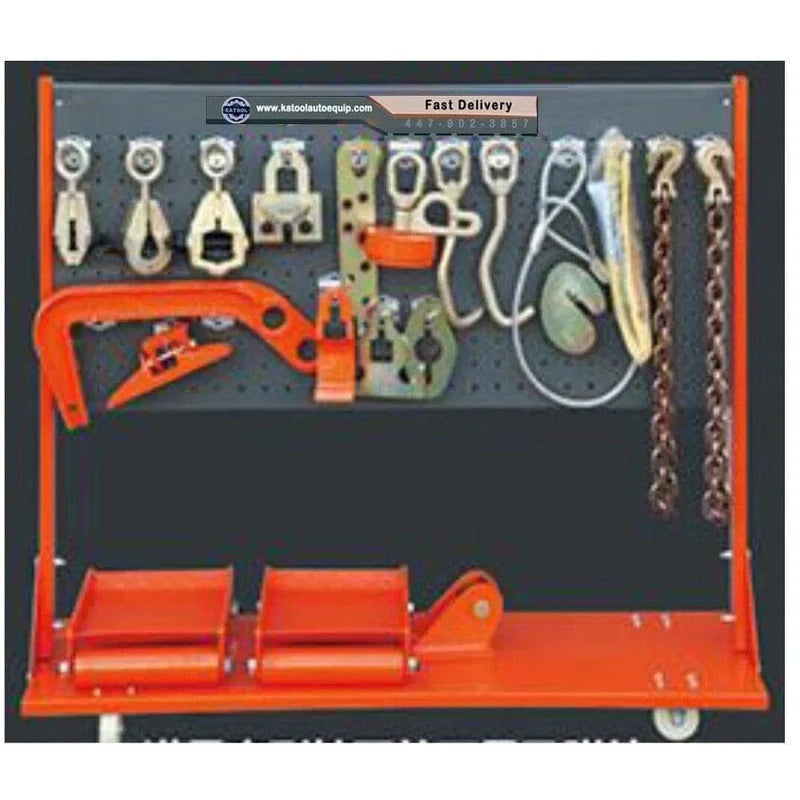

Forged Accessories & Tools: All included tools and accessories undergo multi-heating and forging processes for maximum durability and reliability.
Specifications
-
Length: 256.1 in
-
Width: 86.68 in
-
Height: 4.3 – 67 in
-
Pulling Capacity: 100 kN
-
Rated Voltage: 220V
-
Pulling Radius: 360°
-
Air Supply Required: 0.8 MPa
-
Maximum Loading Capacity: 7,700 lbs (CE Certified)
Warranty
Katool provides a limited one-year (12 months) warranty covering all parts and product defects at no additional cost.
An optional 2-year extended warranty is available for all Katool and M&E automotive equipment.
Warranty Includes:
-
Cylinders, power units, motors, displays, and electronics.
-
Vehicle lifts include an extra three-year (36 months) warranty on structural components.
Warranty Conditions:
-
Valid only within the warranty period and for original purchases from authorized vendors.
-
Claims require the original order number.
-
Replacement parts and shipping are provided at no cost.
-
Labor is not covered.
Important Notes:
-
All claims are subject to approval by the warranty/service department.
-
Photos or videos of defects may be required.
-
Do not disassemble equipment before issue verification.
-
Out-of-warranty items or damage outside policy terms will be the buyer’s responsibility.
