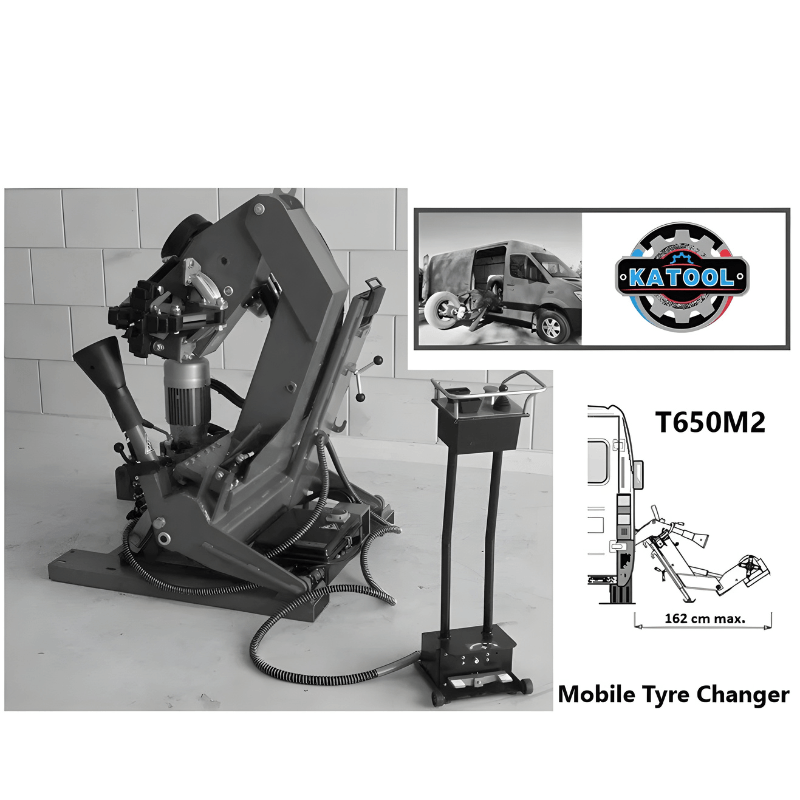

Katool KT-308 Mobile Tire Changer

Katool KT-308 Mobile Tire Changer for Truck & Car Tires

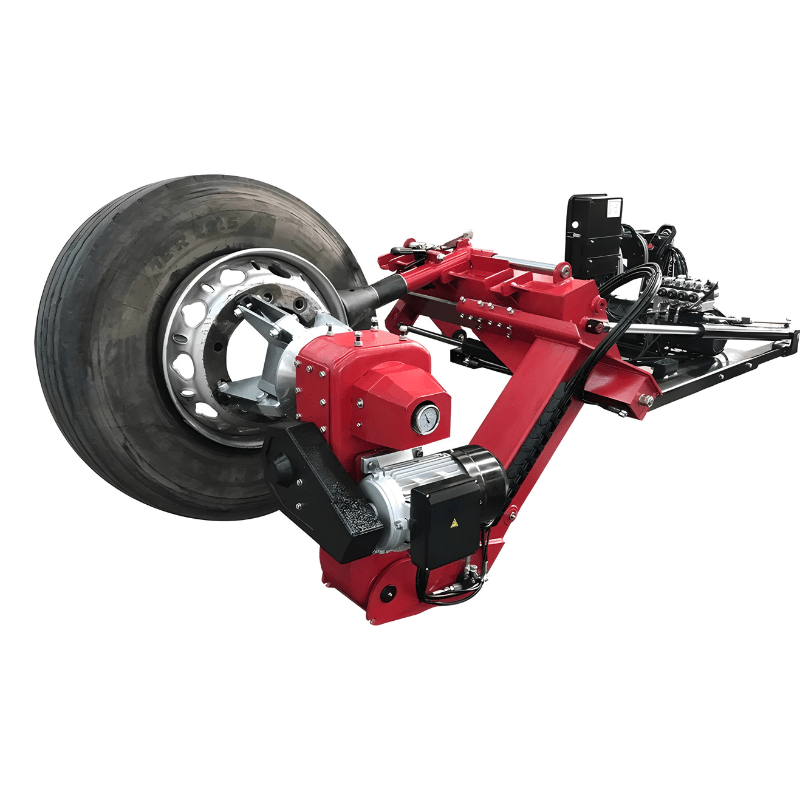

The Katool KT-308 Mobile Tire Changer is a heavy-duty tire service solution designed for technicians working with commercial trucks, passenger vehicles, agricultural equipment, construction machinery, and industrial applications. Its mobile configuration makes it possible to perform professional tire service closer to the job site, helping reduce the need to transport large wheels and tires back to a dedicated workshop.

Powered by a robust hydraulic system, the KT-308 delivers up to 5,512 lbs. of clamping force and accommodates wheel assemblies weighing up to 1,653 lbs. With a rim diameter capacity of 13" to 26", a maximum wheel diameter of 54.3", and support for wheel widths up to 27.6", the machine provides the capacity needed for a broad range of commercial and heavy-duty tire applications.

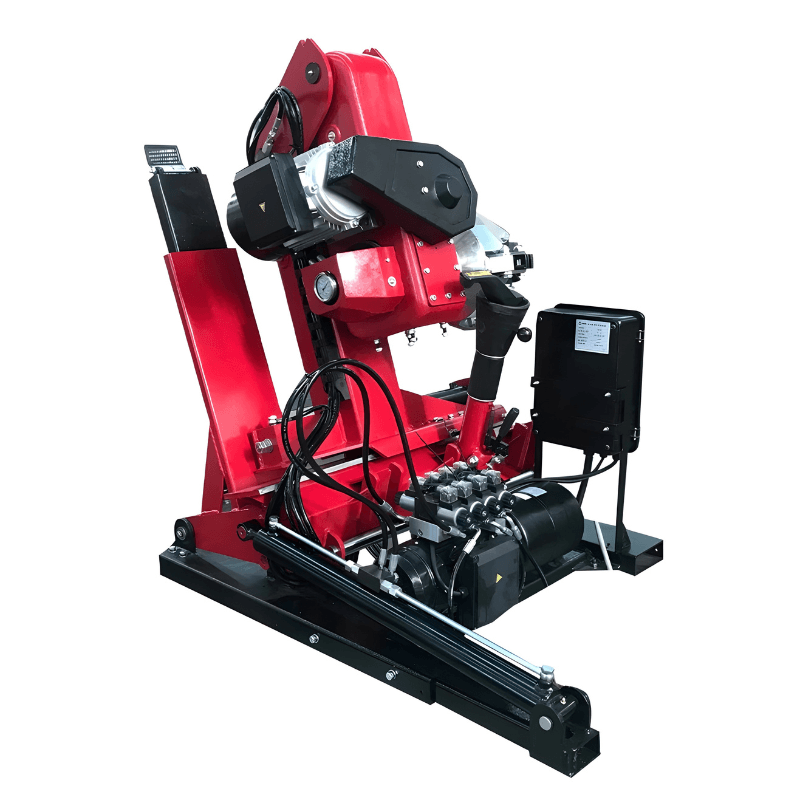

The KT-308 features bi-directional hydraulic rotation, reinforced steel construction, and a 24V control system for precise operation. Its compact footprint and heavy-duty capabilities make it a practical choice for fleet maintenance operations, agricultural service providers, construction equipment service, commercial tire shops, and mobile tire service applications.

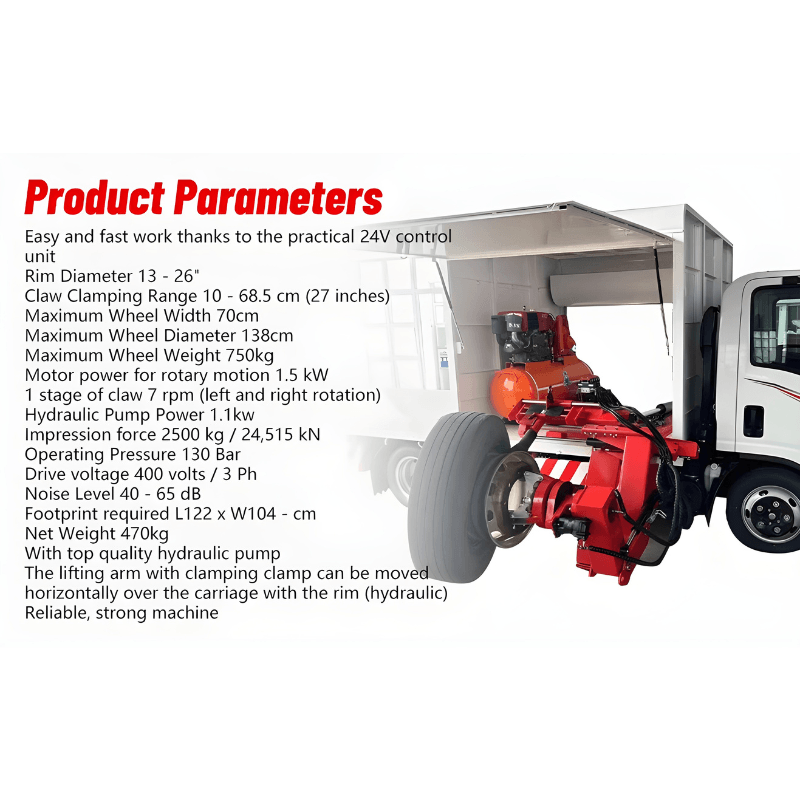

KT-308 Tire Changer Specifications

• Model: KT-308

• Product Type: Mobile Hydraulic Tire Changer

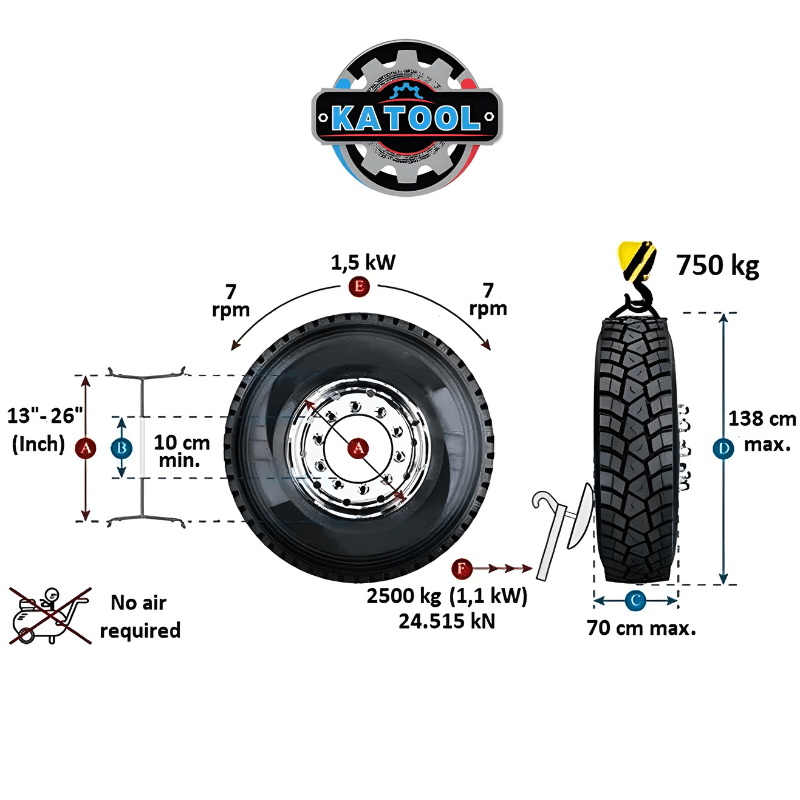

• Rim Diameter Capacity: 13"–26"

• Claw Clamping Range: 4"–27"

• Maximum Wheel Width: 27.6"

• Maximum Wheel Diameter: 54.3"

• Maximum Wheel Weight: 1,653 lbs.

• Rotation Motor Power: 2.0 HP

• Rotation Speed: 7 RPM, Bi-Directional

• Hydraulic Pump Power: 1.5 HP

• Maximum Clamping Force: 5,512 lbs.

• Operating Pressure: 1,885 PSI / 130 Bar

• Power Supply: 400V, 3-Phase

• Control Voltage: 24V

• Noise Level: 40–65 dB

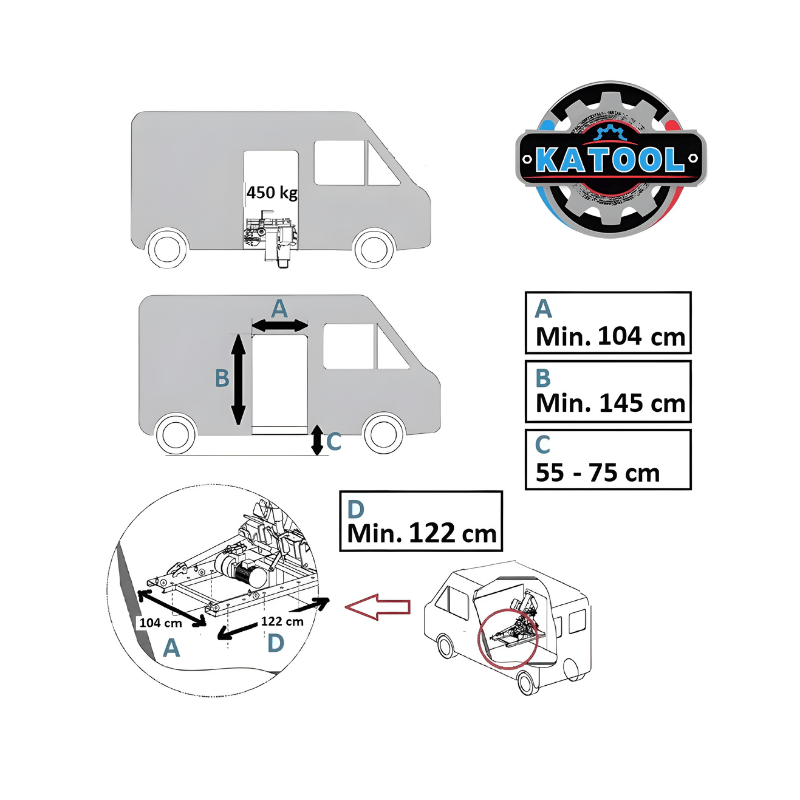

• Required Footprint: 48" × 41"

• Net Weight: 1,036 lbs.

• Warranty: 1-Year Parts Warranty / 3-Year Structural Warranty

KT-308 Mobile Tire Changer Features & Benefits

• Heavy-duty mobile tire changer for commercial and professional tire service

• Suitable for trucks, passenger vehicles, agricultural machinery, construction equipment, and industrial vehicles

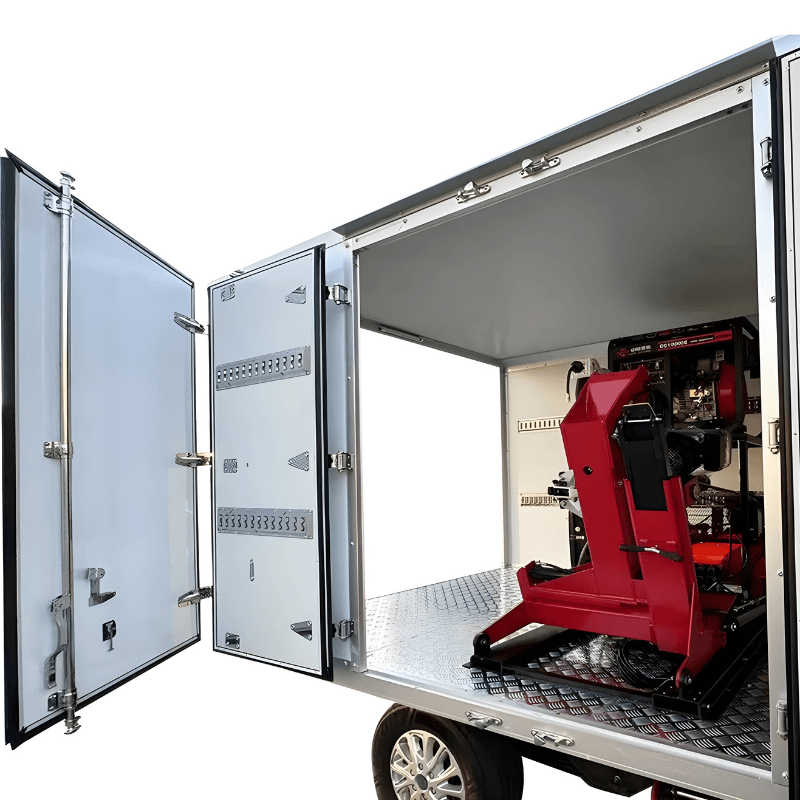

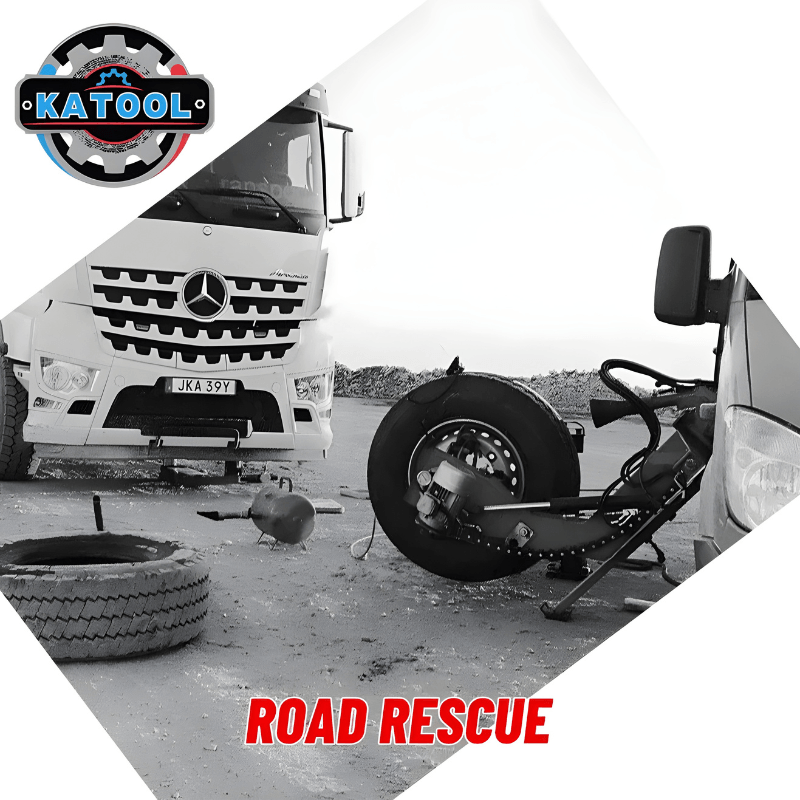

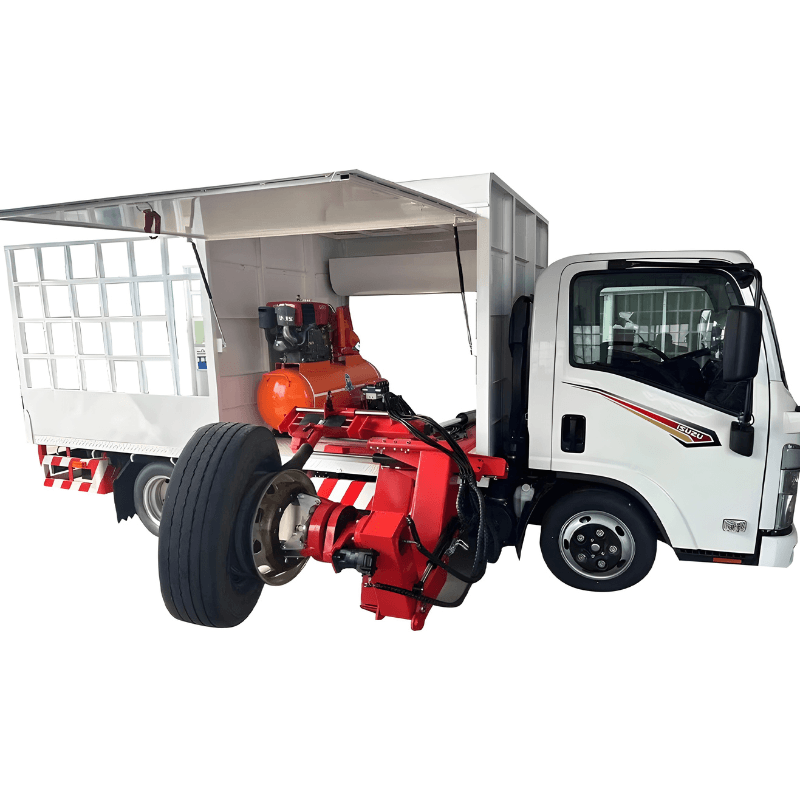

• Mobile configuration allows tire service to be performed closer to the job site

• Powerful hydraulic operating system provides controlled mounting and demounting

• Delivers up to 5,512 lbs. of clamping force

• Supports wheel assemblies weighing up to 1,653 lbs.

• Accommodates rim diameters from 13" to 26"

• Handles wheel diameters up to 54.3"

• Supports wheel widths up to 27.6"

• 7 RPM bi-directional rotation assists with efficient tire mounting and removal

• Reinforced heavy-duty steel construction for demanding commercial applications

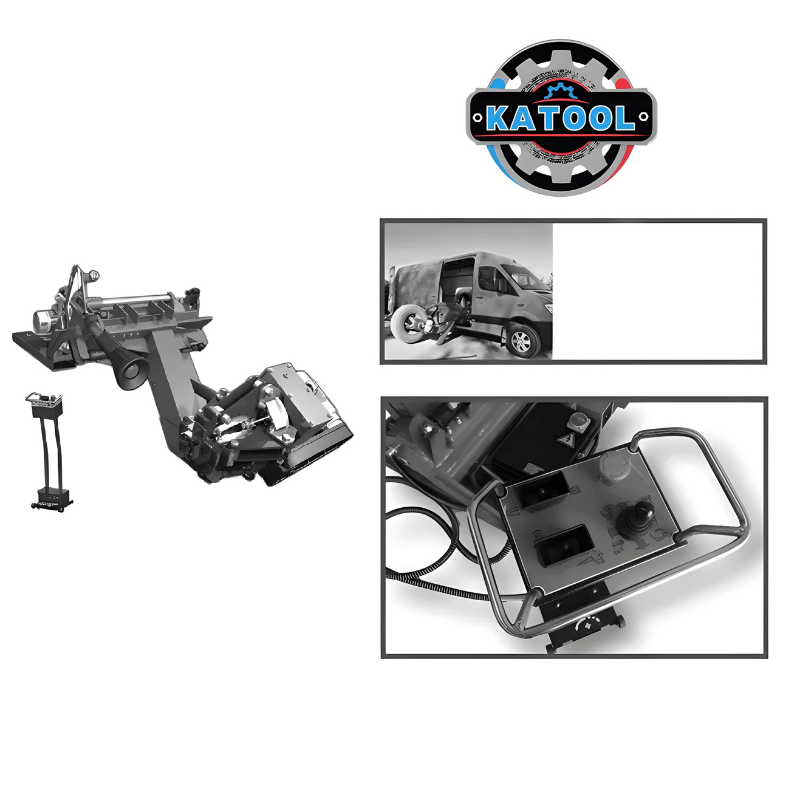

• 24V control system provides low-voltage machine controls

• Compact 48" × 41" footprint helps maximize available workspace

• Well suited for fleet maintenance and mobile tire service operations

• Designed for agricultural, construction, roadside, and industrial tire applications

• Helps reduce downtime associated with transporting large wheels and tires to a separate service facility

• Built for demanding professional tire service environments

Katool KT-308 Manual

Manual currently unavailable.
