Description
Overview

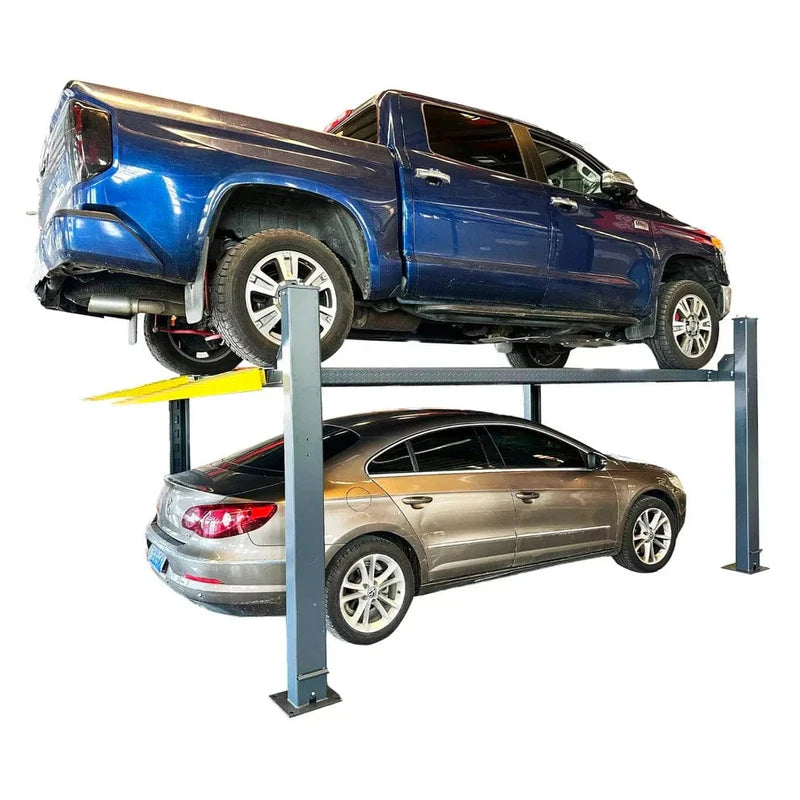

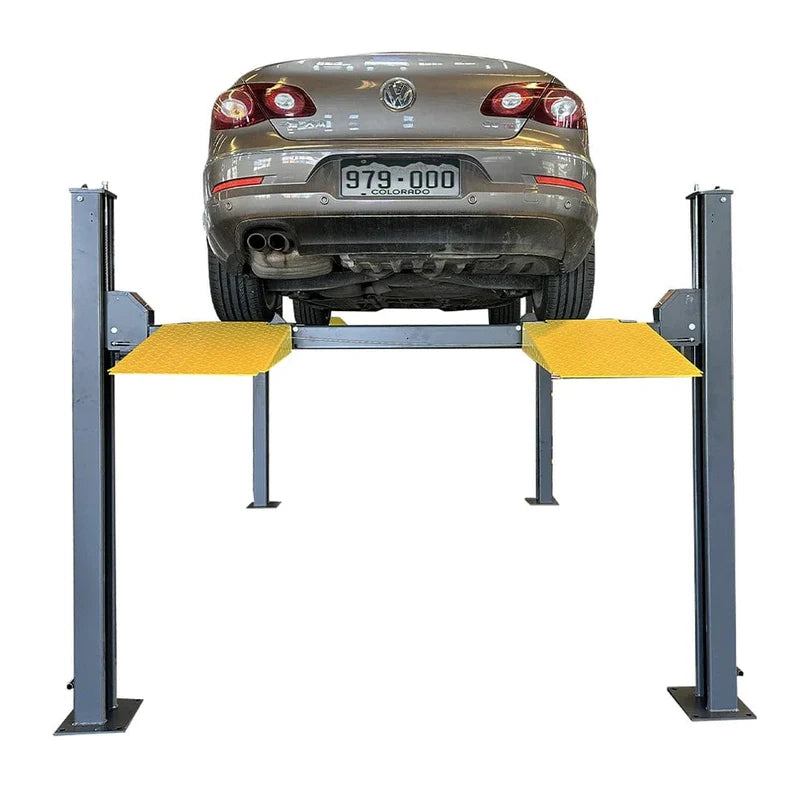

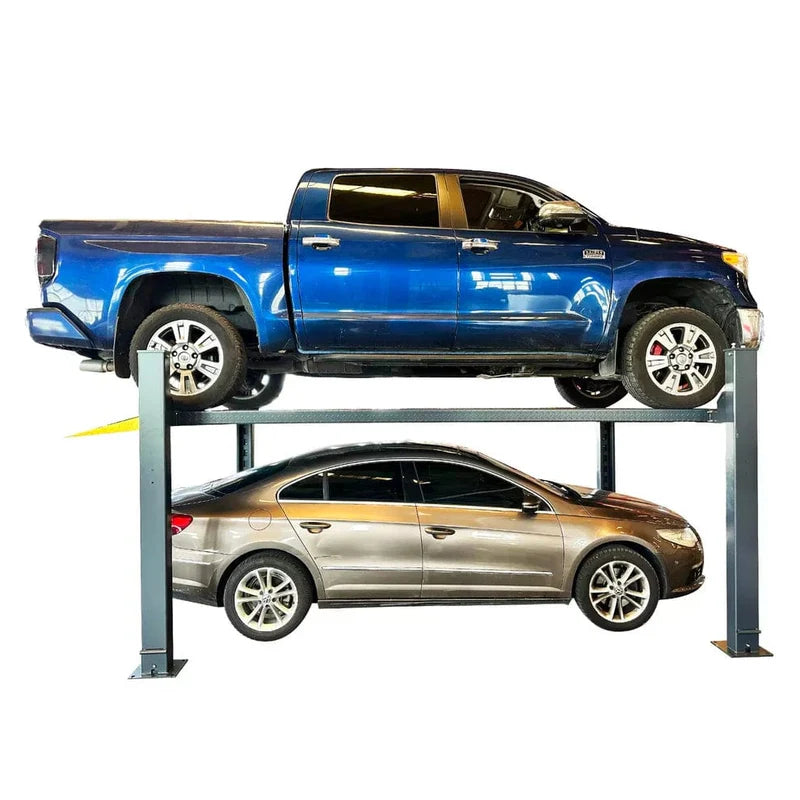

The Katool KT-4H850 Heavy Duty 4-Post Car Lift delivers reliable lifting performance with a robust 8,500 lbs capacity, making it ideal for professional garages and home workshops alike. CE approved and certified, this lift meets 115% dynamic and 150% static loading capacity standards, ensuring exceptional safety and durability.
Designed for both stability and convenience, the KT-4H850 features a single-point manual safety lock release and four mechanical locking devices equipped with primary and secondary safety locks for maximum protection. Its non-skid diamond platforms, adjustable safety lock ladders, and included caster kit provide secure and flexible operation. Additional features such as two drip trays and a jack tray make maintenance tasks cleaner and more efficient.
Powered by a high-quality hydraulic system, the KT-4H850 is available in 110V/60HZ/1PH or optional 220V/60HZ/1PH configurations, offering dependable performance for various shop setups.
Concrete Requirement: A minimum concrete thickness of 3.93 inches (100 mm) with a 3,000 PSI rating is required. Failure to meet this standard could result in serious injury or equipment failure. It is the customer’s responsibility to verify the concrete specifications prior to installation.
Key Features
-
8,500 lbs Lifting Capacity: Designed to handle heavy vehicles with confidence.
-
CE Approved and Certified: Meets rigorous 115% dynamic and 150% static load standards.
-

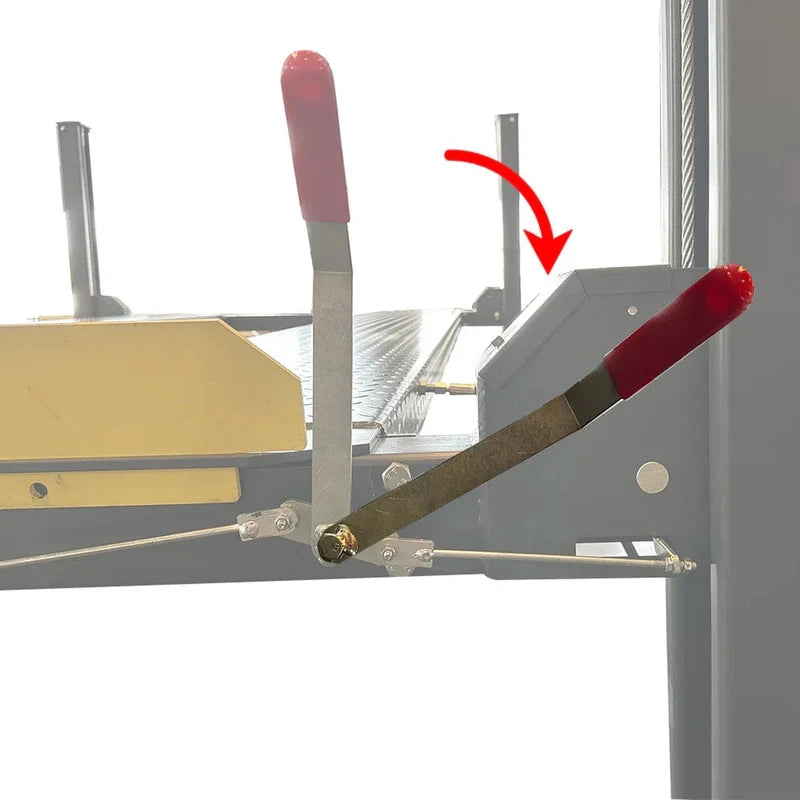

Single-Point Manual Safety Lock Release: Provides secure, controlled operation.
-

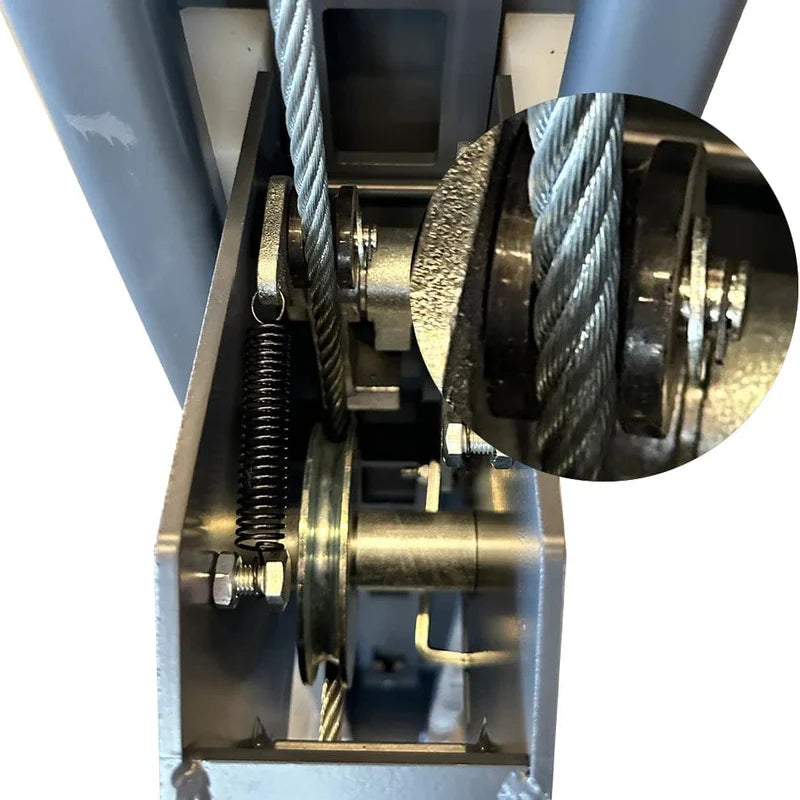

Four Mechanical Locking Devices: Each includes primary and secondary safety locks for added protection.
-

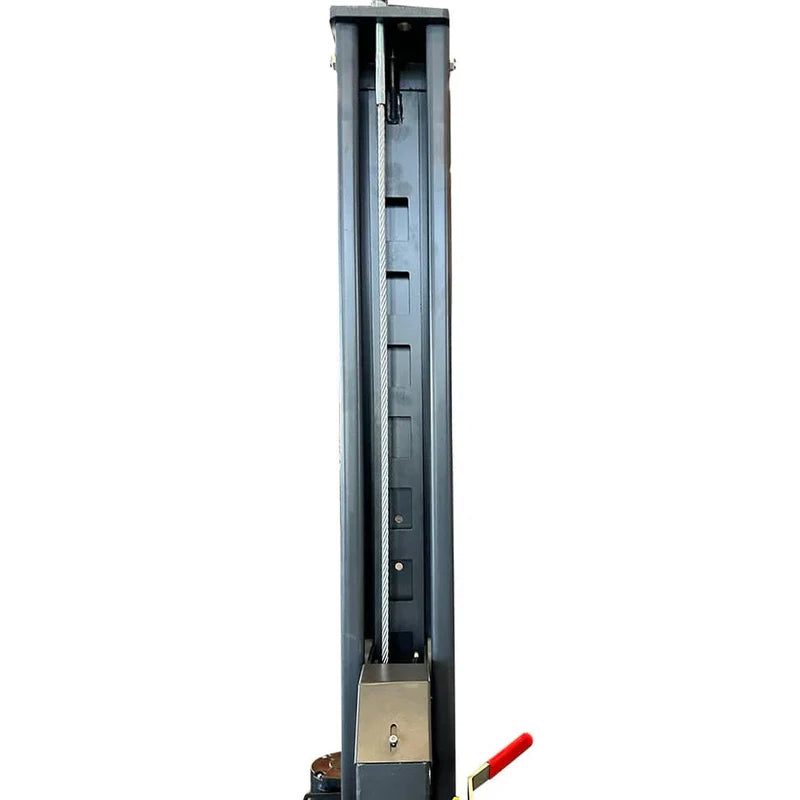

Flexible Power-Side Column: Can be installed on either side, front, or rear for convenience.
-
Non-Skid Diamond Platforms: Ensure safety and stability during vehicle servicing.
-

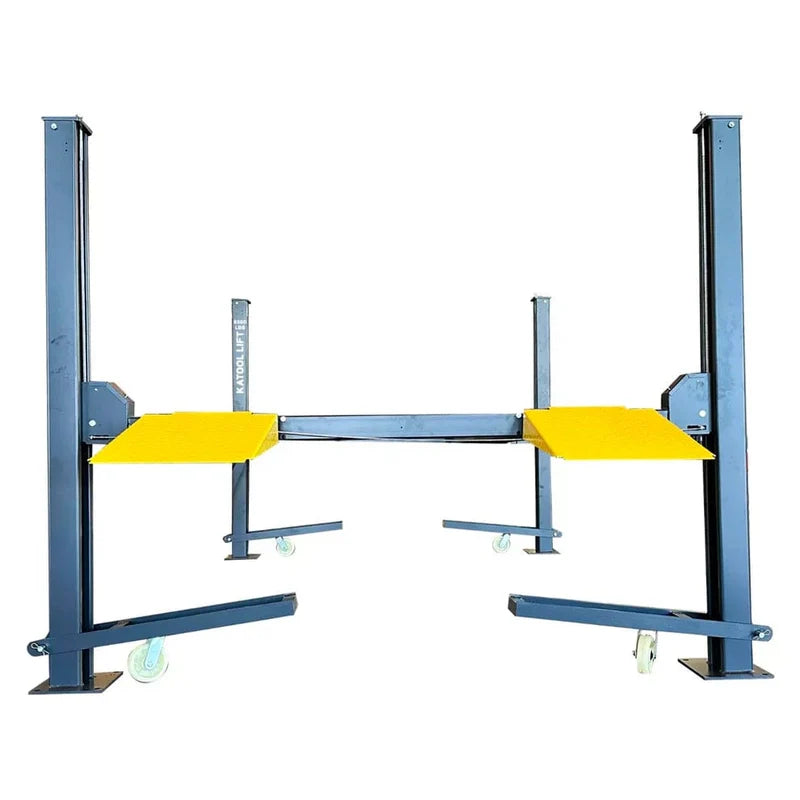

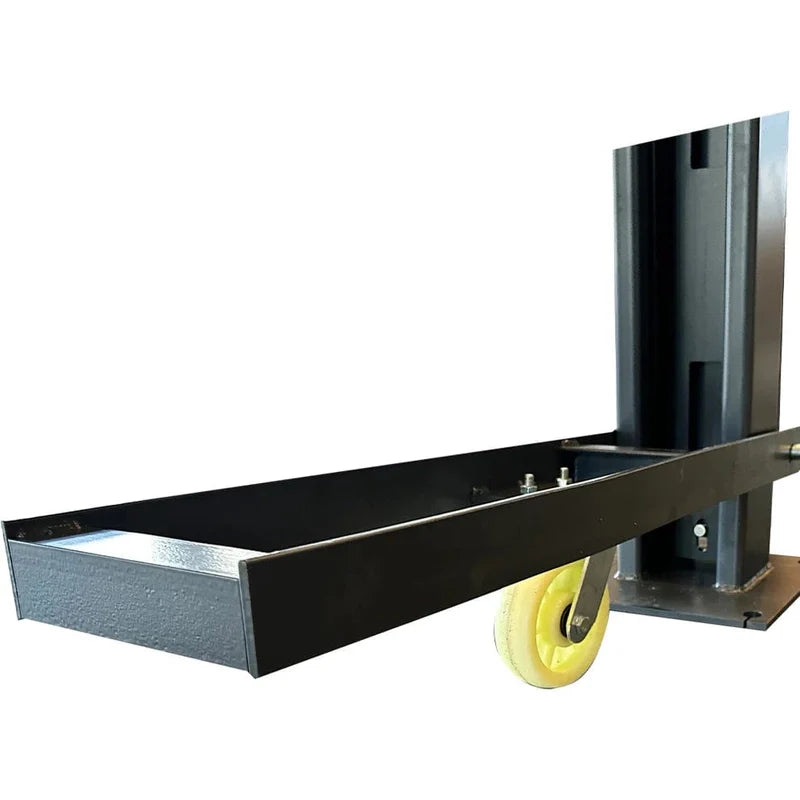

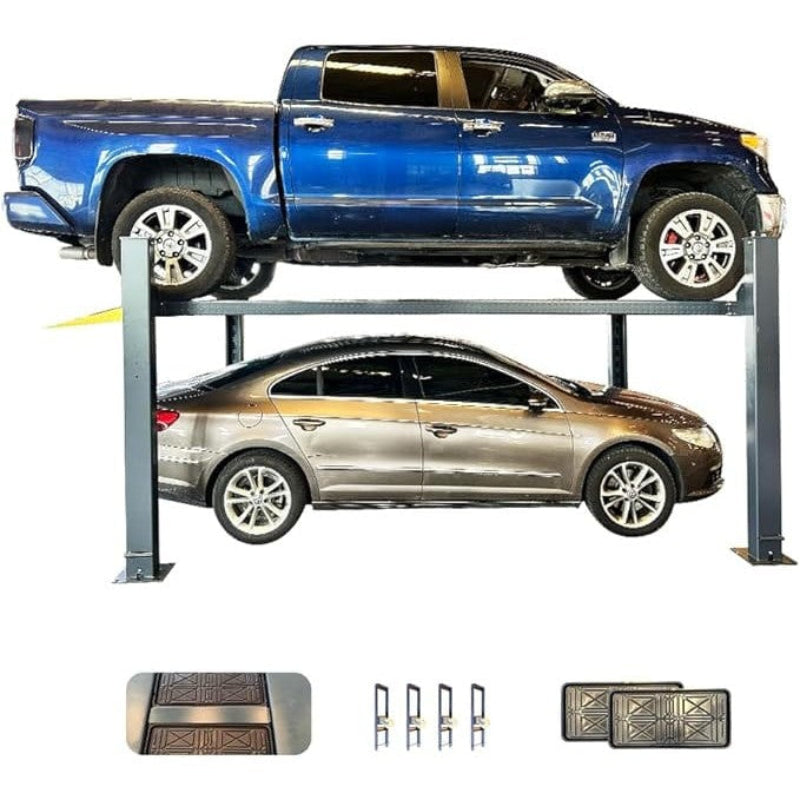

Caster Kit Included: Allows easy mobility around your workspace.
-
Two Drip Trays and Jack Tray: Keep your work area clean and organized.
-
High-Quality Hydraulic System: Operates on 110V/60HZ/1PH or optional 220V/60HZ/1PH for efficiency and reliability.

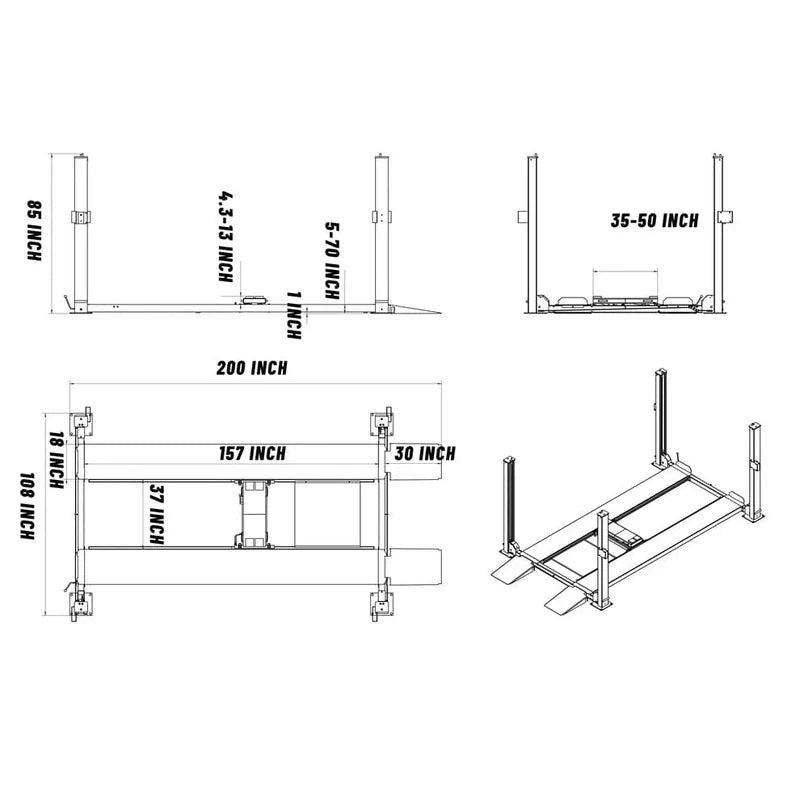

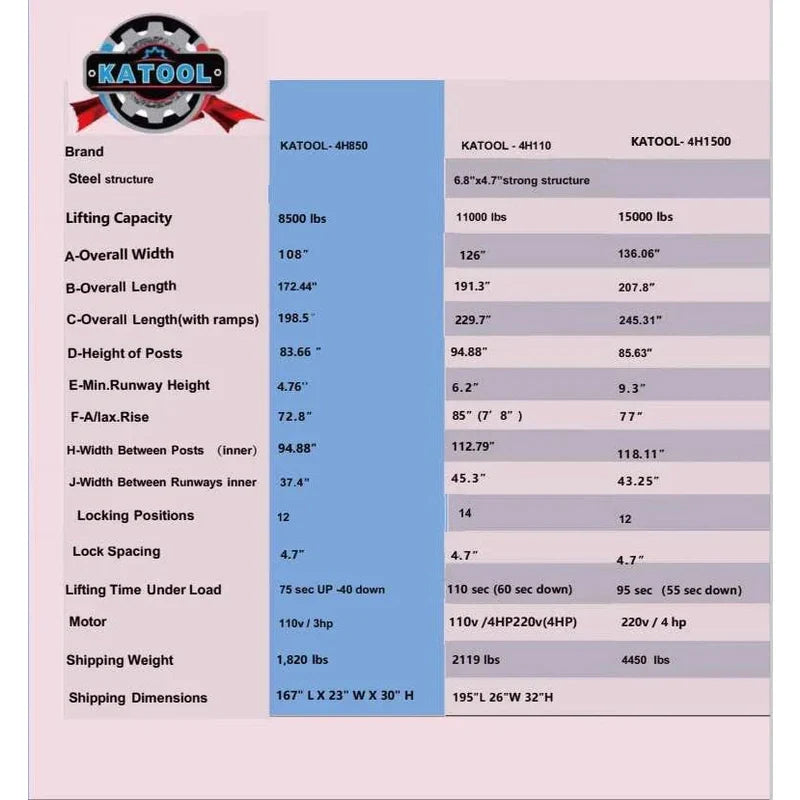

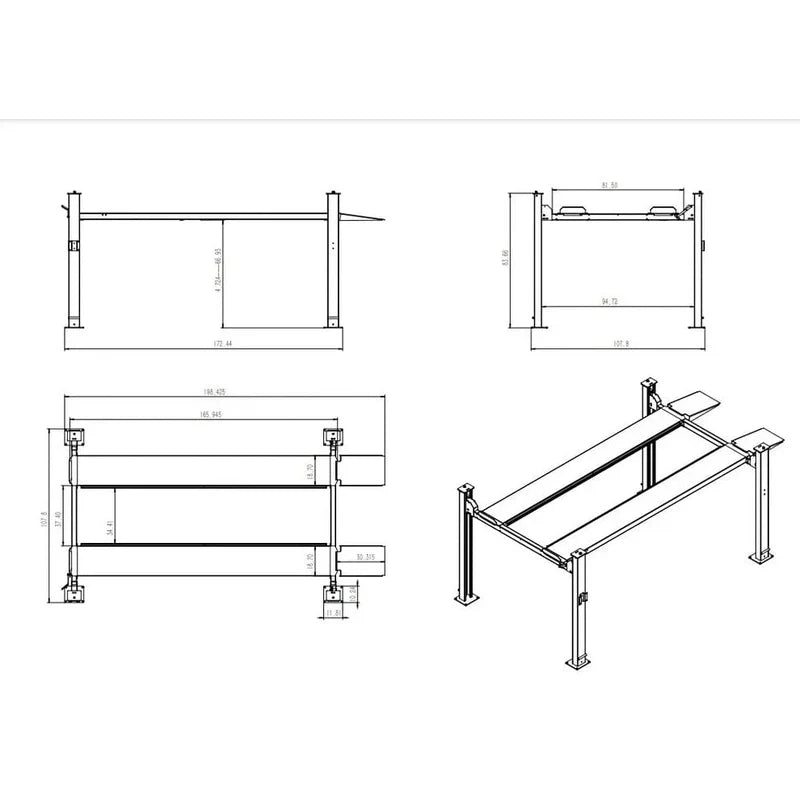

Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 8,500 lbs (3,850 kg) |

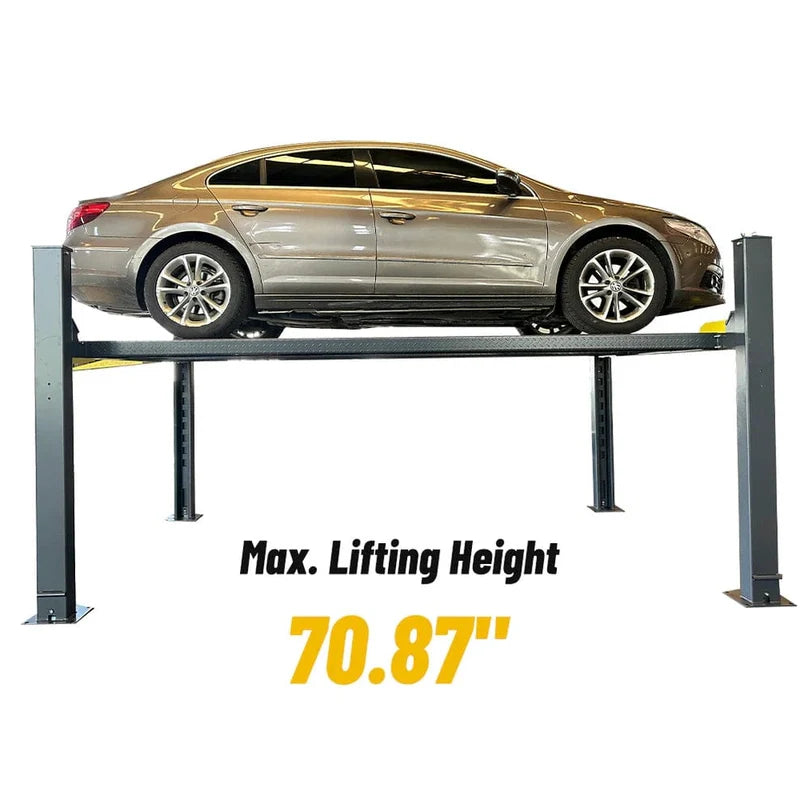

| Max. Lifting Height | 70.87" (1,800 mm) |
| Lifting Time | 75s Up / 40s Down |
| Height of Posts | 83.66" (2,125 mm) |
| Width Overall | 107.95" (2,742 mm) |
| Length Overall (with ramps) | 198.43" (5,040 mm) |
| Inside Columns | 94.72" (2,406 mm) |
| Min. Runway Height | 4.76" (121 mm) |
| Motor | 110VAC/60HZ/1PH |
| Net Weight | 1,820 lbs (826 kg) |
| Shipping Dimensions | 167" L × 23" W × 30" H |
User Manual
For detailed installation instructions, safety precautions, and operating procedures, please refer to the Katool KT-4H850 User Manual.
Click below to download:
Installation Video
Warranty
Katool offers a 1-year limited warranty covering all parts and product defects to ensure long-lasting reliability. Additionally, vehicle lifts include a 3-year structural warranty for extra peace of mind. Customers may also purchase an optional 2-year extended warranty plan for expanded coverage.
Warranty Coverage Includes:
-
Cylinders, power units, motors, displays, and electronic components
-
Structural components for vehicle lifts
Warranty Terms & Conditions:
-
Claims must be submitted within the warranty period and are non-transferable.
-
Replacement parts will be provided free of charge, including shipping costs.
-
Labor costs are not covered under this warranty.
-
Do not disassemble any equipment prior to warranty approval, as this may void coverage.
All warranty claims are subject to review by Katool’s warranty and service department. Supporting documentation, such as photos or videos of the defect, may be requested to process approval.
