Katool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling Jack
Katool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling Jack
Katool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling Jack
Katool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling Jack
Katool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling Jack
Katool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling Jack
Roll over image to zoom in Click on image to zoom
Katool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling JackKatool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling JackKatool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling JackKatool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling JackKatool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling JackKatool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling Jack

Katool KT-4M110PA 11,000 lb. 4-Post Alignment Lift with 7,000 lb Rolling Jack

KatoolSKU: KT-4M110PA

At a Glance

  • 4-Post Alignment Lift; Rolling Jack Capacity: 7,000 lbs
  • Max Lifting Height: 84.5"
Voltage: 110V
Price:
$3,999.00

Please complete and submit the shipping form above to enable Add to Cart.

Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

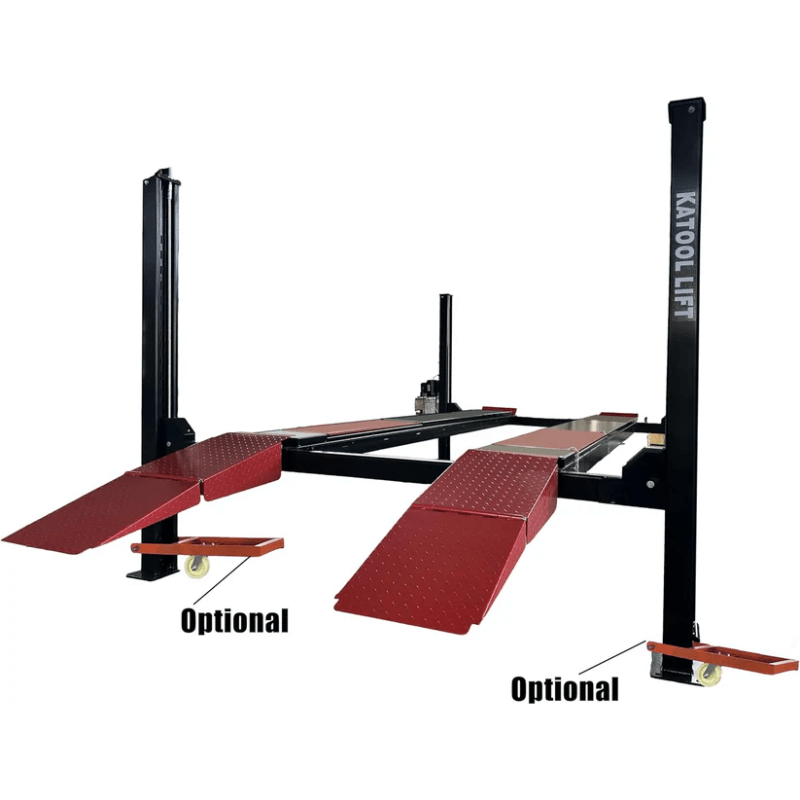

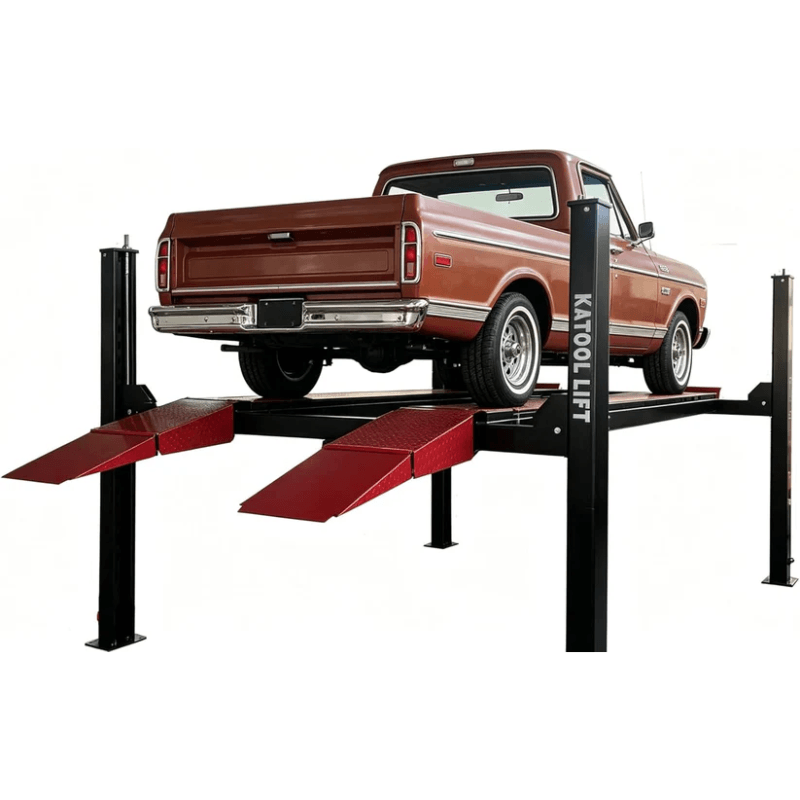

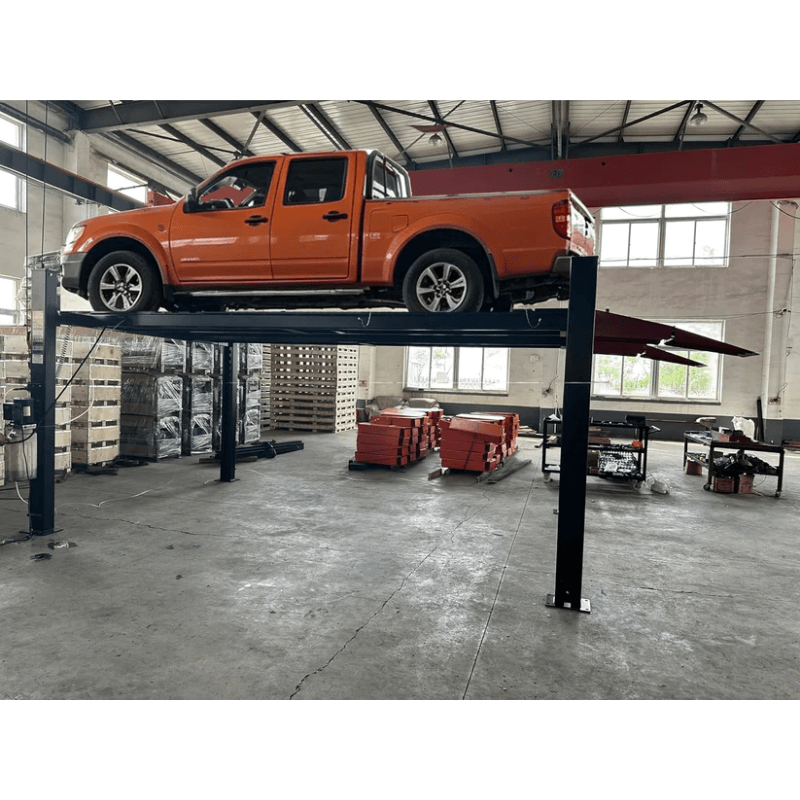

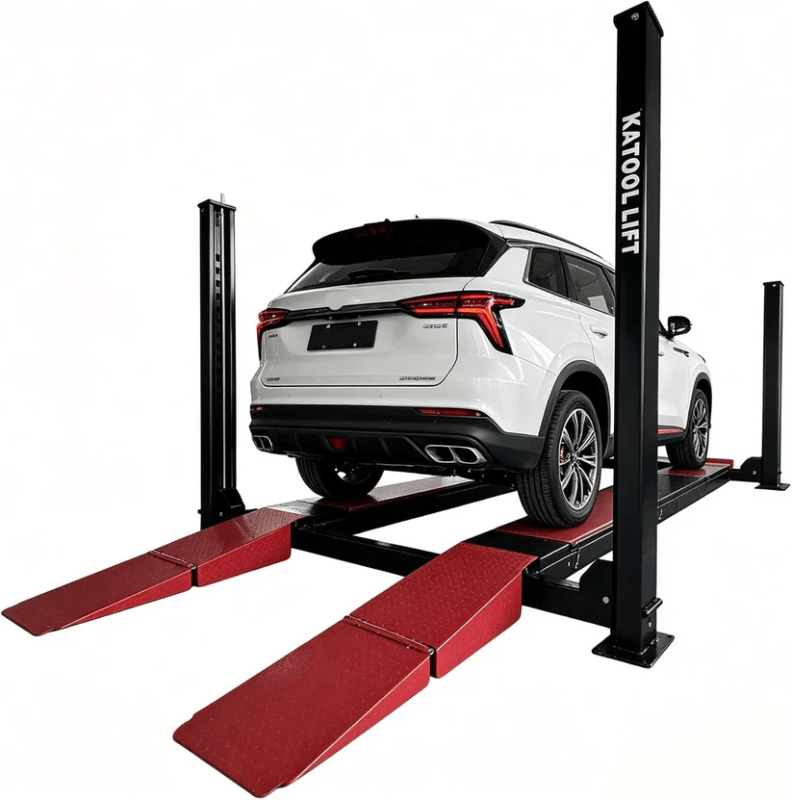

Katool KT-4M110PA 11,000 lb 4-Post Alignment Lift

The Katool KT-4M110PA is a professional-grade 4-post alignment lift designed for automotive shops that need dependable lifting capacity and versatility for everyday service work. With an 11,000 lb lifting capacity, reinforced heavy-duty steel runways, and an included 7,000 lb rolling jack, this lift is well suited for wheel alignments, inspections, brake and suspension service, and general vehicle maintenance.

With a maximum lifting height of 84.5 inches and an approximate 50-second lifting time, the KT-4M110PA provides technicians with convenient access underneath a wide range of vehicles. The pneumatic lock release system allows for smooth operation, while the stable four-post design provides a solid platform for passenger cars, SUVs, trucks, and light commercial vehicles.

The KT-4M110PA also comes equipped with aluminum approach ramps, drip trays, casters, a lift tray, and a 7,000 lb rolling jack, providing shops with a complete setup for alignment and general automotive service applications.

KT-4M110PA Specifications

  • Lift Type: 4-Post Alignment Lift

  • Lifting Capacity: 11,000 lbs

  • Rolling Jack Capacity: 7,000 lbs

  • Maximum Lift Height: 84.5"

  • Lift Time: Approximately 50 seconds

  • Power Requirement: 220V

  • Lock Release System: Pneumatic Unlocking

  • Runway Construction: Reinforced Heavy-Duty Steel

  • Shipping Dimensions: 189"L x 26"W x 35"H

  • Shipping Weight: 2,646 lbs

KT-4M110PA Features & Benefits

  • Heavy-duty 11,000 lb lifting capacity

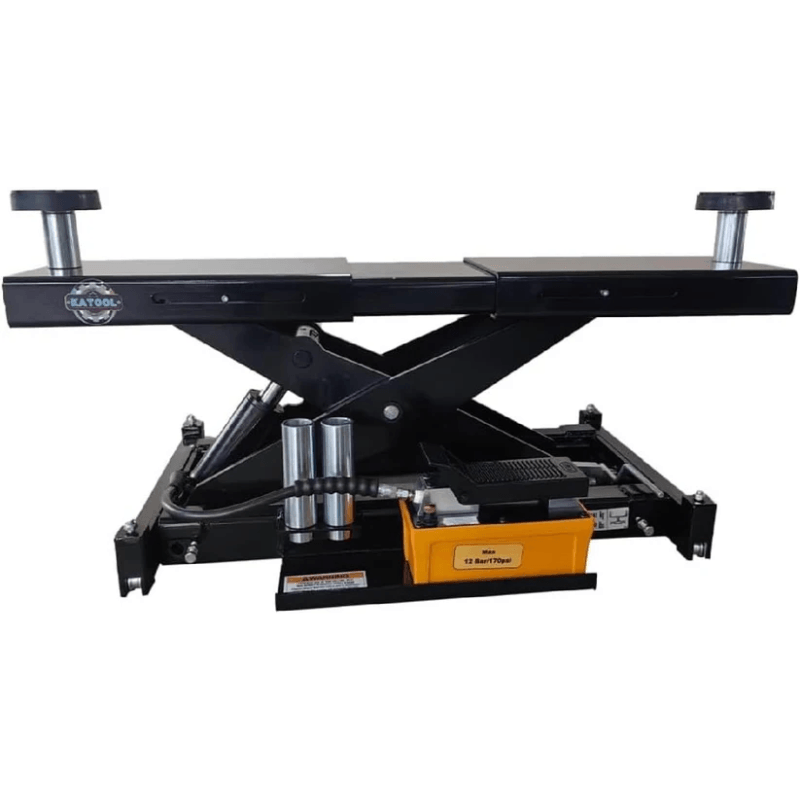

  • Includes a 7,000 lb rolling jack for wheel, brake, and suspension service

  • Reinforced steel runways provide strength and durability

  • 84.5" maximum lifting height offers excellent under-vehicle access

  • Approximately 50-second lifting cycle for efficient shop operation

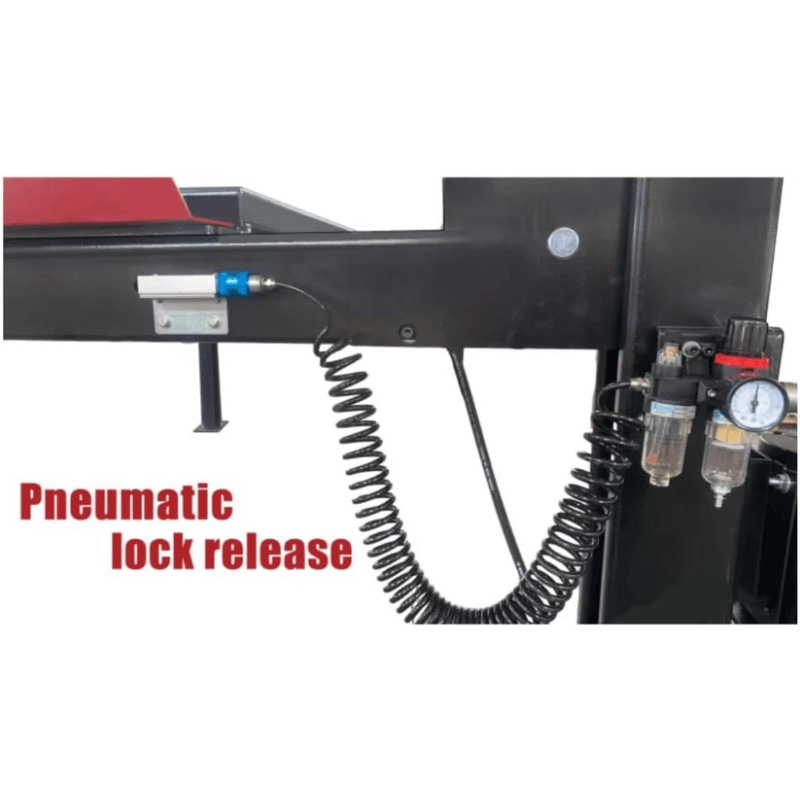

  • Pneumatic lock release system for convenient operation

  • Designed for wheel alignments, inspections, maintenance, and repair work

  • Operates on 220V power

  • Aluminum approach ramps included

  • Stable four-post construction

  • Professional-grade design for commercial automotive repair facilities

  • Suitable for passenger cars, SUVs, trucks, and light commercial vehicles

Package Includes

  • Katool KT-4M110PA 4-Post Alignment Lift

  • 7,000 lb Rolling Jack

  • Three (3) Drip Trays

  • One (1) Lift Tray

  • Four (4) Casters

  • Aluminum Approach Ramps

Warranty

  • 1-Year Warranty on product parts

  • 3-Year Warranty on the lift structure

KT-4M110PA Manual

Coming soon.

Warehouse Pickup Locations

Contact Us if you're interested in warehouse pickup.

  • Azusa, CA 91702

  • Brookshire, TX 77423

  • City of Industry, CA 91744

  • Deer Park, TX 77536

  • Kalamazoo, MI 49048

  • Linden, NJ 07036

  • Pooler, GA 31322

  • Romeoville, IL 60446

Katool KT-4M110PA Diagram View

Katool KT-4M110PA Jack Diagram View
