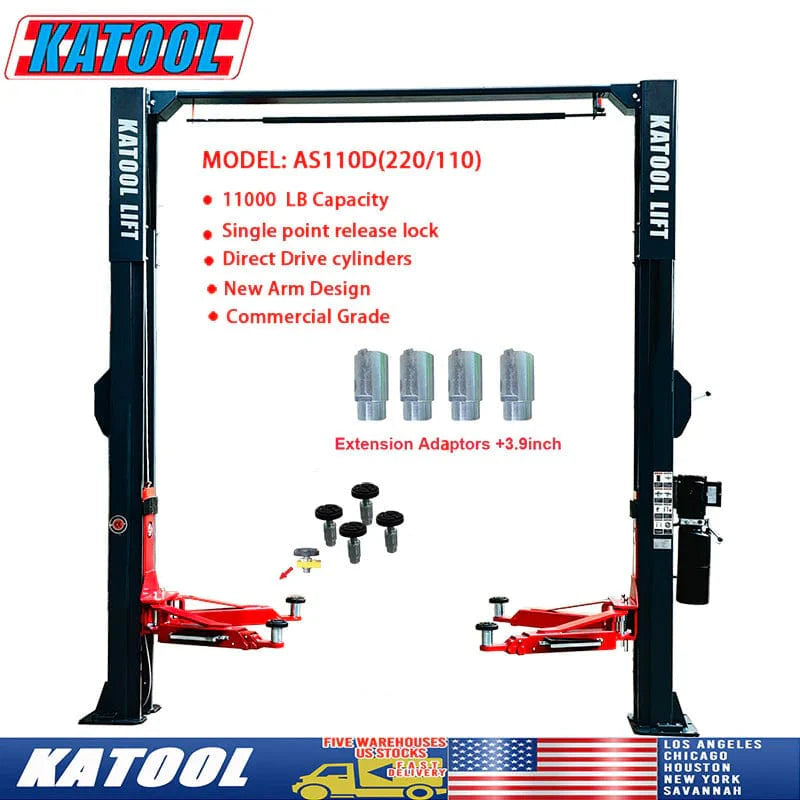

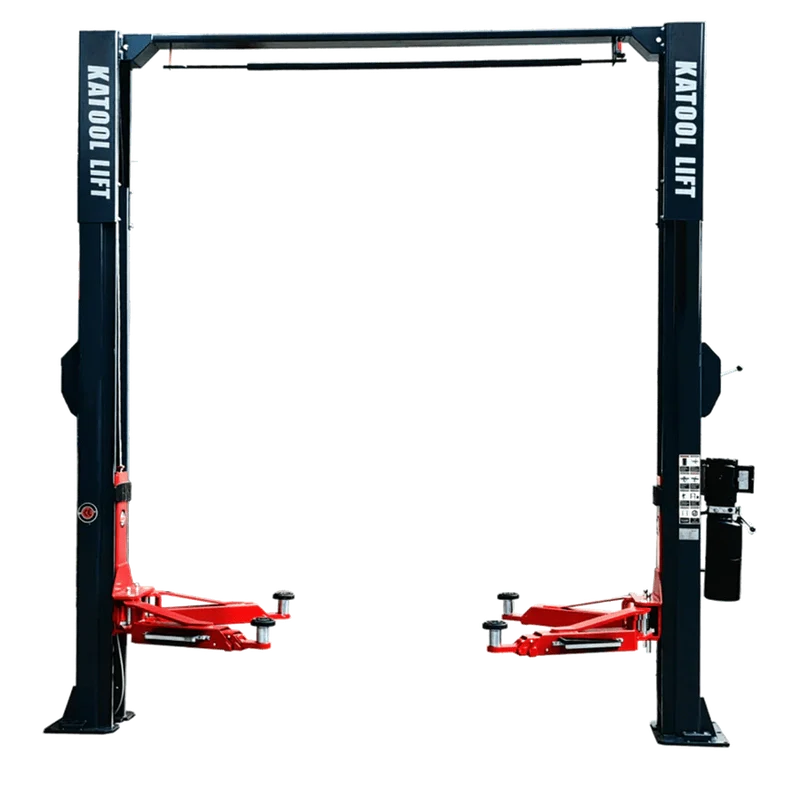

Katool KT-AS110D Two Post Asymmetrical Vehicle Lift — 11,000 lbs Capacity
The Katool KT-AS110D Two Post Asymmetrical Lift delivers exceptional performance and versatility for automotive professionals. With a lifting capacity of 11,000 lbs (5,000 kg), this heavy-duty lift provides reliable support for a wide range of vehicles, from sedans to light trucks.
CE Approved and Certified, the KT-AS110D exceeds industry safety requirements, undergoing 115% dynamic and 150% static load capacity testing to ensure maximum strength and durability. Designed for efficiency and operator safety, it features a Single-Point Lock Release for controlled operation, asymmetric lifting arms, and direct-drive cylinders that deliver smooth and precise motion.
Added features such as rubber door guards, adjustable support adaptor sets (3.94" to 6"), and an overhead safety shutoff bar enhance usability and protection. The feet-protection safety guardrails and integrated toolbox improve workflow convenience, making this lift an ideal choice for busy workshops.
Powered by a high-quality hydraulic system, the KT-AS110D operates efficiently with 220V/60HZ/1PH, with an optional 110V/60HZ/1PH configuration available for added flexibility.
⚠️ Concrete Requirements:
For safe installation, the concrete foundation must be at least 5.9" (150 mm) thick with a minimum 3,000 PSI strength rating. Failure to meet these standards may result in serious injury or equipment failure. Customers are responsible for verifying concrete conditions prior to purchase and installation.
Key Features
-
11,000 lbs Lifting Capacity: Designed to handle heavy-duty vehicles with stability and ease.
-
CE Approved and Certified: Tested to meet 115% dynamic and 150% static load capacity standards for maximum safety.
-
Single-Point Lock Release: Allows for secure, simple, and efficient operation.
-

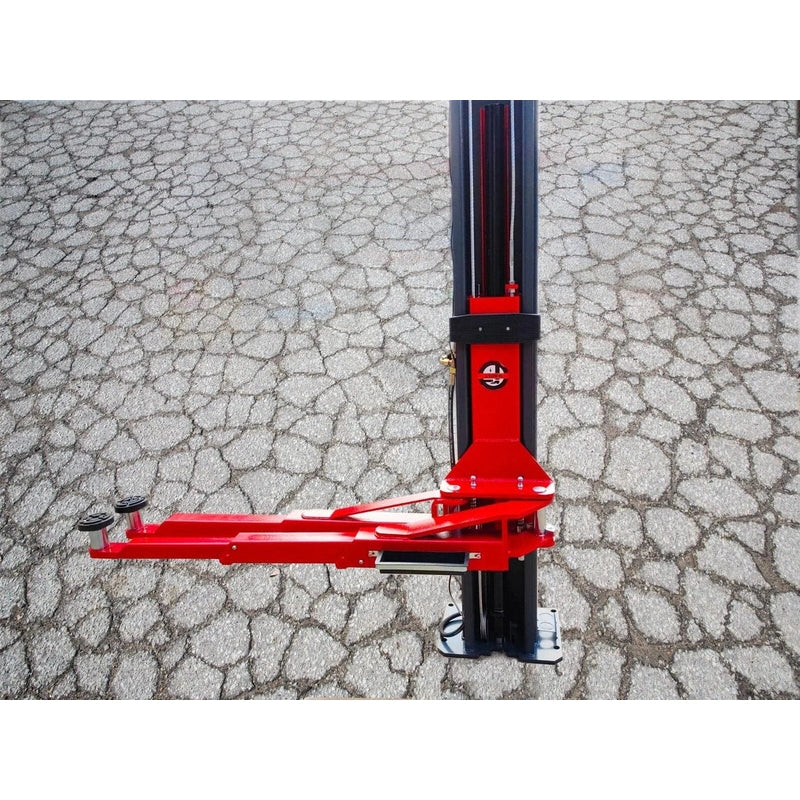

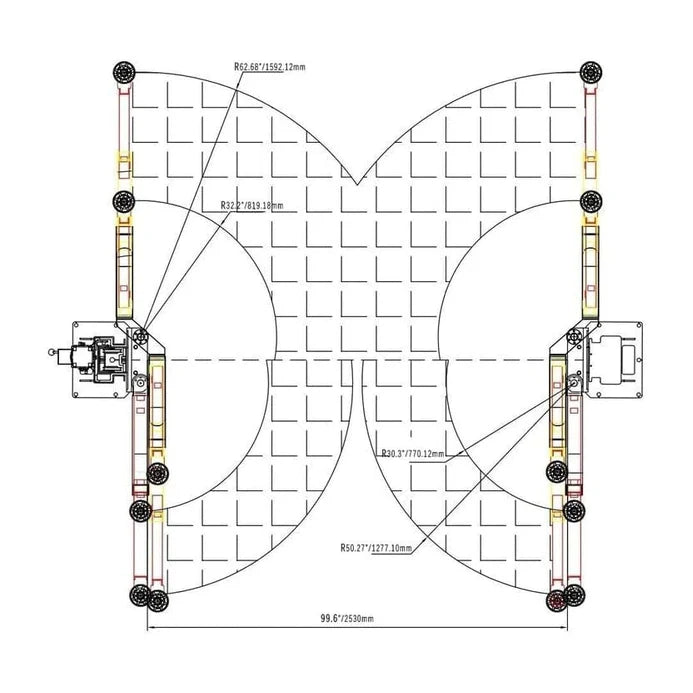

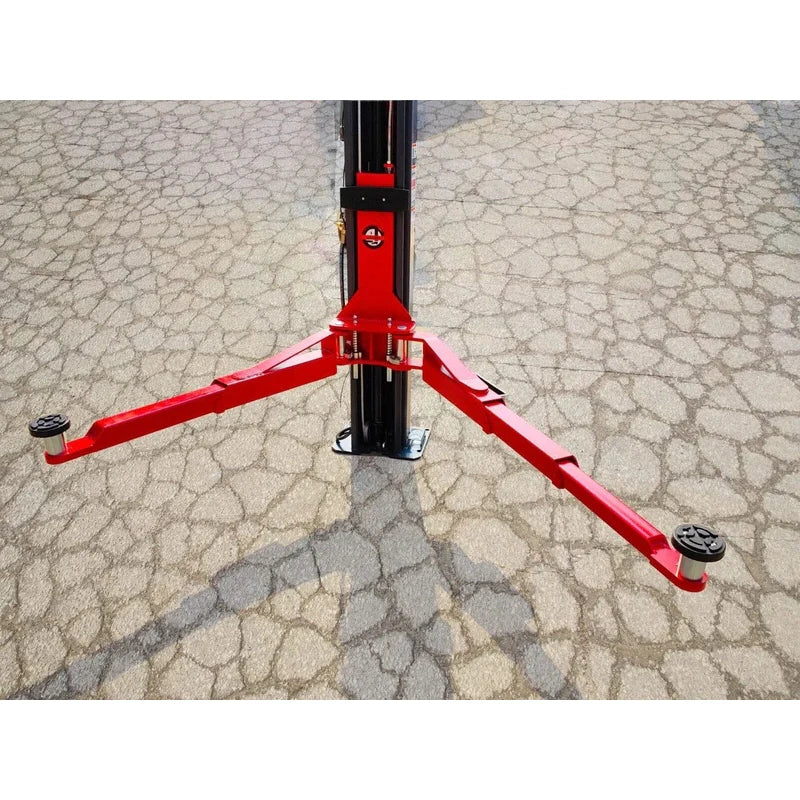

Asymmetric Arm Design: Provides superior access and versatility for a wide range of vehicle sizes.
-
Direct-Drive Cylinders: Deliver smooth, balanced, and reliable lifting performance.
-
Rubber Door Protection Pads: Prevent damage during lifting and lowering.
-
Adjustable Support Adaptor Sets: Extend from 3.94" to 6", accommodating various vehicle heights and configurations.
-
Overhead Safety Shutoff Bar: Automatically halts lift movement to prevent accidental contact with raised vehicles.
-
Feet-Protection Safety Guardrails: Includes an integrated toolbox for added convenience and safety.
-
High-Performance Hydraulic System: Operates seamlessly with 220V/60HZ/1PH, with an optional 110V/60HZ/1PH setup available.

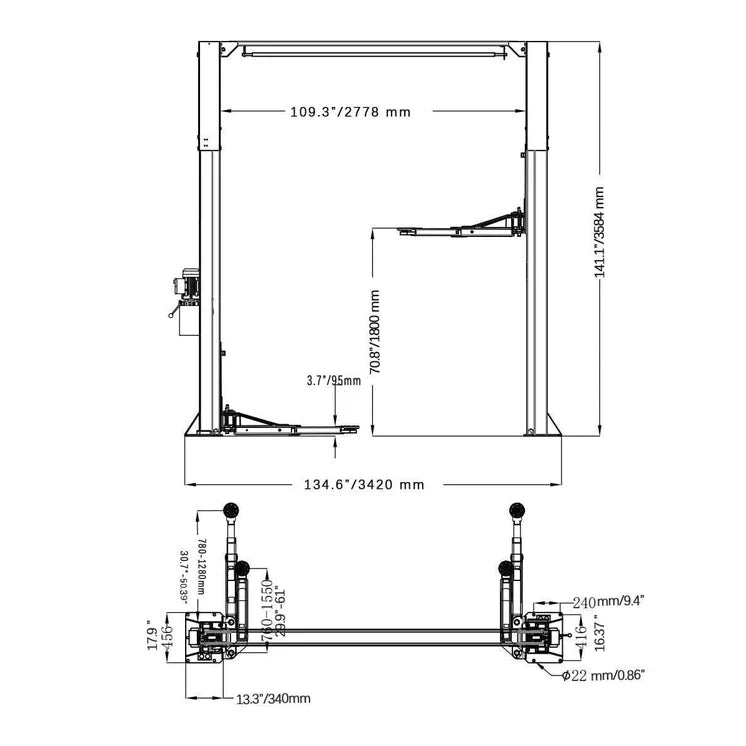

Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 11,000 lbs (4,990 kg) |
| Max. Lifting Height | 70.75" (1,800 mm) |
| Min. Height | 3.74" (95 mm) |
| Overall Height | 141.25" (3,587 mm) |
| Overall Width | 134.65" (3,420 mm) |
| Outside Column Width | 120.4" (3,058 mm) |
| Inside Column Width | 109.37" (2,778 mm) |
| Drive-Thru Clearance | 99.61" (2,530 mm) |
| Motor | 220V AC / 60HZ / 1PH |
| Net Weight | 1,323 lbs (600 kg) |
User Manual
For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-AS110D User Manual. Click the link below to download:
Installation Video
Warranty Information
Standard Coverage:
Katool provides a 1-year limited warranty covering all parts and product defects. In addition, all vehicle lifts include an extended 3-year warranty on structural components for added peace of mind.
Extended Coverage Option:
An optional 2-year extended warranty plan is available for purchase on any Katool or M&E automotive equipment.
Warranty Coverage Includes
-
Cylinders, power units, motors, displays, and electronic components
-
Structural components for vehicle lifts
Warranty Conditions
-
All claims must be submitted within the valid warranty period
-
Warranty coverage is non-transferable and applies only to the original purchaser
-
Replacement parts and shipping are provided free of charge
-
Labor costs are not included under warranty coverage
-
Do not disassemble equipment prior to warranty approval
All warranty claims are subject to review by Katool’s warranty and service department. Supporting evidence, such as photos or videos of the defect, may be required for claim approval.
