Description

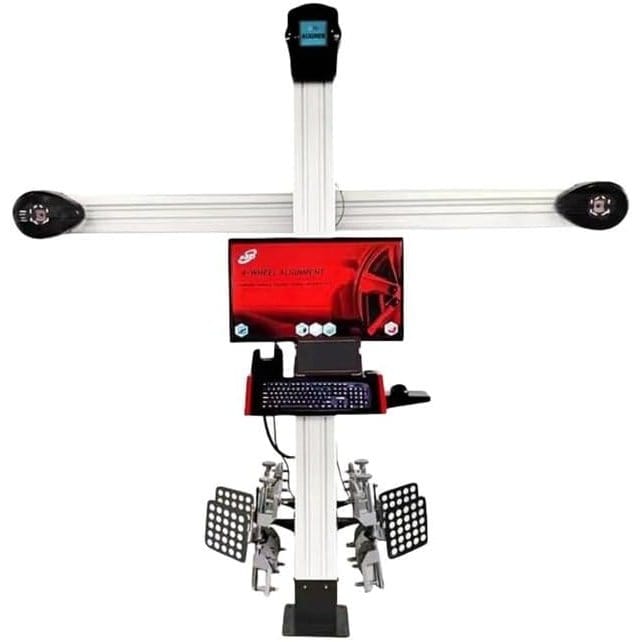

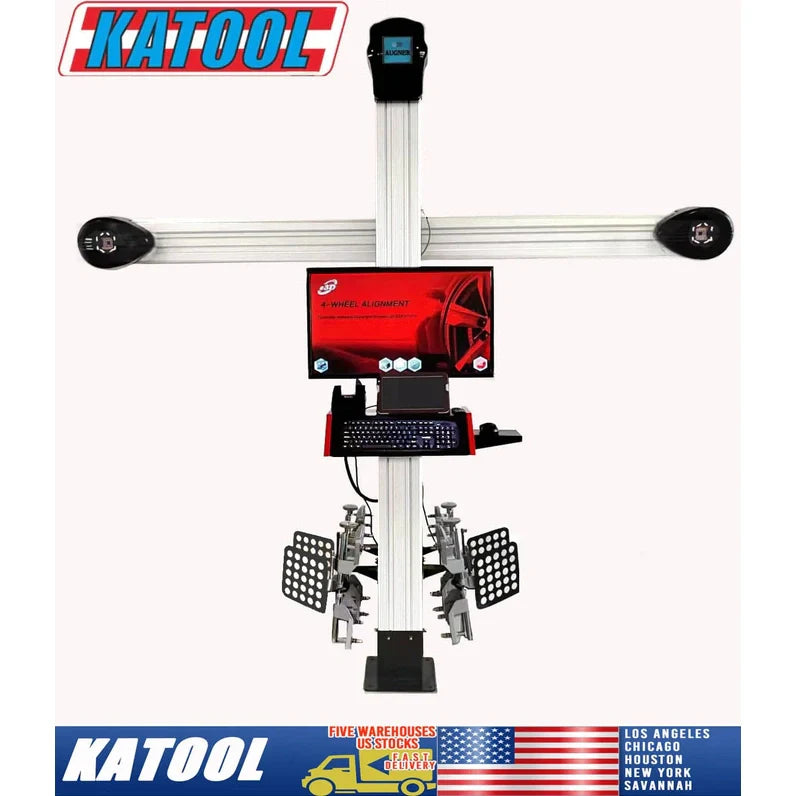

The Katool KT-AV6 Wheel Alignment Machine is a state-of-the-art mobile 3D wheel aligner engineered for 2-post and scissor lift applications, offering exceptional accuracy, convenience, and flexibility. Designed for modern workshops, it eliminates the need for calibration during installation and provides unlimited memory for storing vehicle specifications.

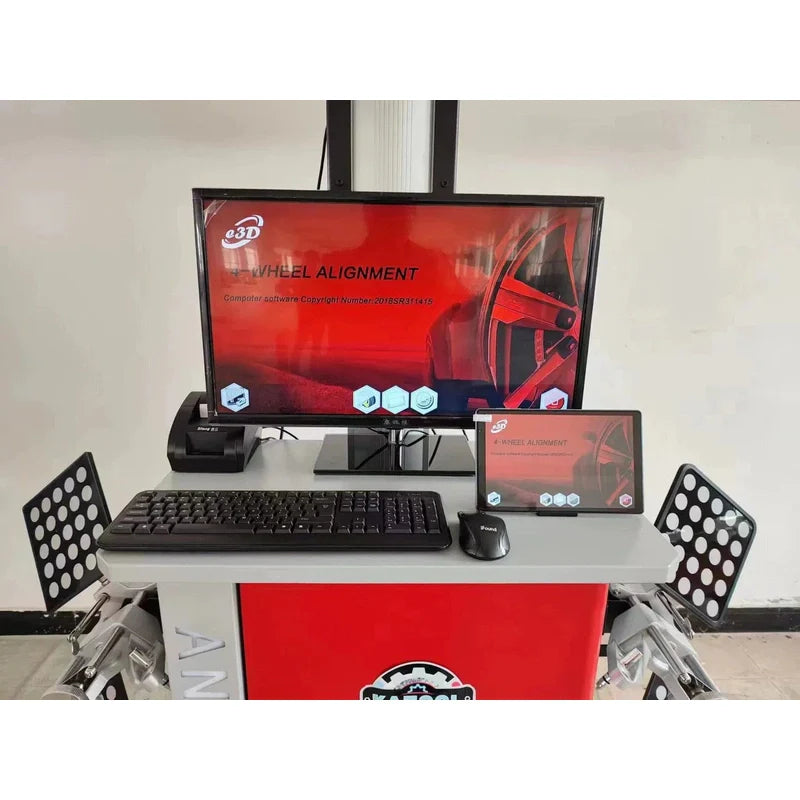

This intelligent alignment system includes a tablet, 30-inch display screen, mouse, keypad, and printer, delivering a complete and professional alignment setup. With built-in WiFi and a USB drive, connectivity and data management are seamless. The advanced software operates on both Android and iOS platforms, reducing maintenance while offering synchronous display across smartphones and tablets—allowing technicians and customers to view real-time alignment data.
Engineers can conveniently monitor data adjustments during rear wheel alignment, while the remote-controlled post height adjustment ensures easy tracking and precise positioning. Its compact, cabinet-free design keeps work areas organized, and the system includes free annual database updates featuring the latest US, European, and Asian vehicle models.
Features
-
Mobile 3D Wheel Aligner: Specifically designed for use with 2-post and scissor lifts.
-
Unlimited Vehicle Memory: Stores unlimited vehicle specifications for quick and efficient service.
-
No Calibration Needed: Ready to use immediately after setup.
-

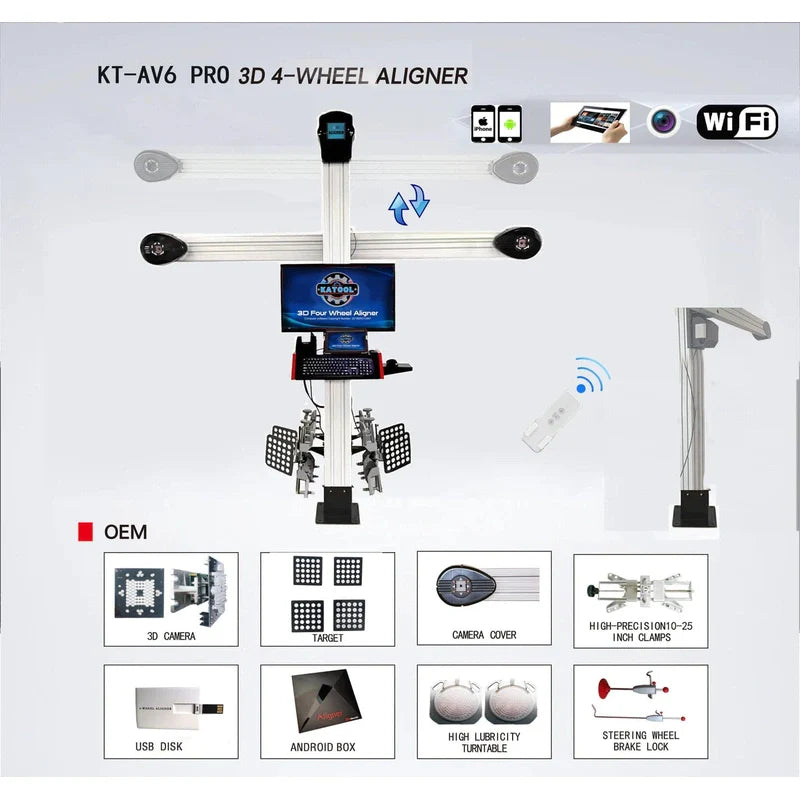

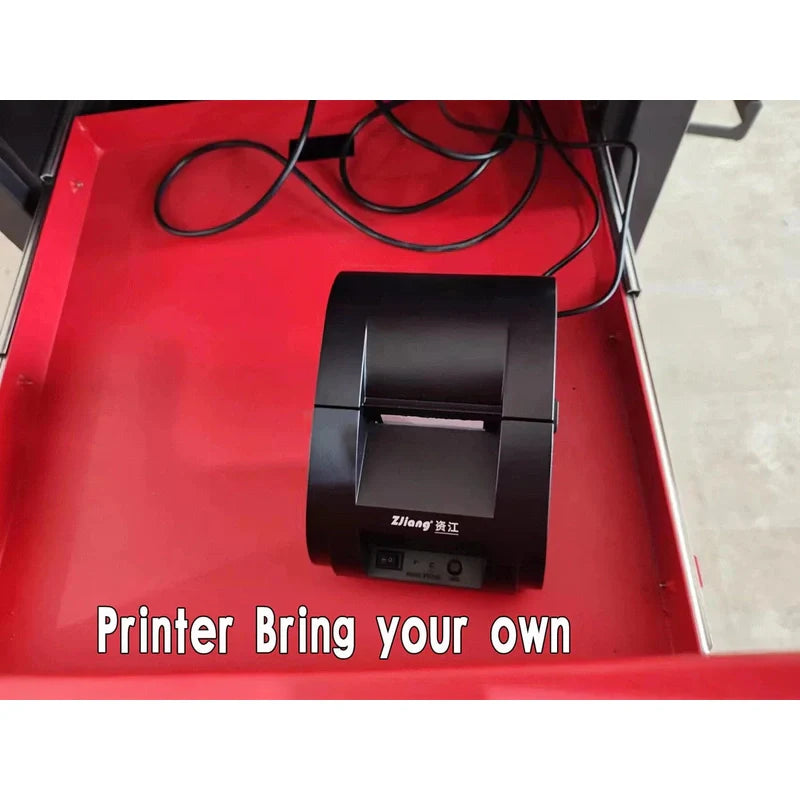

Complete System Package: Includes tablet, 30" monitor, mouse, keypad, and printer.
-

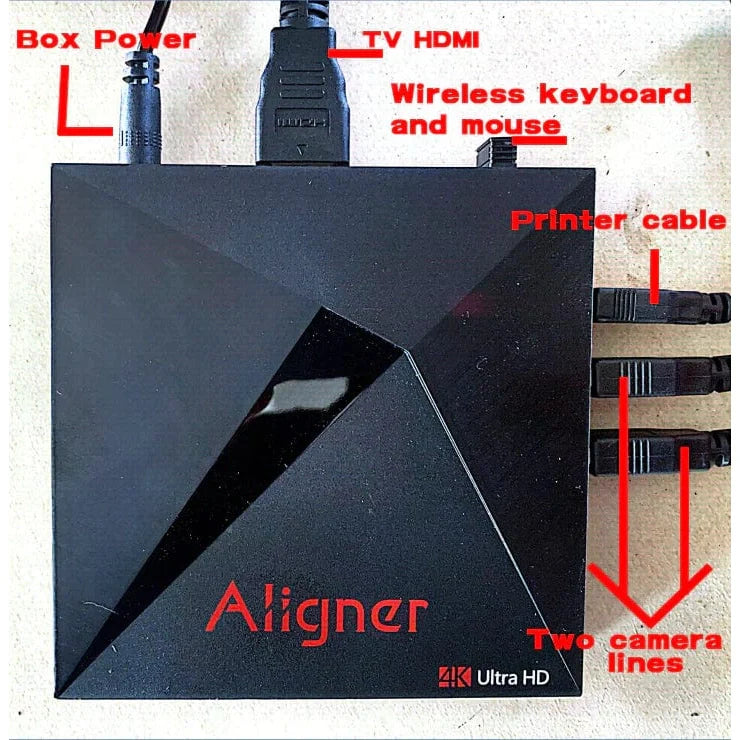

Enhanced Connectivity: Comes with a WiFi device and USB drive for data transfer and software updates.
-
Cross-Platform Compatibility: Operates on Android and iOS systems, minimizing software upkeep.
-
Smart Device Synchronization: Displays real-time alignment data on smartphones and tablets.
-
Remote Post Adjustment: Allows easy vehicle height tracking during alignment.
-
Compact, Cabinet-Free Design: Saves workspace while maintaining a professional setup.
-
Free Annual Database Updates: Keeps your system current with the latest global vehicle models.
Specifications
| Specification | Details |
|---|---|
| Power Supply | 100–240V, 50/60Hz, 1Ph |
| Operating Temperature | 41°F–104°F (5°C–40°C) |

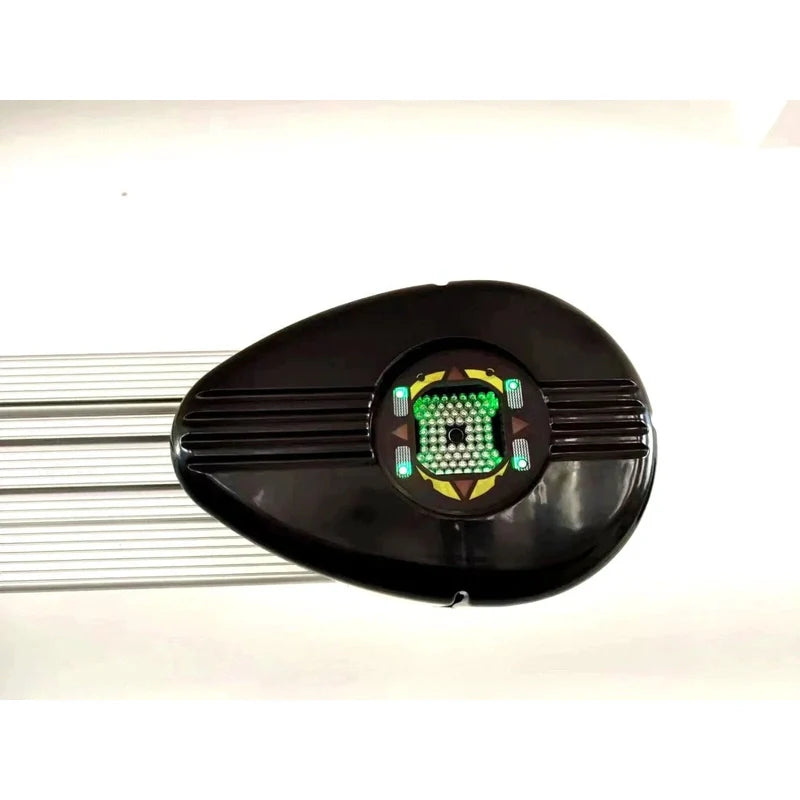

| Cameras | 2 Total |
| Tire Diameter Range | 9.8"–31.5" (250–800mm) |
| Wheelbase Range | 63"–82.7" (1.6–2.1m) |
| Track Width Range | 70.9"–177.2" (1.8–4.5m) |
| Product Weight | 440.9 lbs (200 kg) |
| Shipping Weight | 529.1 lbs (240 kg) |
| Shipping Dimensions | 26"×35.4"×36.2" (660×900×920mm) & 110.2"×15.7"×15.7" (2800×400×400mm) |
| Warranty | 1-Year Limited Warranty |
Warranty
Katool provides a one-year (12-month) limited warranty covering all parts and product defects, free of charge.
An optional 2-year extended warranty is available for all Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Cylinders, power units, motors, displays, and electronic components.
-
Vehicle lifts include an additional 3-year (36-month) warranty on structural components.
Conditions & Limitations:
-
Claims must be within the valid warranty period and include the original order number.
-
Warranty is non-transferable and applies only to purchases from authorized sellers.
-
Replacement parts and shipping are covered at no cost.
-
All claims require approval by Katool’s warranty department; photos or videos may be requested.
-
Equipment must not be disassembled before evaluation.
-
Items outside the warranty policy will incur replacement and shipping costs.
-
Labor is not included in the warranty coverage.
Resources
For more detailed information and guidance, you can download the following:
