Description

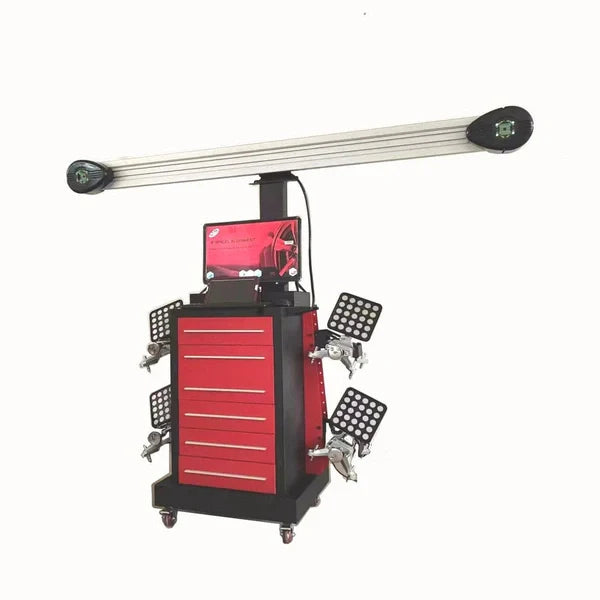

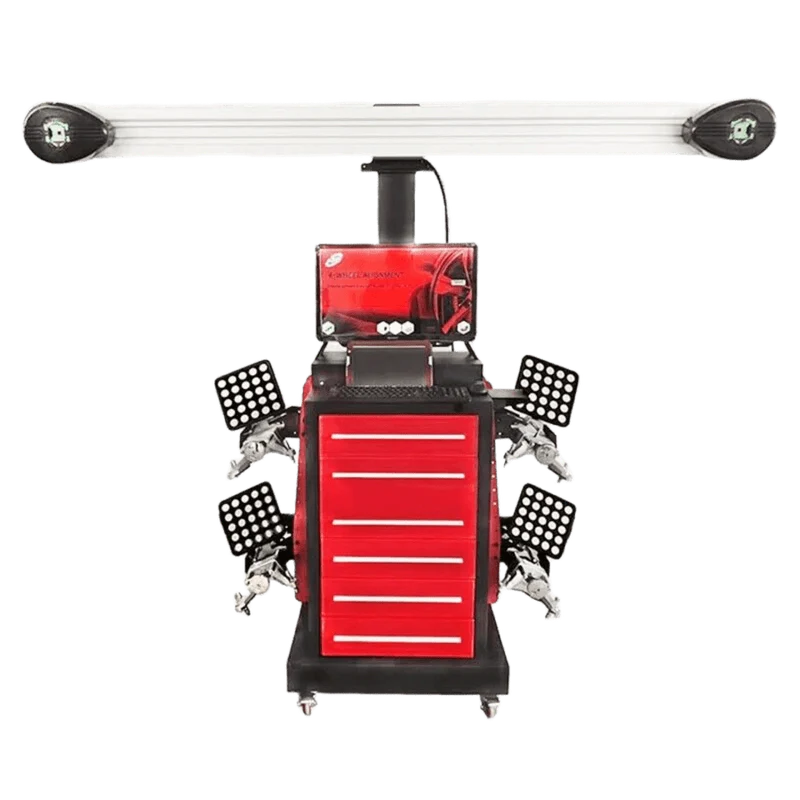

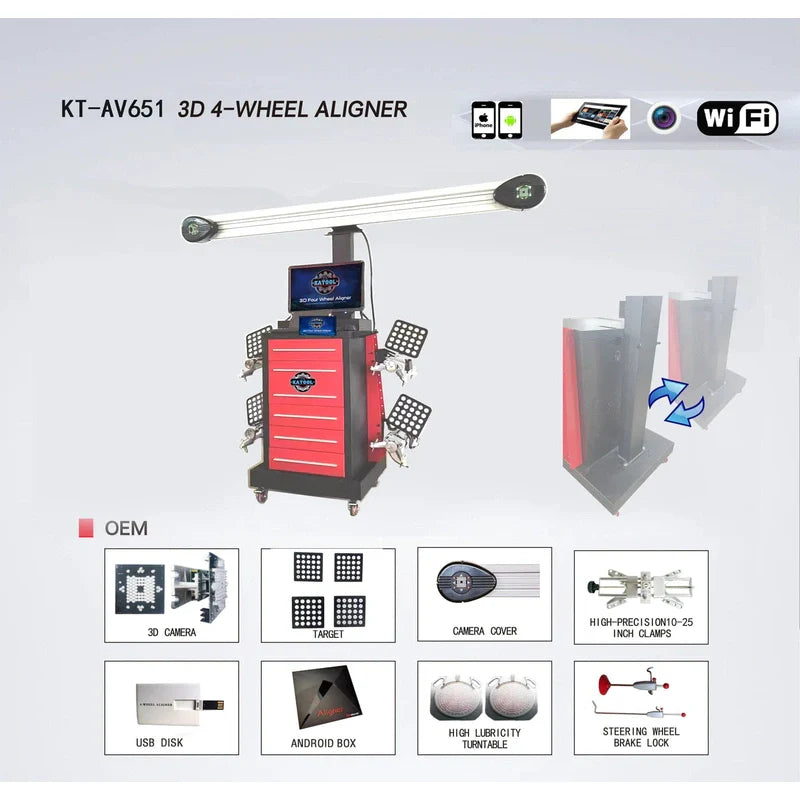

The Katool KT-AV651 Wheel Alignment Machine is a next-generation 3D alignment system built for precision and efficiency on 2-post and scissor lifts. Designed with advanced mobility and intuitive operation, this aligner simplifies setup by requiring no calibration during installation and provides unlimited memory for vehicle data, ensuring seamless workflow and consistent results.
This all-in-one package includes a tablet, 30-inch display monitor, keyboard, mouse, and printer for a complete alignment experience. A WiFi module and USB drive are also included to enhance connectivity and data transfer capabilities.
The Katool KT-AV651 runs on both Android and iOS software, reducing the need for ongoing maintenance. Real-time synchronization across smartphones and tablets allows customers to view alignment progress, while technicians can monitor data and perform adjustments directly from a smart device. For added flexibility, the post can be adjusted manually, making it adaptable to different working heights. Annual free database updates ensure your shop stays current with the latest vehicle models from U.S., European, and Asian manufacturers.
Features
-
3D Mobile Wheel Aligner: Designed for use on 2-post and scissor lifts.
-
Unlimited Vehicle Memory: Stores extensive vehicle specifications without limitations.
-
No Calibration Required: Streamlined installation and setup process.
-

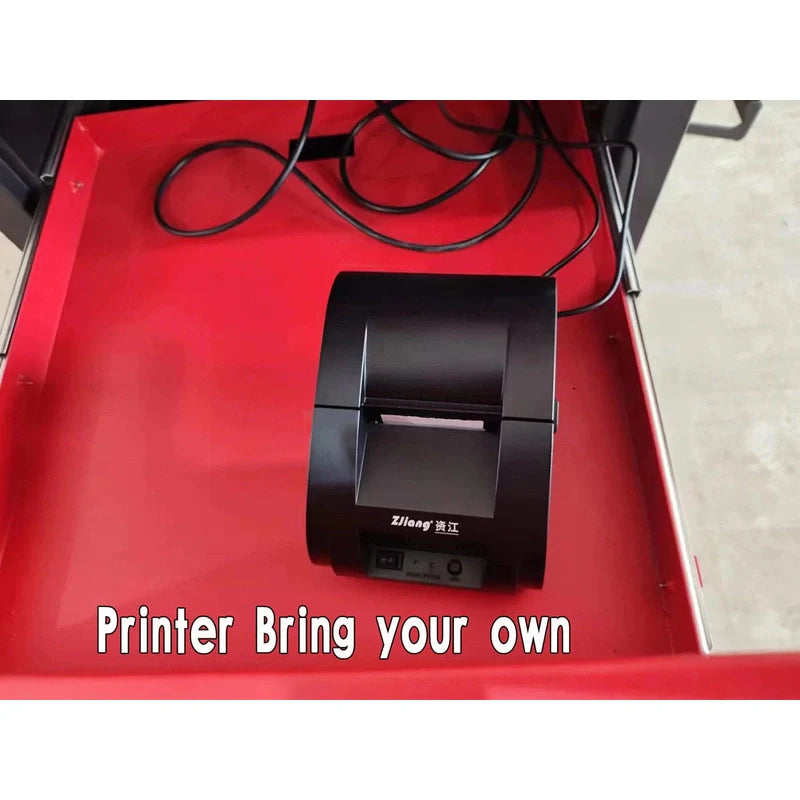

Complete Equipment Package: Includes tablet, 30" display, keyboard, mouse, and printer.
-

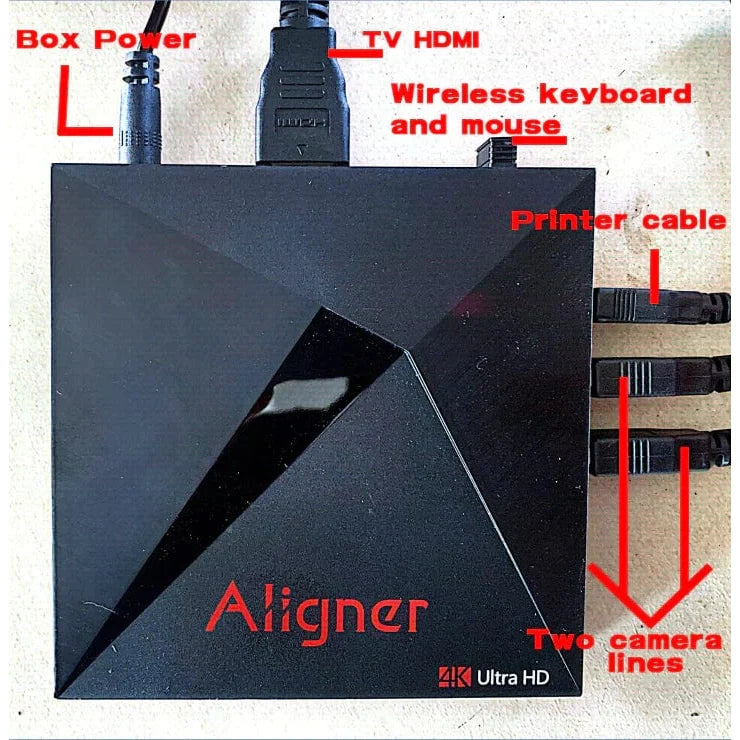

Built-In Connectivity: Comes with WiFi and USB drive for easy data transfer.
-
Dual-System Compatibility: Operates on Android and iOS for minimal software maintenance.
-

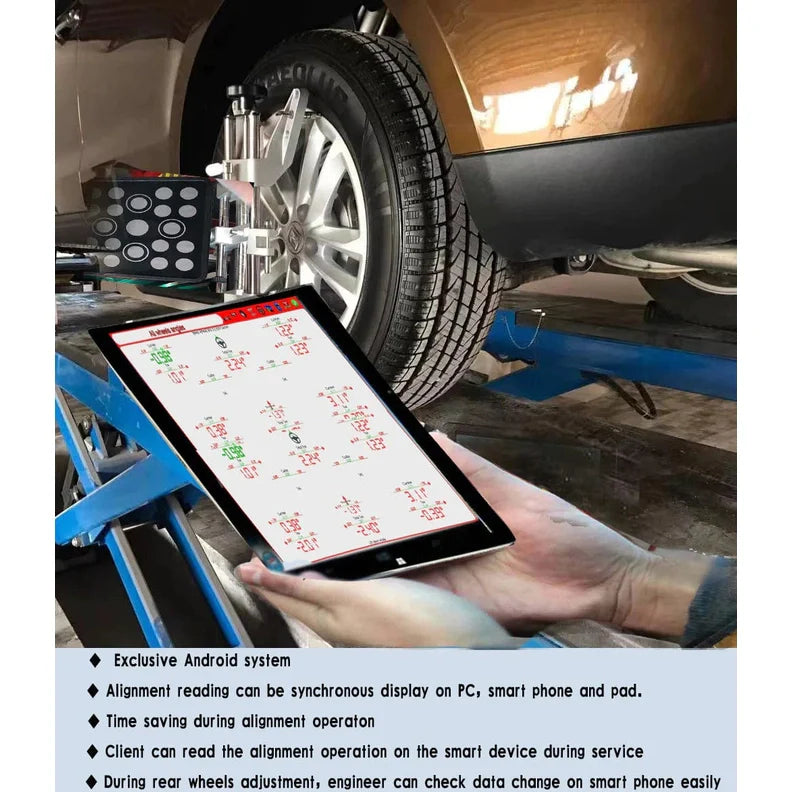

Smart Device Integration: Displays real-time alignment data on smartphones or tablets.
-
Manual Post Adjustment: Allows flexible control for vehicle height tracking.
-
Free Annual Database Updates: Stay updated with the latest U.S., European, and Asian models.
-

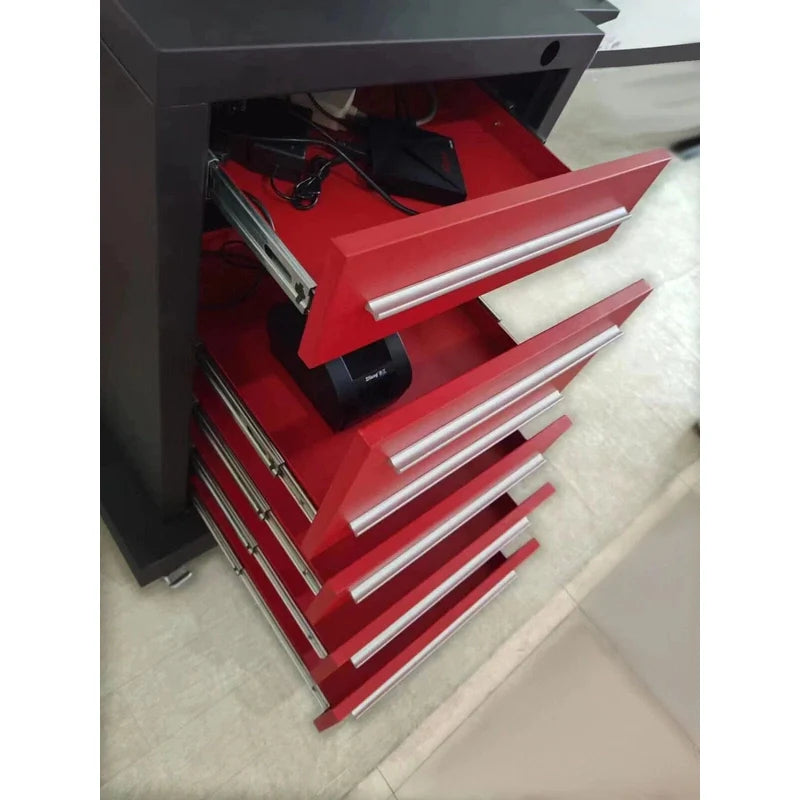

Modern, Compact Design: Keeps your workspace organized and professional.
Specifications
| Specification | Details |
|---|---|
| Power Supply | 100–240V, 50/60Hz, 1Ph |
| Operating Temperature | 41°F–104°F (5°C–40°C) |

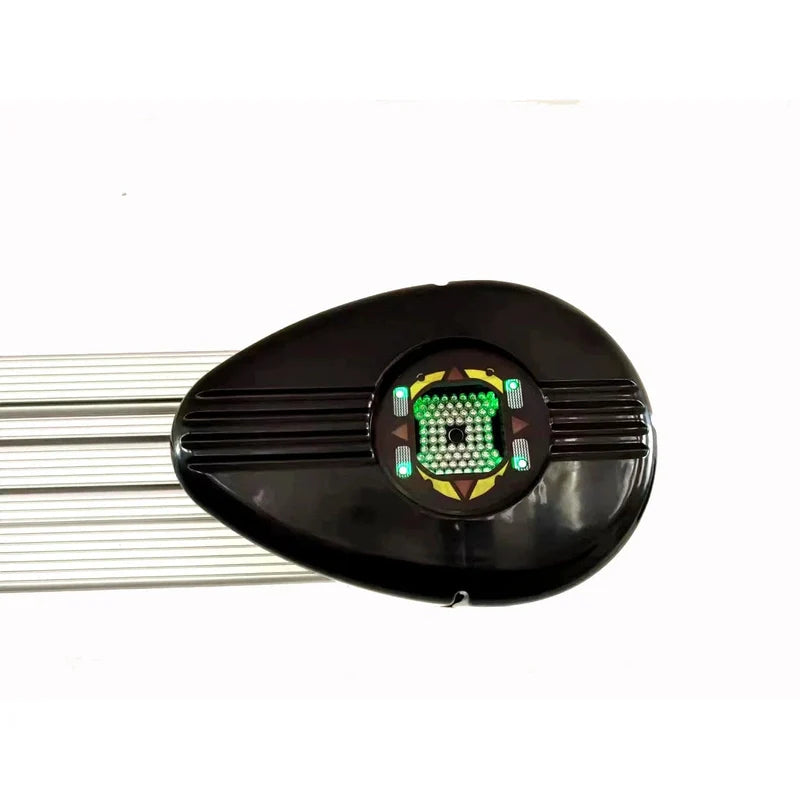

| Cameras (Total) | 2 |
| Tire Diameter Range | 9.8"–31.5" (250–800 mm) |
| Wheelbase Range | 63"–82.7" (1.6–2.1 m) |
| Track Width Range | 70.9"–177.2" (1.8–4.5 m) |
| Product Weight | 440.9 lbs (200 kg) |
| Shipping Weight | 529.1 lbs (240 kg) |
| Shipping Dimensions | 29.9"×48"×47.2" (760×1220×1200 mm) & 110.2"×12.6"×15.7" (2800×320×400 mm) |
| Warranty | 1-Year Limited Warranty |
Warranty
Katool provides a 1-year limited warranty covering all parts and product defects at no charge.
An optional 2-year extended warranty is available for all Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Cylinders, power units, motors, displays, and electronics.
-
Vehicle lifts include an additional 3-year warranty on structural components.
Terms and Conditions:
-
Warranty applies only to purchases from authorized Katool vendors.
-
Claims must be made within the warranty period and include the original order number.
-
Replacement parts and shipping are provided free of charge.
-
All claims require approval from Katool’s warranty department (photos/videos may be requested).
-
Do not disassemble the product before inspection.
-
Equipment outside warranty coverage may incur parts and shipping costs.
-
Labor is not included in the warranty.
