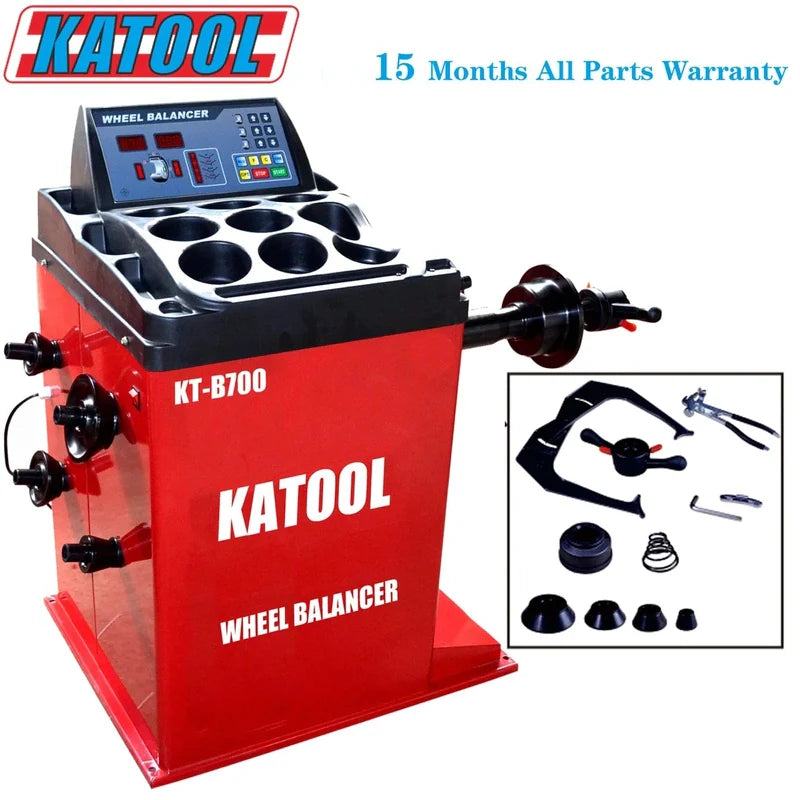

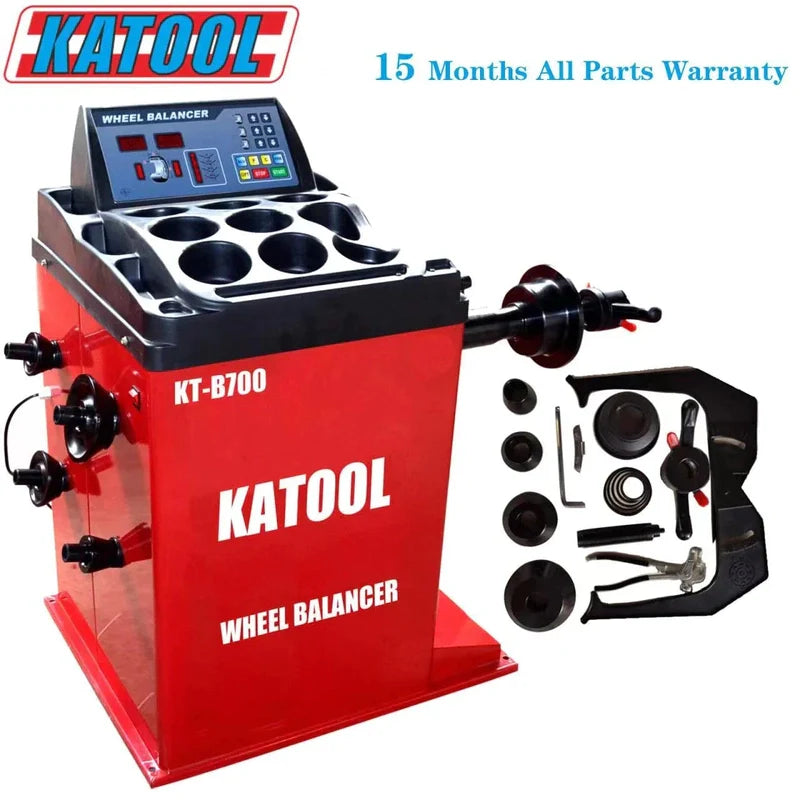

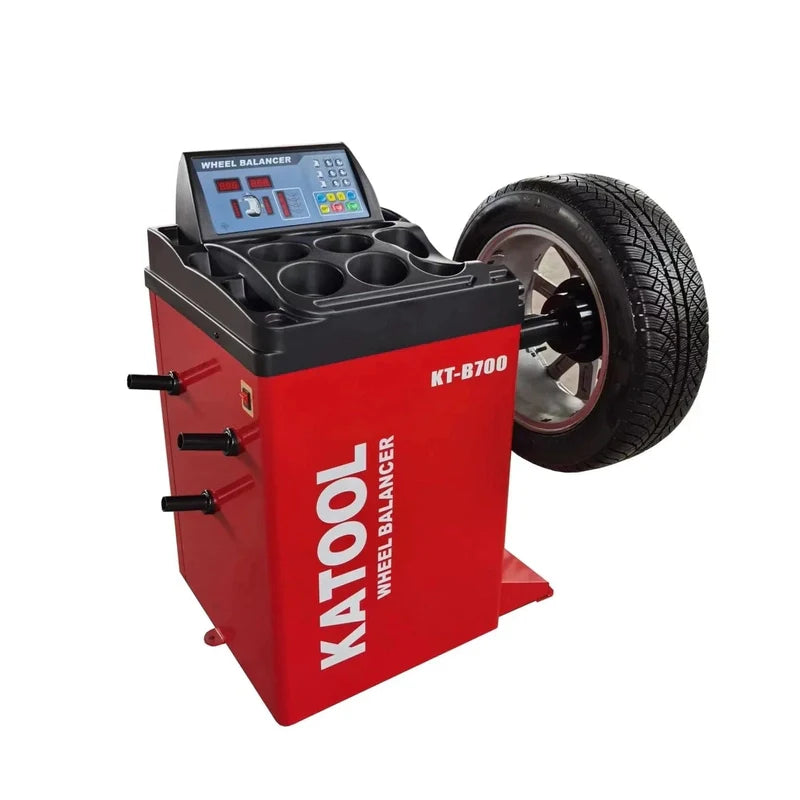

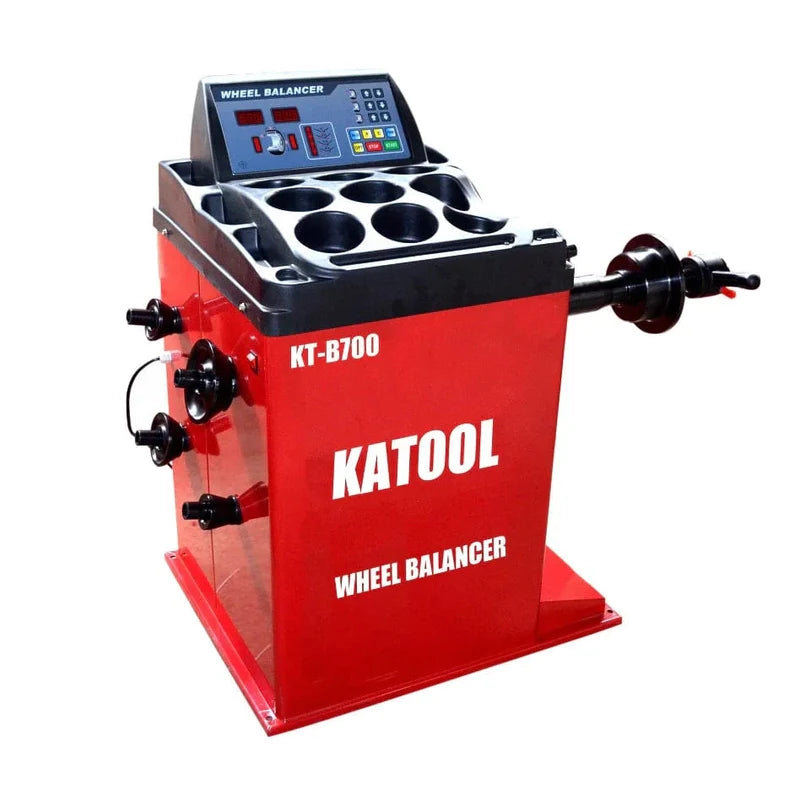

The Katool KT-B700 Wheel Balancer is engineered for precision, durability, and efficiency — making it an excellent choice for professional tire service shops. Constructed from 3mm-thick high-strength steel with solid welds, the machine minimizes vibration to ensure smooth and stable operation. Its integrated pressure sensor support system, featuring 8mm-thick bottom and side panels, guarantees accurate and reliable sensor performance during every balance cycle.
Powered by a top-grade motor with pure copper windings, the KT-B700 provides strong torque, rapid heat dissipation, and long-lasting reliability. The 36mm hardened shaft thread, treated through quenching, enhances durability and strength. The advanced computer board uses high-precision welding technology, making it moisture-proof, dust-proof, and anti-static, ensuring dependable operation even in demanding environments.
Offering multiple balance modes for various rim types, this machine delivers exceptional accuracy. Its self-diagnosis and automatic dual-sided calibration system eliminates the need for preset parameters, making operation simple and user-friendly. With unit selection options (Ounce/Gram, MM/Inch), a high-quality integrated power board for stable performance, and optional features like a wheel guard and extended shaft for wider wheels, the KT-B700 provides both versatility and precision for modern wheel service applications.
Key Features
-

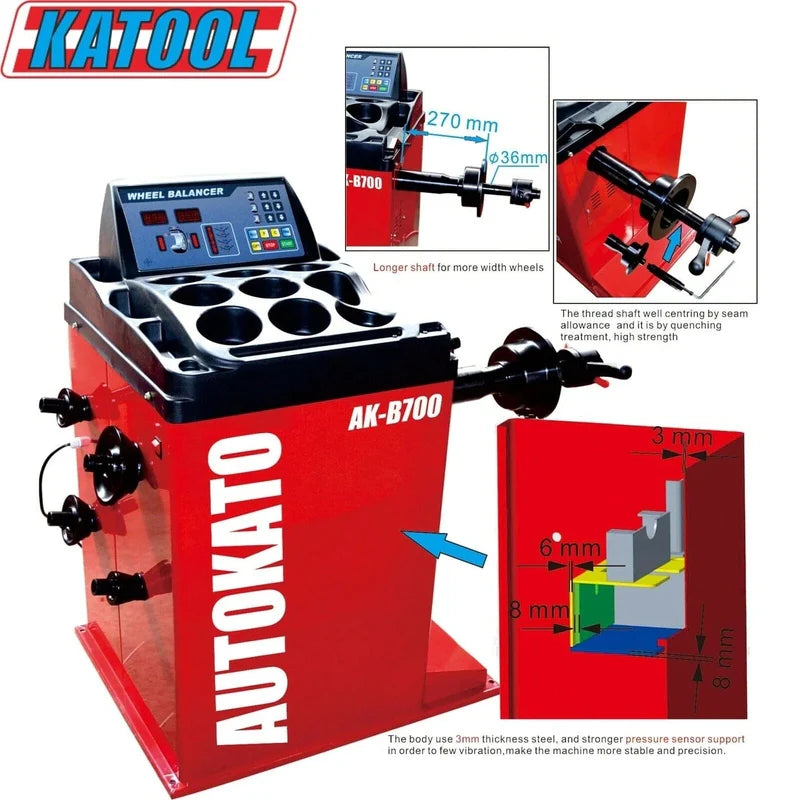

Reinforced Steel Body: 3mm-thick construction with solid welding reduces vibration and enhances stability.
-
Integrated Pressure Sensor System: 8mm-thick side and bottom panels ensure accurate and consistent readings.
-
High-Performance Motor: Pure copper winding for stronger power, improved cooling, and longer lifespan.
-

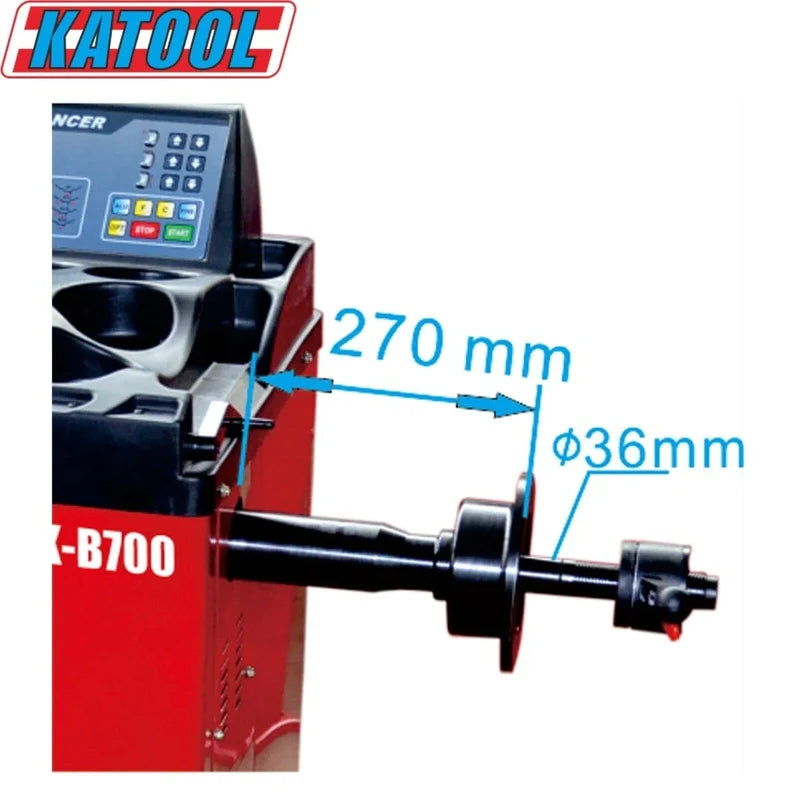

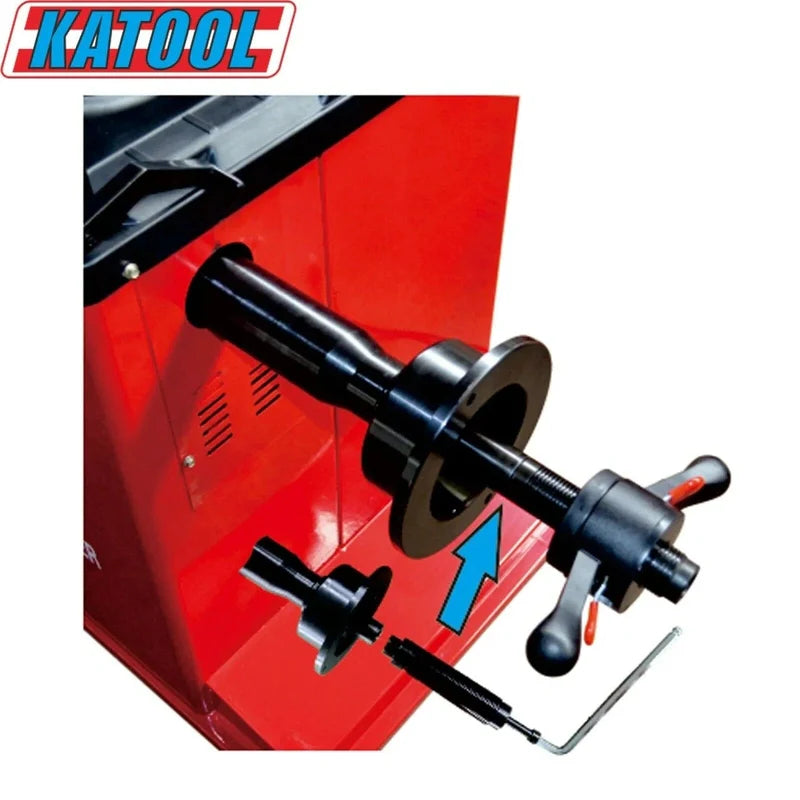

Hardened 36mm Shaft Thread: Quenching-treated for increased strength and durability.
-
Advanced Control Board: Built using moisture-proof, dust-proof, and anti-static technology for extended reliability.
-
Multiple Balance Modes: Optimized for different rim types to ensure precise results.
-
Automatic Calibration & Diagnostics: Dual-sided self-calibration system simplifies use and requires no preset parameters.
-
Flexible Unit Options: Easily switch between Ounce/Gram and MM/Inch measurements.
-
Stable Power System: Integrated high-quality power board ensures dependable, consistent operation.
-
Optional Wheel Guard: Adds extra safety during operation.
-

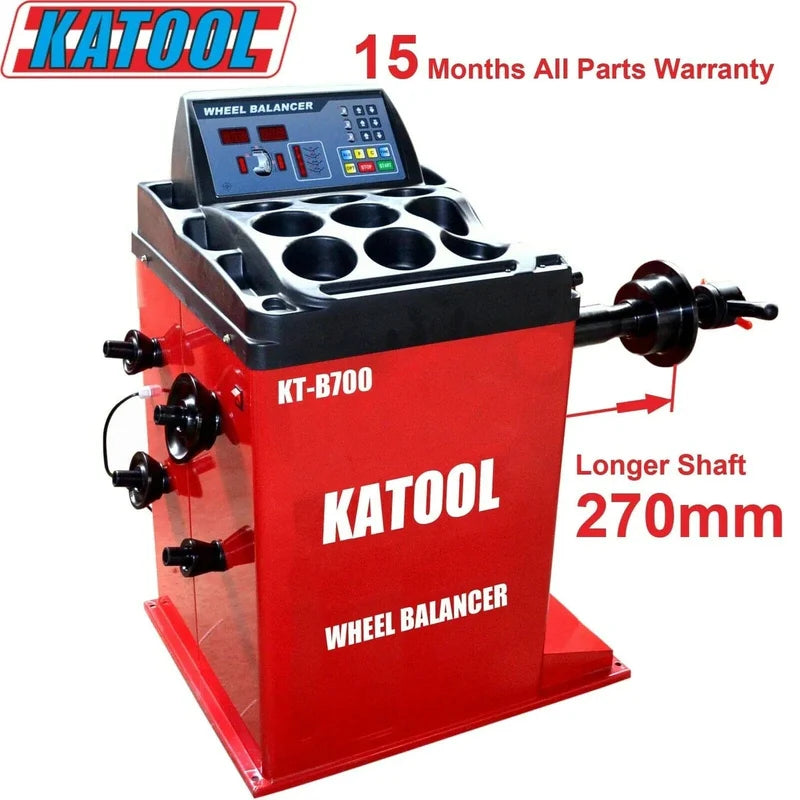

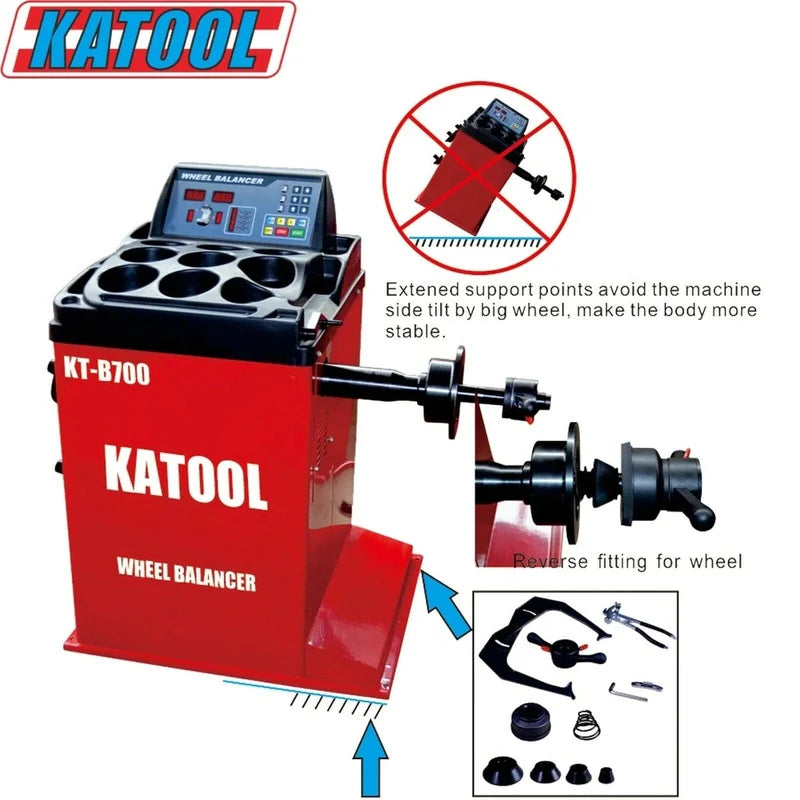

Extended Shaft Compatibility: Supports wider wheels for enhanced versatility.
Specifications
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty option is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Hydraulic cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or the original order number from an authorized vendor.
-
Replacement parts and shipping are provided free of charge.
-
All claims are subject to approval by Katool’s warranty/service department.
-
Photos or videos may be requested to verify defects.
-
Equipment must not be disassembled prior to approval.
-
Items not covered under warranty will require the buyer to pay for replacement parts and shipping costs.
-
Labor costs are not included under the warranty policy.
