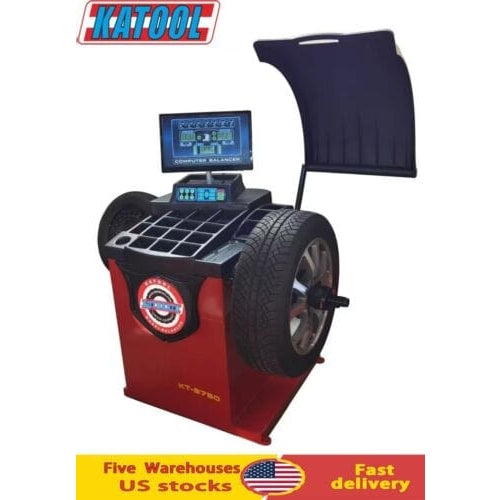

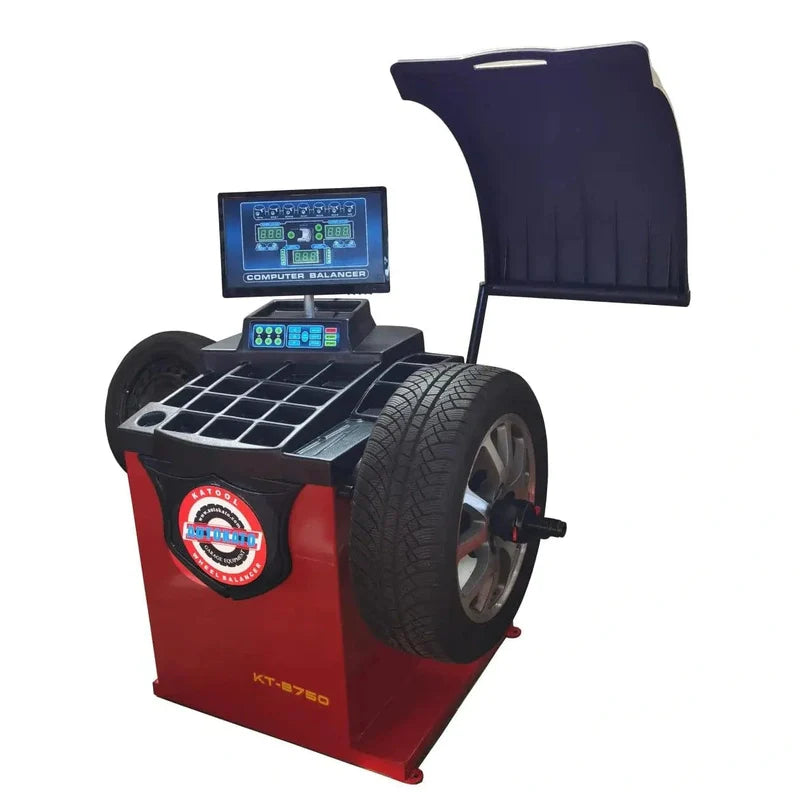

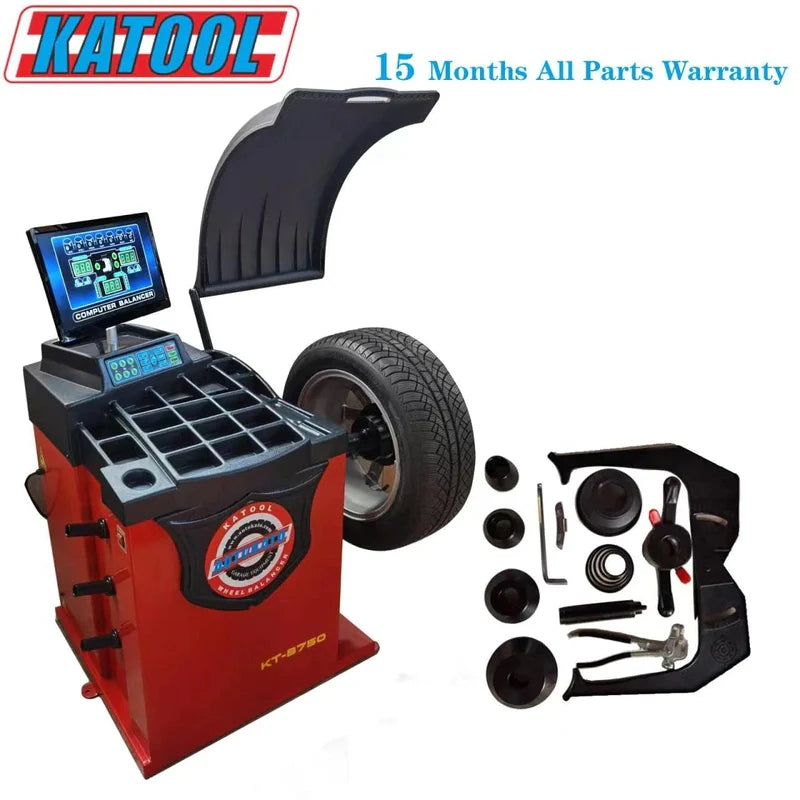

The Katool KT-B750 Wheel Balancer is a high-precision machine engineered for efficient and reliable wheel balancing. Constructed with a 3mm-thick high-strength steel frame and reinforced welding, it minimizes vibration to create a stable and consistent work environment. Its integrated pressure sensor support system, featuring 8mm-thick bottom and side panels, ensures dependable, high-accuracy readings during operation.
Powered by a top-grade motor with pure copper windings, the KT-B750 offers exceptional torque, rapid heat dissipation, and long-lasting durability. The advanced control board, built using moisture-proof, dust-proof, and anti-static welding technology, enhances performance and extends the unit’s operational lifespan. With multiple balance modes optimized for various rim types, this balancer delivers precise results every time. Additionally, the self-diagnosis and dual-sided calibration system simplify setup and operation, eliminating the need for manual parameter input.
Key Features
-

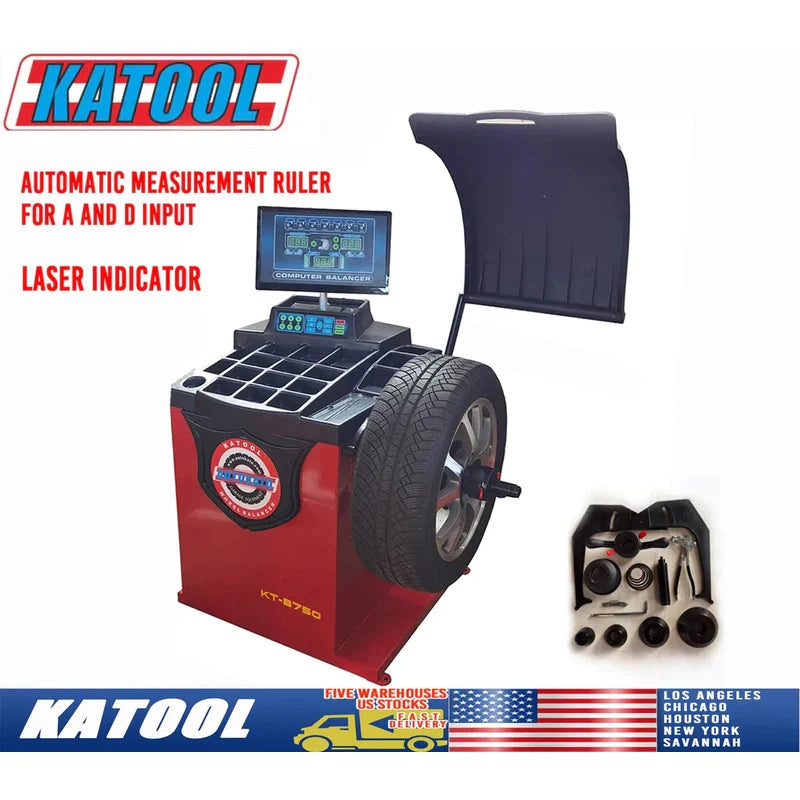

Automatic Measurement Ruler: Automatically inputs A and D values for faster, more accurate balancing.
-
Reinforced Steel Construction: 3mm-thick steel body with solid welds reduces vibration for stable operation.
-
Precision Sensor Design: Integrated pressure sensor system with 8mm-thick bottom and side boards ensures stability and accuracy.
-
High-Performance Motor: Pure copper winding for greater power, efficient cooling, and a longer lifespan.
-
Hardened Shaft Thread (φ36mm): Quenching-treated for superior strength and durability.
-
Advanced Control Board: Built with moisture-proof, dust-proof, and anti-static protection for enhanced longevity.
-
Multiple Balancing Modes: Adapts to different rim types for maximum precision.
-
Self-Calibration & Fault Diagnosis: Dual-sided calibration simplifies operation—no memory parameters needed.
-
Flexible Measurement Units: Switch easily between Ounce/Gram and MM/Inch.
-
Stable Power Delivery: Integrated, high-quality power board ensures reliable performance.
-
Composite Slash Guard: Included for operator protection.
-
Extended Shaft Design: Accommodates wider wheels for added versatility.
Specifications
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 15" |
| Max Wheel Diameter | ≤ 880 mm |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm |
| Max Wheel Weight | ≤ 65 kg |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty is available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Hydraulic cylinders, power units, motors, displays, and electronics
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be made within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or original order number from an authorized vendor.
-
Replacement parts and shipping are covered at no cost.
-
All claims are subject to approval by Katool’s warranty/service department.
-
Photos or videos may be required for claim verification.
-
Do not disassemble equipment before receiving authorization.
-
Items outside warranty coverage will require the buyer to cover replacement and shipping costs.
-
Labor costs are not included under this warranty.
