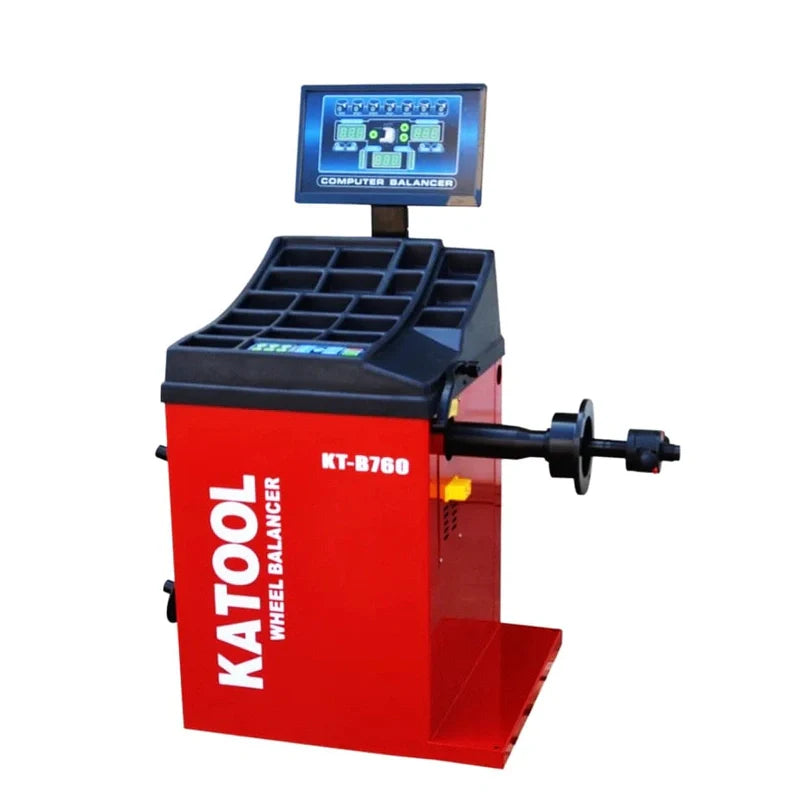

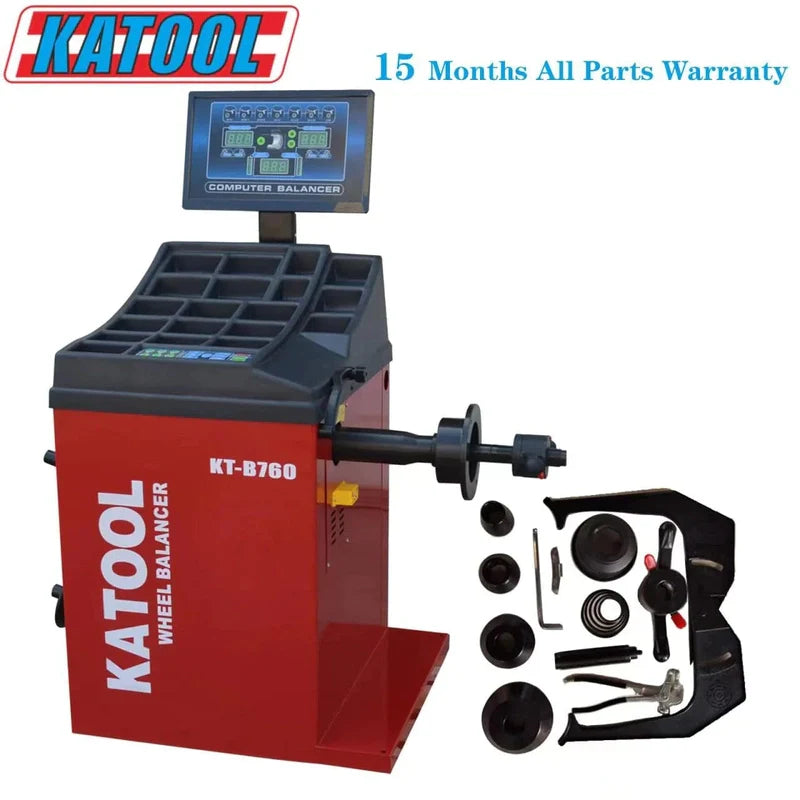

The Katool KT-B760 Wheel Balancer delivers professional-grade precision and efficiency, making it an excellent choice for workshops seeking reliable and accurate wheel balancing. Constructed from 3mm-thick high-strength steel with reinforced welding, it minimizes vibration for enhanced stability and smoother operation. Its integrated pressure sensor support system, featuring 8mm-thick bottom and side panels, ensures consistent, high-precision measurements.
Powered by a top-tier motor with pure copper windings, the KT-B760 provides superior performance, rapid heat dissipation, and an extended service life. The advanced computer board, manufactured with moisture-proof, dust-proof, and anti-static welding technology, ensures long-lasting durability in demanding environments. Offering multiple balance modes to accommodate different rim types, this machine guarantees precise and repeatable results. Additionally, the built-in fault diagnosis and dual-sided self-calibration system simplifies setup and operation, making the KT-B760 user-friendly and dependable.
Key Features
-
Automatic Measurement System: Automatically inputs A and D values for faster setup and improved accuracy.
-
Reinforced Steel Construction: 3mm-thick steel body with solid welding minimizes vibration and increases durability.
-
Integrated Sensor Support: 8mm-thick bottom and side panels enhance sensor stability and precision.
-
High-Performance Copper Motor: Provides more power, better heat dissipation, and longer service life with reduced defect rates.
-
Hardened Shaft (36mm): Quenching treatment increases strength and resistance to wear.
-
Advanced Control Board: Built to be moisture-proof, dust-proof, and anti-static for consistent long-term performance.
-
Multiple Balance Modes: Optimized for various rim types to ensure accurate balancing results.
-
Self-Diagnostics & Dual Calibration: Built-in fault detection and double-sided calibration simplify user operation — no preset parameters required.
-
Measurement Unit Flexibility: Select between Ounce/Gram or MM/Inch for different applications.
-
Stable Power System: High-quality integrated power board ensures reliable and consistent performance.
-
Optional Additions: Wheel guard for safety and an extended shaft compatible with wider wheels.
Specifications
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 110V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. An optional 2-year extended warranty is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Motors, power units, cylinders, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or an order number from an authorized vendor.
-
Replacement parts and shipping are covered free of charge.
-
All claims must be approved by Katool’s warranty/service department.
-
Photos or videos may be requested for defect verification.
-
Do not disassemble the equipment before receiving authorization.
-
Equipment outside warranty coverage will require the buyer to pay for replacement and shipping costs.
-
Labor costs are not included under warranty coverage.
