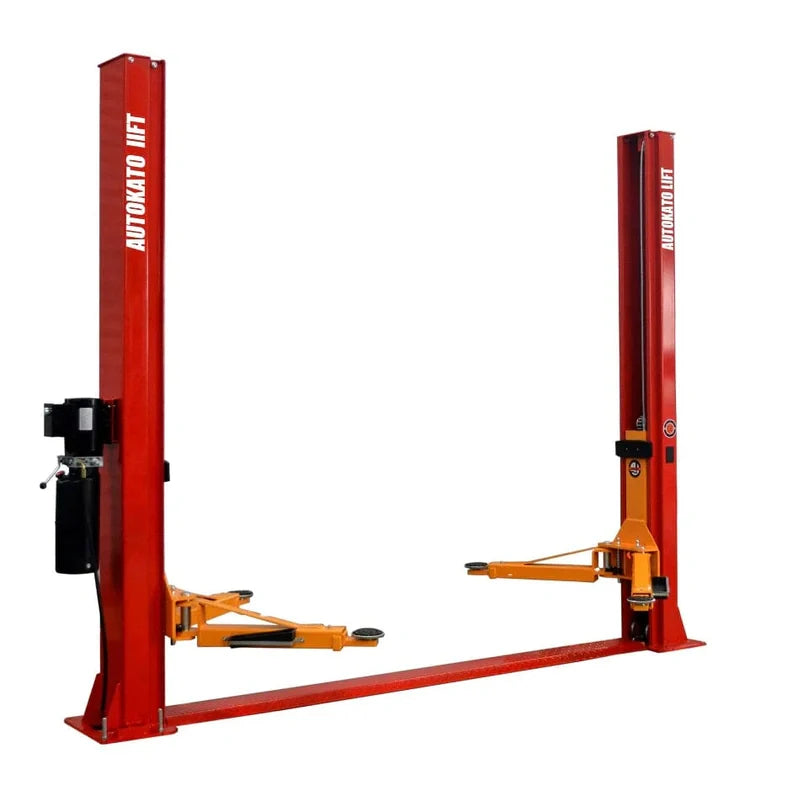

Katool KT-H100 Two Post Vehicle Lift — 10,000 lbs Capacity
The Katool KT-H100 Two Post Vehicle Lift delivers dependable performance and durability with a powerful 10,000 lbs lifting capacity. CE Approved and Certified, this lift adheres to rigorous international safety standards and has successfully passed 115% dynamic and 150% static load capacity tests.
Designed with operator safety and efficiency in mind, it features a manual dual-side safety release, symmetric arm configuration, and a durable base plate design. The dual hydraulic chain-drive cylinders ensure smooth, balanced lifting, while rubber door guards protect vehicles from contact damage.
This model includes extension adaptor sets (+30mm and +120mm) for greater flexibility across various vehicle types. Added feet-protection safety guardrails and an integrated toolbox further enhance convenience and workplace safety. Powered by a top-grade hydraulic system, it offers flexibility with 220V/60HZ/1PH or 110V/60HZ/1PH options.
⚠️ Installation Notice:
Concrete must be a minimum of 5.9" (150mm) thick with a 3000 PSI strength rating. Installing the lift on unsuitable concrete may result in serious injury or death. It is the customer’s responsibility to confirm the concrete’s specifications before purchase and installation.

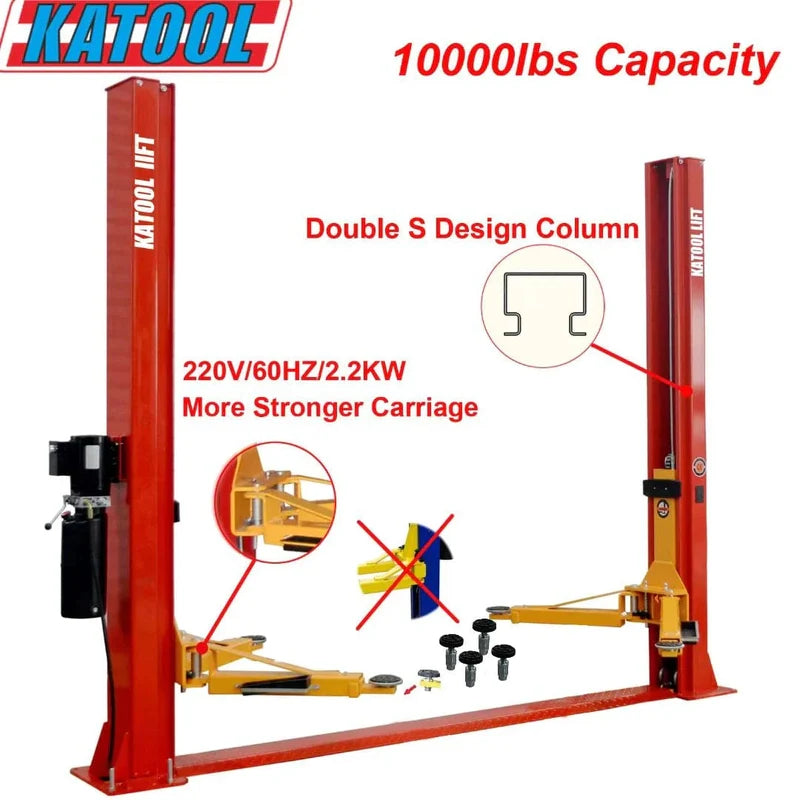

Features
-
10,000 lbs lifting capacity
-
CE Approved and Certified (115% dynamic / 150% static load tested)
-
Manual safety release on both sides
-

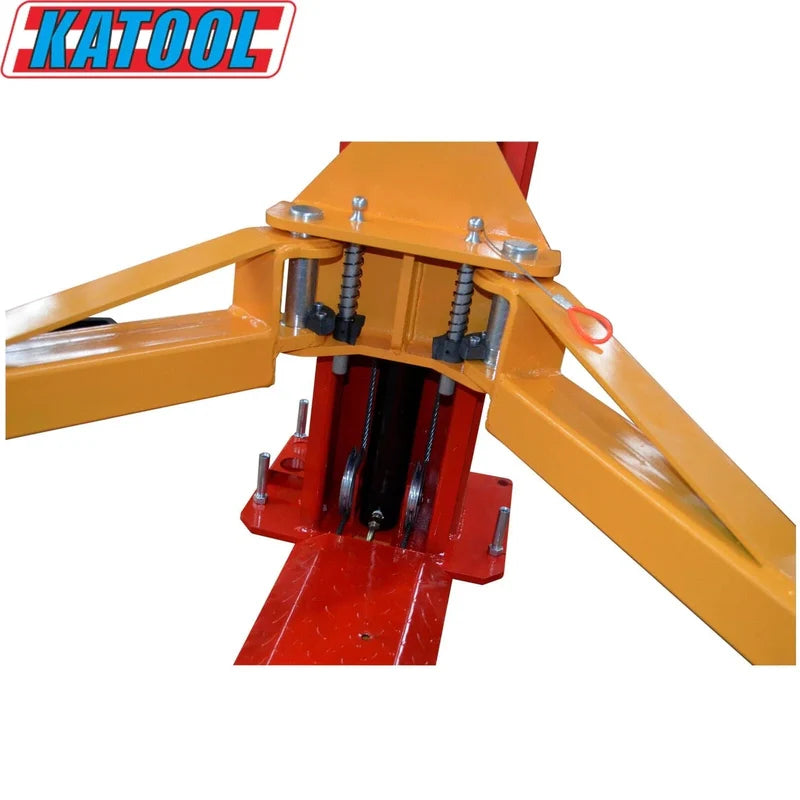

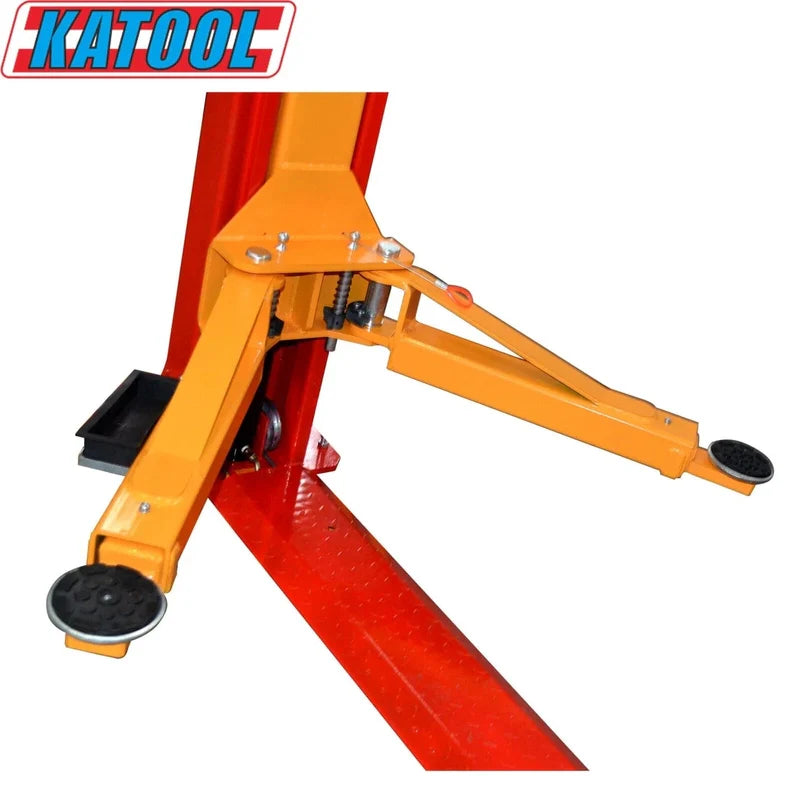

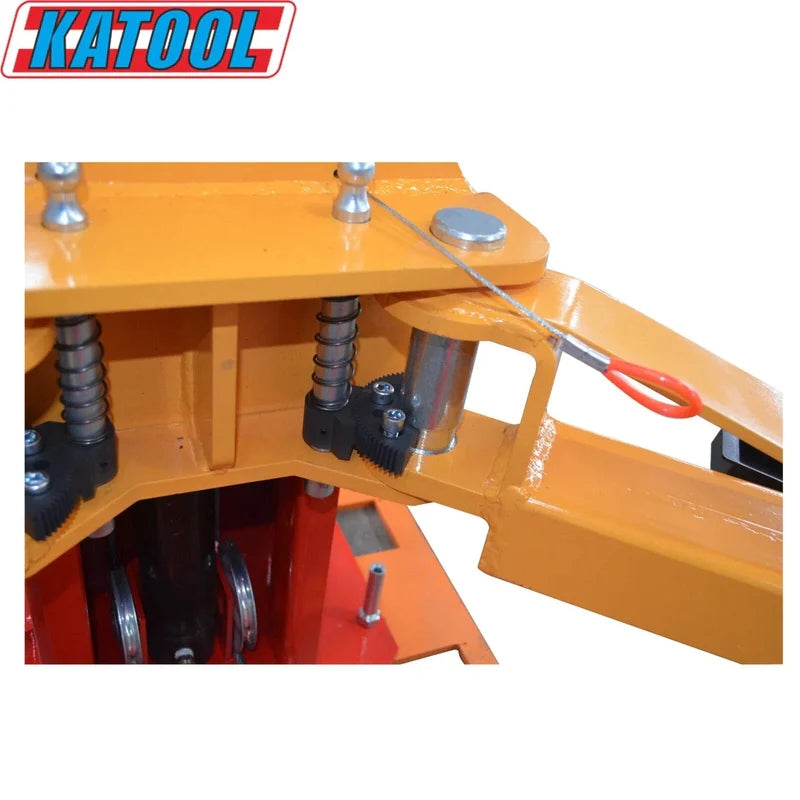

Symmetric arm design with base plate construction
-
Dual hydraulic chain-drive cylinders for smooth operation
-
Rubber pad door protection
-
Includes extension support adaptors: +30mm and +120mm
-
Feet-protection safety guardrails with integrated toolbox
-
High-performance hydraulic system (220V/60HZ/1PH or 110V/60HZ/1PH)
Specifications

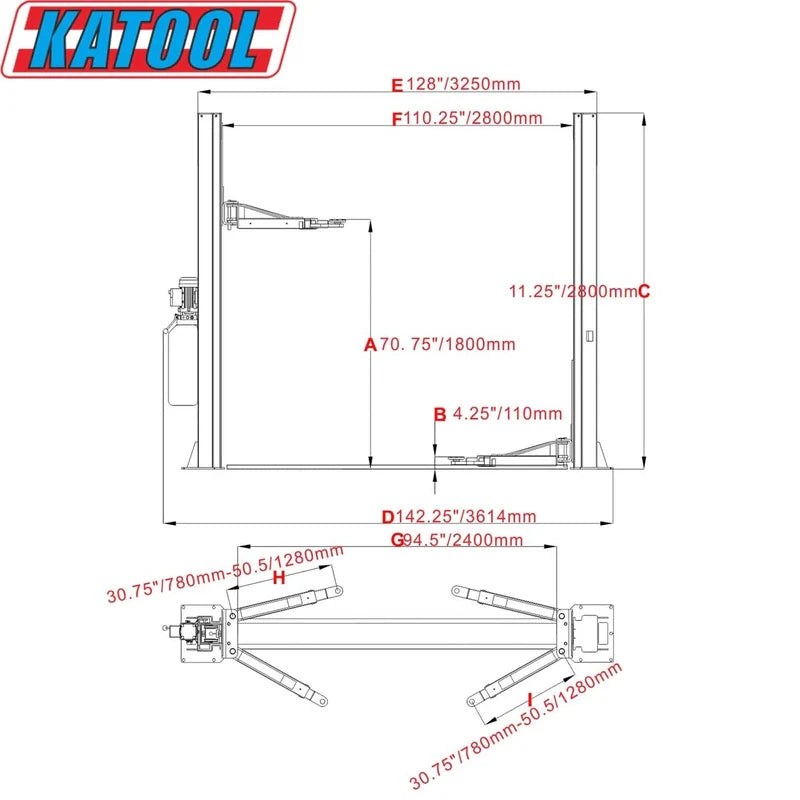

| Specification | Details |
|---|---|
| Lifting Capacity | 10,000 lbs / 4500 kg |
| Max. Lifting Height | 70.75" / 1800 mm |
| Min. Height | 4.25" / 110 mm |
| Overall Height | 110.25" / 2800 mm |
| Overall Width | 142.25" / 3614 mm |
| Outside Column Width | 128" / 3250 mm |
| Inside Column Width | 110.25" / 2800 mm |
| Drive-Thru Clearance | 94.5" / 2400 mm |
| Front Arm Reach (Min/Max) | 30.75"–50.5" (780–1280 mm) |
| Rear Arm Reach (Min/Max) | 30.75"–50.5" (780–1280 mm) |
| Motor | 220V AC / 60HZ / 1PH / 2.2KW |
| Net Weight | 1,256 lbs / 570 kg |
Warranty Information
Katool Warranty Coverage:
All Katool products are backed by a 1-year limited warranty covering parts and defects, free of charge. Customers may also opt for a 2-year extended warranty for any Katool or M&E automotive equipment.
Included Coverage:
-
Cylinders, power units, motors, displays, and electronics
-
Vehicle lifts include an additional 3-year warranty on structural components
Warranty Conditions:
-
Claims must be made within the warranty period
-
Non-transferable; requires original purchase record
-
Replacement parts and shipping covered at no cost
-
Labor not included
-
Photos/videos may be required for claim approval
-
Unauthorized disassembly voids warranty
Katool ensures that all products are industry-tested and recognized for their reliability, safety, and performance — making them a trusted choice for professional automotive facilities.
