Description

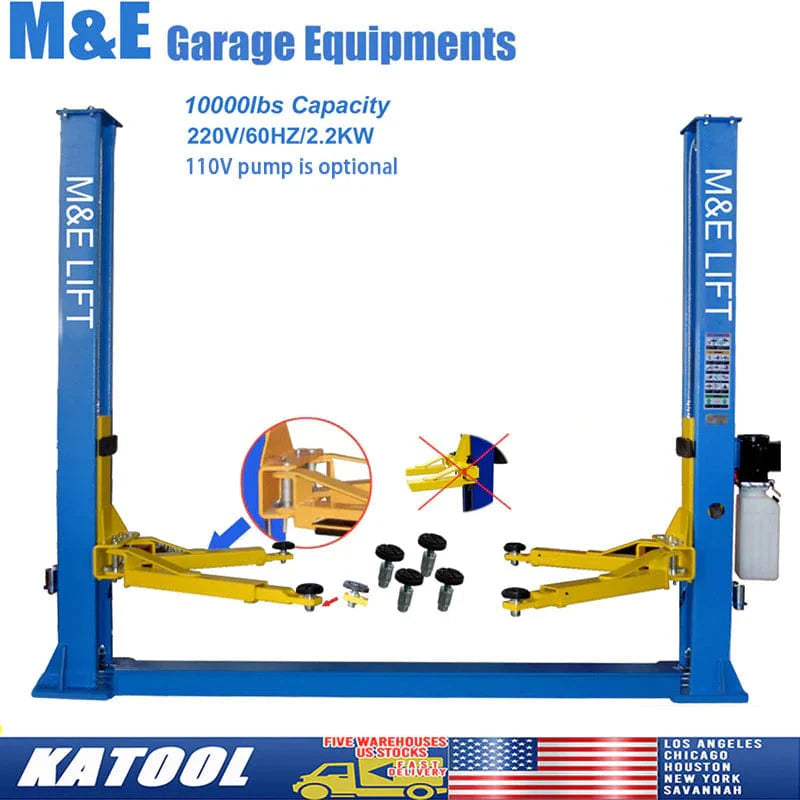

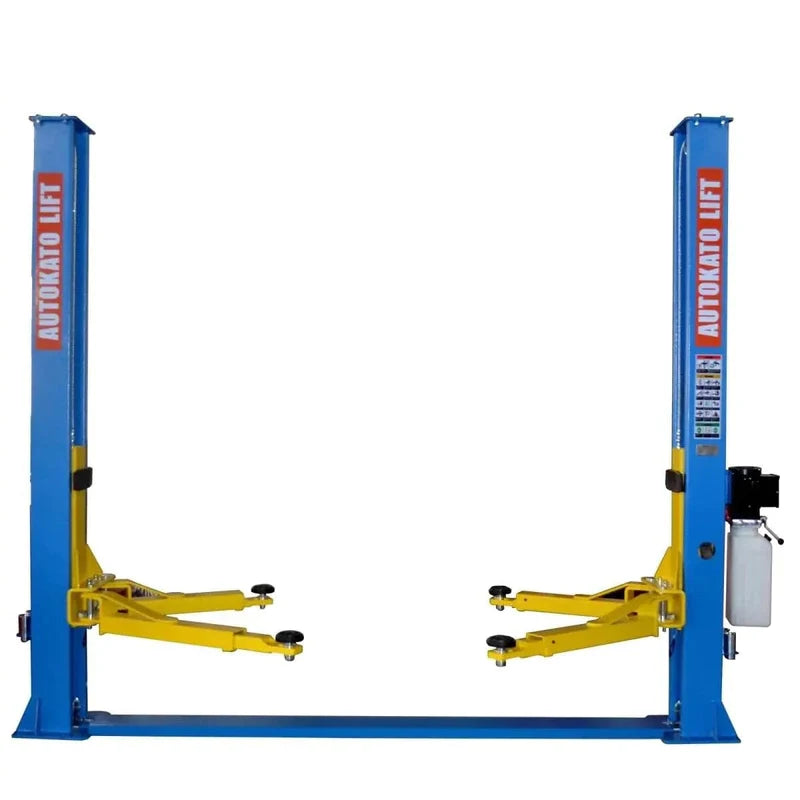

Katool KT-H105 Two Post Vehicle Lift — 10,000 lbs Capacity
The Katool KT-H105 Two Post Lift is a dependable and efficient solution designed for professional automotive service environments. With a 10,000 lbs (4,500 kg) lifting capacity, this lift combines strength, precision, and reliability for everyday use.
CE Approved and Certified, the KT-H105 surpasses international safety requirements, having passed 115% dynamic and 150% static load capacity testing. It features a manual safety release from both sides, a durable base plate design, and dual hydraulic chain-drive cylinders, ensuring smooth, balanced, and secure lifting performance.
To enhance protection and usability, the lift includes rubber door guards, screw-on lift pads, and +100mm extension adaptors for accommodating various vehicle sizes. Its high-quality hydraulic system delivers stable performance with a 220V / 60HZ / 1PH configuration, making it a versatile choice for workshops and garages alike.
Installation Requirement:
Concrete must be at least 5.9" (150 mm) thick with a 3000 PSI strength rating. Installing this lift on unsuitable concrete may result in serious injury or death. It is the customer’s responsibility to confirm the concrete’s specifications before purchase and installation.
Key Features
-

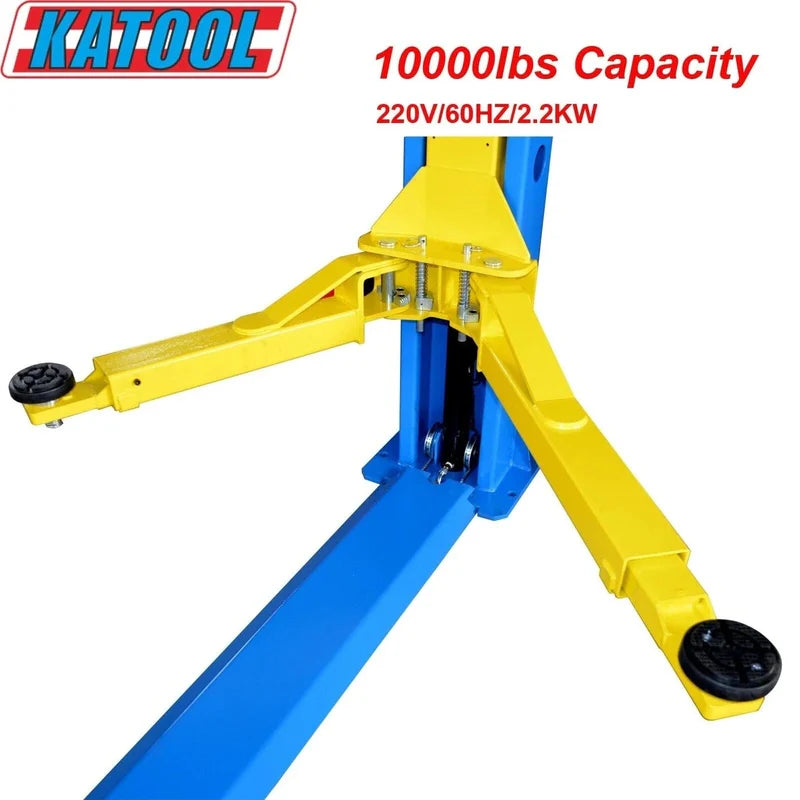

10,000 lbs (4,500 kg) lifting capacity
-
CE Approved and Certified — tested at 115% dynamic and 150% static standards
-
Manual safety release from both sides
-
Reinforced base plate design
-
Dual hydraulic chain-drive cylinders
-
Rubber pad door opening protection
-

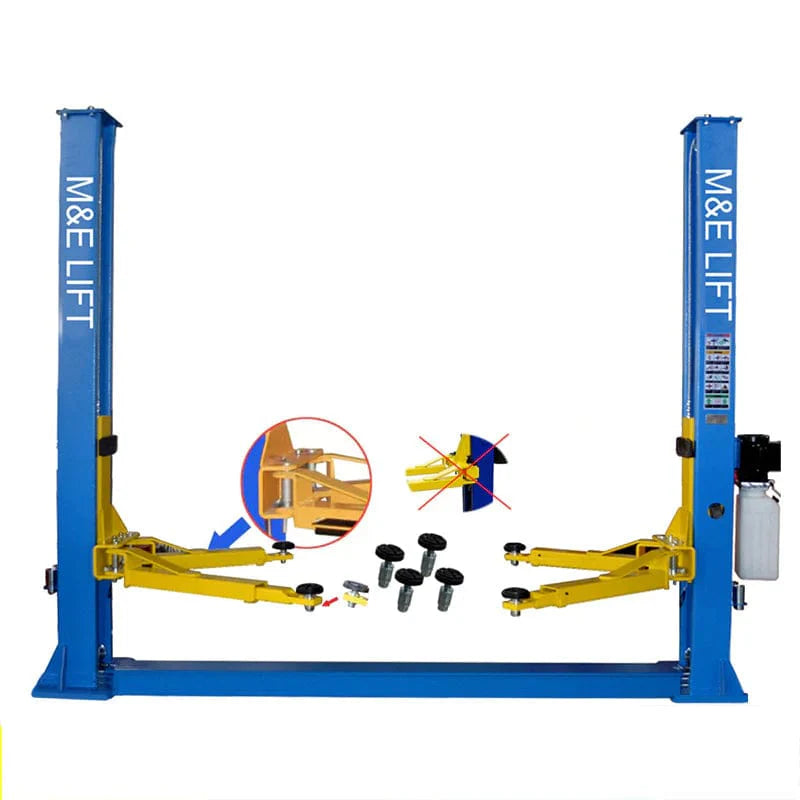

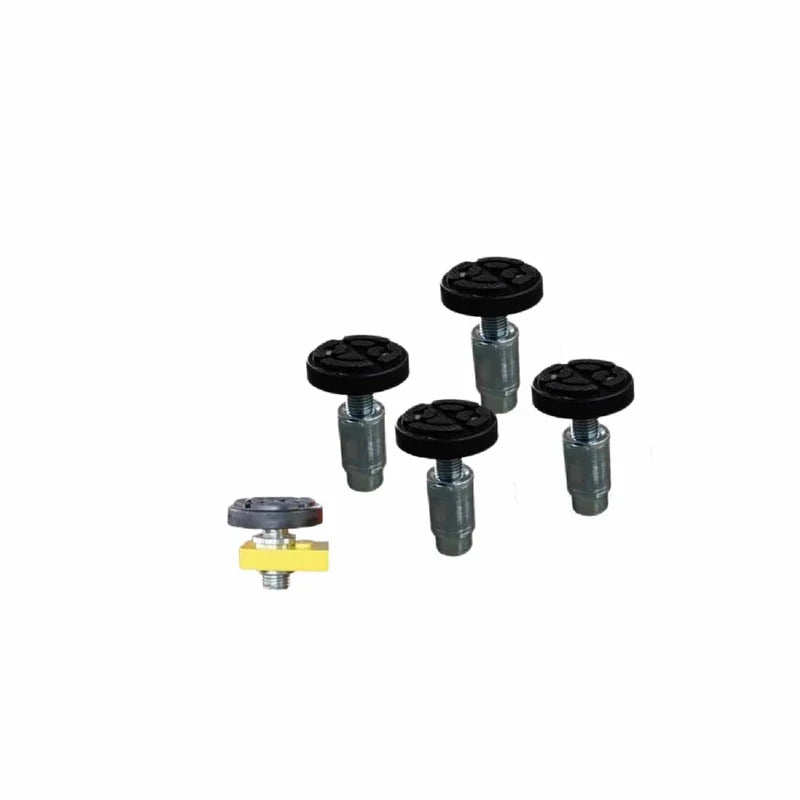

Screw-on lift pads and +100mm extension adaptor sets
-
High-performance hydraulic system (220V / 60HZ / 1PH)

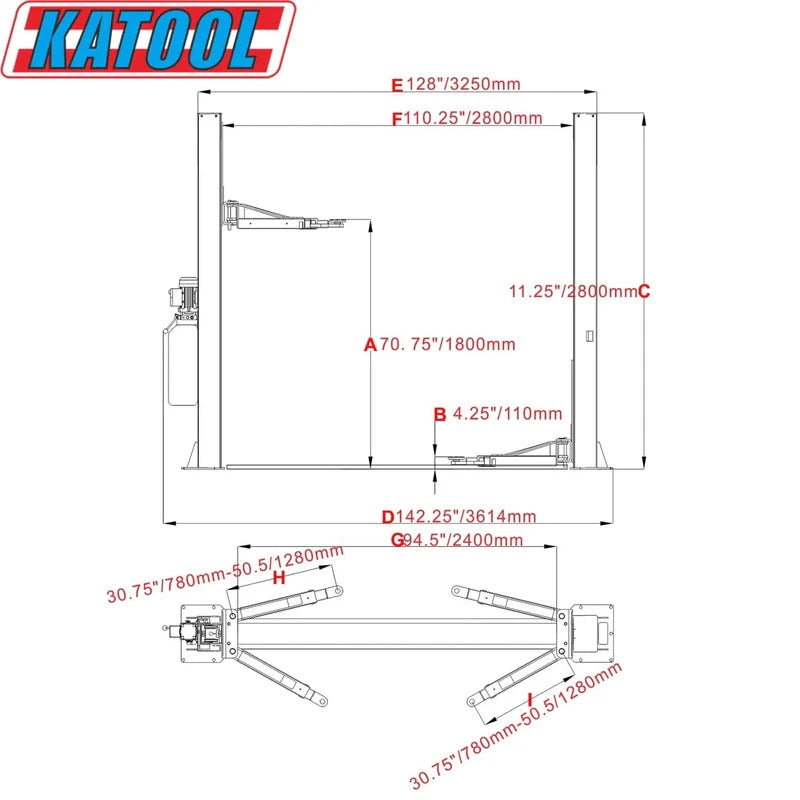

Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10,000 lbs / 4,500 kg |
| Max. Lifting Height | 70.8" / 1800 mm |
| Min. Height | 3.9" / 100 mm |
| Overall Height | 110.9" / 2818 mm |
| Overall Width | 140.4" / 3565 mm |
| Outside Column Width | 124.8" / 3170 mm |
| Inside Column Width | 110.2" / 2800 mm |
| Drive-Thru Clearance | 98.4" / 2500 mm |
| Front Arm Reach (Min/Max) | 29.5"–46" (750–1170 mm, 2 stages) |
| Rear Arm Reach (Min/Max) | 35.4"–58.2" (900–1480 mm, 2 stages) |
| Motor | 220V AC / 60HZ / 1PH / 2.2KW |
| Net Weight | 570 kg |
Warranty Information
Standard Warranty:
Katool provides a 1-year (12-month) limited warranty on all parts and against manufacturing defects, free of charge.
Extended Warranty Option:
A 2-year extended warranty is available for all Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year (36-month) warranty on structural parts
Warranty Conditions:
-
Claims must be submitted within the warranty period
-
Warranty is non-transferable and requires proof of purchase from our company or an authorized vendor
-
Replacement parts and shipping provided at no cost
-
Labor costs are not included
Additional Notes:
-
All warranty claims are subject to approval by Katool’s warranty/service department
-
Photos or videos may be requested to verify defects
-
Do not disassemble equipment before confirmation of issue
-
Equipment outside warranty coverage is the customer’s responsibility
Katool products are professionally tested, CE-certified, and trusted across the automotive industry for their durability, safety, and consistent performance.
Resources
For more detailed information and guidance, you can download the following:
