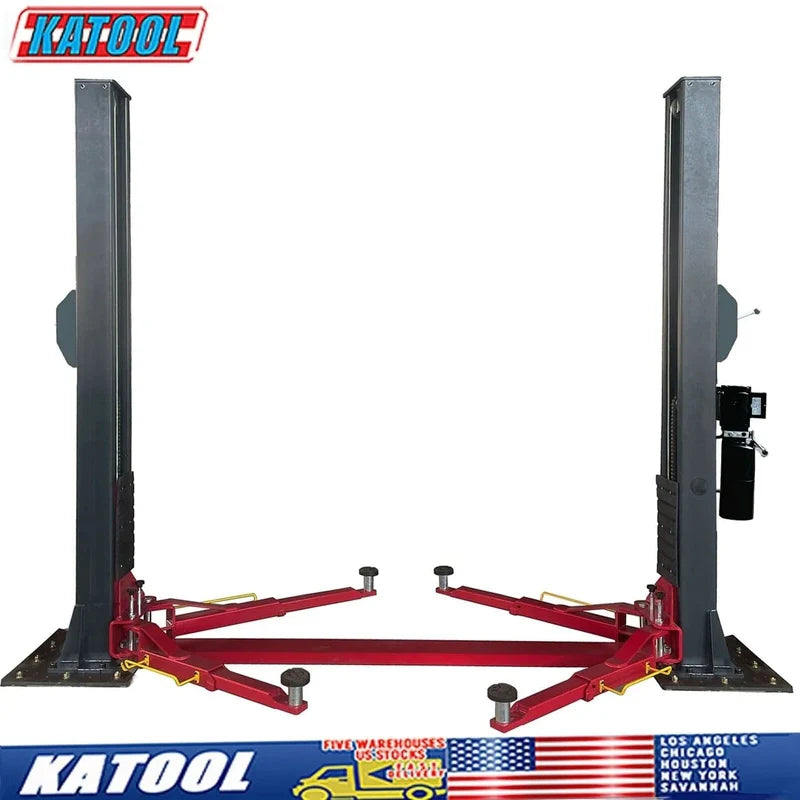

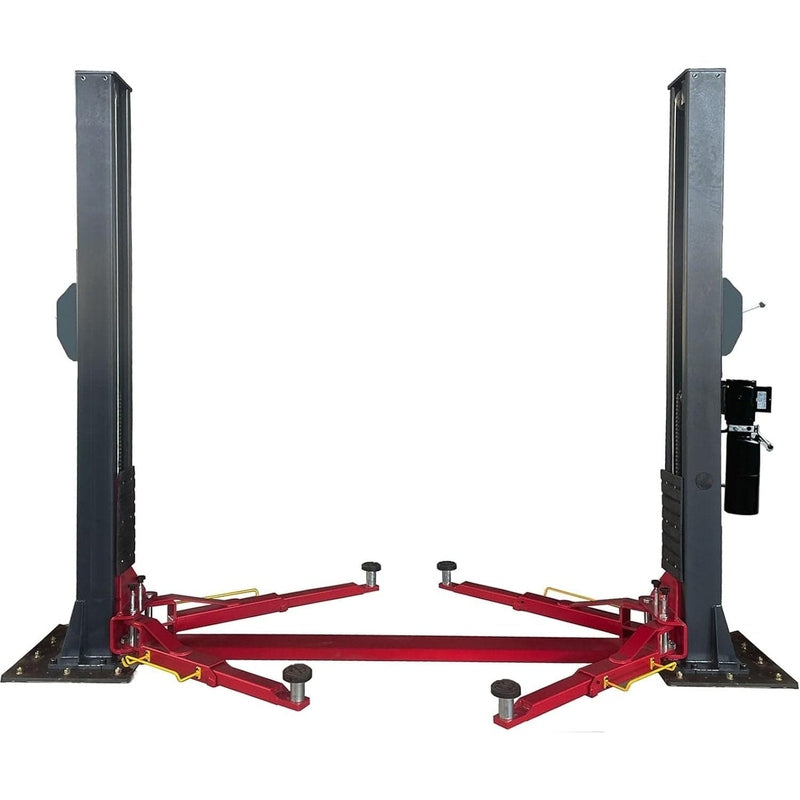

Katool KT-H120D Two Post Vehicle Lift — 12,000 lbs Capacity
The Katool KT-H120D Two Post Lift is a heavy-duty automotive lift built for reliability, safety, and consistent performance. With an impressive 12,000 lbs (5,500 kg) lifting capacity, this model provides the power and stability needed for professional automotive service environments.
The manual single-side safety release allows for convenient operation while maintaining full safety compliance. Featuring a symmetric arm configuration, reinforced base plate design, and dual hydraulic chain-drive cylinders, the KT-H120D ensures smooth, balanced lifting with maximum structural integrity.
Equipped with rubber door guards, screw-on lifting pads, and +100mm extension adaptors, this lift accommodates a wide variety of vehicle types. Powered by a premium-grade hydraulic system, it delivers dependable performance with a 220V / 60HZ / 1PH setup.
⚠️ Installation Requirement:
Concrete must be at least 5.9" (150 mm) thick with a 3000 PSI strength rating. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer’s responsibility to confirm concrete strength and thickness prior to purchase and installation.
Key Features
-
12,000 lbs (5,500 kg) lifting capacity
-
Manual safety release from one side
-
Symmetric arm configuration with reinforced base plate design
-
Dual hydraulic chain-drive cylinders for smooth lifting
-
Rubber pad door protection
-

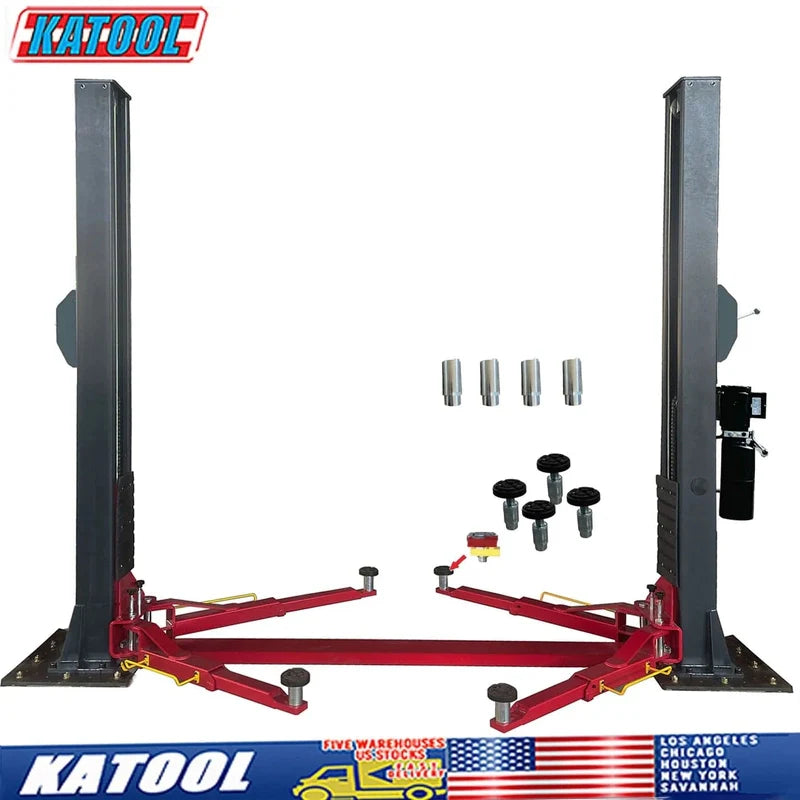

Screw-on lift pads with +100mm extension adaptor set
-
High-performance hydraulic system (220V / 60HZ / 1PH)

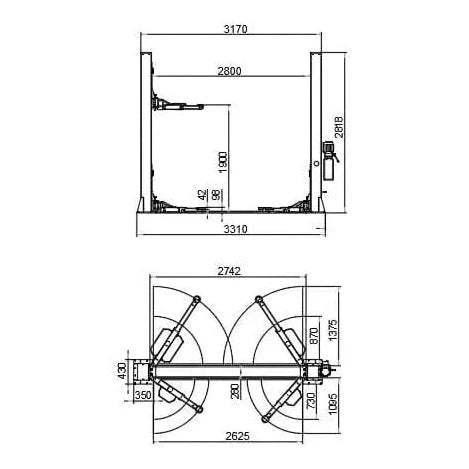

Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 12,000 lbs / 5,500 kg |
| Overall Height | 110.94" / 2818 mm |
| Overall Width | 140" / 3555 mm |
| Drive-Thru Clearance | 98.43" / 2500 mm |
| Max. Lifting Height | 74.8" / 1900 mm |
| Item Weight | 120 lbs |
| Product Dimensions | 112" × 18" × 36" |
Warranty Information
Standard Warranty:
Katool provides a 1-year (12-month) limited warranty on all parts and against manufacturing defects at no additional cost.
Extended Warranty Option:
A 2-year extended warranty is available for all Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year (36-month) warranty for structural parts
Warranty Conditions:
-
Claims must be submitted within the valid warranty period
-
Warranty is non-transferable and requires the original order number and proof of purchase
-
Replacement parts and shipping provided at no cost
-
Labor is not included in warranty coverage
Important Notes:
-
All warranty claims are subject to review and approval by Katool’s service department
-
Photos or videos may be requested to verify defects
-
Do not disassemble equipment prior to issue confirmation
-
Out-of-policy equipment is not covered; customer is responsible for parts and shipping costs
Katool products are industry-tested for durability and performance, making them a trusted choice for automotive professionals who demand reliability and safety.
Resources
For more detailed information and guidance, you can download the following:
