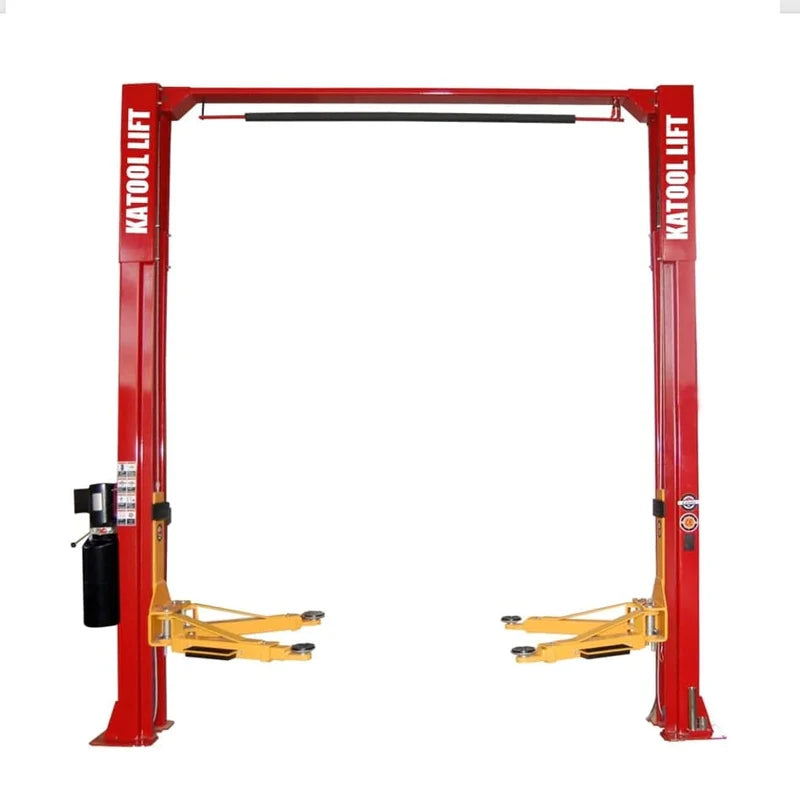

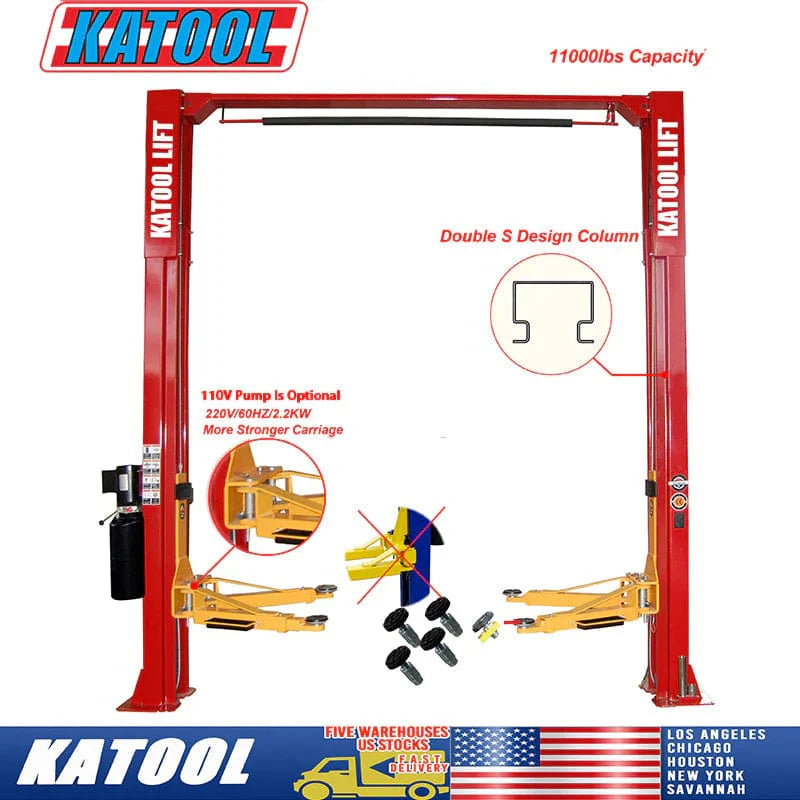

Katool KT-M110 Two Post Clear-Floor Vehicle Lift — 11,000 lbs Capacity
The Katool KT-M110 Two Post Clear-Floor Lift delivers exceptional lifting power, reliability, and safety for professional automotive service environments. With an 11,000 lbs (5,000 kg) lifting capacity, this lift combines robust construction with advanced safety features to ensure secure and efficient operation.
CE Approved and Certified, the KT-M110 exceeds industry standards, having undergone 115% dynamic and 150% static load capacity testing. It features a symmetric clear-floor design, dual-side manual safety release, and dual hydraulic chain-drive cylinders for smooth and balanced lifting performance.
Additional features such as rubber door protection pads, extension support adaptor sets (+30mm and +120mm), and an overhead safety shutoff bar enhance both versatility and operator safety. The feet-protection safety guardrails and integrated toolbox provide extra convenience in busy workshop settings. Powered by a top-tier hydraulic system, the lift offers flexibility with 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations.
⚠️ Installation Requirement:

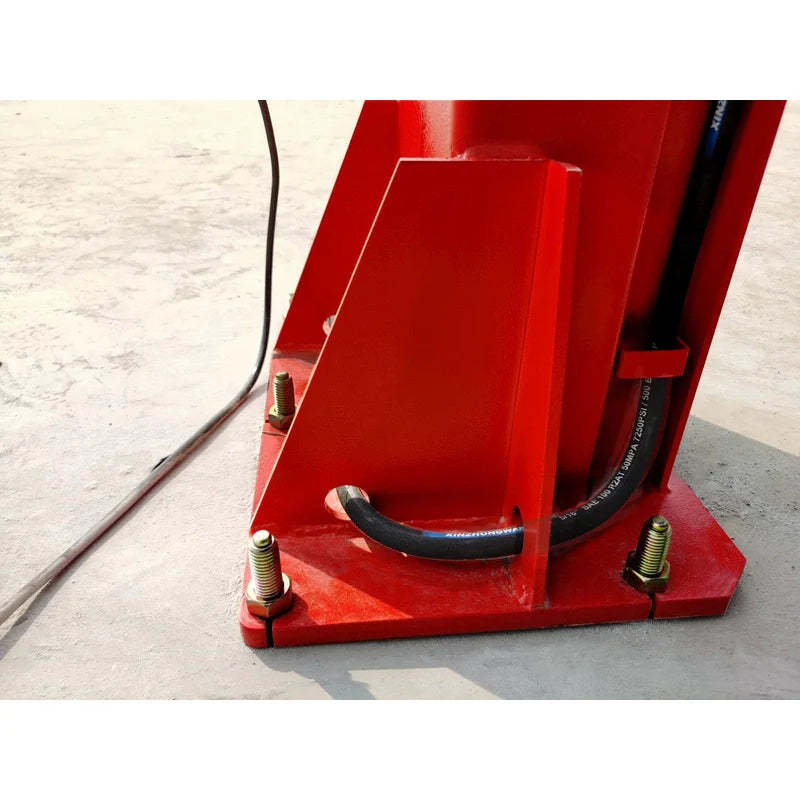

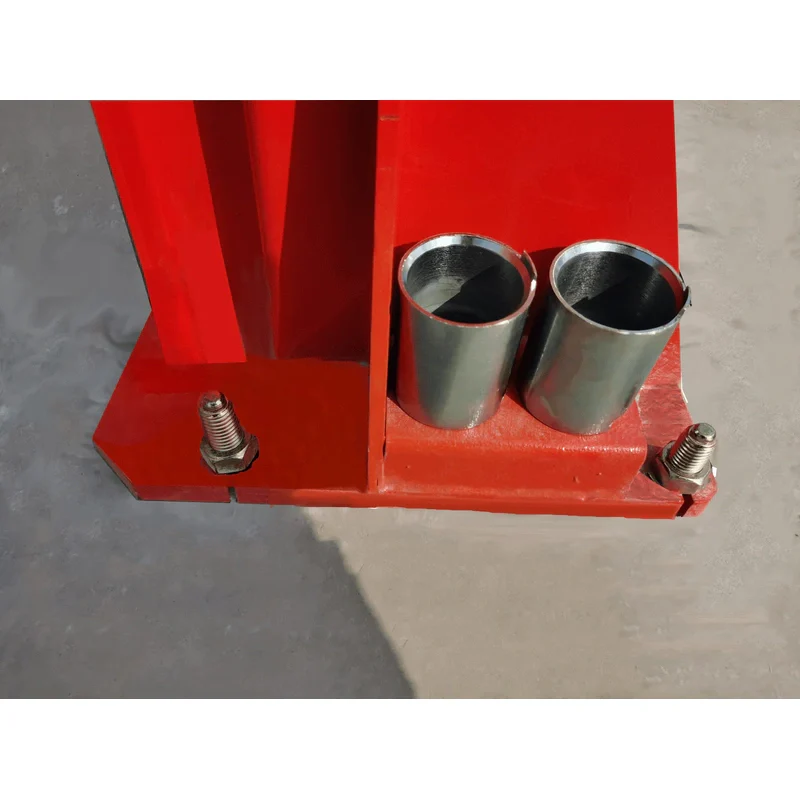

Concrete must be at least 5.9" (150 mm) thick with a 3000 PSI strength rating. Installing the lift on inadequate concrete may cause serious injury or death. It is the customer’s responsibility to verify the concrete’s condition before purchase and installation.
Key Features
-
11,000 lbs (5,000 kg) lifting capacity
-
CE Approved and Certified — tested to 115% dynamic and 150% static standards
-
Symmetric clear-floor design
-

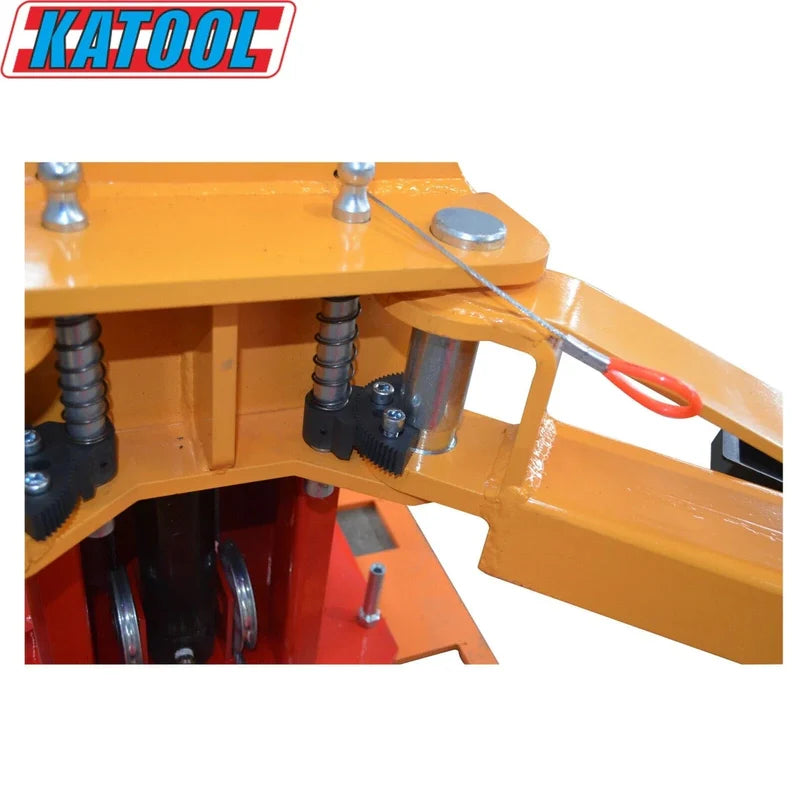

Manual safety release from both sides
-

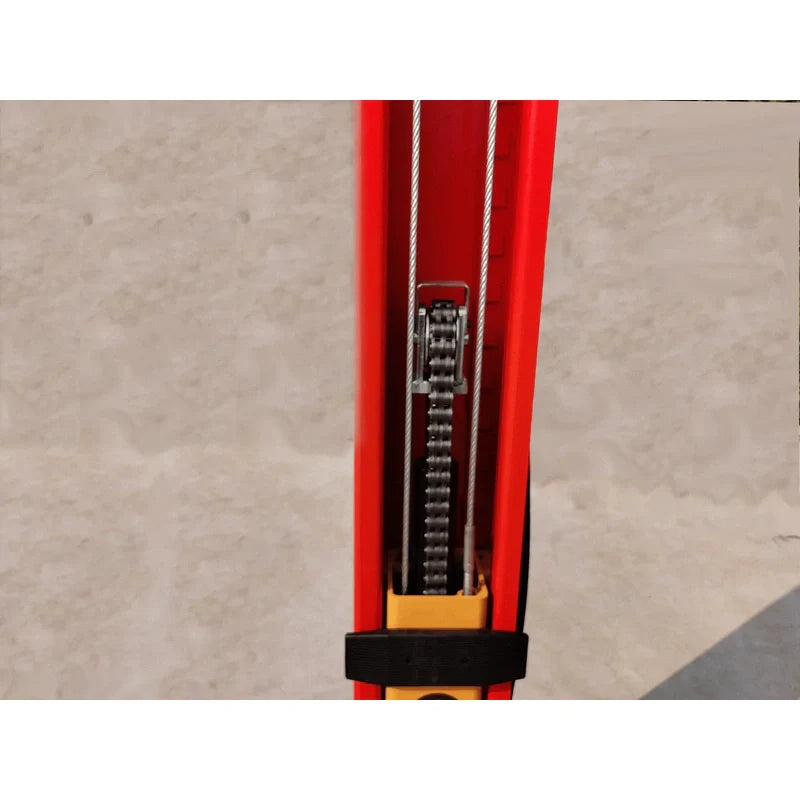

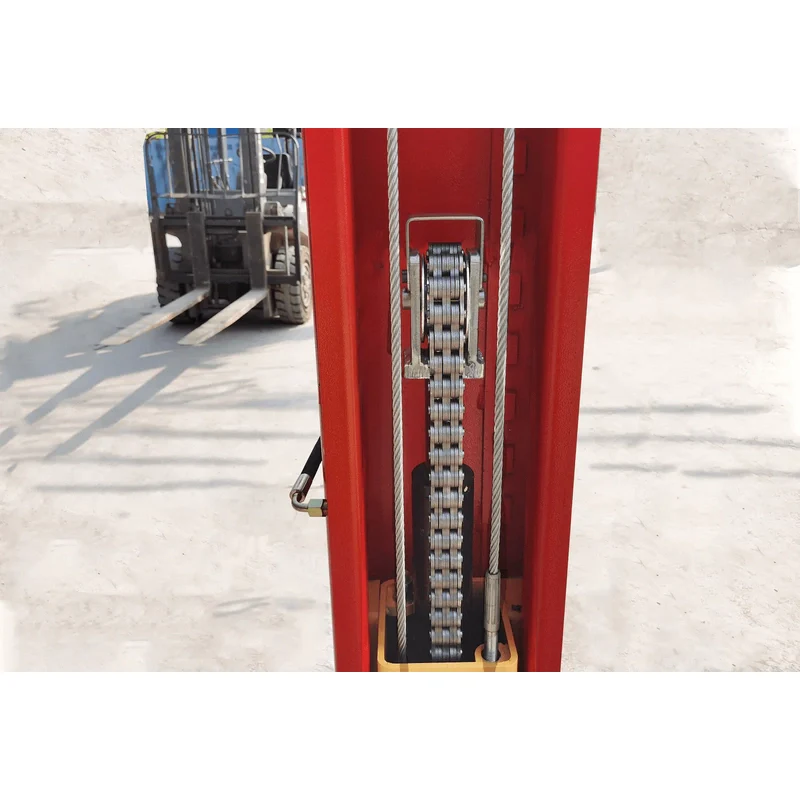

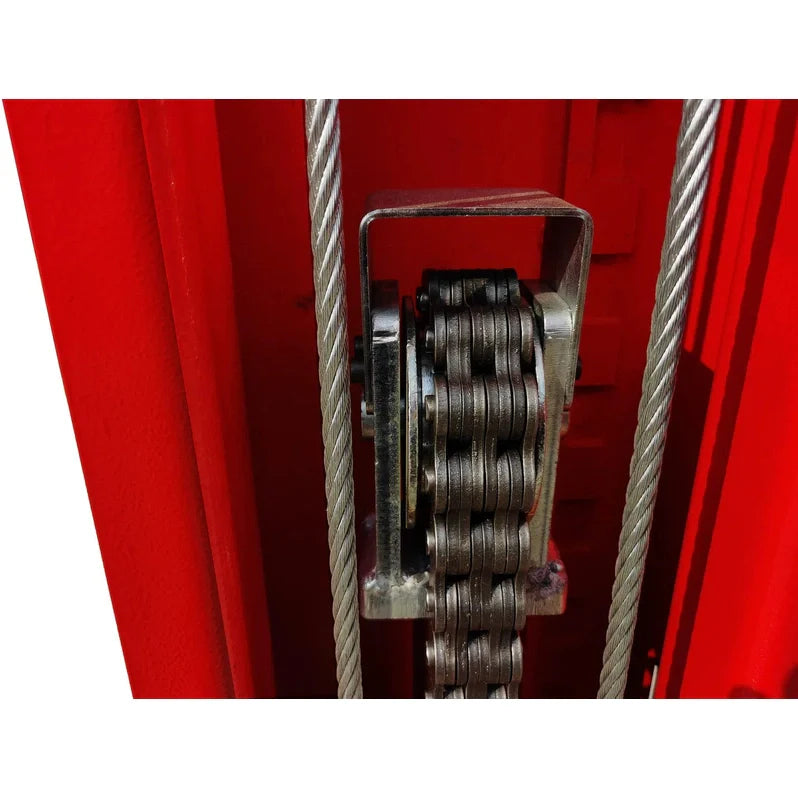

Dual hydraulic chain-drive cylinders for smooth operation
-
Rubber pad door protection
-

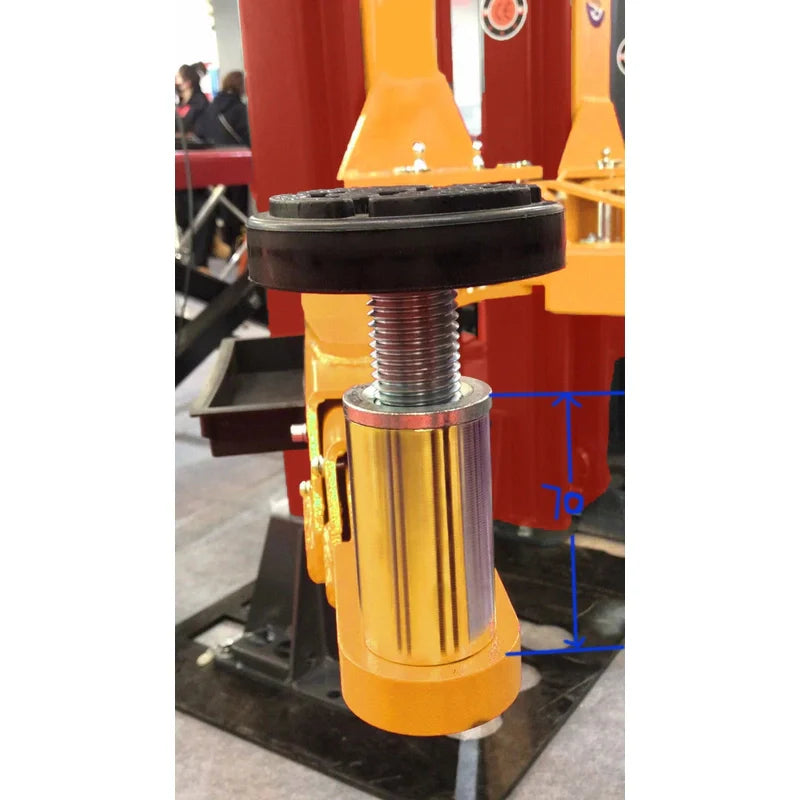

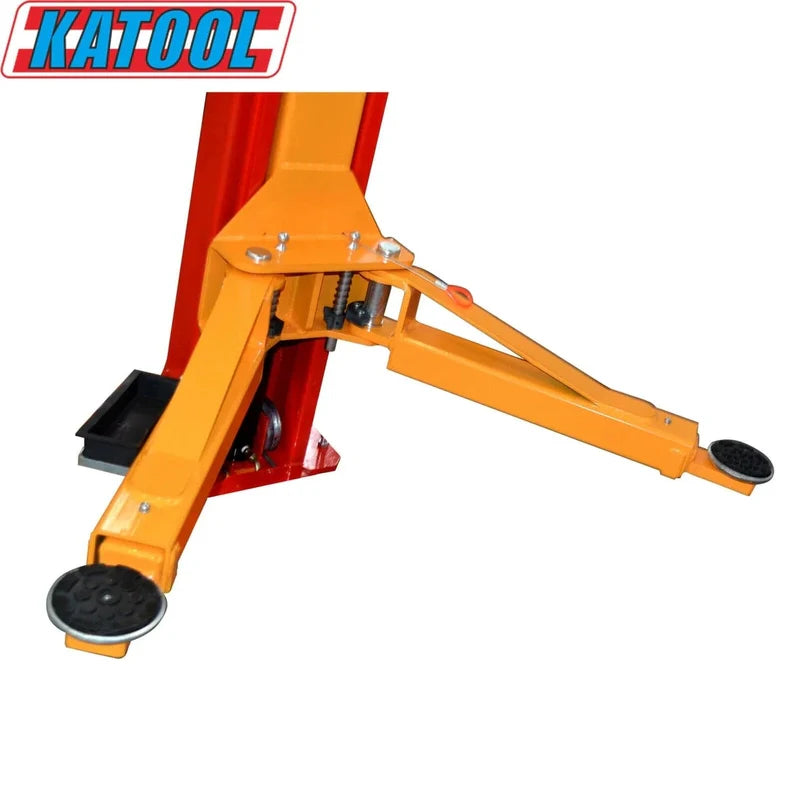

Includes +30mm and +120mm extension adaptor sets
-
Overhead safety shutoff bar for added protection
-
Feet-protection safety guardrails with integrated toolbox
-
High-quality hydraulic system (220V/60HZ/1PH or optional 110V/60HZ/1PH)

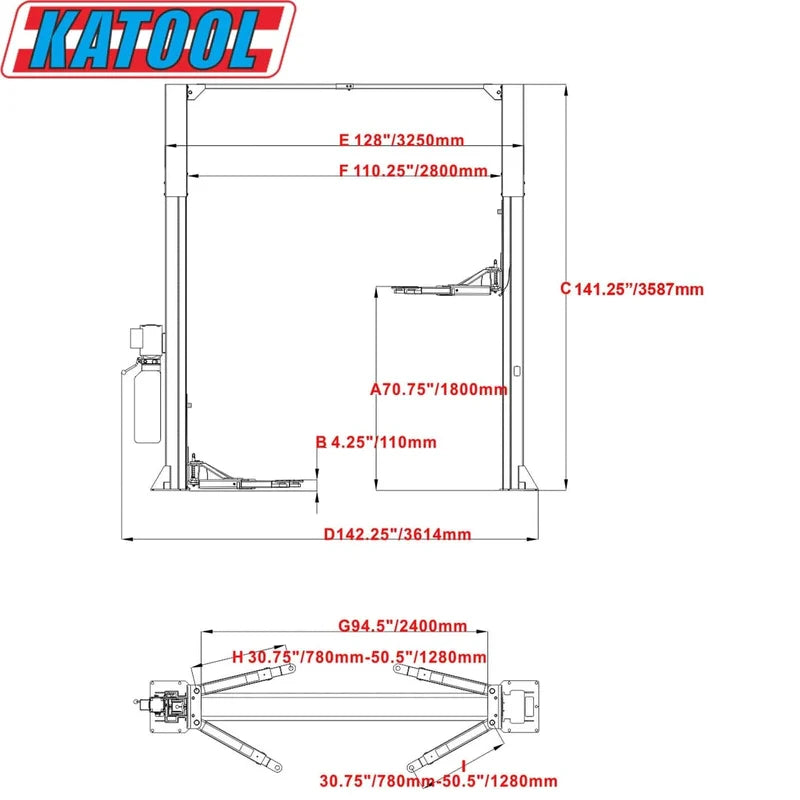

Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 11,000 lbs / 5,000 kg |
| Max. Lifting Height | 70.75" / 1800 mm |
| Min. Height | 4.25" / 110 mm |
| Overall Height | 141.25" / 3587 mm |
| Overall Width | 142.25" / 3614 mm |
| Outside Column Width | 128" / 3250 mm |
| Inside Column Width | 110.25" / 2800 mm |
| Drive-Thru Clearance | 94.5" / 2400 mm |

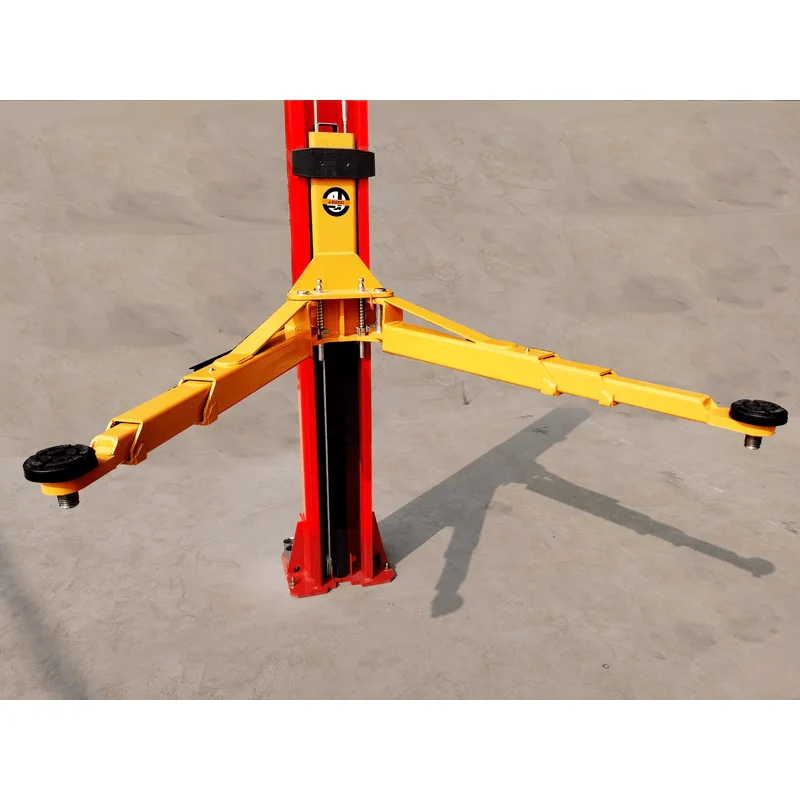

| Front Arm Reach (Min/Max) | 30.75"–50.5" (780–1280 mm, 2 stages) |
| Rear Arm Reach (Min/Max) | 30.75"–50.5" (780–1280 mm, 2 stages) |
| Motor | 220V AC / 60HZ / 1PH / 2.2KW |
| Net Weight | 1,367 lbs / 620 kg |
Warranty Information
Standard Warranty:
Katool offers a 1-year (12-month) limited warranty covering all parts and defects at no additional cost.
Extended Warranty Option:
A 2-year extended warranty is available for all Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year (36-month) warranty on structural parts
Warranty Conditions:
-
Claims must be submitted within the warranty period
-
Warranty is non-transferable and requires proof of purchase from our company or an authorized vendor
-
Replacement parts and shipping are provided free of charge
-
Labor costs are not included
Important Notes:
-
All claims are subject to review and approval by Katool’s warranty/service department
-
Photos or videos may be required to verify issues
-
Do not disassemble any equipment before the issue is confirmed
-
Equipment outside warranty coverage is the customer’s responsibility
All Katool lifts are professionally tested, CE certified, and industry-proven to deliver outstanding performance, safety, and long-term reliability.
Resources
For more detailed information and guidance, you can download the following:
