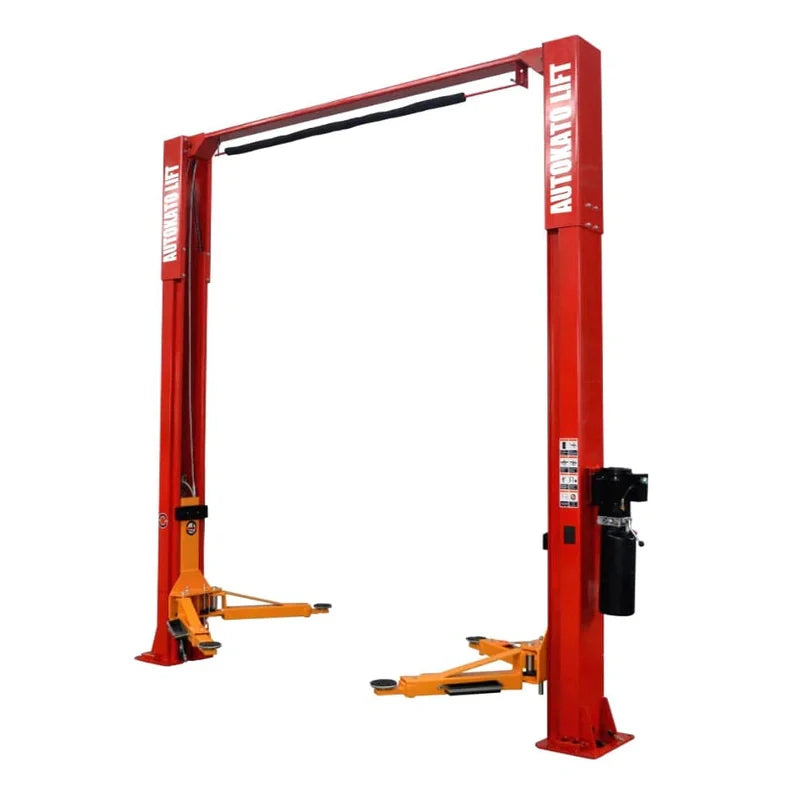

Katool KT-M120 Two Post Clear-Floor Vehicle Lift — 12,000 lbs Capacity

The Katool KT-M120 Two Post Clear-Floor Lift is a heavy-duty and precision-engineered lifting system designed for professional automotive use. With a 12,000 lbs (5,500 kg) lifting capacity, this model delivers reliable performance and stability for a wide range of vehicles.

CE Approved and Certified, the KT-M120 meets and exceeds industry safety standards, having successfully passed 115% dynamic and 150% static load capacity tests. The lift features a dual-side manual safety release, symmetric arm configuration, and dual hydraulic chain-drive cylinders, ensuring smooth, balanced, and secure operation.

For added safety and versatility, it includes rubber door guards, extended support adaptor sets (+30mm and +120mm), and an overhead safety shutoff bar to prevent accidental contact with raised vehicles. The feet-protection safety guardrails and integrated toolbox enhance user convenience, while the high-quality hydraulic system provides consistent performance with 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations.

⚠️ Installation Requirement:

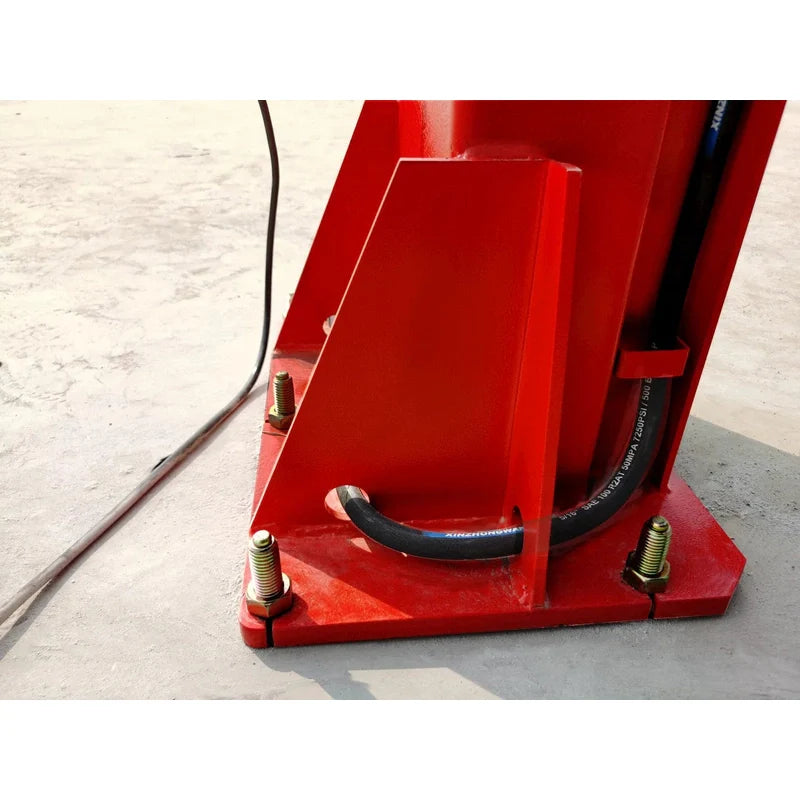

Concrete must be at least 5.9" (150 mm) thick with a 3000 PSI strength rating. Installing the lift on improper concrete may lead to serious injury or death. It is the customer’s responsibility to verify the concrete’s strength and thickness prior to purchase and installation.

Key Features

  • 12,000 lbs (5,500 kg) lifting capacity

  • CE Approved and Certified — tested to 115% dynamic and 150% static standards

  • Manual safety release from both sides

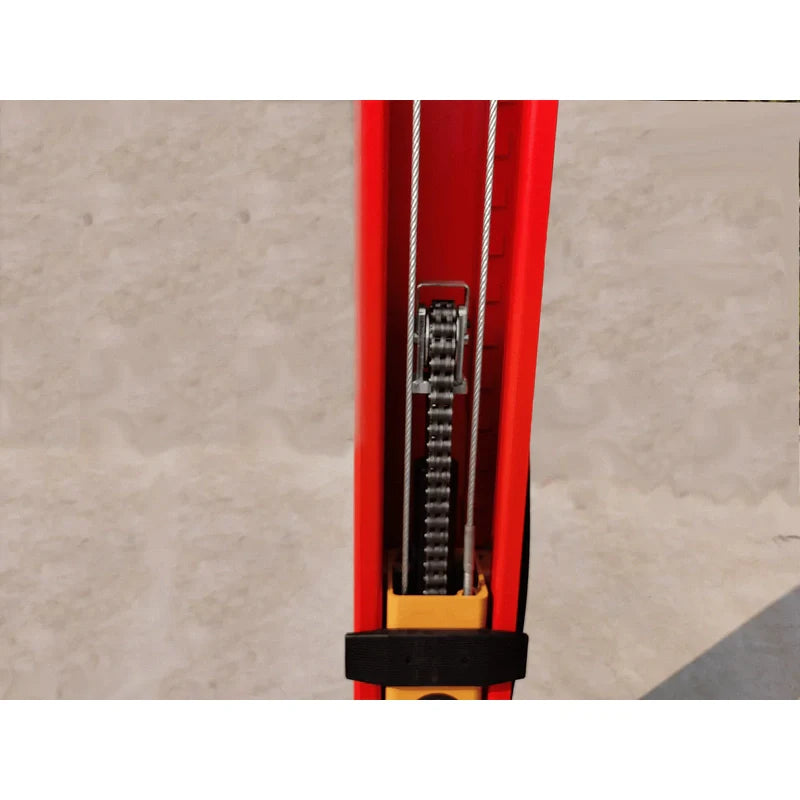

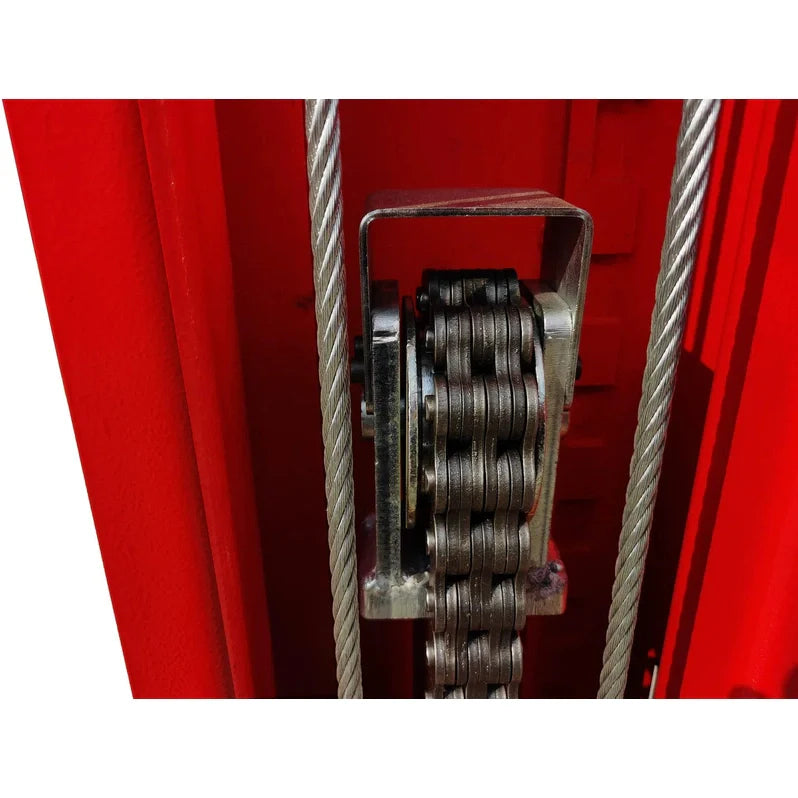

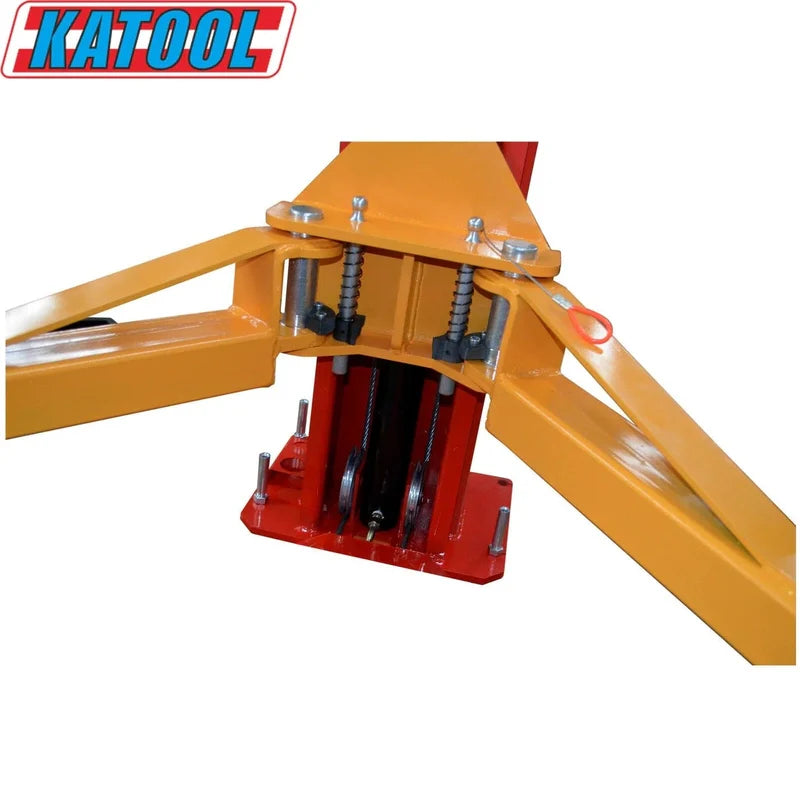

  • Symmetric arm design with dual hydraulic chain-drive cylinders

  • Rubber door opening protection

  • Includes +30mm and +120mm extension adaptor sets

  • Overhead safety shutoff bar

  • Feet-protection safety guardrails with integrated toolbox

  • High-performance hydraulic system (220V/60HZ/1PH or optional 110V/60HZ/1PH)

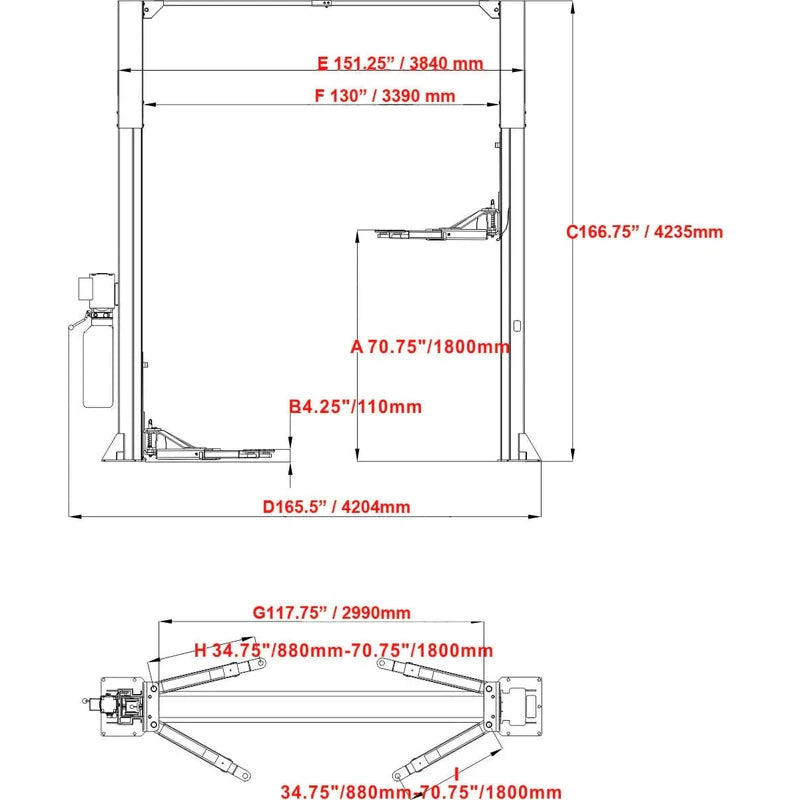

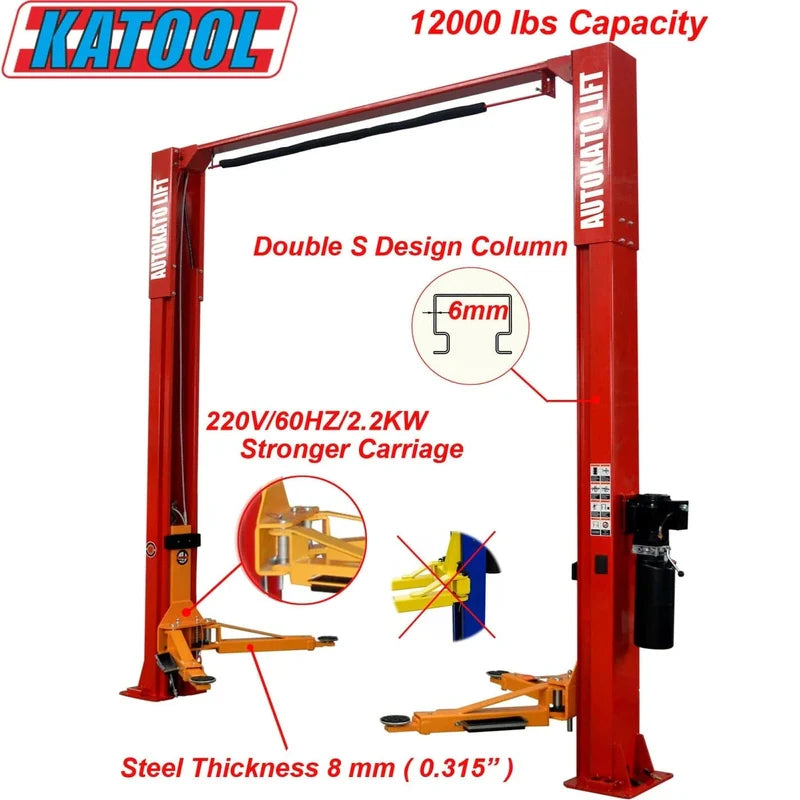

Specifications

Specification Details
Lifting Capacity 12,000 lbs / 5,500 kg
Max. Lifting Height 70.75" / 1800 mm
Min. Height 4.25" / 110 mm
Overall Height 166.75" / 4235 mm
Overall Width 165.5" / 4204 mm
Outside Columns 151.25" / 3840 mm
Inside Columns 130" / 3390 mm
Drive-Thru Clearance 117.75" / 2990 mm
Motor 220V AC / 60HZ / 1PH
Net Weight 1,653 lbs / 750 kg

Warranty Information

Standard Warranty:
Katool provides a 1-year (12-month) limited warranty covering all parts and defects at no additional cost.

Extended Warranty Option:
A 2-year extended warranty is available for all Katool and M&E automotive equipment.

Warranty Coverage Includes:

  • Cylinders, power units, motors, displays, and electronic components

  • Vehicle lifts include an additional 3-year (36-month) warranty on structural components

Warranty Conditions:

  • Claims must be made within the warranty period

  • Warranty is non-transferable and requires proof of purchase from our company or an authorized vendor

  • Replacement parts and shipping provided at no cost

  • Labor costs are not included

Additional Notes:

  • All warranty claims are subject to review and approval by the warranty/service department

  • Photos or videos may be required to verify defects

  • Equipment must not be disassembled before issue confirmation

  • Equipment outside warranty coverage is the customer’s responsibility

Katool products are professionally tested, safety-certified, and trusted throughout the automotive industry for their durability, precision, and performance.
