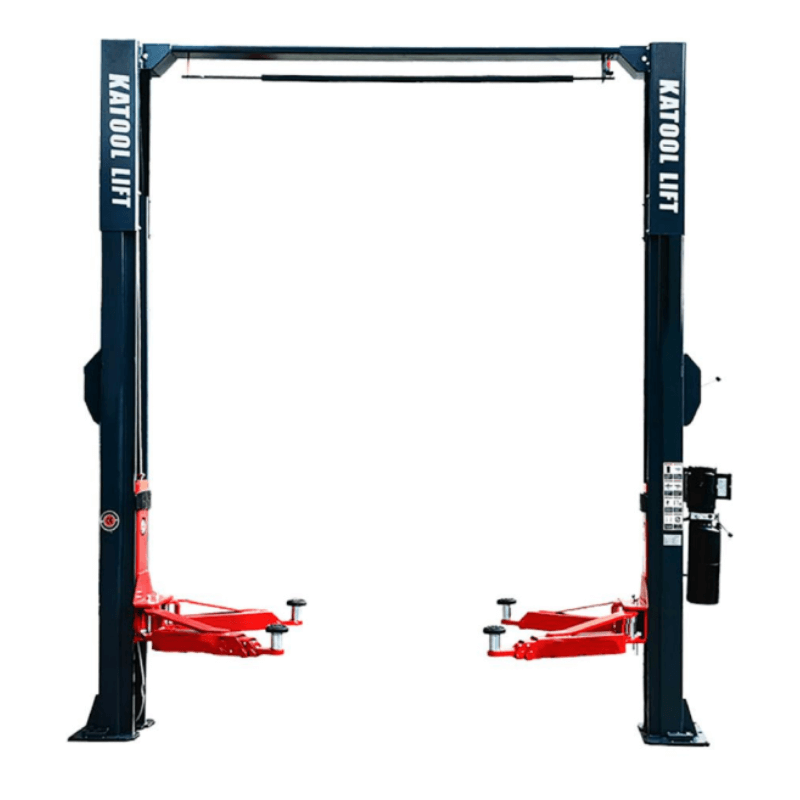

Katool KT-M140XD 14,000 lb Symmetric 2-Post Vehicle Lift
Roll over image to zoom in Click on image to zoom
Katool KT-M140XD 14,000 lb Symmetric 2-Post Vehicle Lift

Katool KT-M140XD 14,000 lb Symmetric 2-Post Vehicle Lift

KatoolSKU: KT-M140XD

At a Glance

  • Max Lifting Height: 72"
Price:
$3,699.00

Please complete and submit the shipping form above to enable Add to Cart.

Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

Katool KT-M140XD 14,000 lb Symmetric 2-Post Vehicle Lift

Take on demanding truck and commercial vehicle service with the Katool KT-M140XD 14,000 lb Symmetric 2-Post Lift. Engineered for professional automotive environments, this heavy-duty lift combines a 14,000 lb lifting capacity with a reinforced industrial-steel structure designed to provide the strength and stability needed for servicing full-size pickup trucks, vans, and other compatible large vehicles.

The KT-M140XD provides a maximum lifting height of 72.83 inches, giving technicians generous undercarriage access for suspension work, drivetrain service, exhaust repairs, inspections, and other major mechanical procedures. A low 4.33-inch minimum pad height and adaptable lifting arms provide additional flexibility when positioning a variety of vehicles and reaching manufacturer-approved lifting points.

At the core of the KT-M140XD is a direct-drive, chainless lifting system engineered to reduce unnecessary moving components while providing smooth and quiet operation. This simplified configuration helps reduce maintenance requirements while supporting dependable performance in demanding professional shop environments.

Structural strength is further enhanced by double S-shaped columns, precision welding, and reinforced material at critical load-bearing areas. This design helps distribute forces throughout the lift structure and provides greater resistance to deformation during repeated lifting cycles.

With a generous 133.46-inch drive-through width, the KT-M140XD provides the clearance needed to accommodate larger vehicles while giving technicians additional room for positioning. A single-point interlocking safety release allows the safety locks to be disengaged from one location, helping streamline operation while maintaining controlled lift lowering.

For automotive repair shops, fleet maintenance facilities, dealerships, and high-volume service centers that regularly work with larger vehicles, the Katool KT-M140XD delivers a combination of capacity, clearance, structural strength, and professional-grade functionality.

KT-M140XD Specifications

  • Brand: Katool

  • Model: KT-M140XD

  • Lift Type: Symmetric 2-Post Vehicle Lift

  • Lifting Capacity: 14,000 lbs.

  • Maximum Lifting Height: 72.83"

  • Minimum Pad Height: 4.33"

  • Drive-Through Width: 133.46"

  • Overall Height: 166.73"

  • Overall Width: 157.87"

  • Rise Time: ≤ 50 Seconds

  • Lowering Time: 20–50 Seconds

  • Noise Level: ≤ 75 dB(A)

  • Drive System: Direct Drive / Chainless

  • Power Requirement: 220V / 60Hz / Single Phase

  • Minimum Concrete Requirement: 6" Thick / 3,000 PSI

  • Shipping Dimensions: 111"L x 19"W x 38"H

  • Shipping Weight: 1,951 lbs.

KT-M140XD Special Features

  • Heavy-duty 14,000 lb lifting capacity

  • Symmetric 2-post configuration for servicing larger vehicles

  • Suitable for compatible full-size pickups, vans, and commercial vehicles

  • Heavy-duty industrial-steel construction

  • Reinforced critical load-bearing areas for additional structural strength

  • Precision-welded construction designed for demanding shop environments

  • Double S-shaped columns help distribute structural loads efficiently

  • Direct-drive, chainless lifting system provides smooth operation

  • Reduced number of moving components helps simplify maintenance

  • Maximum lifting height of 72.83 inches

  • Low 4.33-inch minimum pad height for greater vehicle versatility

  • Wide 133.46-inch drive-through clearance

  • Adaptable lifting arms help accommodate different vehicle lifting points

  • Single-point interlocking safety release provides convenient synchronized lock control

  • Rise time of 50 seconds or less

  • Designed for professional repair shops, dealerships, fleet facilities, and high-volume service centers

Concrete & Electrical Requirements

The KT-M140XD requires concrete with a minimum thickness of 6 inches and a minimum compressive strength of 3,000 PSI.

The power unit requires a 220V / 60Hz / single-phase electrical supply.

Always verify that the installation site, concrete foundation, electrical service, and vehicle lifting points meet the manufacturer's requirements before installation and operation.

Katool KT-M140XD Manual

Katool KT-M140XD User Manual

Katool KT-M140XD Manual Image

Katool KT-M140XD User Manual

Warehouse Pickup Locations – No Shipping Charges

The Katool KT-M140XD is available for warehouse pickup with no shipping charges at select locations:

  • Azusa, CA 91702

  • Brookshire, TX 77423

  • City of Industry, CA 91744

  • Deer Park, TX 77536

  • Kalamazoo, MI 49048

  • Linden, NJ 07036

  • Pooler, GA 31322

  • Romeoville, IL 60446
