Description

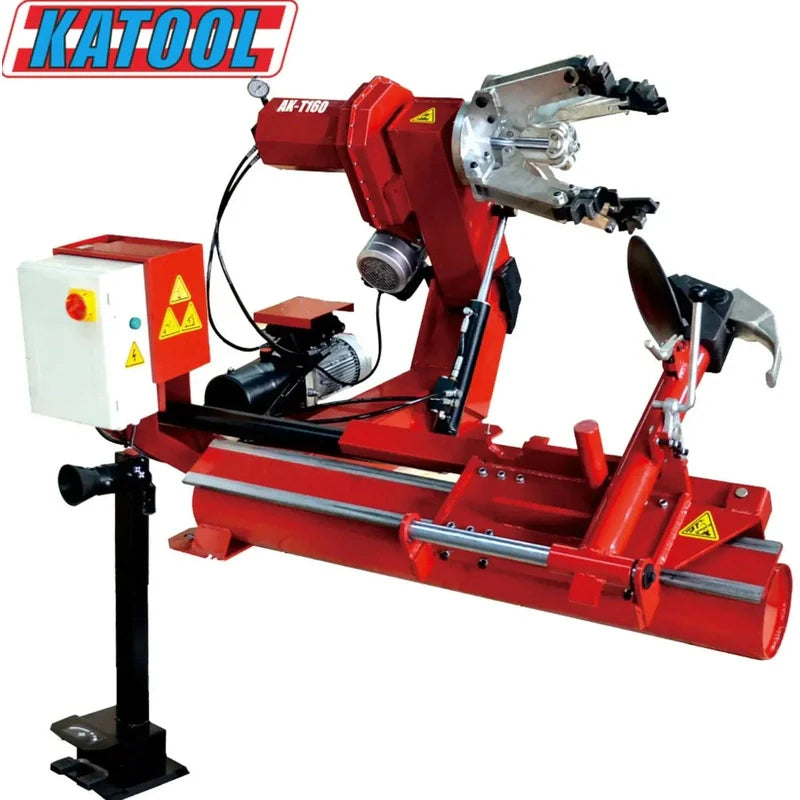

The Katool KT-T160 Heavy-Duty Truck Tire Changer is a powerful and durable electro-hydraulic system engineered for trucks, buses, tractors, and earth-moving vehicles. Designed with precision and operator safety in mind, it features a multifunctional control panel that allows operation from any position, offering both convenience and control.
Equipped with a robust beak and disk mechanism, the KT-T160 delivers fast, precise, and secure tire changing performance, maintaining a firm grip even on delicate rims. Its Multifix system supports tire sizes from 14" to 26", making it versatile enough for a wide range of heavy-duty applications. Additionally, all low-voltage electrical components are built to ensure complete safety during operation, making this machine both powerful and dependable.
Key Features
-
Heavy-Duty Electro-Hydraulic Design: Built for trucks, buses, tractors, and heavy industrial vehicles.
-
Multifunctional Control System: Enables safe, flexible operation from multiple positions.
-

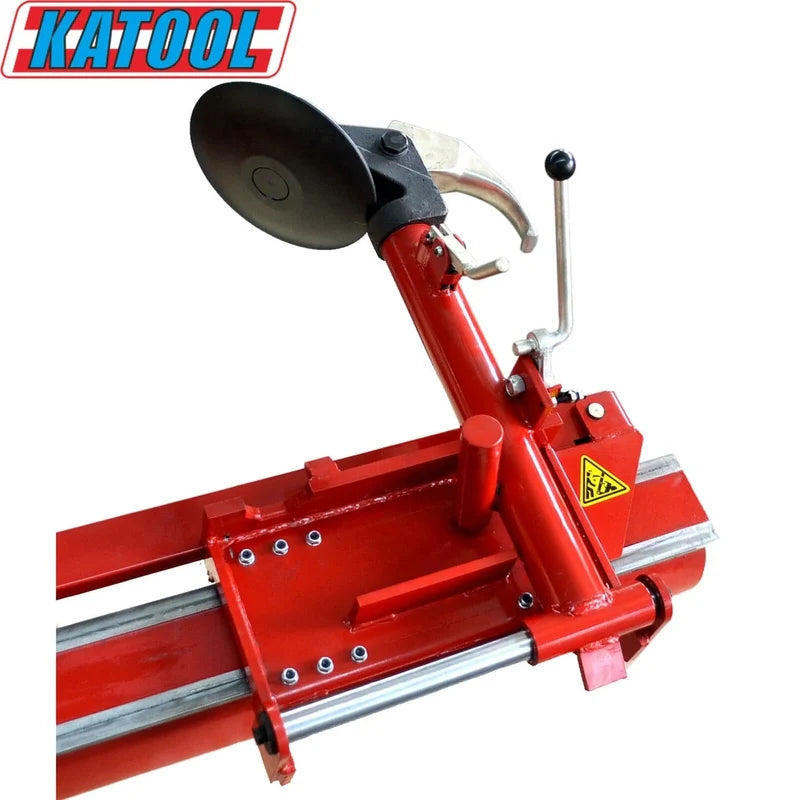

Powerful Beak and Disk Mechanism: Provides a strong and precise grip on wheel beads while protecting rims from damage.
-
Multifix System: Accommodates wheel sizes ranging from 14" to 26" for superior versatility.
-
Low-Voltage Electrical Components: Enhance user safety during operation.
Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 62" (1600 mm) |
| Max Wheel Width | 30" (780 mm) |
| Rim Diameter | 14" – 26" |
| Working Pressure | ≤130 bar |
| Power Supply | 220V / 1PH |
| Pump Motor Power | 1.5 kW (2.0 HP) |
| Gearbox Motor Power | 2.2 kW (3.0 HP) |
| Net Weight | 570 kg (1,257 lbs) |
| Packing Dimensions | 2030 × 1570 × 830 mm (79.9" × 61.8" × 32.7") |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty plan is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Hydraulic cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or original order number from an authorized vendor.
-
Replacement parts and shipping are covered free of charge.
-
All claims must be approved by Katool’s warranty/service department.
-
Photos or videos of defects may be requested for verification.
-
Do not disassemble the equipment before receiving warranty approval.
-
Equipment outside the warranty policy is not covered; the buyer is responsible for replacement and shipping costs.
-
Labor costs are not included under warranty coverage.
Resources
For more detailed information and guidance, you can download the following:
