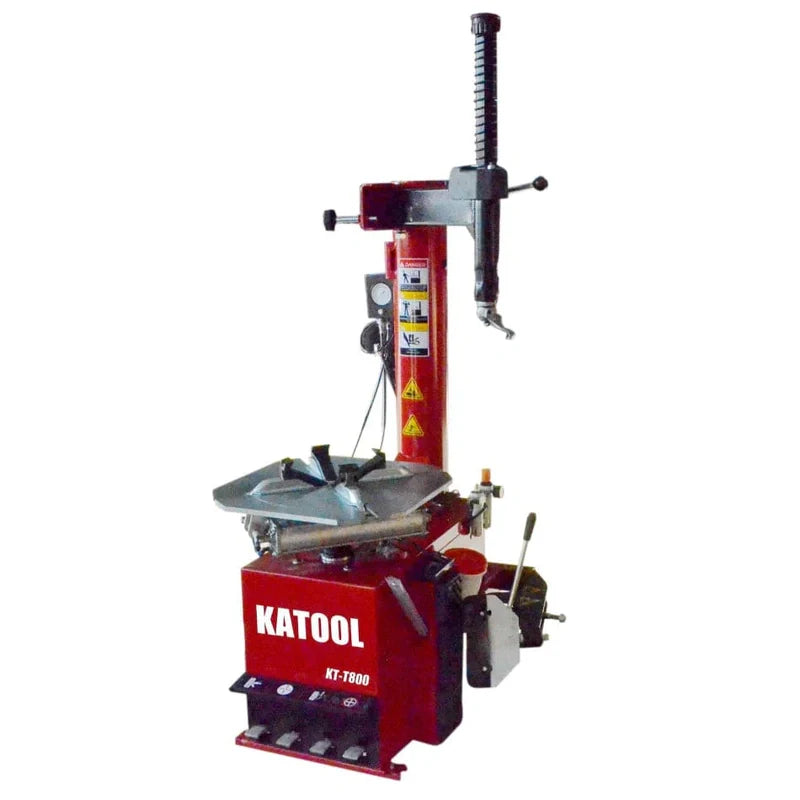

The Katool KT-T800 Wheel Clamp Tire Changer is engineered for precision, strength, and long-term reliability, making it an ideal choice for professional automotive workshops. Built with an alloy steel jaw that undergoes deep carburization (0.8–1.1mm) and a complete quenching process, it delivers a perfect balance of interior flexibility and exterior hardness. The stainless steel mounting head, designed in accordance with engineering mechanics, includes a protective plastic cover to prevent rim damage during tire service.
Featuring an inflation gauge with pedal control, this tire changer allows for precise and convenient inflation. Its pull-type pedal system streamlines tire changing and maintenance, while the high-quality spade cover protects rims from scratches. The pure copper motor winding ensures superior performance, efficient heat dissipation, and extended durability. Additionally, the integrated lubricator and air filtration system deliver clean, consistent air pressure, prolonging the life of the pneumatic components.
Specifically designed for North American operation, the KT-T800 runs on a 110V/1PH/2.0HP motor, offering excellent power and energy efficiency. Its closed-body design provides full protection for internal components, ensuring stable performance and longevity in demanding environments.

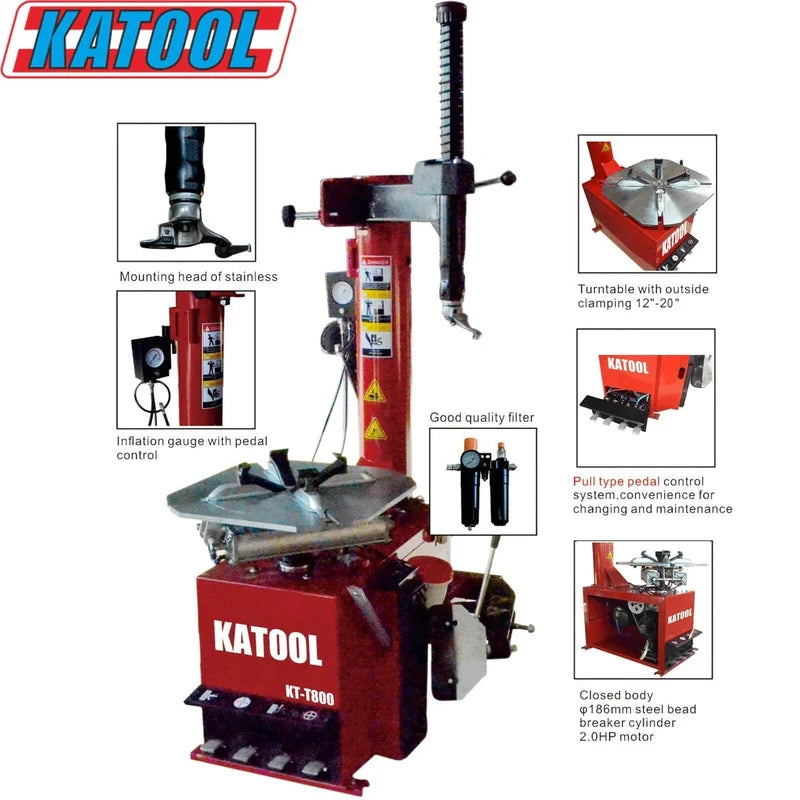

Key Features
-

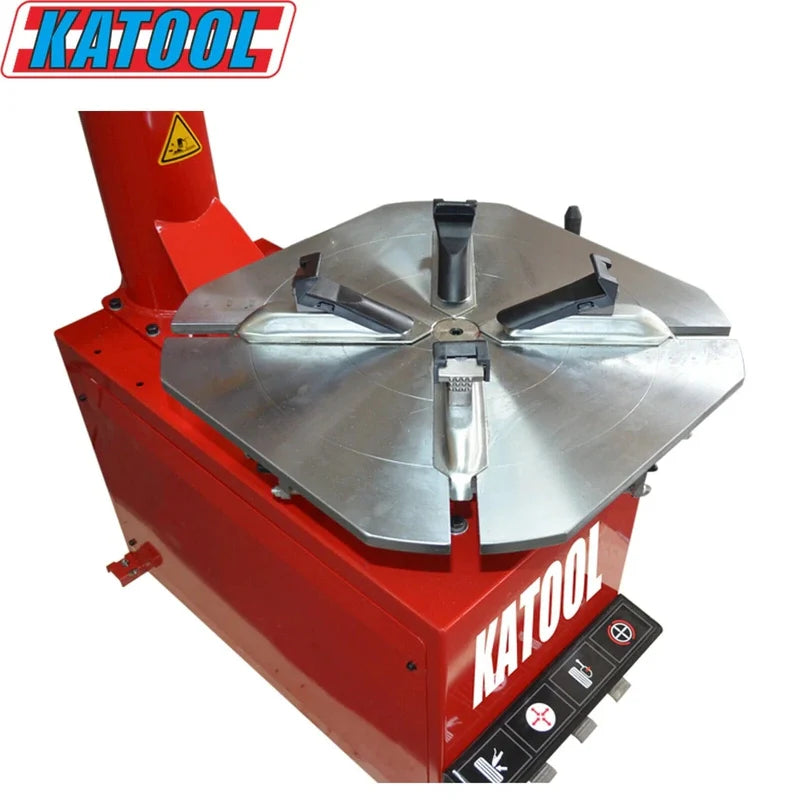

Heavy-Duty Alloy Steel Jaws: Carburized to 0.8–1.1mm and fully quenched for maximum strength, featuring protective jaw covers to safeguard rims.
-
Precision Stainless Steel Mounting Head: Polished and corrosion-resistant; shaped for ergonomic operation and includes a rim protection cover.
-

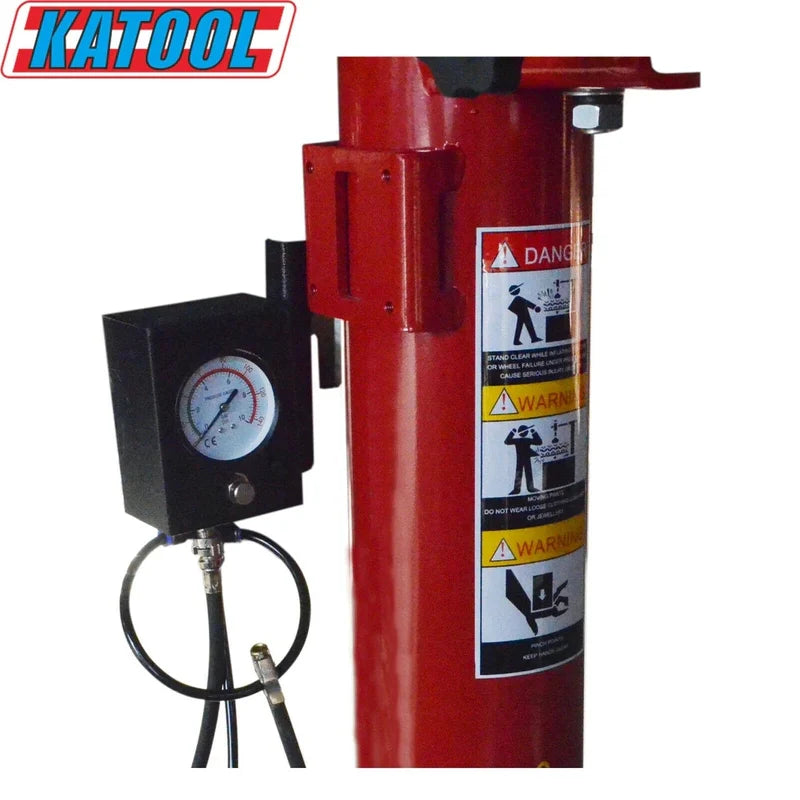

Pedal-Controlled Inflation Gauge: Enables accurate and hands-free inflation control.
-
High-Quality Spade Cover: Prevents rim damage during mounting and dismounting.
-

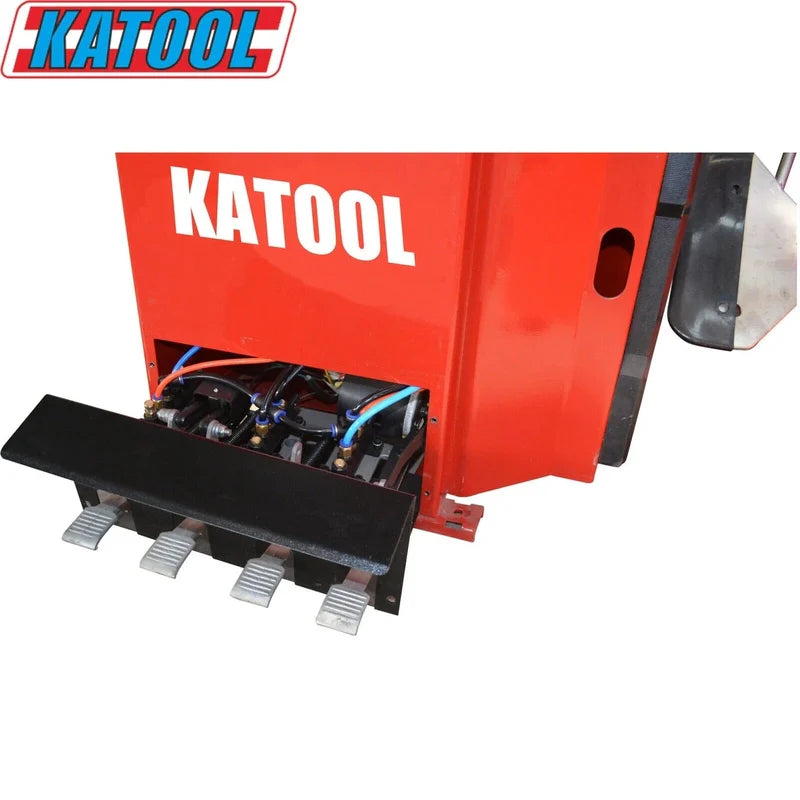

Pull-Type Pedal Control System: Enhances user control and efficiency for smooth tire servicing.
-
Top-Level Copper Motor: Provides consistent power, fast cooling, low defect rates, and extended lifespan.
-
Advanced Air Filtration & Lubrication System: Ensures clean airflow and reliable lubrication, prolonging pneumatic system life.
-

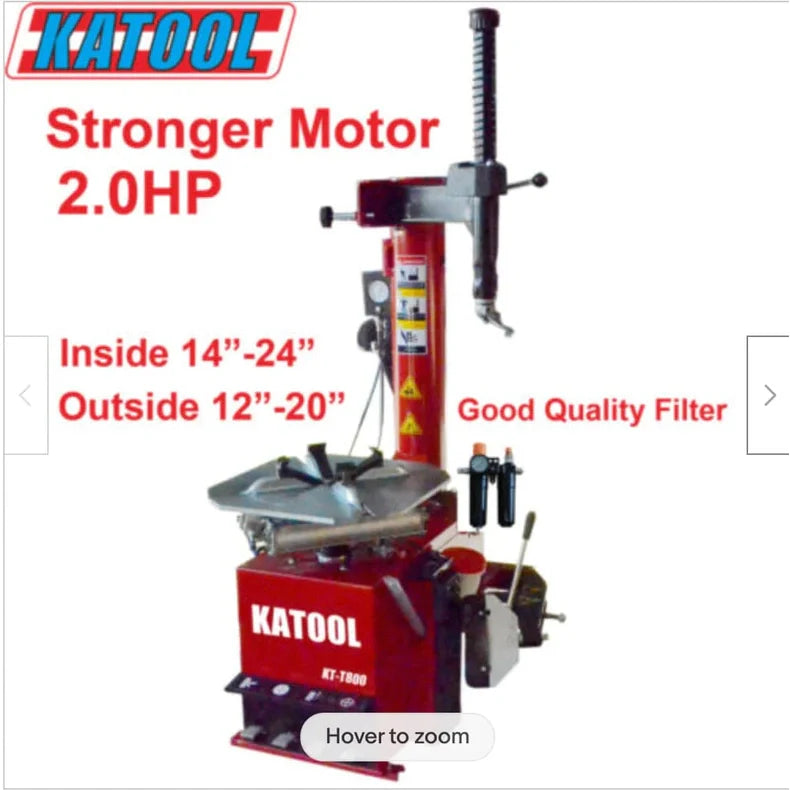

Optimized for North America: Operates on 110V/1PH/2.0HP for high-efficiency performance.
-

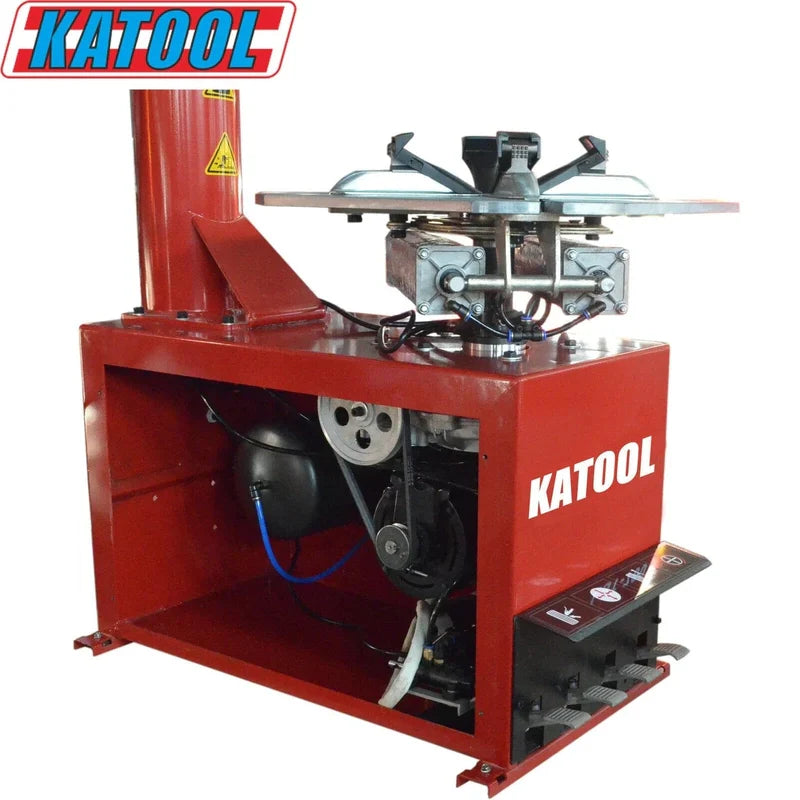

Closed-Body Construction: Shields internal components for improved protection and durability.
Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (380 mm) |

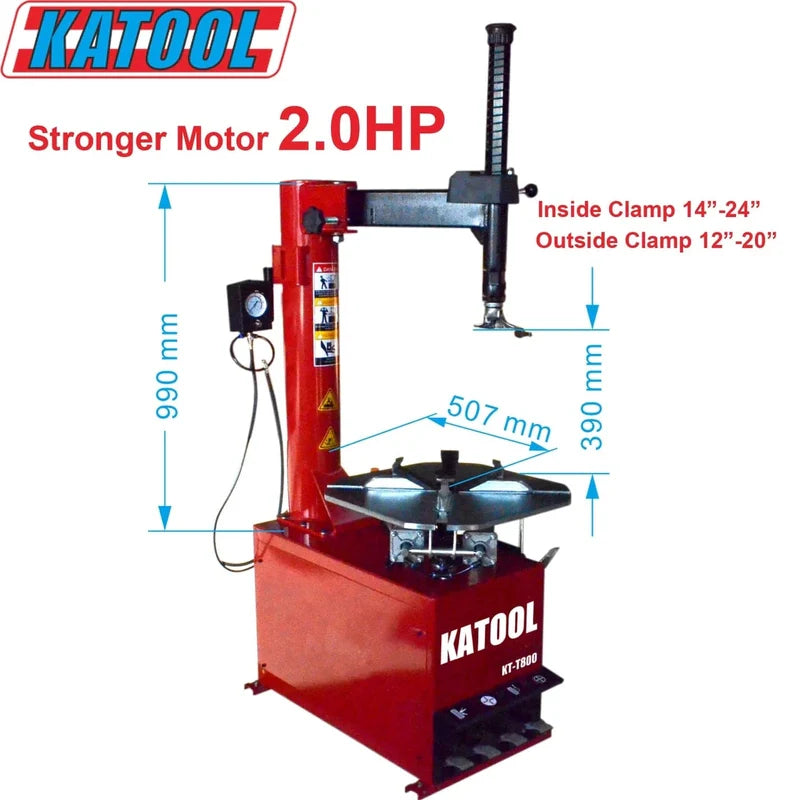

| Outside Clamp Range | 12" – 20" |
| Inside Clamp Range | 14" – 24" |
| Power Supply | 110V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 186 kg (410 lbs) |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and product defects at no cost. A 2-year extended warranty plan is available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Cylinders, power units, motors, displays, electronics, and related components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or order number from an authorized reseller.
-
Replacement parts and shipping are provided free of charge.
-
All claims must be approved by Katool’s warranty/service department.
-
Photos or videos of defects may be requested for verification.
-
Do not disassemble the equipment before warranty approval.
-
Items not covered under warranty will require the buyer to cover parts and shipping costs.
-
Labor costs are not included in warranty coverage.
