Product Overview

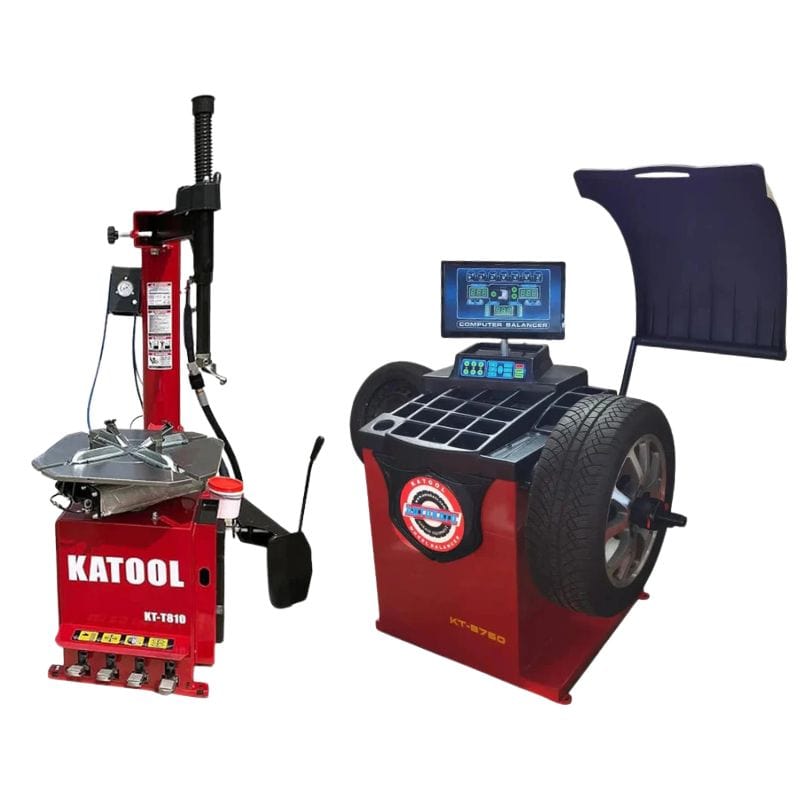

The Katool KT-T810 & KT-B750 Combo delivers a professional-grade solution for fast, efficient, and precise tire mounting and balancing. Designed for automotive repair shops, tire service centers, and serious DIY users, this combo ensures seamless workflow, enhanced productivity, and long-term dependability.

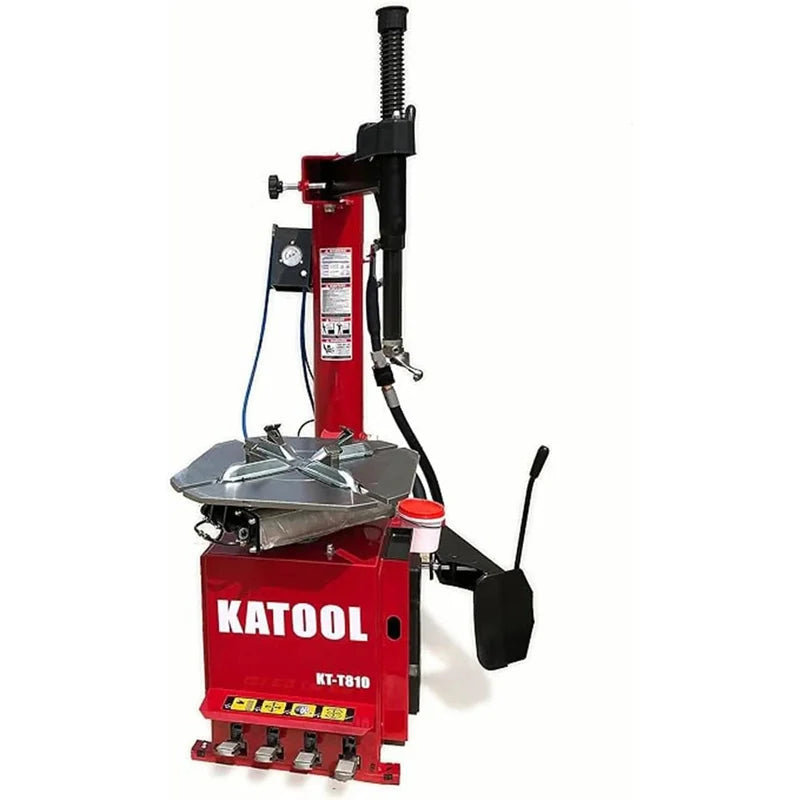

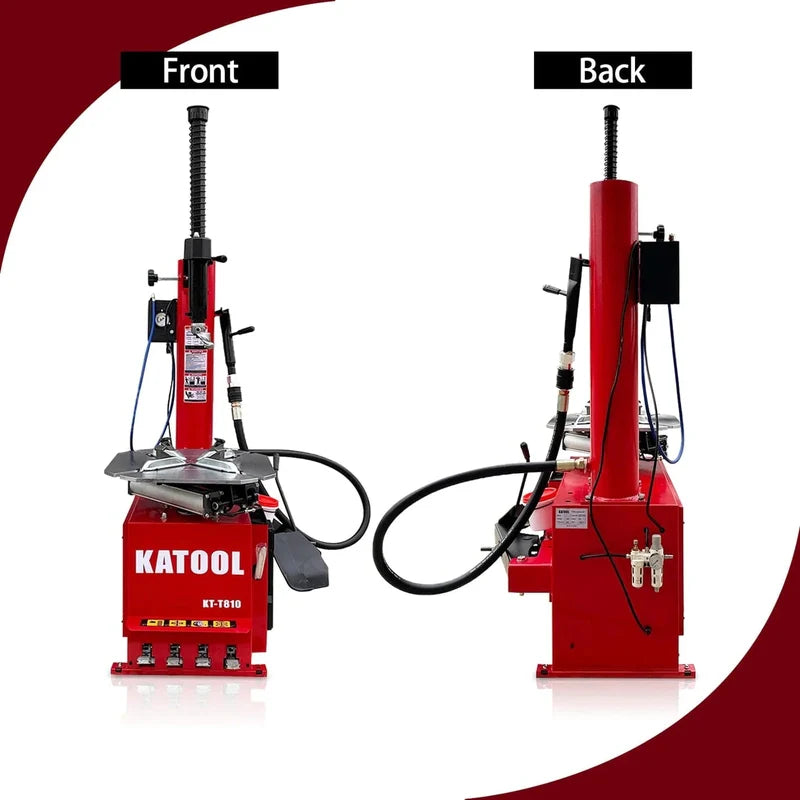

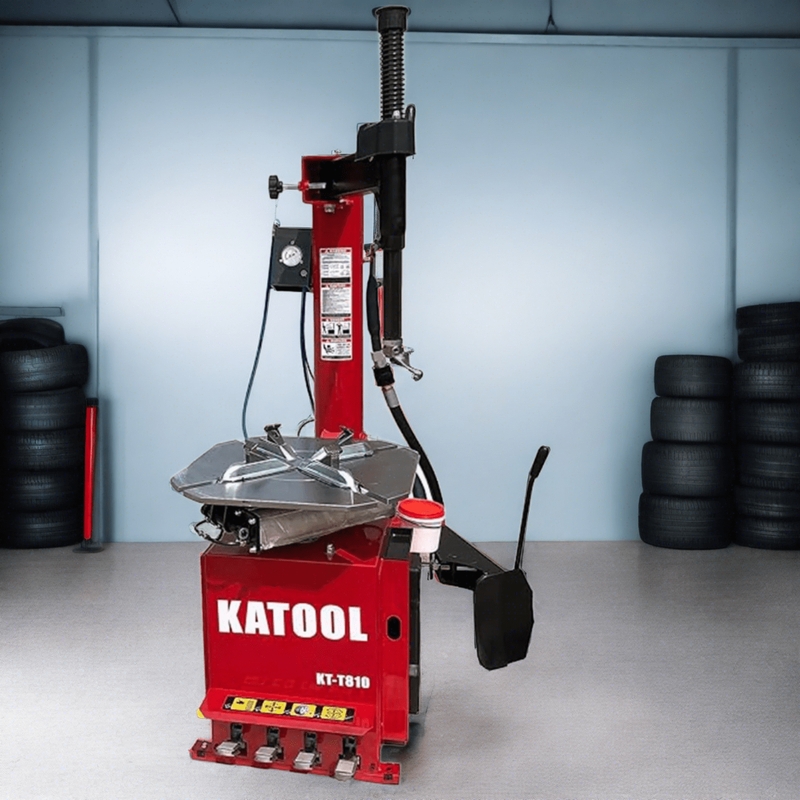

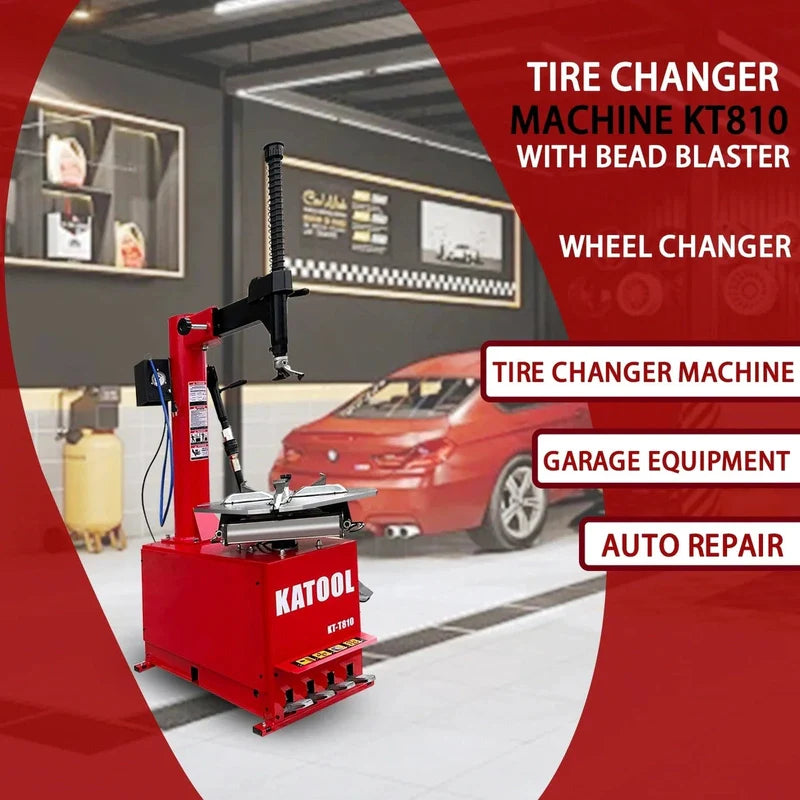

Katool KT-T810 Wheel Clamp Tire Changer
The Katool KT-T810 is engineered for performance, strength, and convenience. Featuring a 2.0HP pure copper motor, carburized alloy steel jaws, and a stainless steel mounting head, it enables smooth, damage-free tire changing for a wide range of vehicles. Its pedal-controlled inflation gauge, pull-type control system, and closed-body design make operation efficient and user-friendly, while the bead blast seater with post tank ensures quick and secure tire seating.

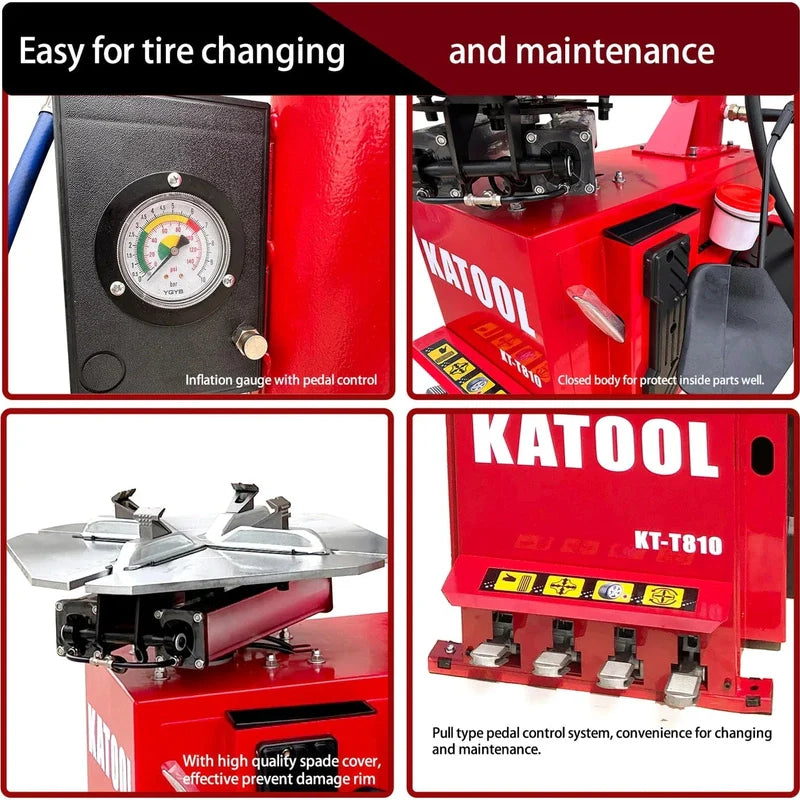

Key Features:
-

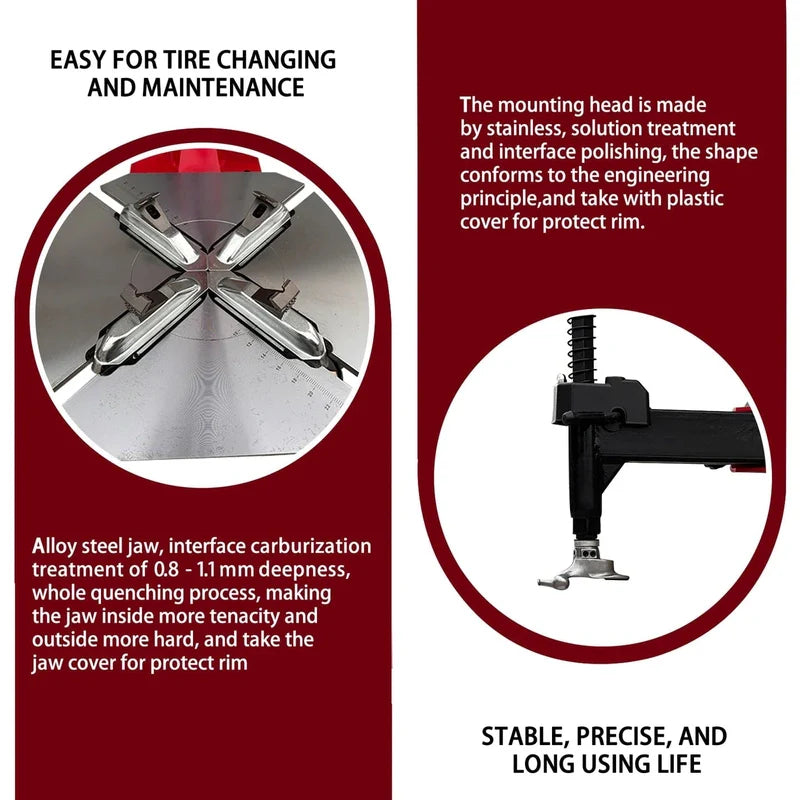

Heavy-Duty Alloy Steel Jaws: Carburization-treated for exceptional strength and durability.
-
Stainless Steel Mounting Head: Equipped with a plastic rim guard to prevent scratches and rim damage.
-
Pedal-Controlled Inflation Gauge: Allows hands-free inflation for greater convenience.
-
High-Quality Spade Cover: Protects rims from marks or abrasion.
-
Powerful 2.0HP Motor: Pure copper winding delivers reliable torque and energy efficiency.
-
Pull-Type Pedal System: Provides smooth, responsive control during tire mounting and removal.
-
Bead Blast Seater with Post Tank: Speeds up tire seating while ensuring a secure seal.
-
Closed-Body Construction: Protects internal components, improving longevity and performance.
Specifications:
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (380 mm) |

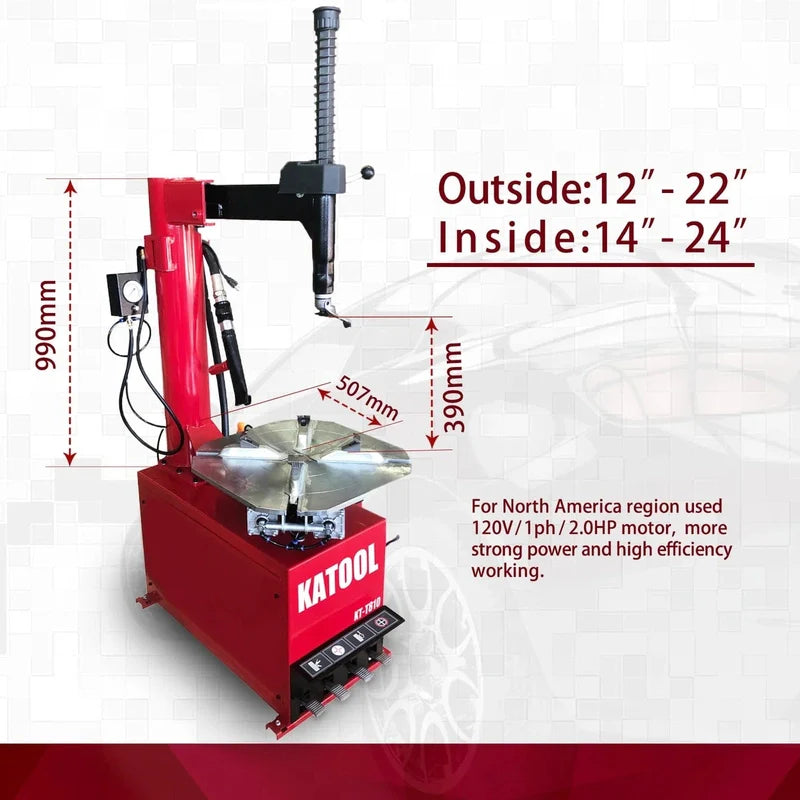

| Outside Clamp Range | 12" – 22" |
| Inside Clamp Range | 14" – 24" |
| Power Supply | 120V / 1PH |
| Motor Power | 2.0 HP (1.5 kW) |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 186 kg |

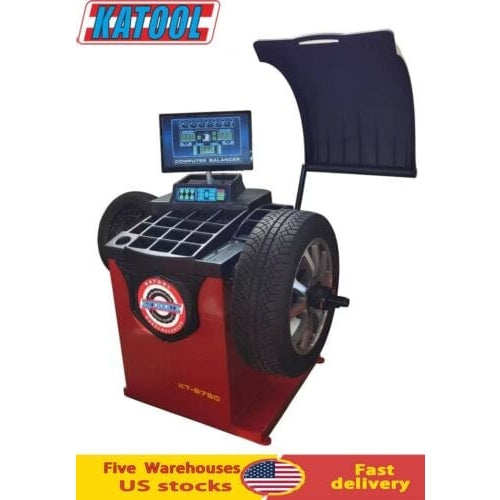

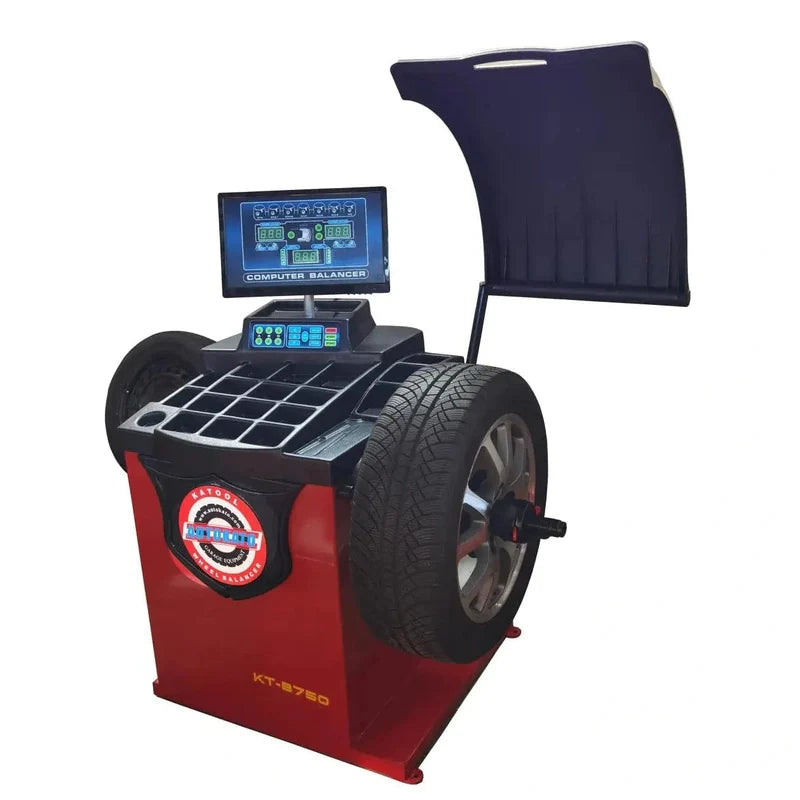

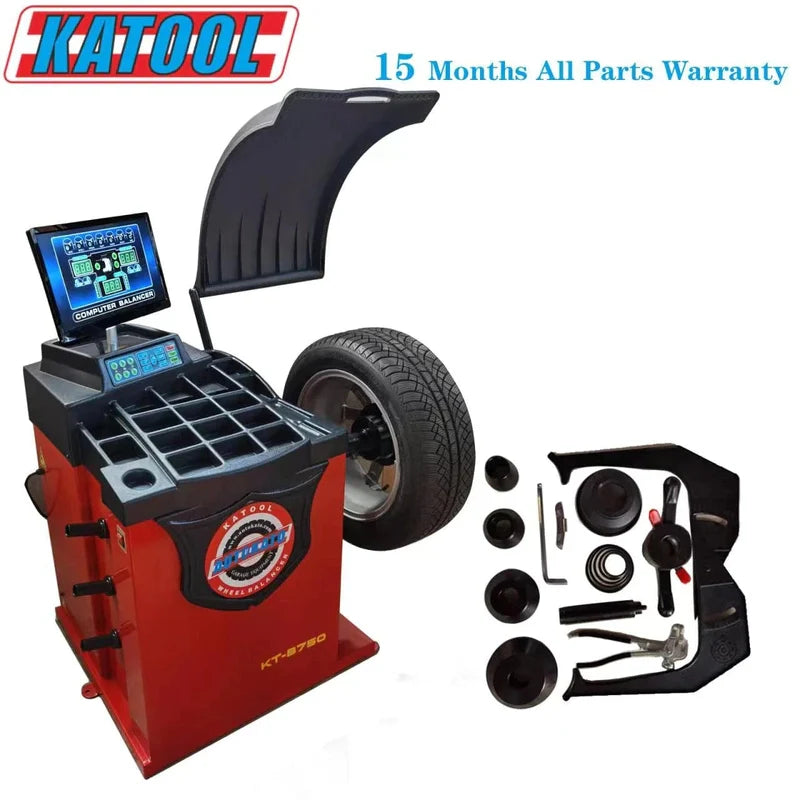

Katool KT-B750 Wheel Balancer
The Katool KT-B750 Wheel Balancer delivers precise, efficient, and reliable wheel balancing for a variety of rim styles. Built with a heavy-duty 3mm steel body and advanced sensor technology, it ensures high stability and accuracy. The unit’s automatic A and D value input, self-calibration system, and multiple balance modes make it intuitive and easy to use in professional environments.
Key Features:
-

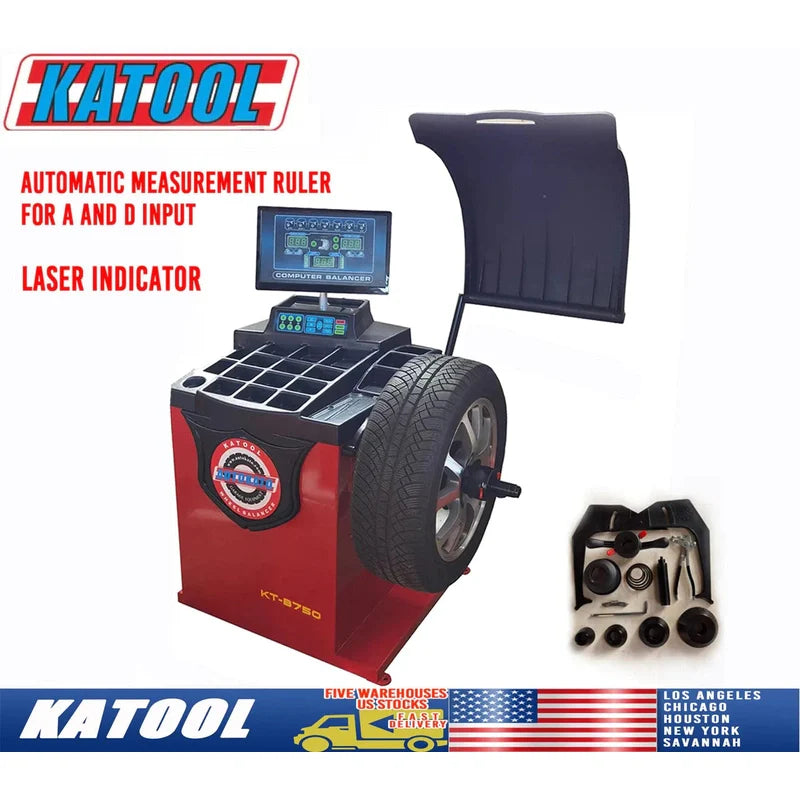

Automatic Measurement System: Automatically inputs A and D values to speed up balancing.
-
Reinforced 3mm Steel Frame: Reduces vibration for improved stability and accuracy.
-
High-Precision Sensor System: Guarantees consistent and accurate balancing results.
-
Self-Diagnosis & Calibration: Ensures reliability and easy operation over long-term use.
-
Multiple Balance Modes: Adapts to different rim types for precise results.
-
Moisture- & Dust-Proof Control Board: Extends the service life of electronic components.
Specifications:
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 15" |
| Max Wheel Diameter | ≤ 880 mm |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm |
| Max Wheel Weight | ≤ 65 kg |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year (12-month) limited warranty covering all major parts, electronics, and power units. For added protection, a 2-year extended warranty is also available.
Warranty Coverage Includes:
-
Power units, motors, displays, electronic components, and cylinders
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be filed within the warranty period.
-
Warranty is non-transferable and requires proof of purchase.
-
Replacement parts and shipping are provided free of charge.
-
Labor costs are not included under warranty coverage.
