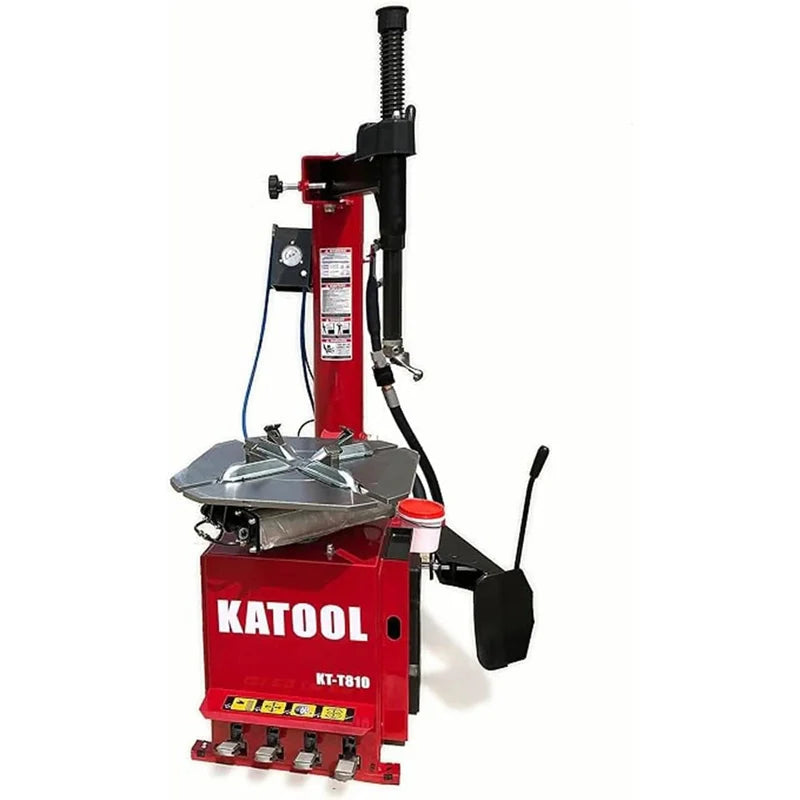

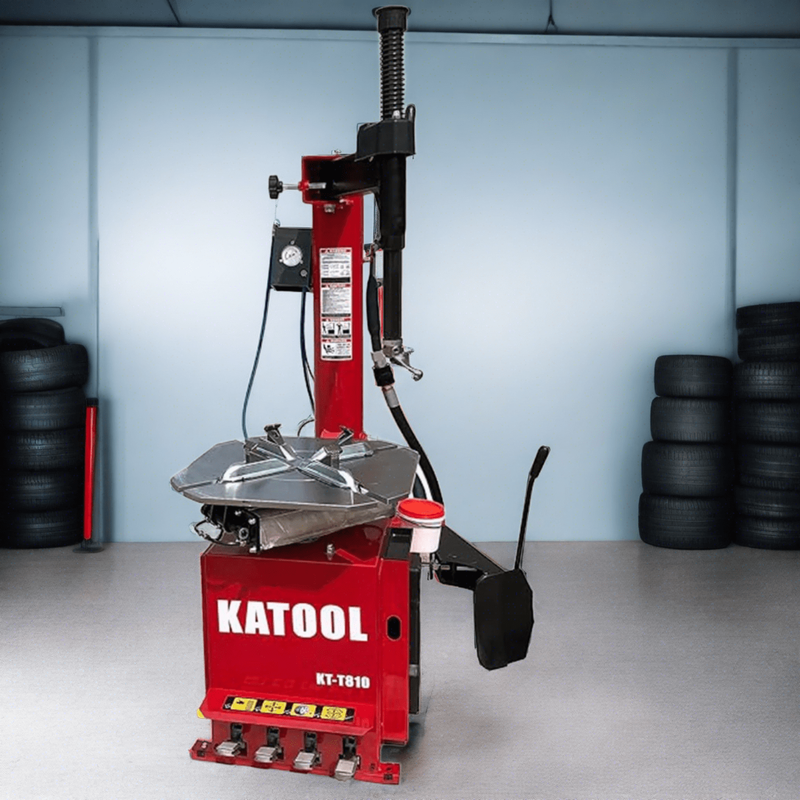

The Katool KT-T810 Wheel Clamp Tire Changer is built for durability, precision, and operator efficiency. Its carburized alloy steel jaw ensures exceptional strength—offering internal flexibility and external hardness for long-lasting performance. The stainless steel mounting head, paired with a pedal-controlled inflation gauge and high-quality spade cover, enhances both usability and rim protection during operation.
Designed with a pull-type pedal control system, this tire changer delivers smooth, user-friendly handling for efficient tire mounting and removal. Powered by a 120V/1PH/2.0HP motor engineered for the North American market, the KT-T810 provides strong, consistent performance with fast heat dissipation and low maintenance needs. Its closed-body design safeguards internal components from dust and debris, ensuring years of reliable operation—making it a dependable choice for professional garages and service centers.
Key Features
-

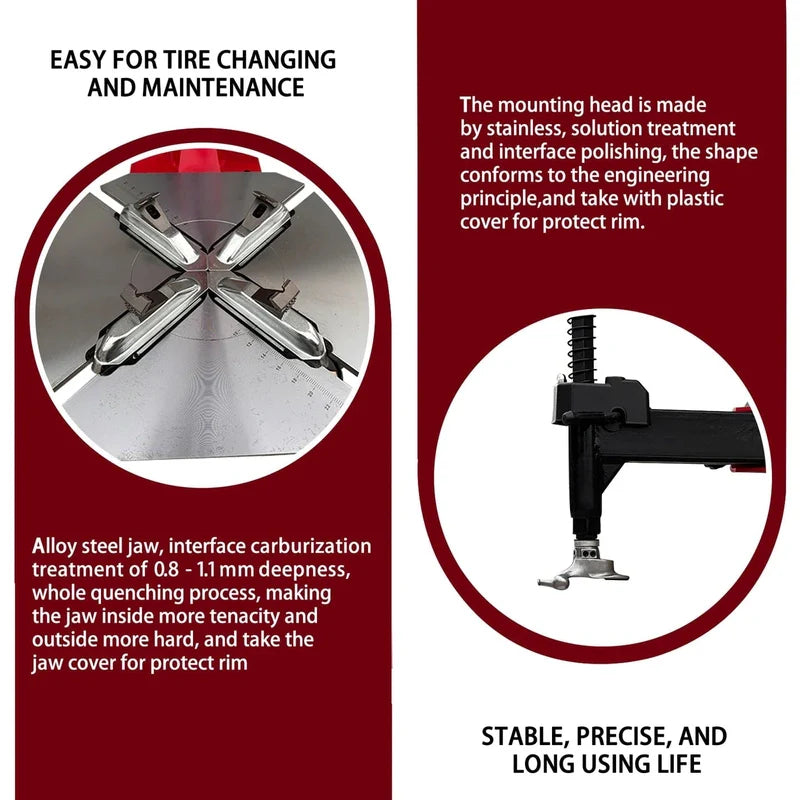

Heavy-Duty Alloy Steel Jaws: Carburization depth of 0.8–1.1mm and full quenching process deliver a durable and high-strength structure. Includes protective jaw covers to prevent rim scratches.
-
Precision Stainless Steel Mounting Head: Solution-treated and polished for optimal performance; includes a plastic rim guard for added protection.
-

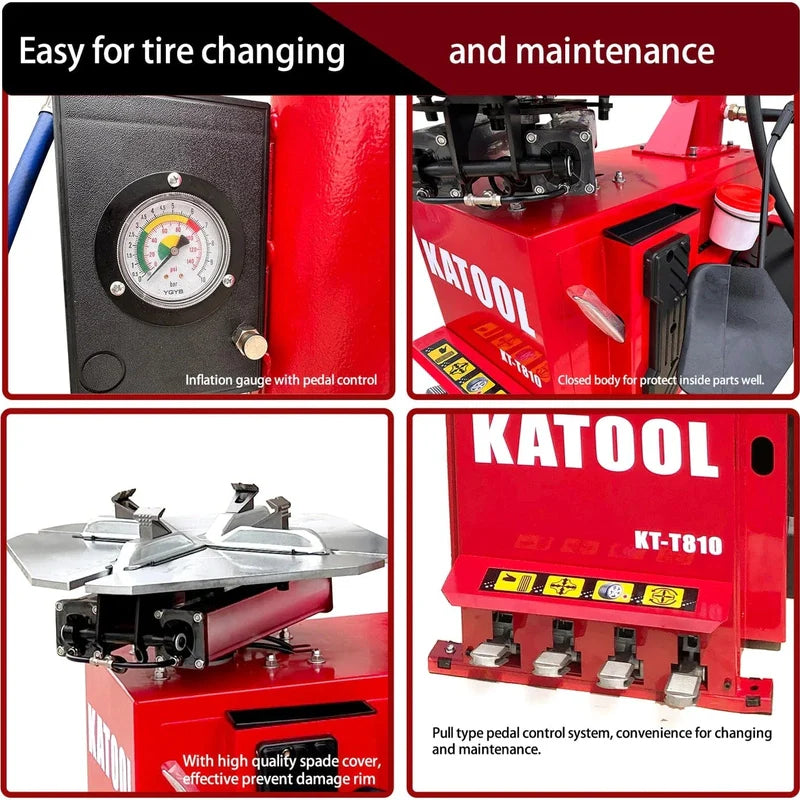

Pedal-Controlled Inflation Gauge: Provides accurate, hands-free inflation control for operator convenience.
-
Protective Spade Cover: Prevents rim damage during tire changing.
-
Pull-Type Pedal System: Simplifies operation and increases efficiency for tire removal and installation.
-
Top-Quality Copper Motor: Delivers high power, rapid heat dissipation, and longer service life with minimal defects.
-
Bead Blast Seater with Post Tank: Ensures secure and rapid tire seating.
-
Advanced Filtration System: High-grade lubricator effectively filters compressed air and distributes oil, prolonging pneumatic system life.
-
Optimized for North America: Equipped with a 120V/1PH/2.0HP motor for reliable, high-efficiency performance.
-
Closed-Body Construction: Provides full protection for internal components, extending the machine’s operational lifespan.

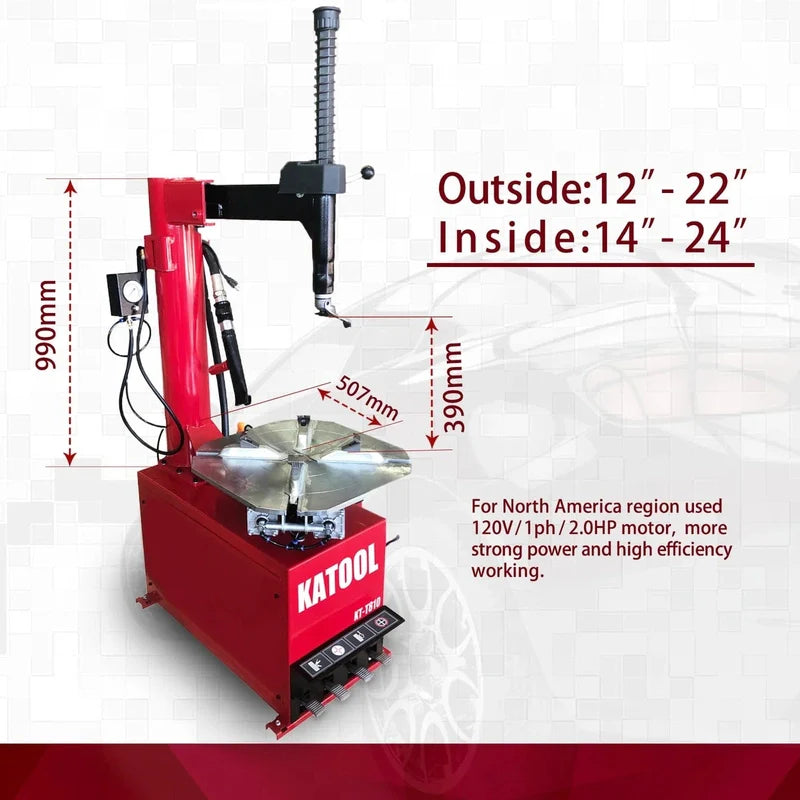

Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp Range | 12" – 22" |
| Inside Clamp Range | 14" – 24" |
| Power Supply | 120V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 186 kg |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty plan is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Motors, power units, cylinders, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be filed within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or original order number from an authorized vendor.
-
Replacement parts and shipping are covered free of charge.
-
All claims must be approved by Katool’s warranty/service department.
-
Photos or videos may be requested for verification.
-
Do not disassemble equipment before receiving authorization.
-
Items not covered under warranty will require the buyer to pay for replacement parts and shipping.
-
Labor costs are not included under warranty coverage.
