Katool KT-T830 Tire Changer & Wheel Balancer KT-B750 Combo
Roll over image to zoom in Click on image to zoom

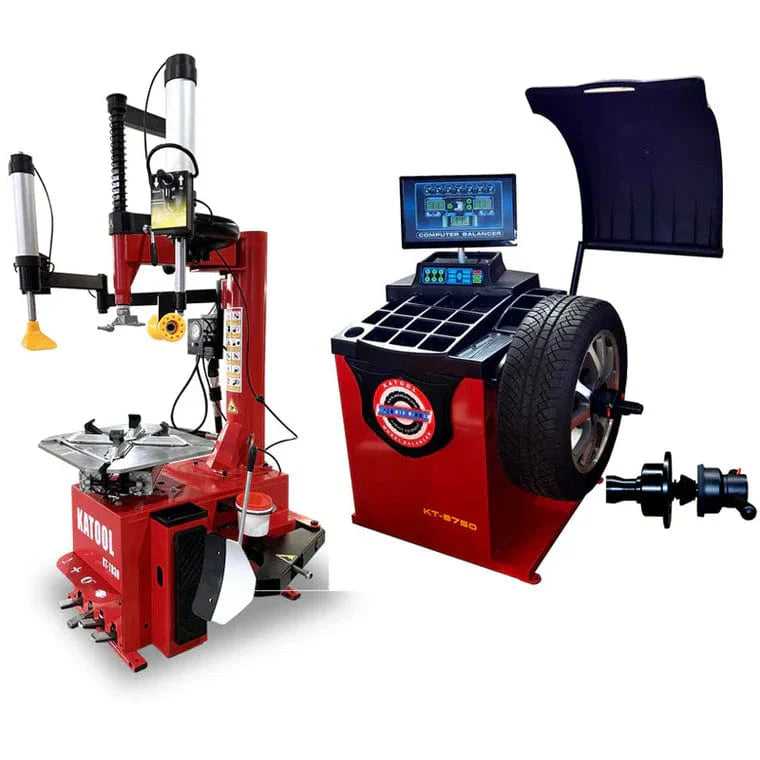

Katool KT-T830 Tire Changer & Wheel Balancer KT-B750 Combo

Katool KT-T830 Tire Changer & Wheel Balancer KT-B750 Combo

Save $300.00
KatoolSKU: KT-T830 + KT-B750
Price:
$2,699.00 $2,999.00

Why Shop with Us?

  • Fast Shipping; We aim to have your order delivered within 6-12 days.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; Chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; Your information is secure.

Description

The Katool KT-T830 Wheel Clamp Tire Changer and KT-B750 Wheel Balancer Combo deliver a complete tire service solution designed for professional automotive shops and service centers. Engineered for efficiency, durability, and precision, this combo simplifies tire changing and wheel balancing while ensuring long-term reliability and consistent performance.

Features

KT-T830 Wheel Clamp Tire Changer

  • Reinforced Alloy Steel Jaws: Carburized to a depth of 0.8–1.1mm and fully quenched for enhanced strength and wear resistance. Includes rim-protective jaw covers.

  • Stainless Steel Mounting Head: Precision-engineered, polished, and paired with a plastic rim guard to prevent damage during operation.

  • Pedal-Controlled Inflation Gauge: Provides accurate and hands-free control of tire inflation.

  • Protective Spade Cover: High-quality design prevents scratches or damage to the rim surface.

  • User-Friendly Pedal System: Pull-type pedal control allows smooth and efficient tire mounting and removal.

  • High-Performance Motor: Top-grade pure copper winding motor ensures powerful torque, fast heat dissipation, and long service life.

  • Advanced Air Filtration System: High-quality lubricator provides consistent oiling and filters compressed air, extending the pneumatic system’s life.

KT-B750 Wheel Balancer

  • Automatic Measurement Ruler: Automatically inputs A and D values for faster and more accurate operation.

  • Heavy-Duty Steel Construction: 3mm-thick frame with reinforced welding reduces vibration and improves stability.

  • Integrated Pressure Sensor System: 8mm-thick bottom and side plates ensure precision and sensor stability.

  • High-Quality Copper Motor: Delivers increased power, low noise, and excellent heat management for long-term reliability.

  • Hardened 36mm Shaft Thread: Quenching treatment enhances durability and mechanical strength.

  • Advanced Control Board: Moisture-proof, dust-proof, and anti-static design ensures dependable performance.

  • Multiple Balance Modes: Optimized for different rim types for greater accuracy.

  • Built-In Calibration and Diagnostics: Features dual-sided calibration and self-diagnostic functions—no preset parameters required.

  • Flexible Unit Selection: Easily switch between Ounce/Gram and MM/Inch.

  • Reliable Power System: Integrated, high-quality power board ensures consistent performance.

  • Optional Safety Guard: Adds an extra layer of protection during balancing.

  • Extended Shaft Design: Supports wider wheels for enhanced versatility.

Specifications

KT-T830 Tire Changer

Specification Value
Max Wheel Diameter 41" (1040 mm)
Max Wheel Width 15" (380 mm)
Outside Clamp Range 12" – 24"
Inside Clamp Range 14" – 26"
Power Supply 120V / 1PH
Motor Power 2.0 HP (1.5 kW)
Rotation Speed 6.8 RPM
Air Pressure 0.8–1.0 MPa (116–145 PSI)
Net Weight 240 kg (529 lbs)

KT-B750 Wheel Balancer

Specification Value
Rim Diameter Up to 30"
Wheel Width 15"
Max Wheel Diameter ≤ 880 mm
Balancing Speed 180 RPM
Power Supply 120V / 1PH
Motor Power 0.25 kW
Rim Center Hole Diameter ≤ 135 mm
Max Wheel Weight ≤ 65 kg
Balancing Accuracy ±1 g
Measuring Time 7 seconds

Warranty & Support

Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. An optional 2-year extended warranty is available for Katool and M&E automotive equipment.

Warranty Coverage Includes:

  • Hydraulic cylinders, power units, motors, displays, and electronic components

  • Vehicle lifts include an additional 3-year structural warranty

Warranty Conditions:

  • Claims must be submitted within the active warranty period.

  • Warranty is non-transferable and requires proof of purchase or an original order number from an authorized vendor.

  • Replacement parts and shipping are provided free of charge.

  • All claims are subject to approval by Katool’s warranty/service department.

  • Photos or videos may be requested to verify defects.

  • Equipment must not be disassembled before receiving authorization.

  • Items outside warranty coverage will require the buyer to cover replacement and shipping costs.

  • Labor costs are not included under warranty coverage.
