Description

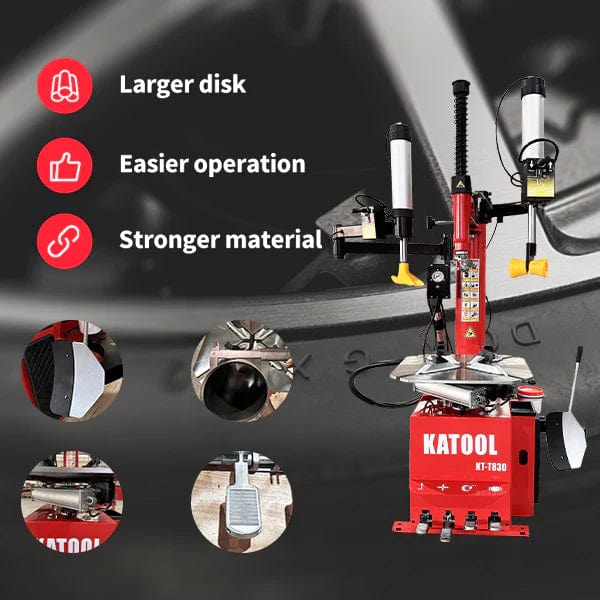

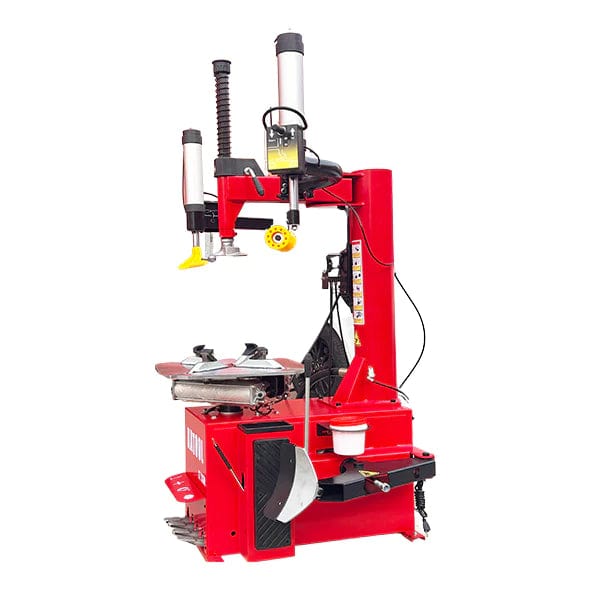

The Katool KT-T830 Wheel Clamp Tire Changer delivers professional-grade performance and durability for smooth, efficient tire changing. Built with a reinforced alloy steel jaw and a precision-engineered stainless steel mounting head, this machine combines strength and precision for long-lasting reliability. Its pedal-controlled air gauge and protective spade cover make operation simple while safeguarding rims from damage.
Powered by a 2.0HP pure copper motor and designed for North American 110V systems, the KT-T830 ensures maximum power, fast heat dissipation, and consistent performance. The dual assist arms, bead blast seater, and 186mm stainless bead breaker cylinder add versatility and control, while the closed-body design protects internal components for lasting durability. With its user-friendly pedal system and efficient lubrication setup, this tire changer is built for both precision and convenience in demanding shop environments.
Key Features
-

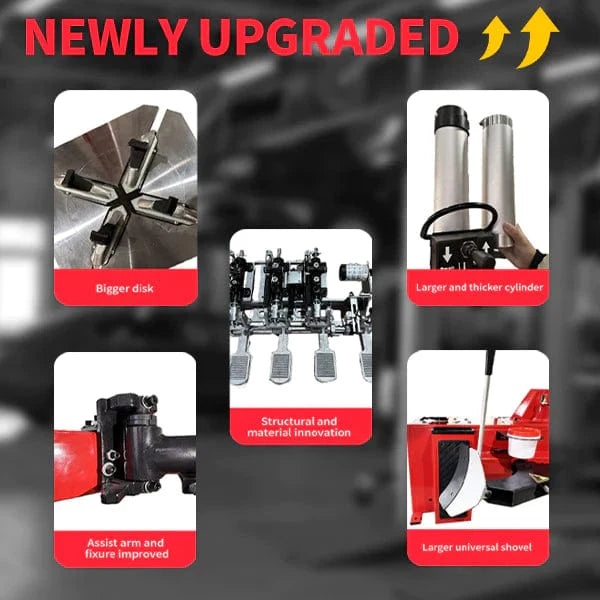

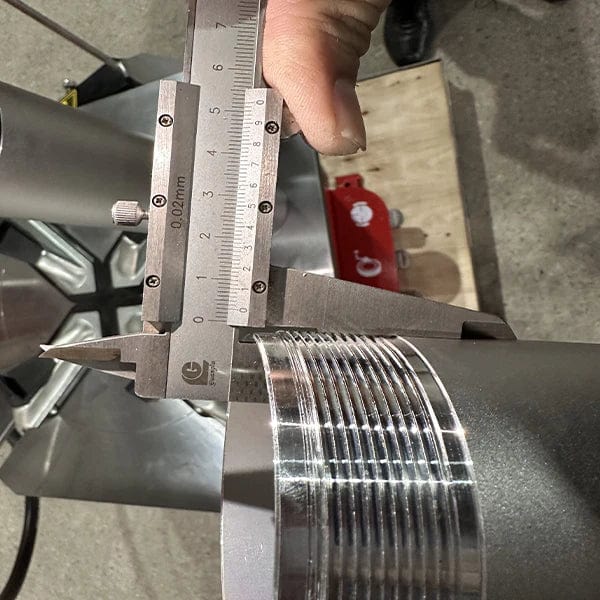

Heavy-Duty Alloy Steel Jaw: Carburized to a depth of 0.8–1.1mm and fully quenched for superior strength, featuring rim-protective jaw covers.
-
Stainless Steel Mounting Head: Polished and corrosion-resistant with an ergonomic design and plastic protector to prevent rim damage.
-
Pedal-Controlled Inflation Gauge: Allows for accurate, hands-free inflation control.
-
Protective Spade Cover: Prevents rim scratches and ensures a smooth tire-changing process.
-

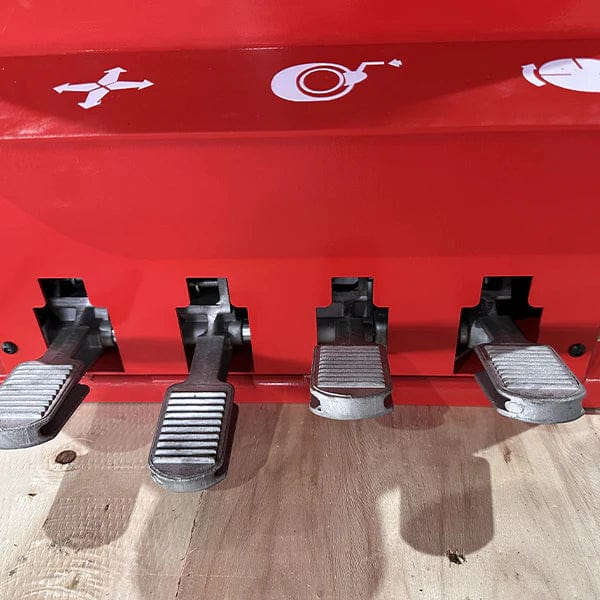

Pull-Type Pedal System: Simplifies tire changing and maintenance with precise, responsive control.
-
High-Performance Copper Motor: Pure copper winding provides greater torque, faster cooling, reduced failure rates, and longer lifespan.
-

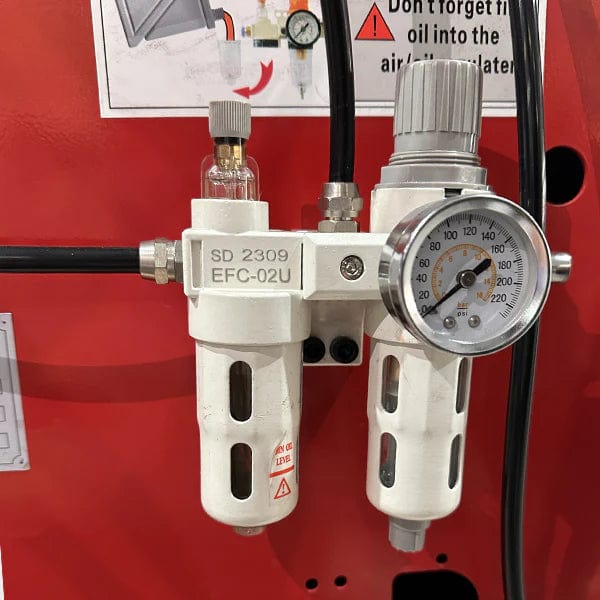

Efficient Air Filtration System: Integrated lubricator delivers reliable oiling and filters compressed air, extending pneumatic system life.
-

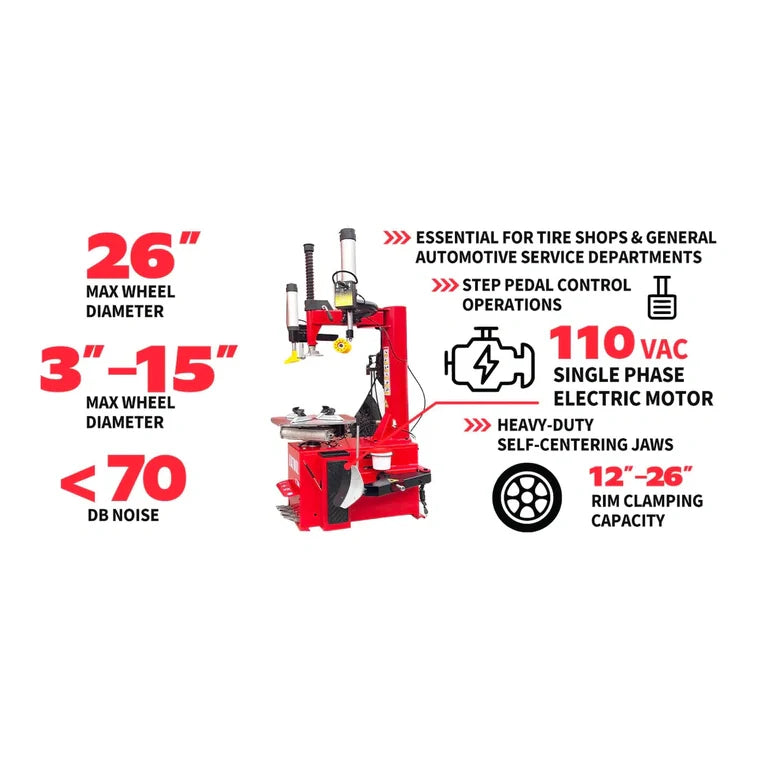

North America-Ready Design: Equipped with a 110V/1PH/2.0HP motor for powerful and efficient operation.
-
Dual Assist Arms: Enhance control and stability when handling tough tires.
-
Bead Blast Seater with Post Tank: Ensures fast and secure tire seating.
-

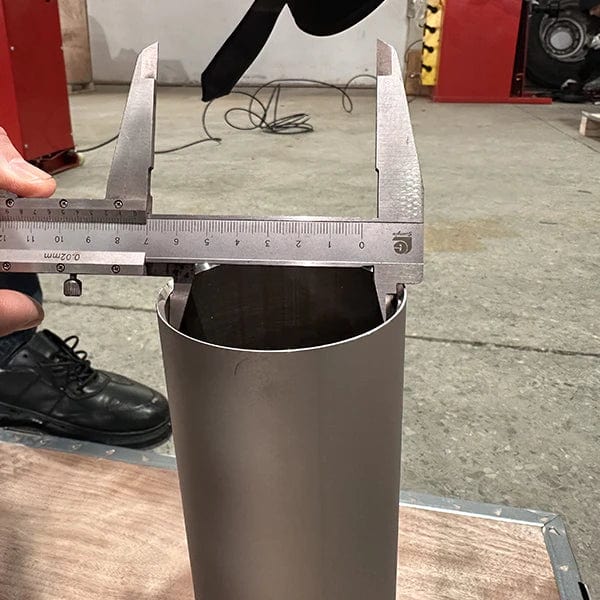

186mm Stainless Bead Breaker Cylinder: Provides consistent power and performance.
-

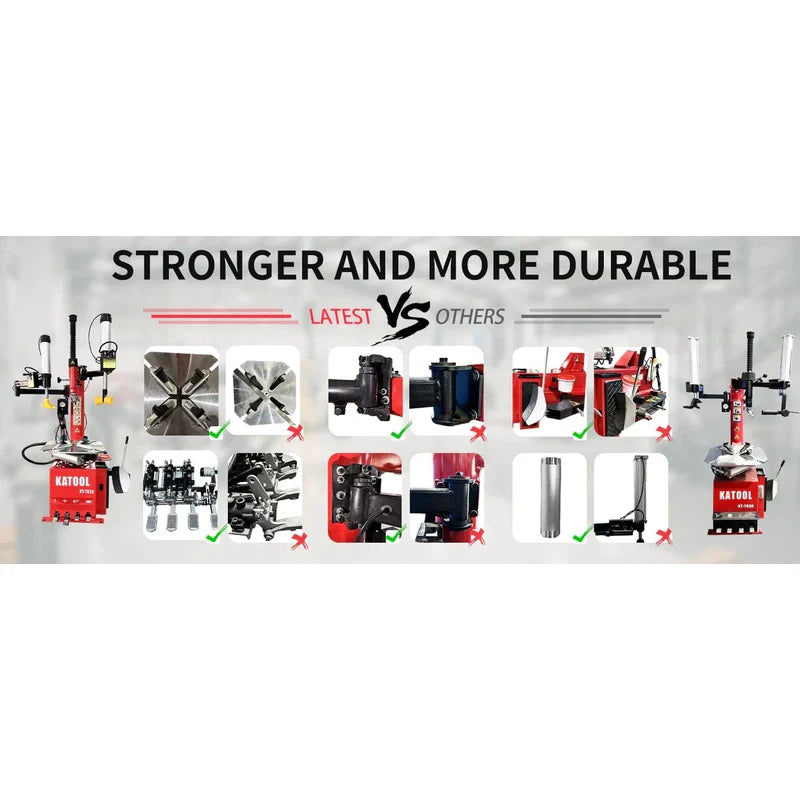

Closed-Body Construction: Shields internal components from dust and debris for added longevity.

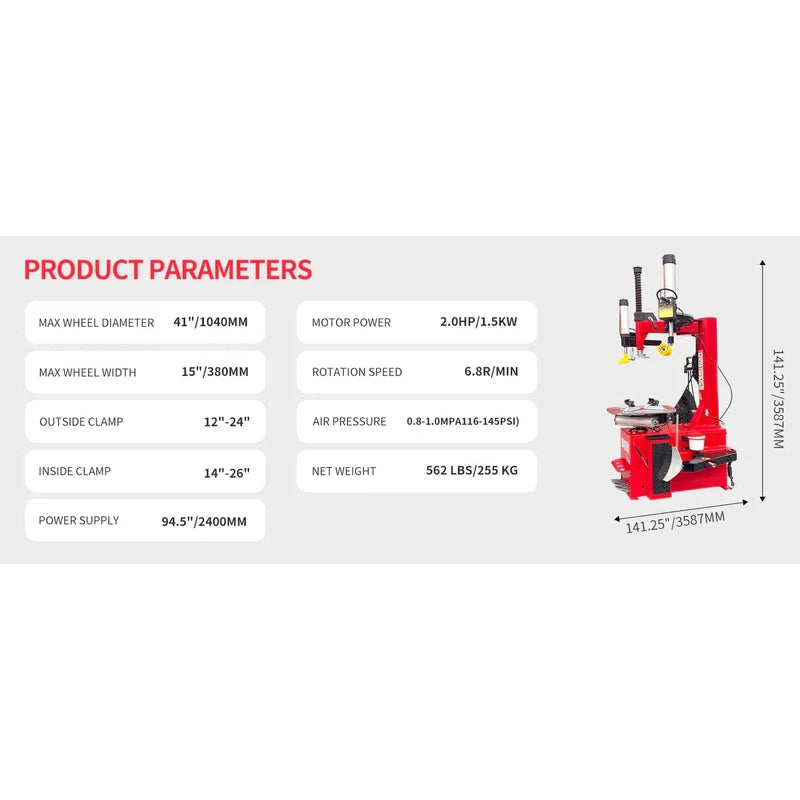

Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (380 mm) |

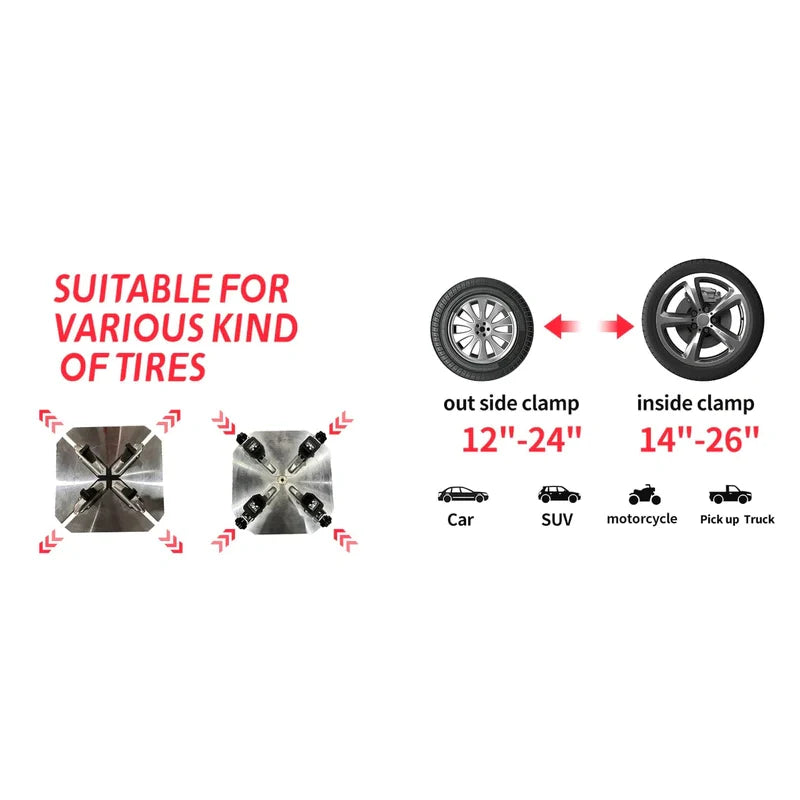

| Outside Clamp Range | 12" – 24" |
| Inside Clamp Range | 14" – 26" |
| Power Supply | 120V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 240 kg (529 lbs) |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty plan is available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Motors, power units, cylinders, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or an order number from an authorized vendor.
-
Replacement parts and shipping are provided free of charge.
-
All warranty claims must be approved by Katool’s service department.
-
Photos or videos may be required for verification.
-
Do not disassemble any equipment prior to approval.
-
Equipment not covered by warranty will require the buyer to cover parts and shipping costs.
-
Labor costs are not included under warranty coverage.
Resources
For more detailed information and guidance, you can download the following:
