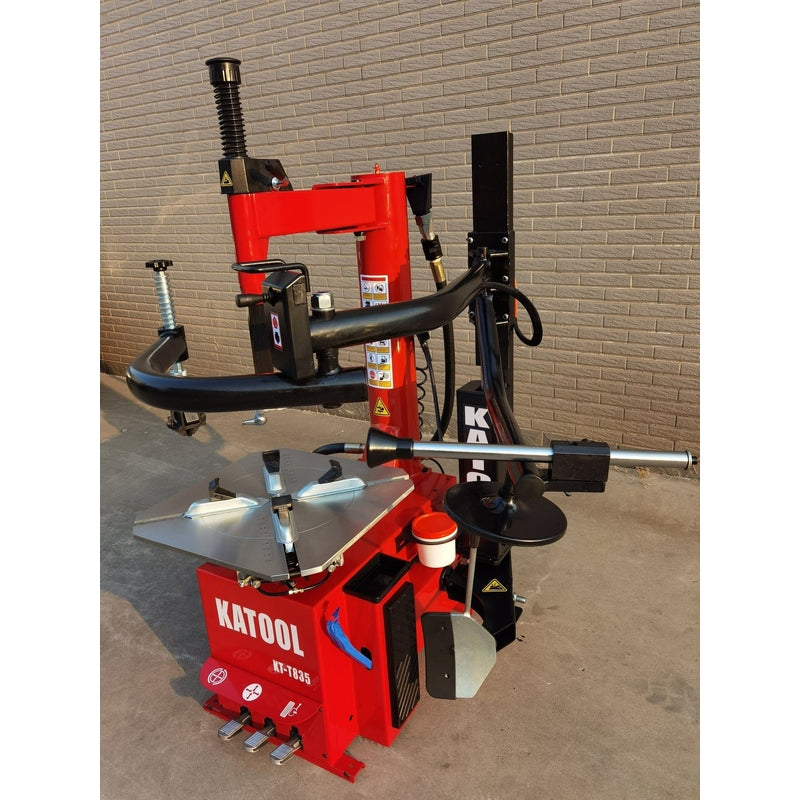

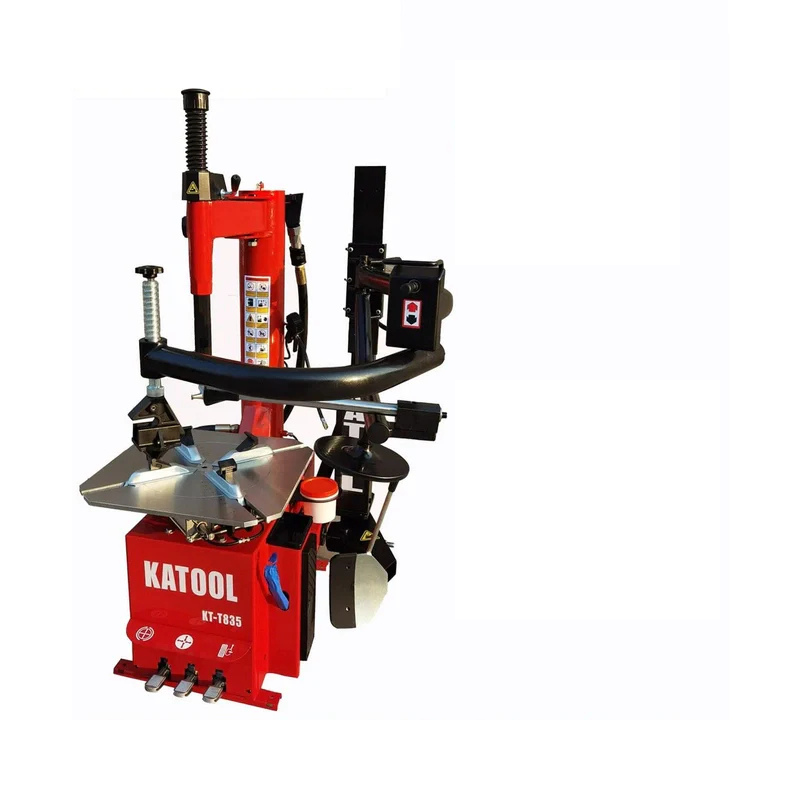

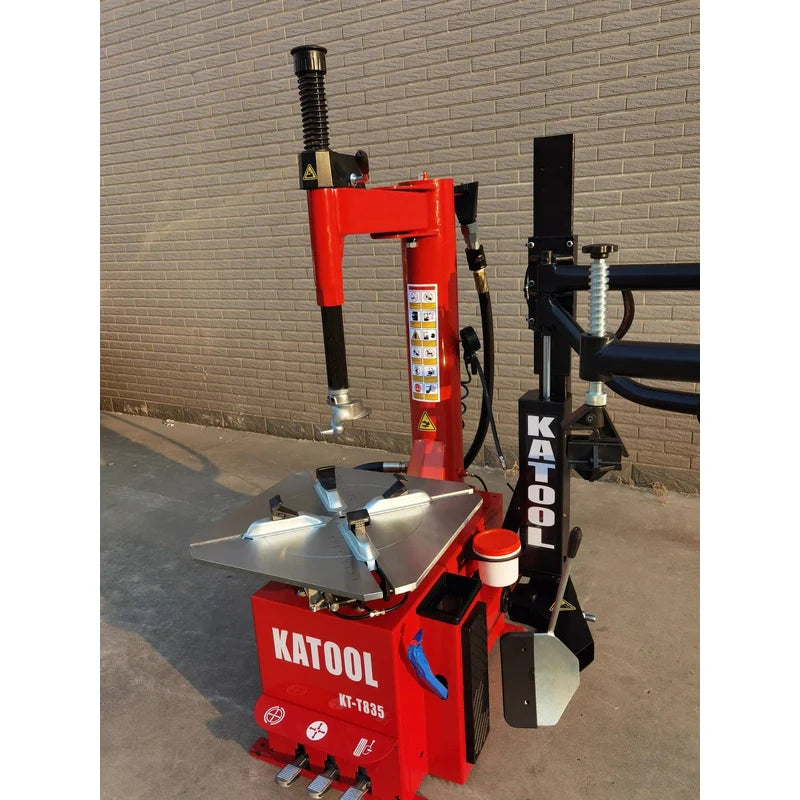

The Katool KT-T835 Wheel Clamp Tire Changer is built for strength, efficiency, and precision. Featuring a reinforced alloy steel jaw and a stainless steel mounting head, this machine delivers exceptional durability and smooth, damage-free tire changing. Its pedal-controlled air gauge, protective spade cover, and intuitive pedal system ensure a user-friendly and efficient workflow.
Powered by a 2.0HP pure copper motor designed for North American power standards, the KT-T835 provides superior torque, fast heat dissipation, and long-lasting reliability. It also includes a double-side assist arm, a bead blast seater, and a 186mm stainless bead breaker cylinder, offering unmatched versatility for handling various tire types. The closed-body design keeps internal components protected, ensuring extended machine life and consistent performance in demanding shop environments.
Key Features
-

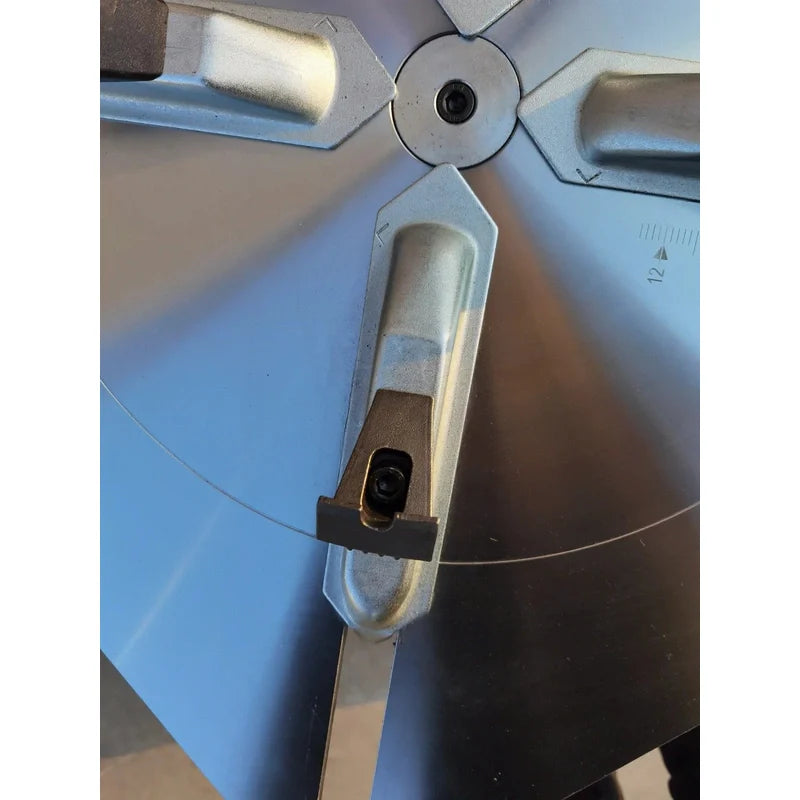

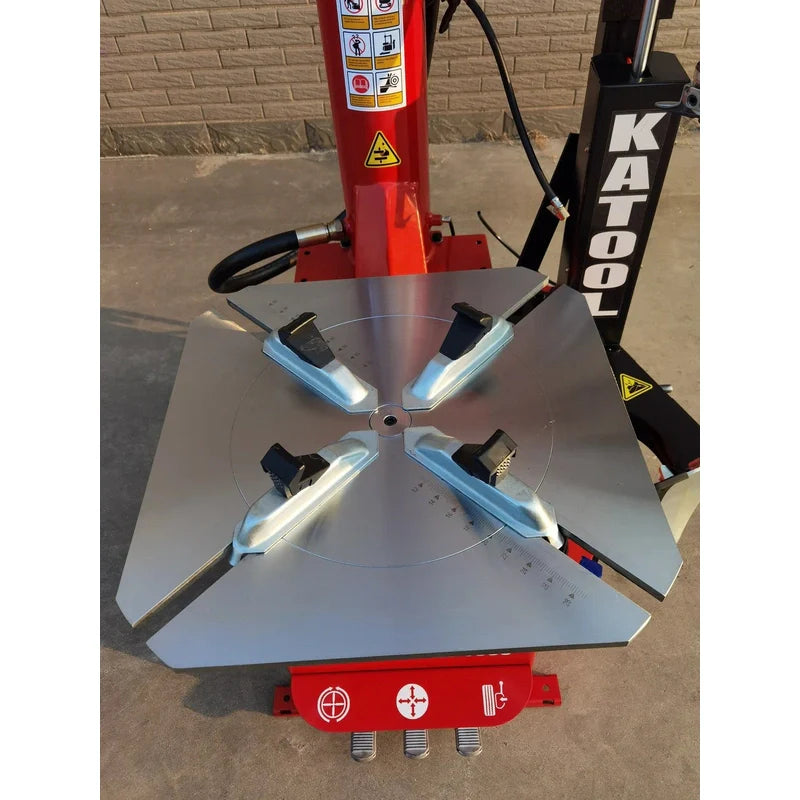

Heavy-Duty Alloy Steel Jaw: Carburization depth of 0.8–1.1mm and full quenching treatment enhance inner flexibility and outer hardness. Includes rim-protective jaw covers.
-

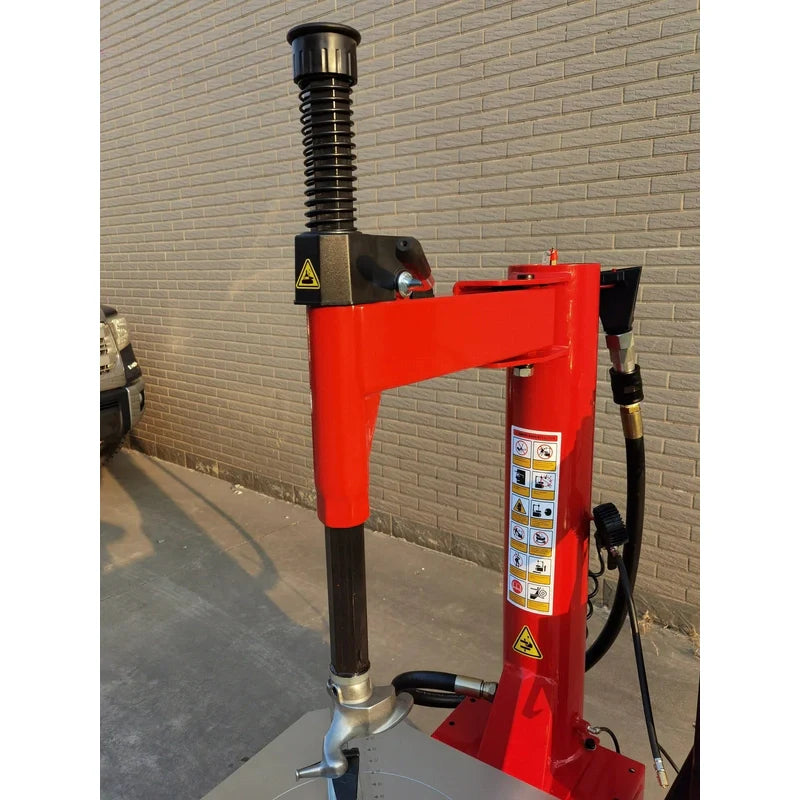

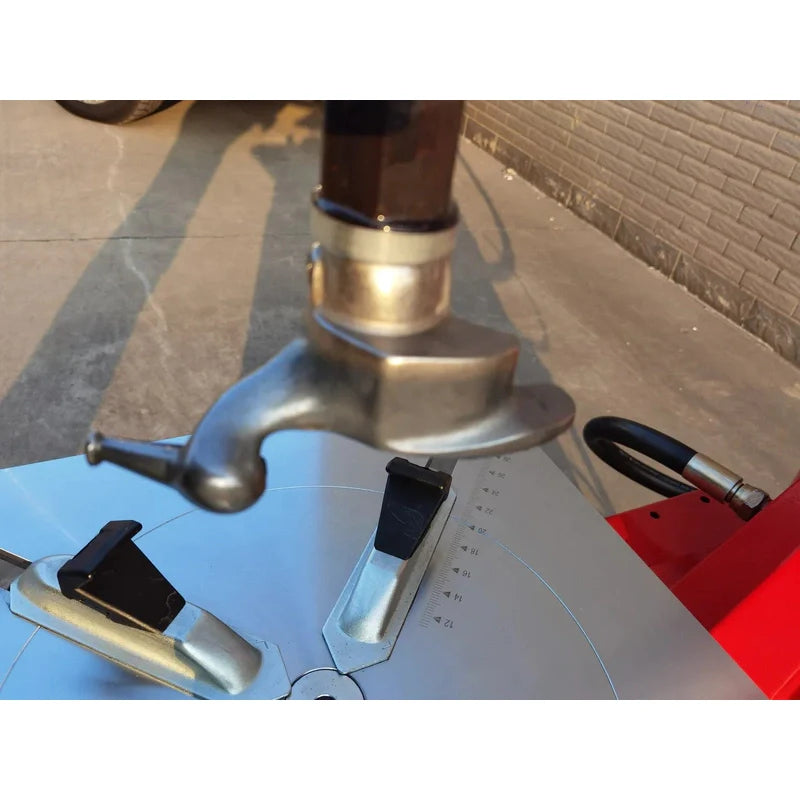

Stainless Steel Mounting Head: Polished, ergonomic design with a plastic cover to prevent rim damage.
-
Pedal-Controlled Inflation Gauge: Provides hands-free operation for efficient and safe inflation.
-

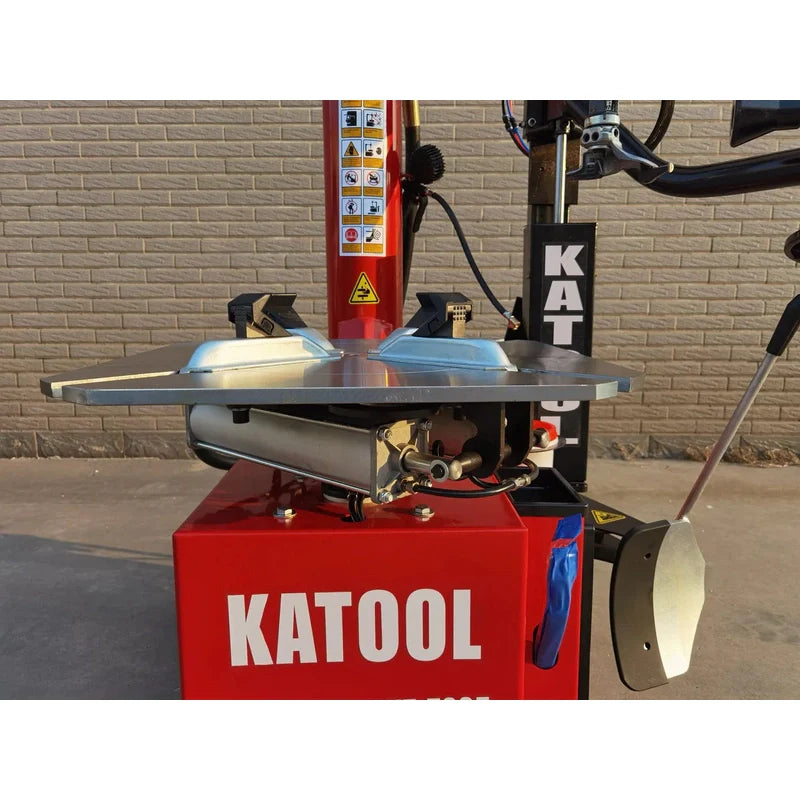

Protective Spade Cover: Prevents rim scratches and damage during operation.
-

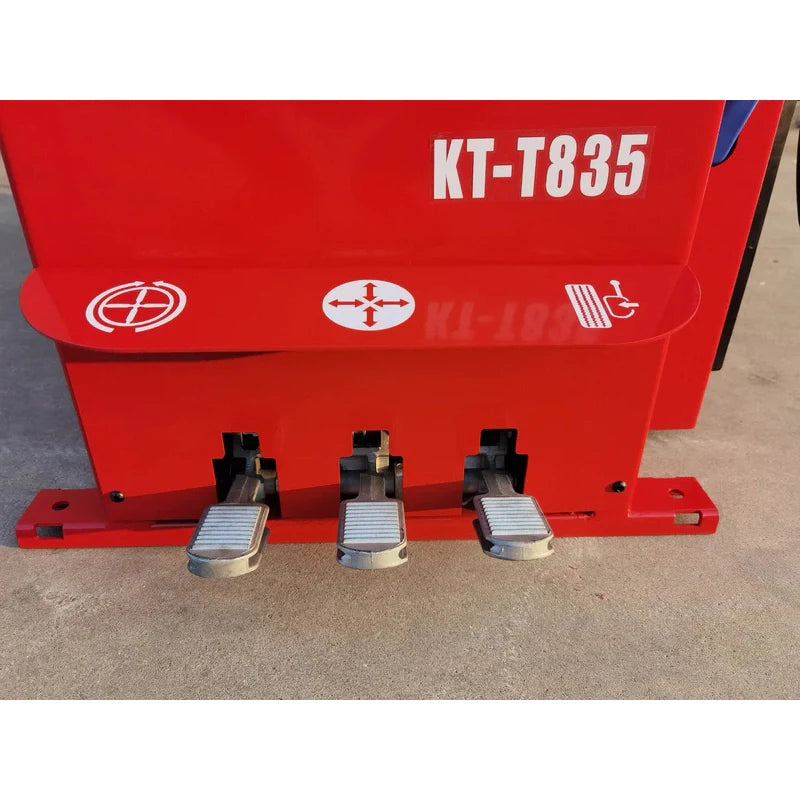

Pull-Type Pedal System: Offers smooth, precise control for easy tire changing and maintenance.
-

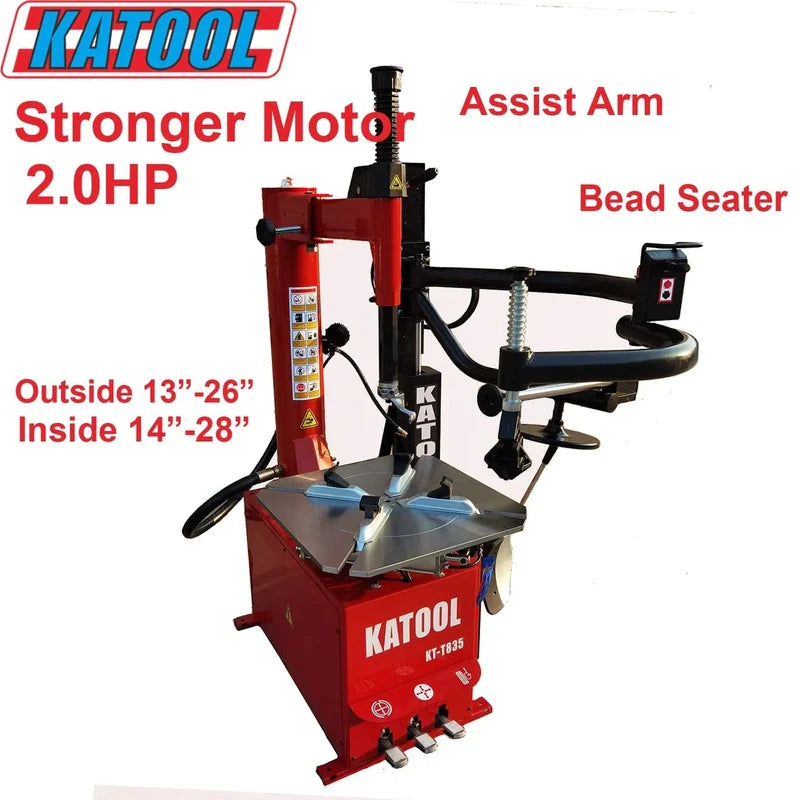

High-Performance Copper Motor: 2.0HP motor with pure copper winding ensures stronger power, low defect rate, and longer lifespan.
-
Advanced Air Filtration System: High-quality filter delivers reliable oil distribution and clean airflow to extend pneumatic component life.
-
Optimized for North America: 110V / 1PH configuration for maximum efficiency and compatibility.
-

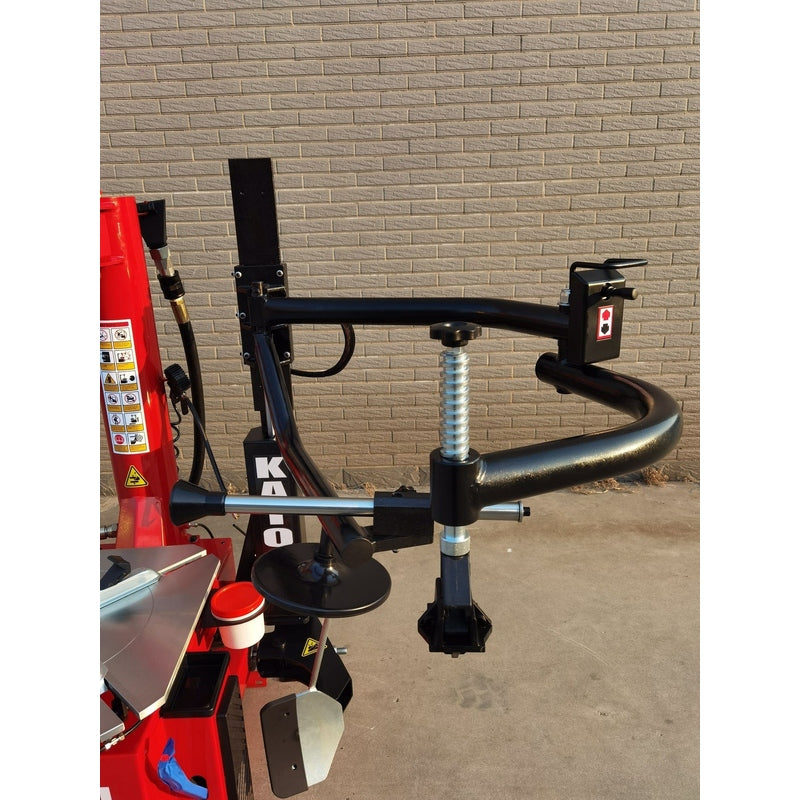

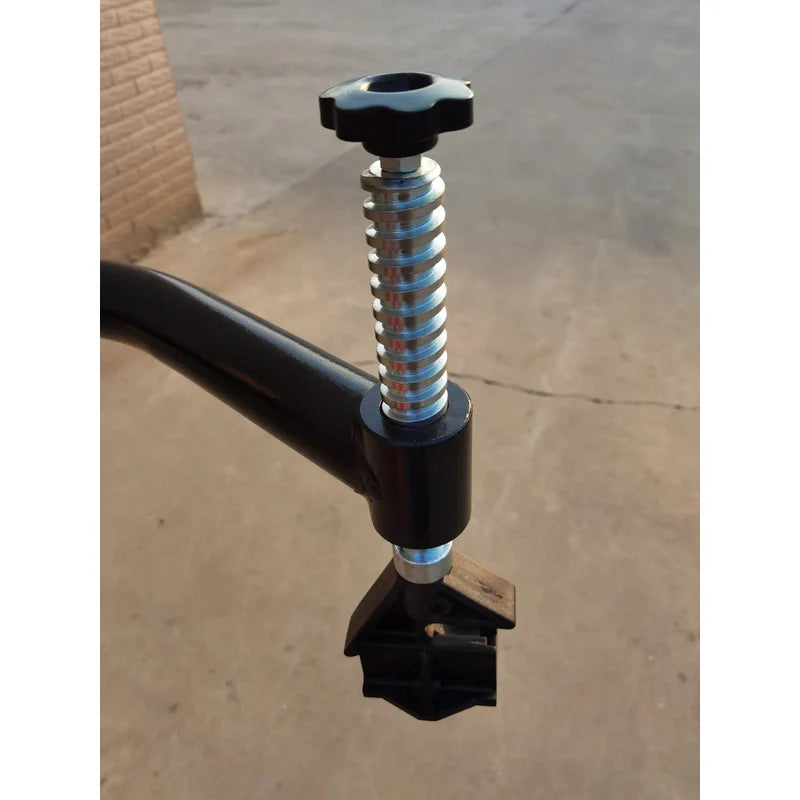

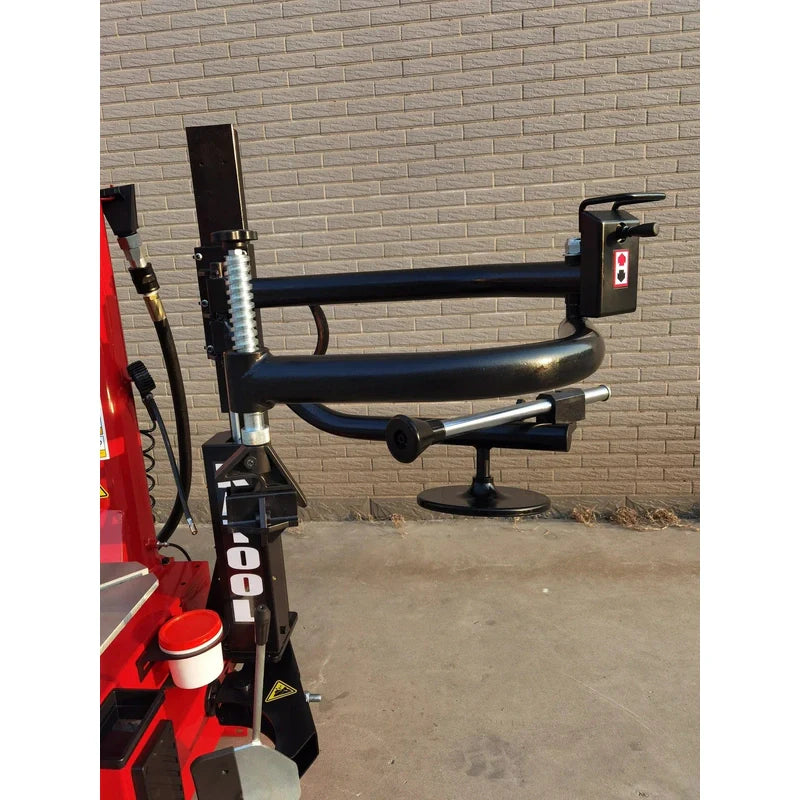

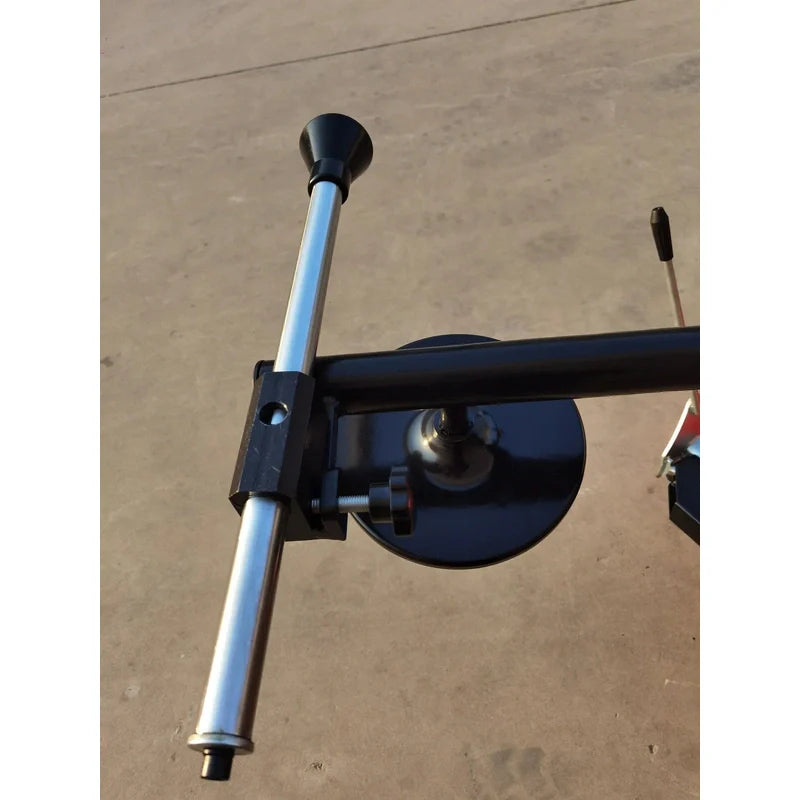

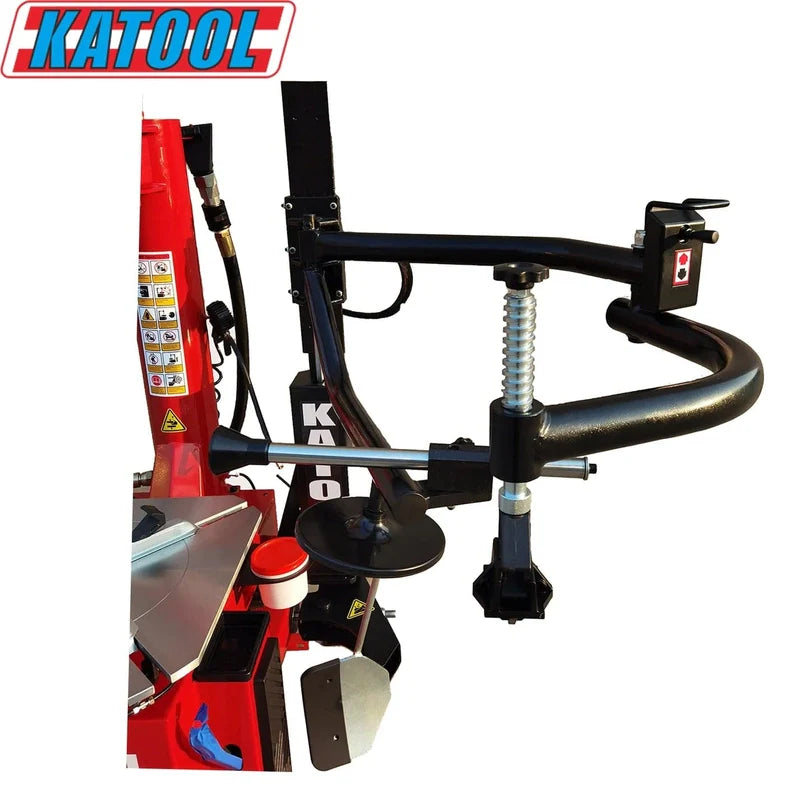

Dual Assist Arms: Simplify tire handling for low-profile and run-flat tires.
-
Bead Blast Seater & Post Tank: Allows quick and secure tire seating.
-

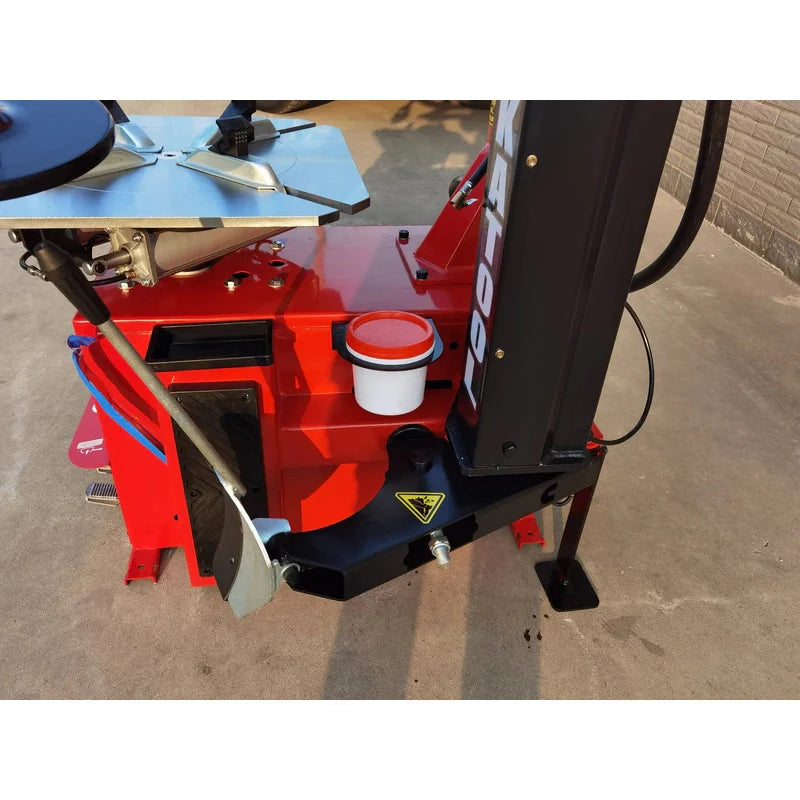

186mm Stainless Bead Breaker Cylinder: Provides consistent, high-strength performance.
-
Closed-Body Construction: Protects internal systems for improved longevity and durability.
Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (350 mm) |

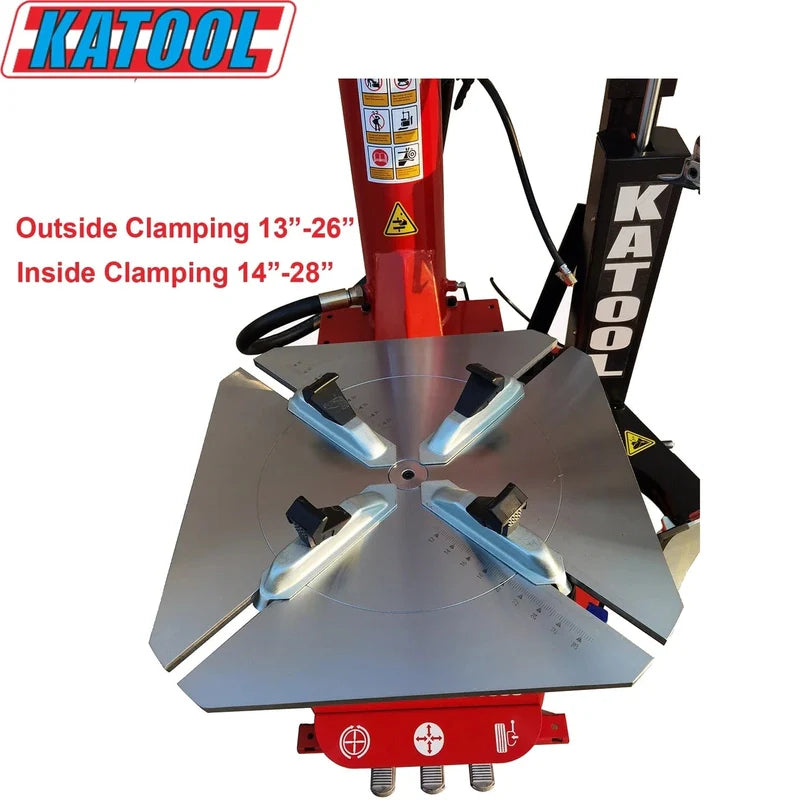

| Outside Clamp Range | 13" – 26" |
| Inside Clamp Range | 14" – 28" |
| Power Supply | 110V / 1PH / 60Hz |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.1 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 582 lbs |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and product defects at no cost. A 2-year extended warranty is available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Motors, power units, cylinders, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be made within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or an order number from an authorized vendor.
-
Replacement parts and shipping are covered free of charge.
-
All claims are subject to approval by Katool’s warranty/service department.
-
Photos or videos of defects may be required for verification.
-
Do not disassemble equipment before receiving authorization.
-
Items outside warranty coverage will require the buyer to cover replacement and shipping costs.
-
Labor costs are not included under warranty coverage.
