Product Overview
Meet the Katool KT-T835 Wheel Clamp Tire Changer — a true powerhouse for tire professionals. Built for strength, precision, and efficiency, it features a reinforced alloy steel jaw with carburization and quenching treatment for maximum toughness, along with a stainless steel mounting head that’s engineered to protect rims during every operation. Its pedal-controlled air gauge, pull-type control system, and durable spade cover make tire changes smooth and effortless.
Equipped with a high-performance copper-wound motor, advanced air filtration, and dual assist arms, the KT-T835 is optimized for heavy daily use. Designed specifically for North American workshops, it runs on a robust 110V/1PH/2.0HP motor and includes a 200mm aluminum bead breaker cylinder housed in a closed body frame for maximum protection and reliability.
Key Features
-
Heavy-Duty Alloy Steel Jaw: Treated with 0.8–1.1mm carburization depth and full quenching for superior hardness and flexibility; includes protective jaw covers to prevent rim damage.
-
Precision Stainless Steel Mount Head: Solution-treated, polished, and shaped for optimal mechanical performance; includes plastic cover for added rim protection.
-
Rim Protection System: High-quality spade cover safeguards wheel surfaces during operation.
-
Pull-Type Pedal Control: Simplifies tire changing and enhances operator control.
-

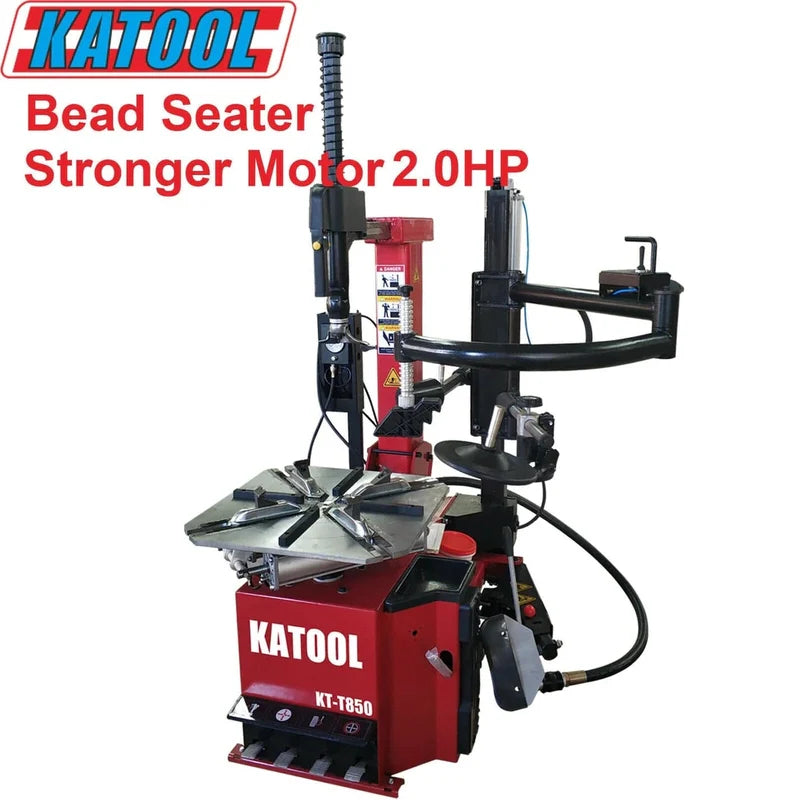

High-Efficiency Motor: Pure copper winding ensures more power, faster cooling, reduced defect rates, and extended service life.
-
Advanced Air Lubrication System: Built-in lubricator provides reliable oil delivery and filters compressed air to extend pneumatic system lifespan.
-
Optimized for North America: Equipped with a 110V / 1PH / 2.0HP motor for maximum torque and efficiency.
-

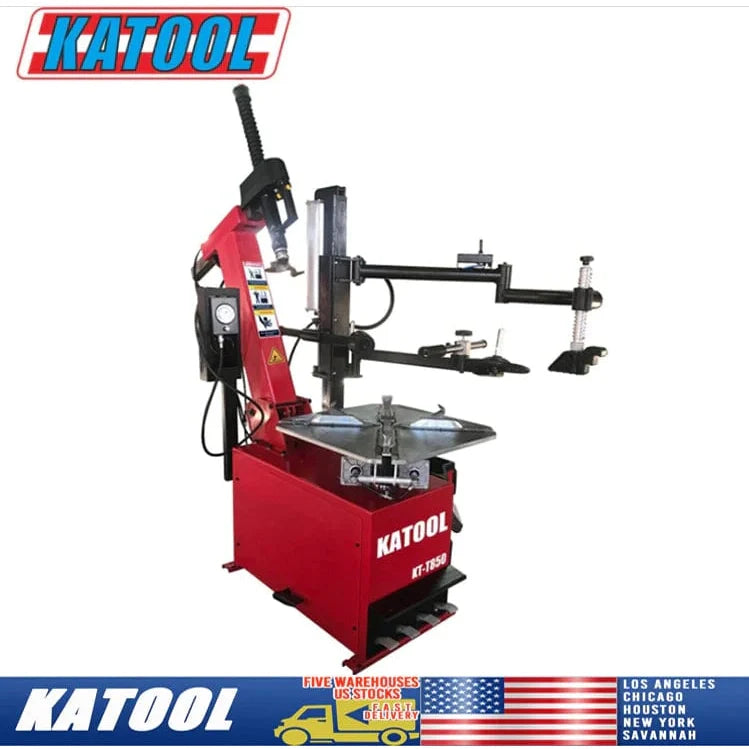

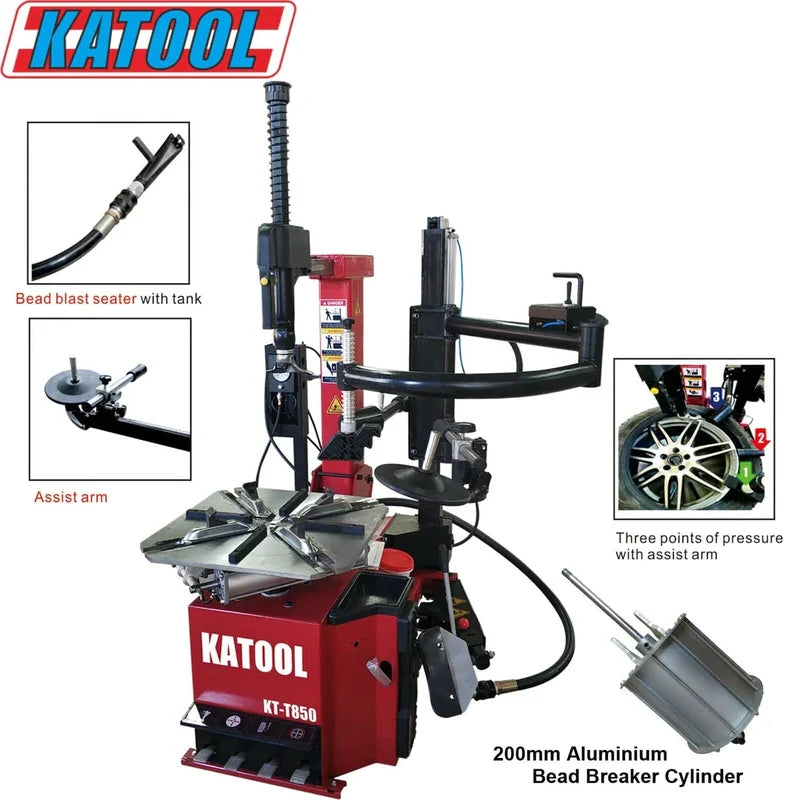

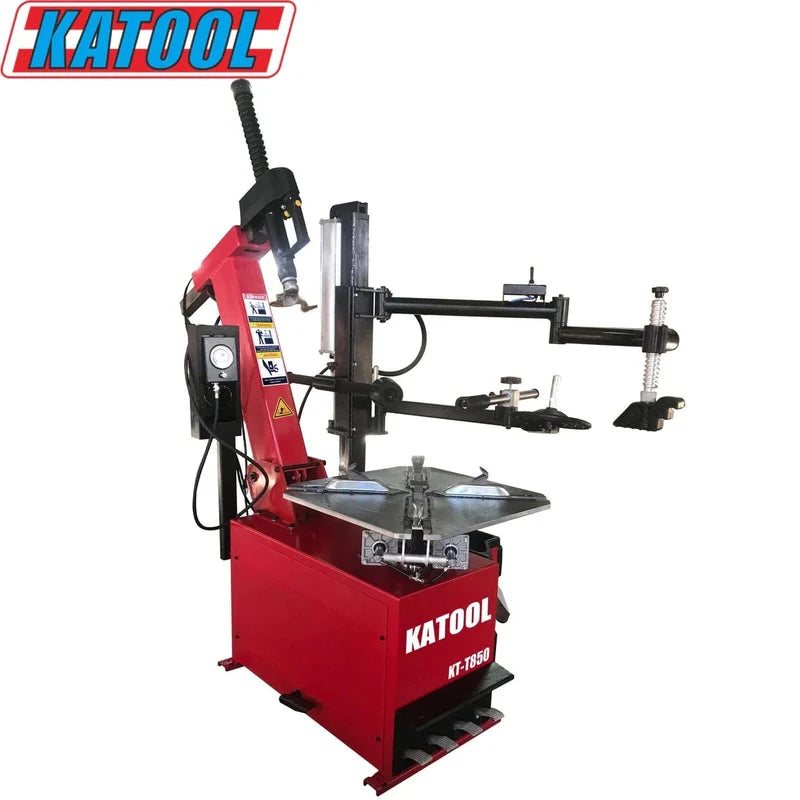

Assist Arms & Bead Seater: Simplifies handling of low-profile and run-flat tires.
-
200mm Aluminum Bead Breaker Cylinder: Delivers smooth and powerful performance.
-
Closed-Body Design: Protects internal components and improves long-term durability.
Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 47" (1200 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp | 14" – 26" |
| Inside Clamp | 16" – 28" |
| Power Supply | 110V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 340 kg (750 lbs) |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects free of charge. An optional 2-year extended warranty is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Hydraulic cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be made within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or original order number from an authorized vendor.
-
Replacement parts and shipping are covered at no cost.
-
All warranty claims are subject to approval by Katool’s warranty/service department.
-
Photos or videos of defects may be requested for verification.
-
Do not disassemble any equipment before authorization.
-
Items outside warranty coverage are the buyer’s responsibility for parts and shipping.
-
Labor costs are not included under warranty coverage.
