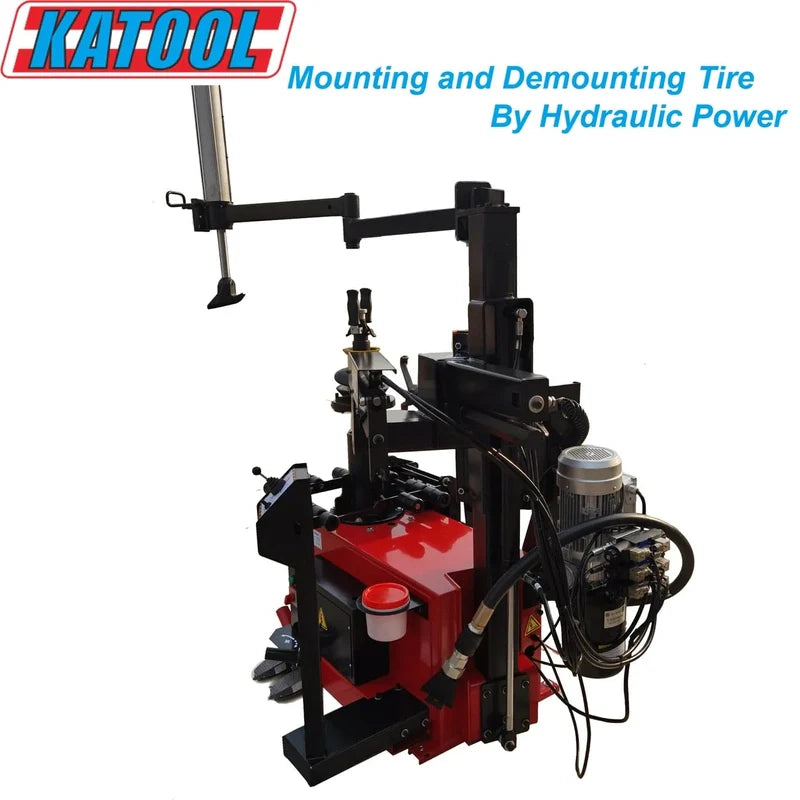

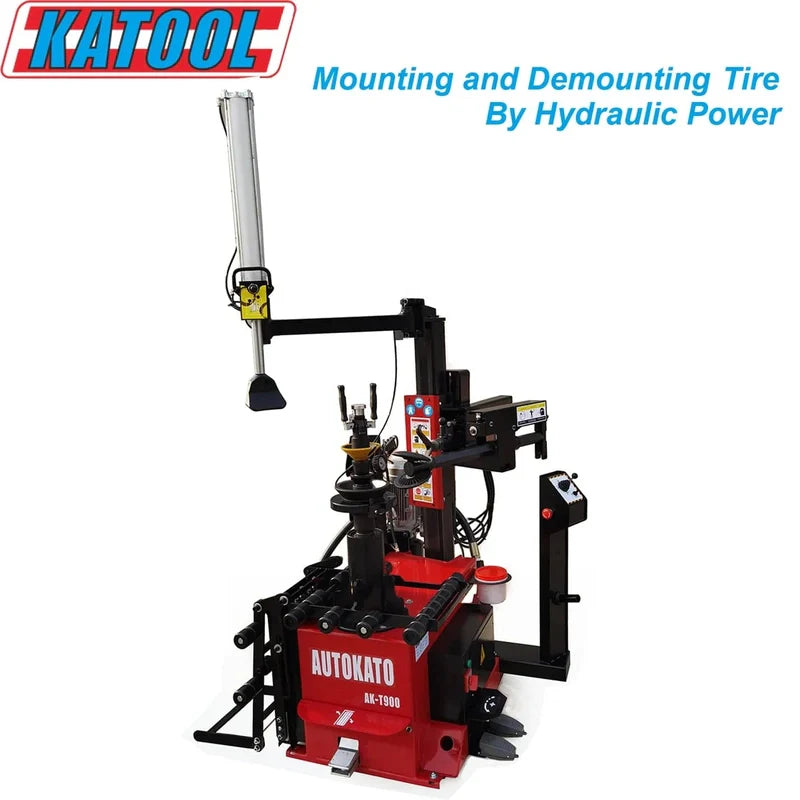

Katool KT-T900 Center Post Tire Changer

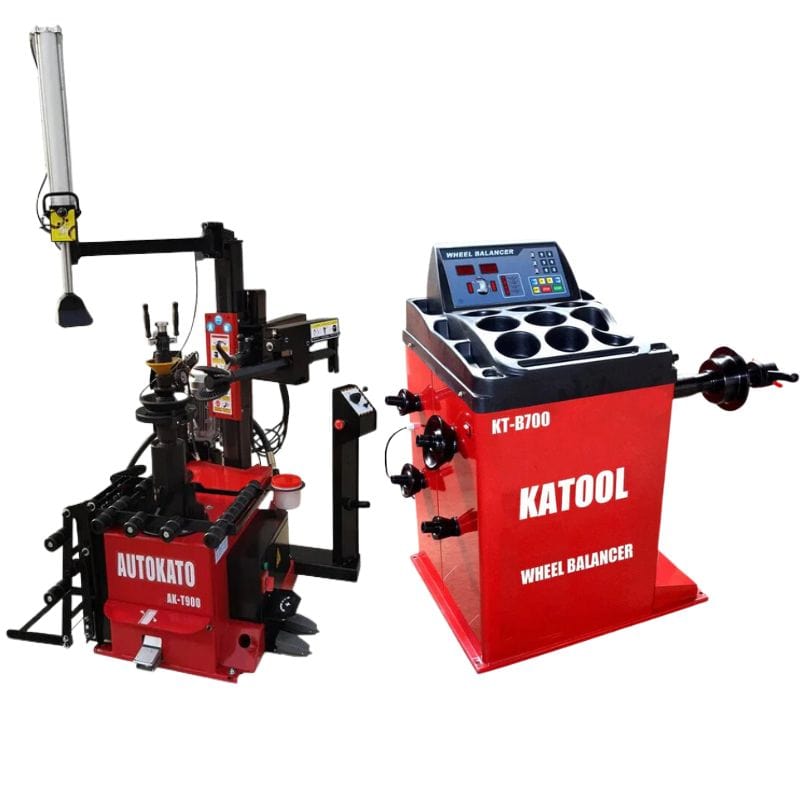

This Katool combo pairs the KT-T900 fully hydraulic, leverless center-post tire changer with the KT-B700 wheel balancer. The KT-T900 clamps 12″ to 30″ wheels up to 47″ in diameter and 16″ wide, and its top assist arm and wheel lift make run-flat and low-profile tires much easier to handle. The KT-B700 balances rims up to 30″ to within ±1 gram. Both run on 110–120V single-phase power. Compare other tire changer and wheel balancer combos or more Katool equipment. Financing is available through Approve and Shop Pay.

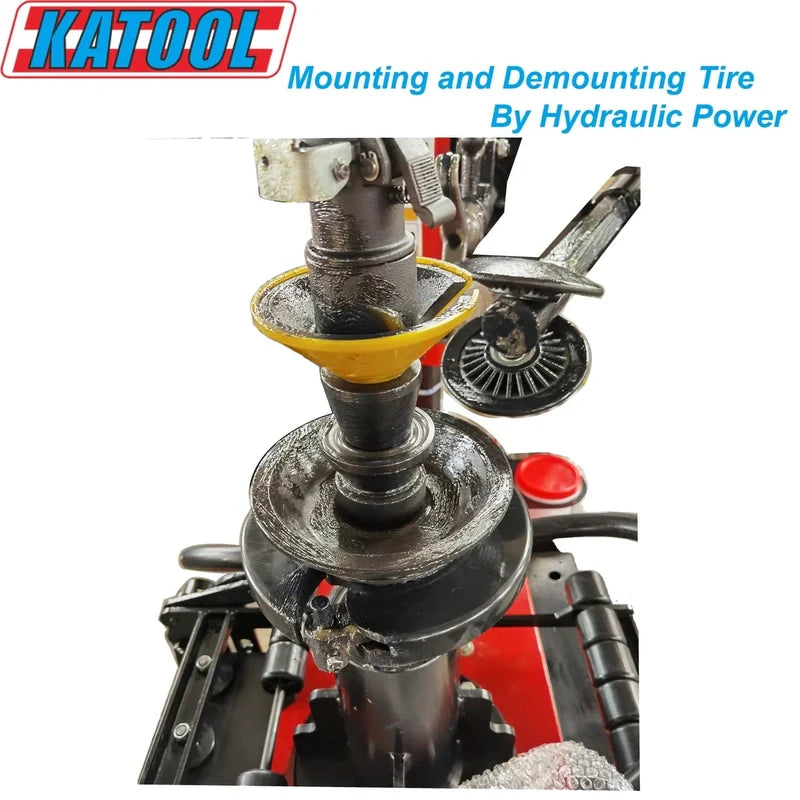

The Katool KT-T900 is a fully hydraulic, lever-less tire changer designed for effortless operation on a wide range of car wheels. Featuring a stainless steel mounting head, top assist arm, and wheel lift system, it simplifies handling of run-flat and low-profile tires while protecting rims from damage. Its high-efficiency copper motor and reinforced pneumatic system ensure long-lasting, reliable performance.
Key Features:
-

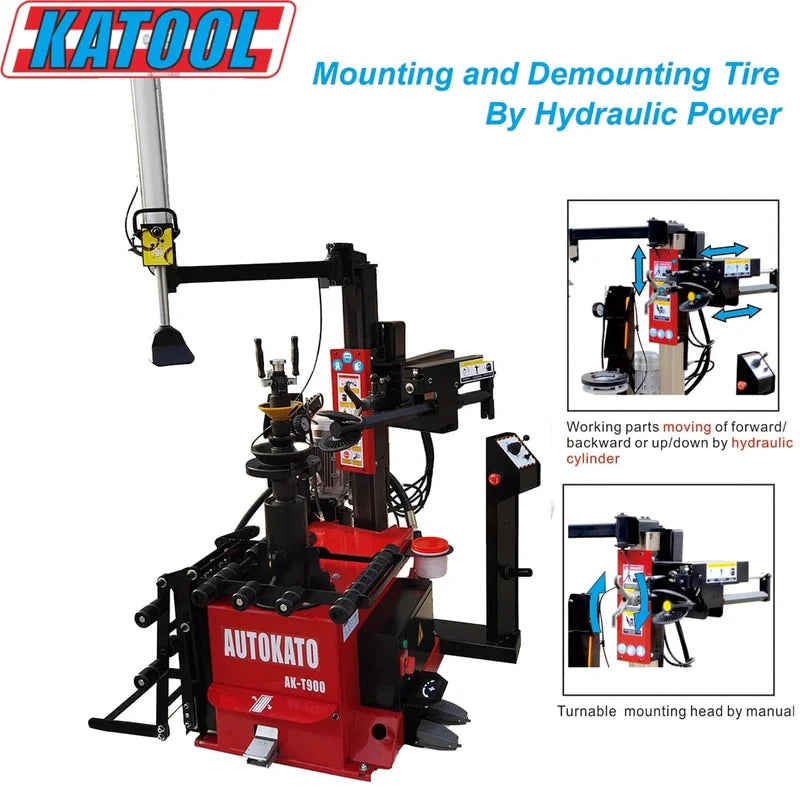

Fully Hydraulic Power System: Provides precise and powerful operation for all wheel types.
-

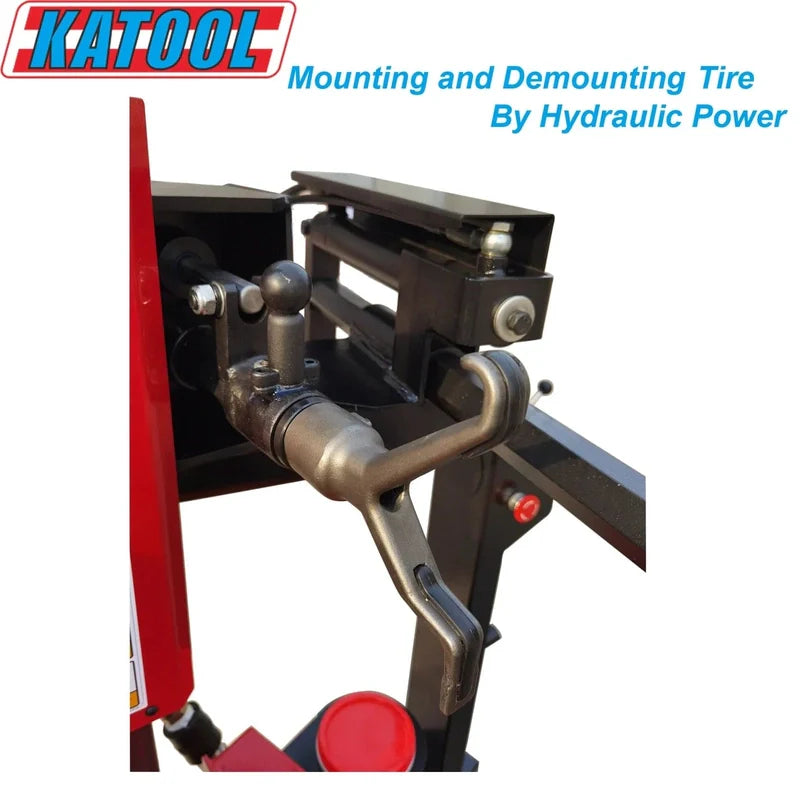

Top Assist Arm: Makes mounting and demounting low-profile or run-flat tires effortless.
-
Lever-Less Design: Stainless steel mount head with plastic protection prevents rim damage.
-
Wheel Lift Assistant: Reduces manual strain and boosts productivity.
-
Copper Wound Motor: Offers strong power output, faster heat dissipation, and improved reliability.
-
Enhanced Air Filtration System: Protects pneumatic components for extended service life.
Specifications:
| Specification | Value |
|---|---|
| Max Wheel Diameter | 47" (1200 mm) |
| Max Wheel Width | 16" (406 mm) |
| Wheel Clamp Range | 12" – 30" |
| Power Supply | 110V / 1PH / 60Hz |
| Gearbox Motor Power | 1.5 kW / 2 HP |
| Hydraulic Power | 1.1 kW / 1.5 HP |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 188 kg (414 lbs) |

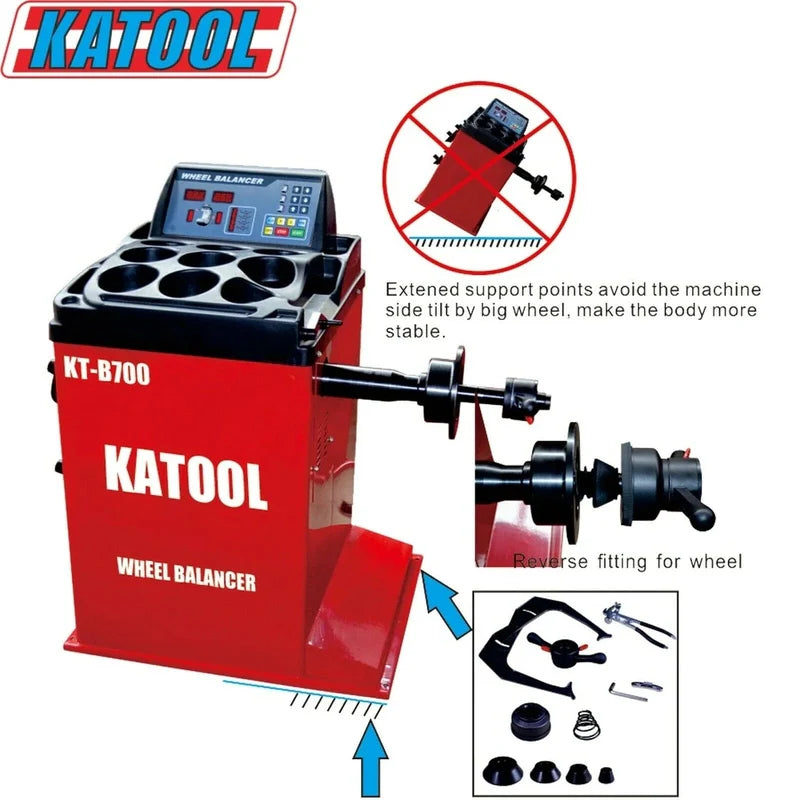

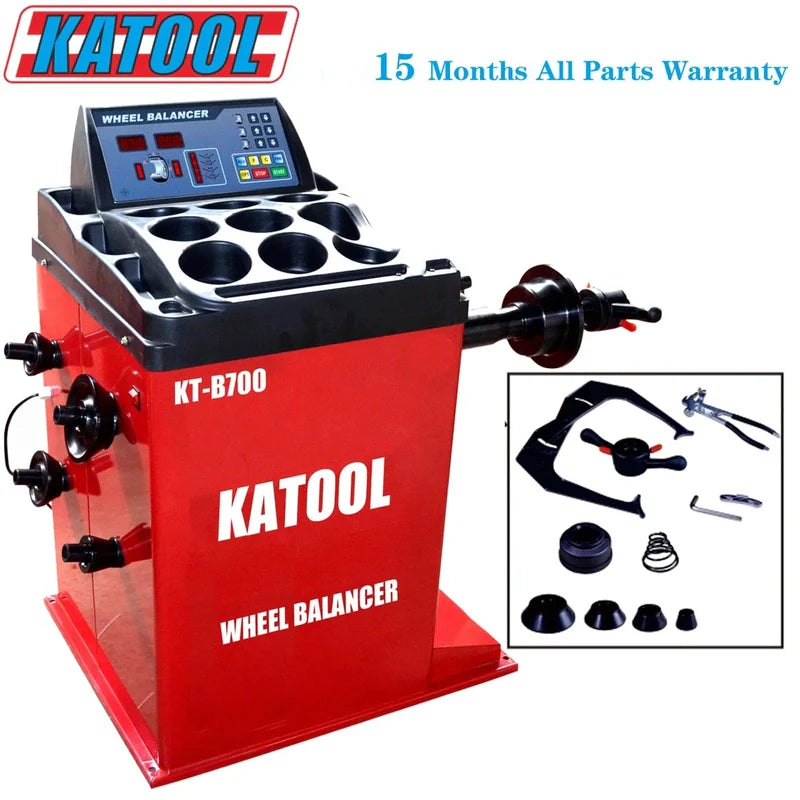

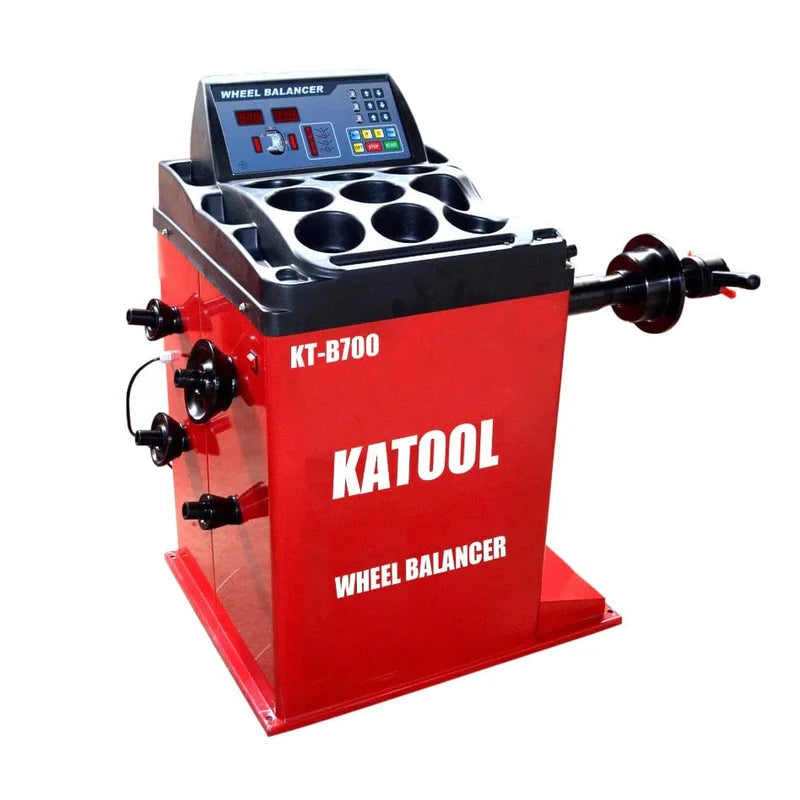

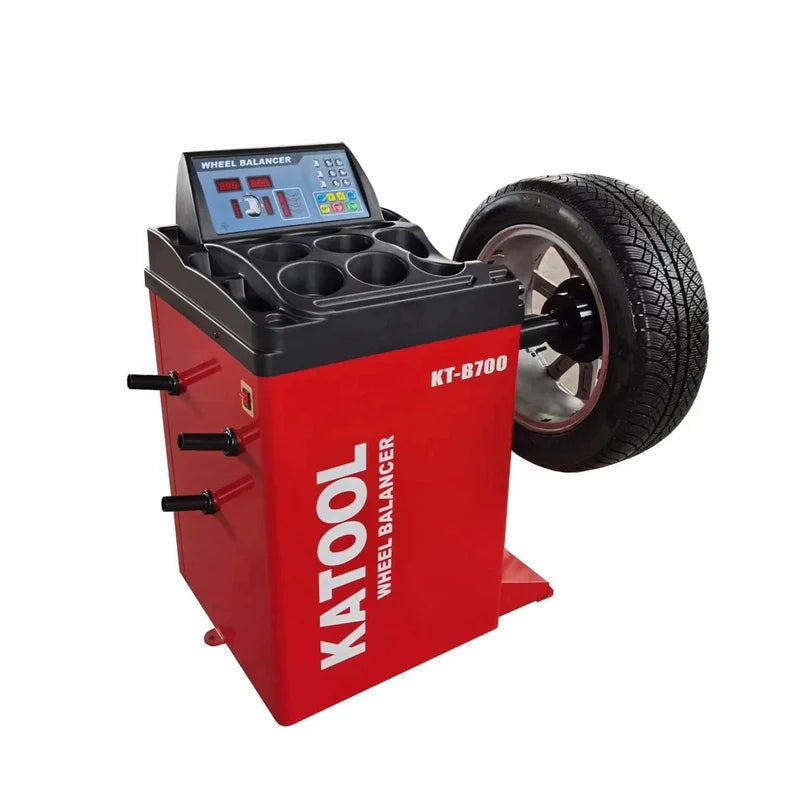

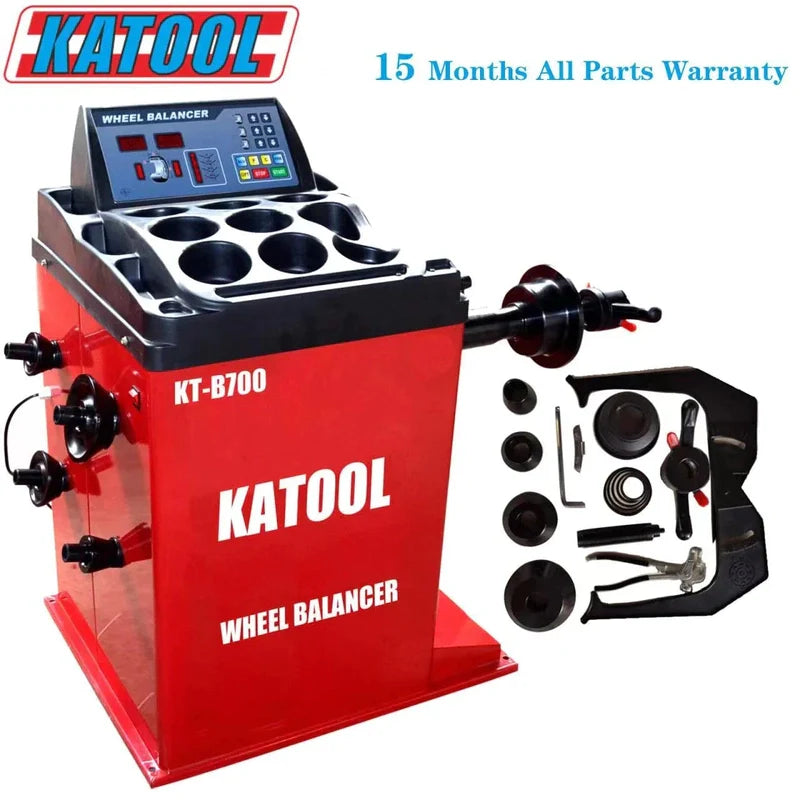

Katool KT-B700 Wheel Balancer
The Katool KT-B700 Wheel Balancer delivers precision and stability with its advanced balancing technology and rugged construction. A reinforced steel body, high-grade motor, and sophisticated sensor system ensure smooth and accurate balancing across a variety of wheel sizes.
Key Features:
-

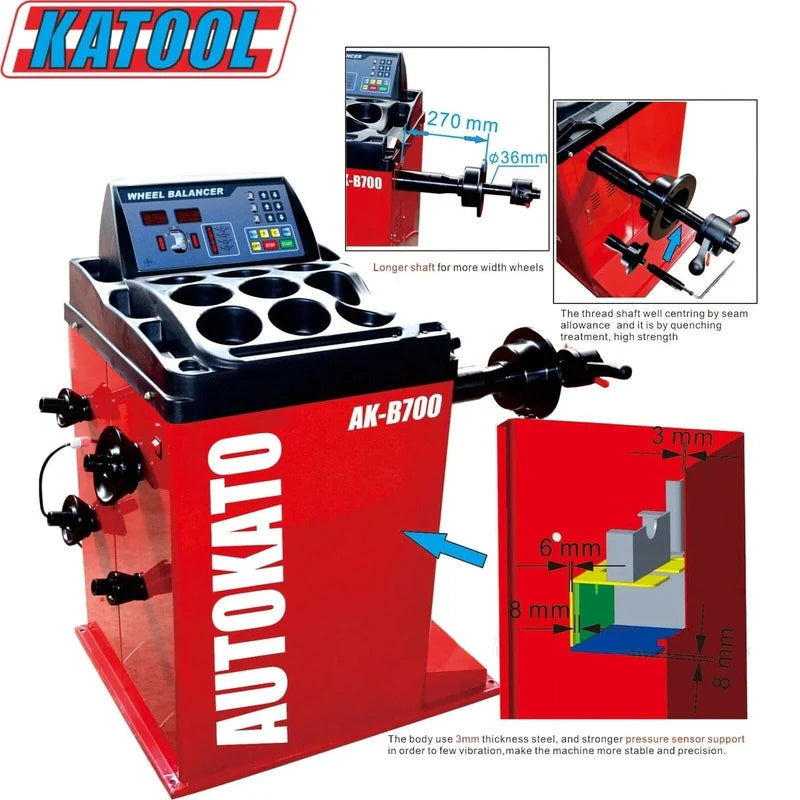

Reinforced 3mm Steel Frame: Provides superior rigidity and minimizes vibration.
-
Integrated Pressure Sensor System: 8mm-thick structural support ensures accurate measurements.
-
High-Quality Copper Motor: Increases power efficiency and reduces overheating.
-

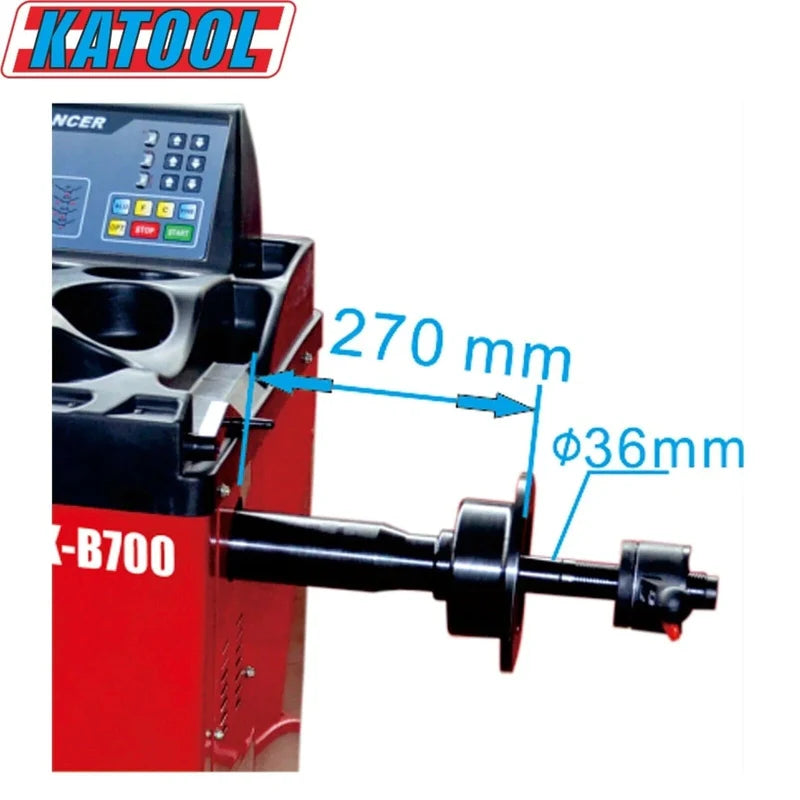

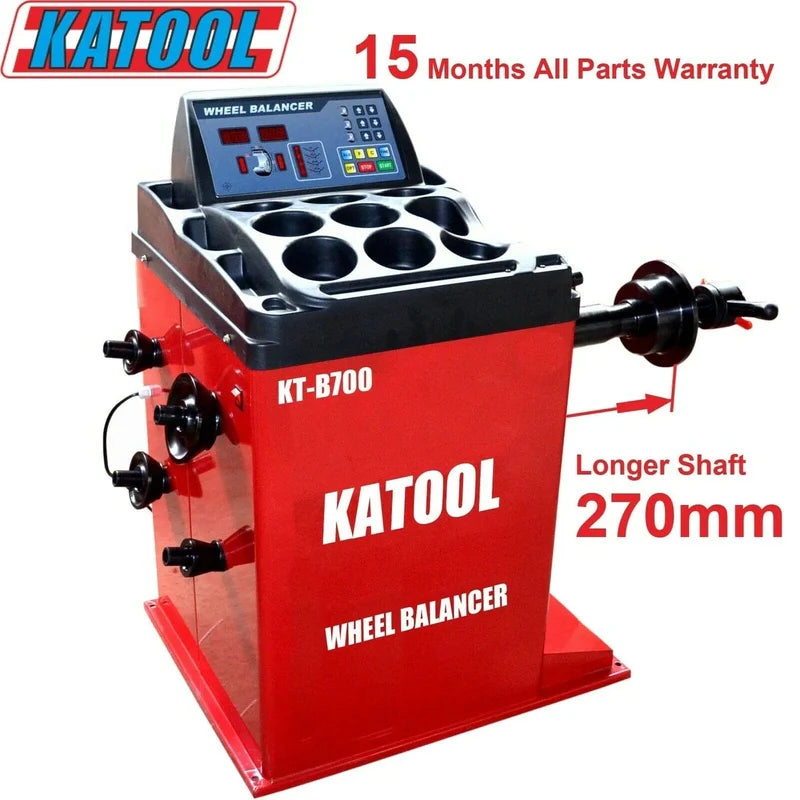

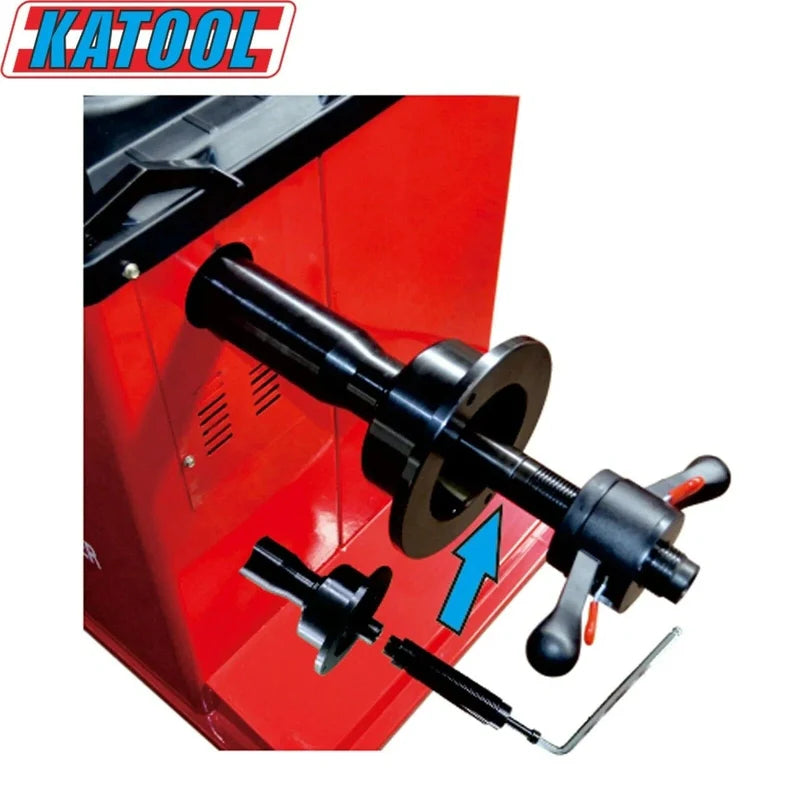

Hardened 36mm Shaft Thread: Treated for durability and long-term precision.
-
Advanced Control Board: Moisture-, dust-, and static-resistant for extended reliability.
-
Multiple Balance Modes: Adapts easily to different rim styles for precise results.
-
Self-Diagnosis & Calibration: Simplifies setup—no preset parameters required.
Specifications:
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Together, the KT-T900 Tire Changer and KT-B700 Wheel Balancer form a dependable and efficient tire service system — ideal for professionals who value speed, precision, and long-term reliability in their workshop equipment.
Manuals & Resources
Download the user manuals for both machines:
