Description
Product Overview

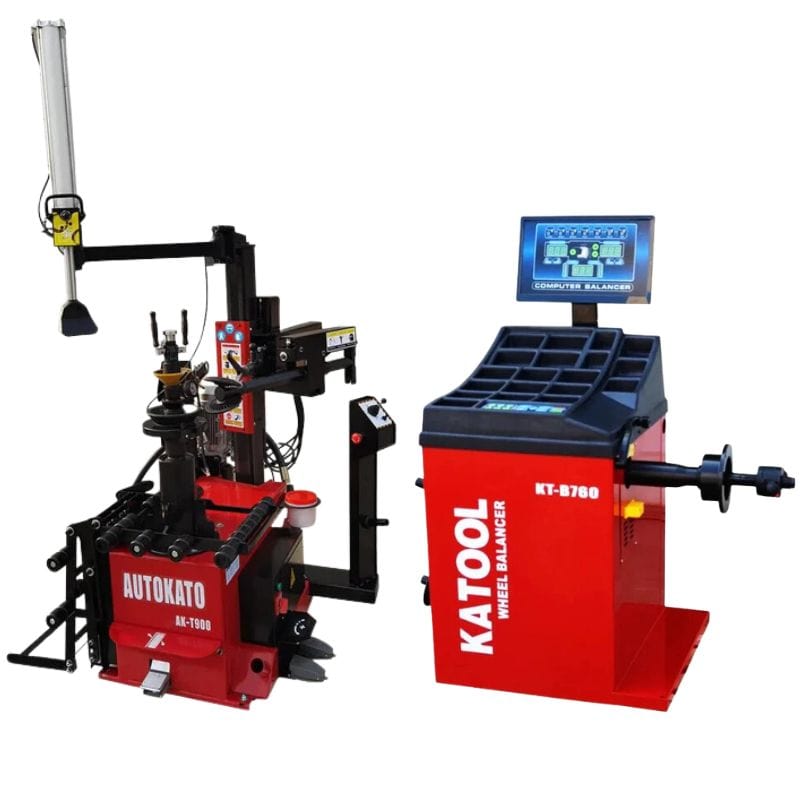

This Katool combo pairs the KT-T900 fully hydraulic, leverless center-post tire changer with the KT-B760 wheel balancer. The KT-T900 clamps 12″ to 30″ wheels up to 47″ in diameter and 16″ wide, with an assist arm and wheel lift that make run-flat and low-profile tires easier to handle. The KT-B760 balances rims up to 30″ and wheels up to 143 lb to within ±1 gram. Both run on 110V single-phase power. Compare other tire changer and wheel balancer combos or more Katool equipment. Financing is available through Approve and Shop Pay.
The Katool KT-T900 & KT-B760 Combo is a professional-grade tire service package built for efficiency, precision, and reliability. Designed for automotive repair shops, tire centers, and performance garages, this dynamic duo combines a fully hydraulic tire changer with a high-accuracy wheel balancer, delivering smooth operation, powerful performance, and consistent results for every job.

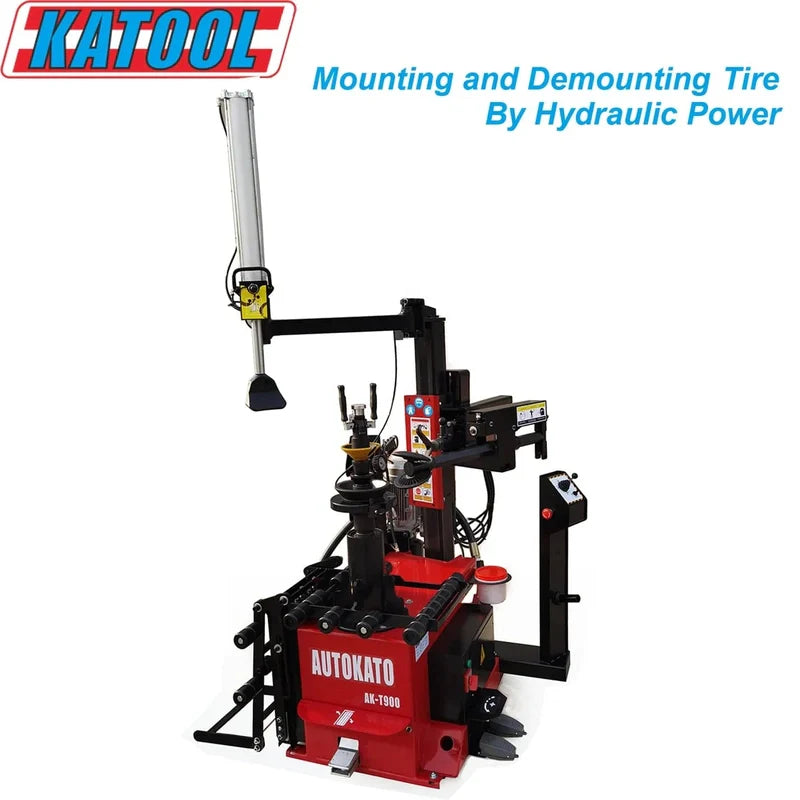

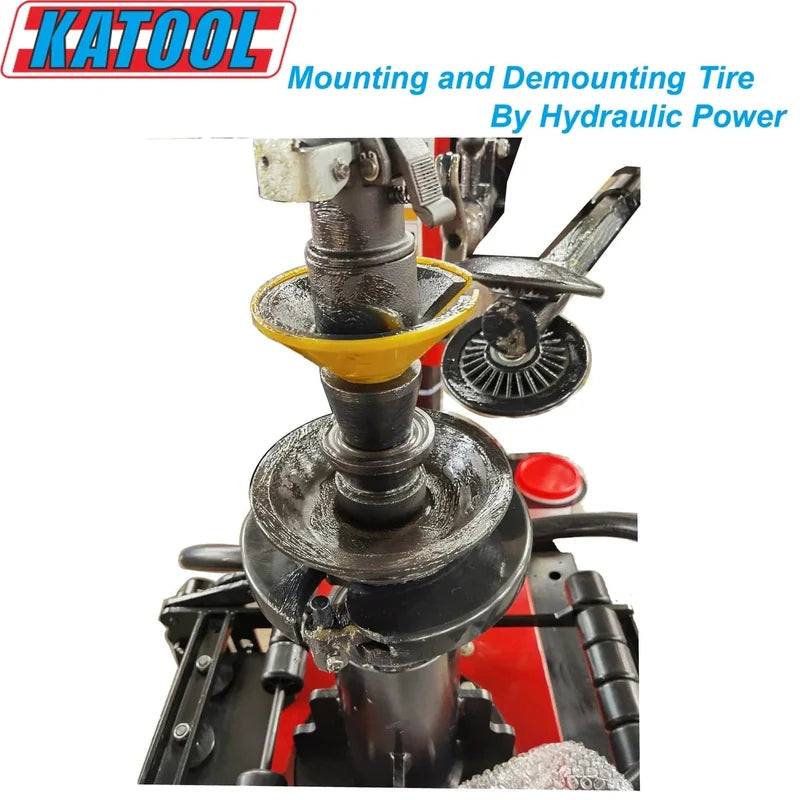

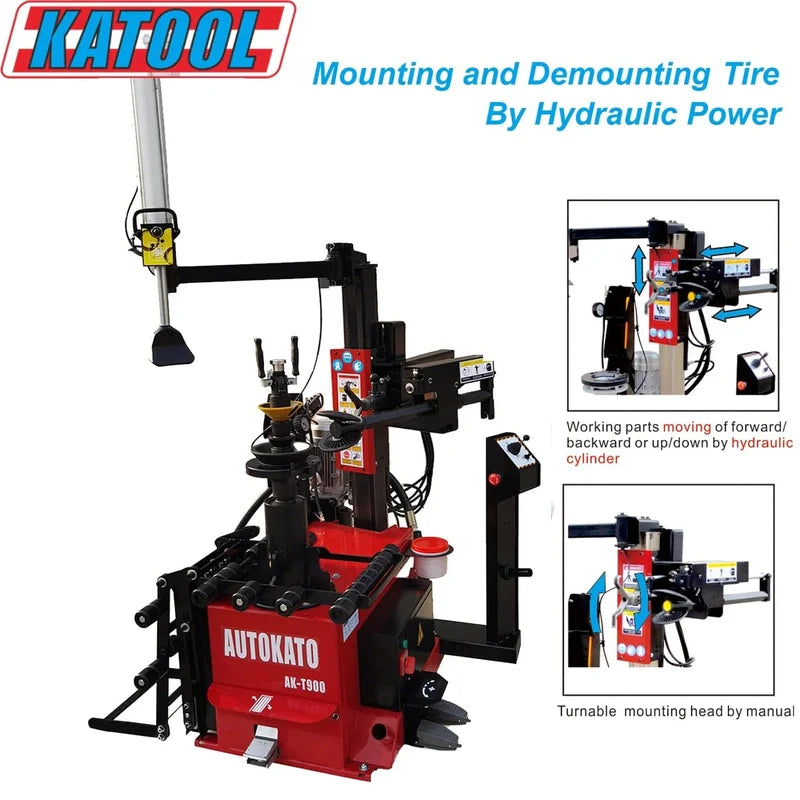

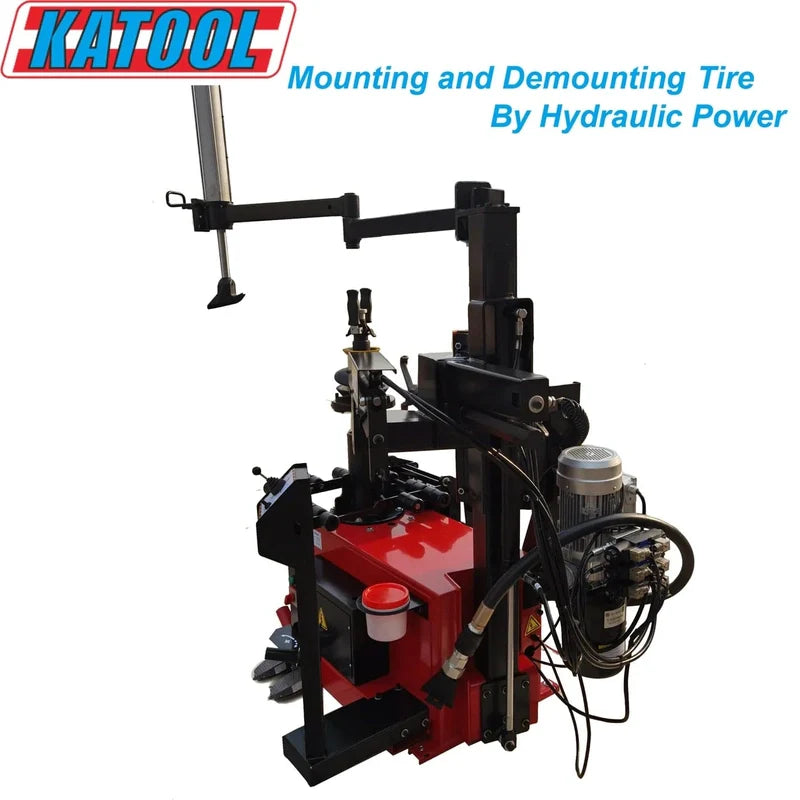

Katool KT-T900 Center Post Tire Changer
The Katool KT-T900 is a fully hydraulic, lever-less tire changer designed for precision handling of all types of car wheels. With its stainless steel mounting head, assist arm, and wheel lift system, it allows for quick and damage-free tire changes. Its high-quality copper motor ensures stable power and efficient heat dissipation, while the advanced air filtration system enhances the longevity of the pneumatic components.
Key Features:
-
Hydraulic Power System: Provides precise and powerful operation for a wide range of car wheels.
-

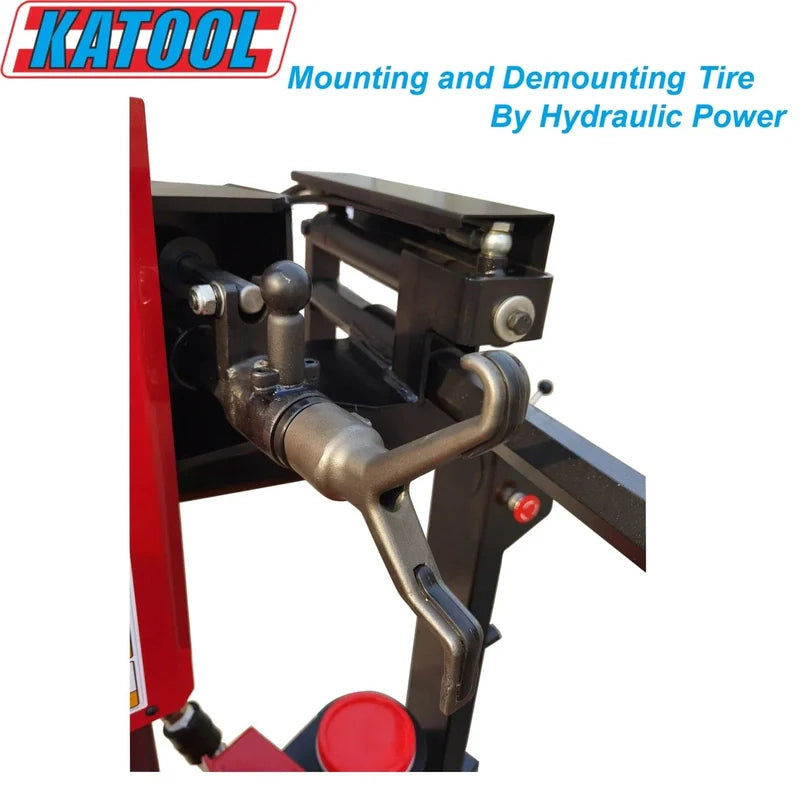

Built-In Assist Arm: Simplifies the handling of run-flat and low-profile tires.
-
Lever-Less Design: Stainless steel mount head with a protective plastic cover to prevent rim damage.
-
Wheel Lift Assistant: Reduces physical strain and improves workflow efficiency.
-
Copper-Wound Motor: Offers excellent heat dissipation and long-term reliability.
-
Enhanced Air Filtration: Extends the service life of the pneumatic system.
Specifications:
| Specification | Value |
|---|---|
| Max Wheel Diameter | 47" (1200 mm) |
| Max Wheel Width | 16" (406 mm) |
| Wheel Clamp Range | 12" – 30" |
| Power Supply | 110V / 1PH / 60Hz |
| Gearbox Motor Power | 1.5 kW / 2 HP |
| Hydraulic Power | 1.1 kW / 1.5 HP |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 188 kg (414 lbs) |

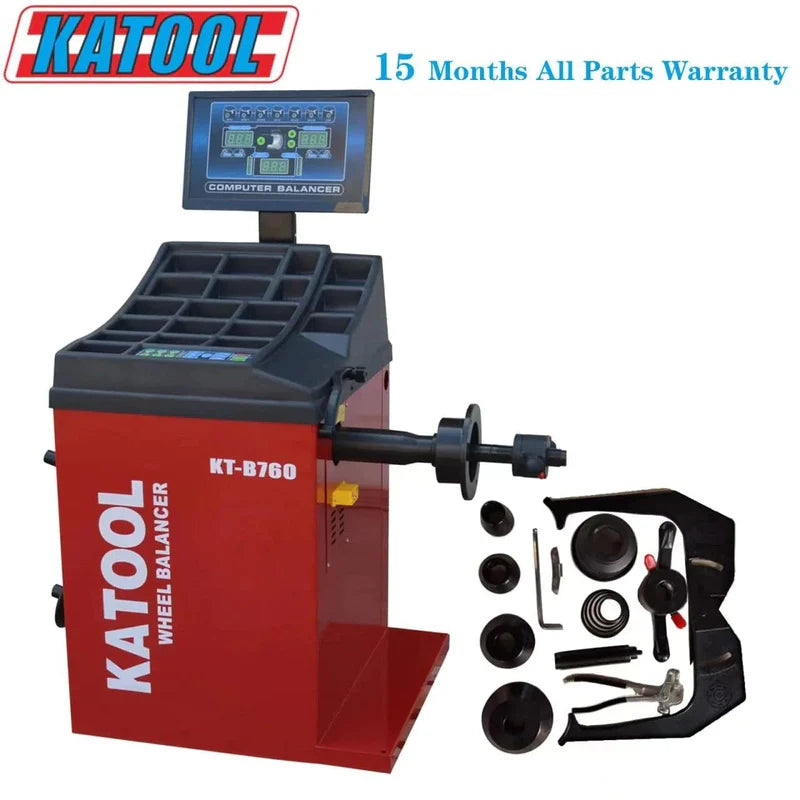

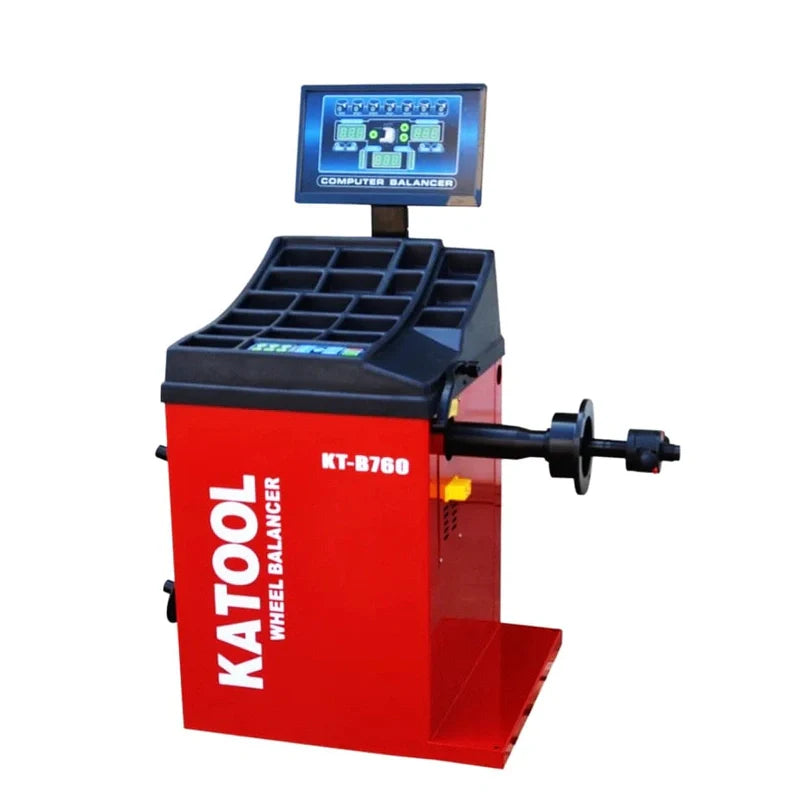

Katool KT-B760 Wheel Balancer
The Katool KT-B760 Wheel Balancer delivers high-precision balancing performance with a rugged steel frame and advanced sensor technology. Designed for durability and accuracy, it offers multiple balance modes to accommodate various rim types, ensuring optimal results for every application.
Key Features:
-
Reinforced Steel Structure: 3mm-thick body construction minimizes vibration for smoother balancing.
-
Precision Sensor System: 8mm-thick bottom and side boards enhance measurement accuracy.
-
High-Performance Motor: Pure copper winding for improved efficiency and durability.
-
Hardened 36mm Shaft Thread: Quenching-treated for superior strength and longevity.
-
Advanced Control Board: Moisture-, dust-, and static-resistant design for reliable performance.
-
Versatile Balance Modes: Adjusts easily to suit different wheel and rim types.
-
Self-Diagnosis & Auto Calibration: Simplifies setup and operation—no pre-programming required.
Specifications:
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 110V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Together, the Katool KT-T900 Tire Changer and KT-B760 Wheel Balancer form a high-performance, space-efficient combo that enhances productivity, ensures accuracy, and withstands heavy daily use — the perfect setup for professionals who demand dependability in every rotation.
Manuals & Resources
Download the user manuals for both machines:
