Katool KT-WL70 Rim Straightening Machine

Save $900.00
KatoolSKU: KT-WL70
Price:
$5,999.00 $6,899.00

Why Shop with Us?

  • Fast Shipping; We aim to have your order delivered within 6-12 days.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; Chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; Your information is secure.

Description

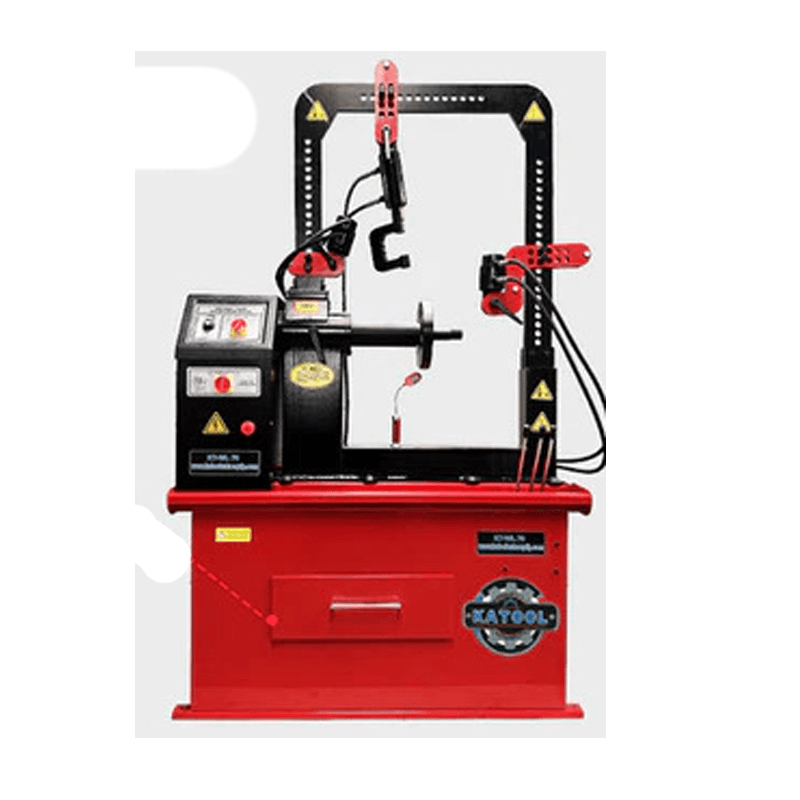

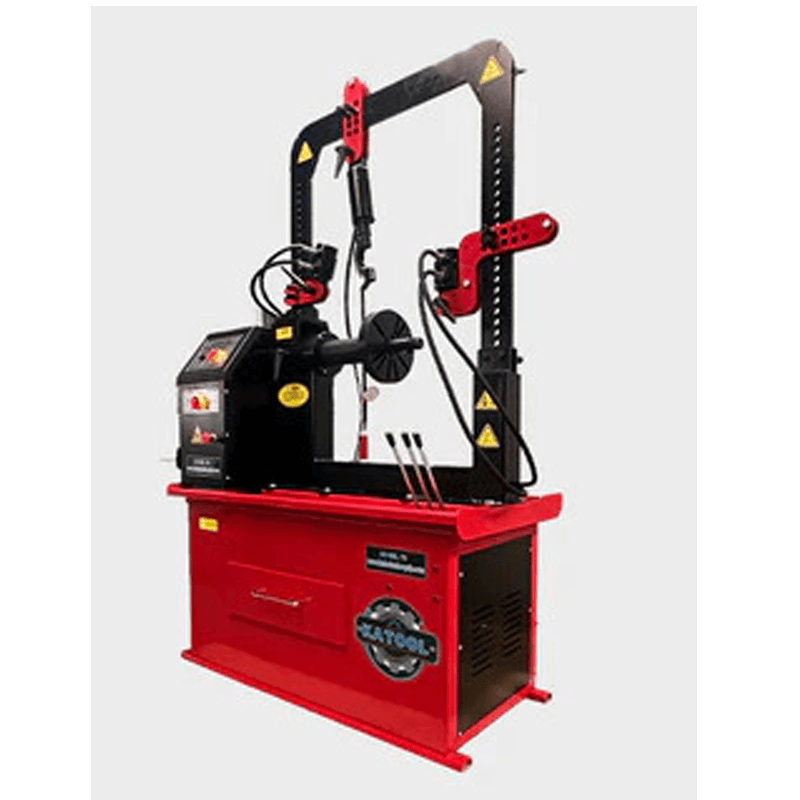

The Katool KT-WL70 Rim Straightening Machine is a professional-grade solution built to restore bent or damaged wheels with exceptional precision and efficiency. Designed for automotive workshops and wheel repair professionals, this machine supports a wide range of wheel sizes, ensuring accurate and consistent results for various vehicle types.

Key Features

  • Wide Wheel Compatibility: Accommodates rims with a working limit diameter of up to 26 inches, a maximum wheel diameter of 30 inches, and a width of 21.6 inches, making it suitable for everything from passenger cars to light trucks.

  • High-Performance Motor: Powered by a 15KW motor and operating at 15MPA working pressure, delivering reliable strength for professional repair applications.

  • Durable Construction: Built with heavy-duty materials and weighing 573 lbs (260 kg), this unit provides stability and long-lasting performance under frequent use.

  • Low-Noise Operation: Engineered for smooth operation at sound levels below 79 dB, creating a quieter, more comfortable work environment.

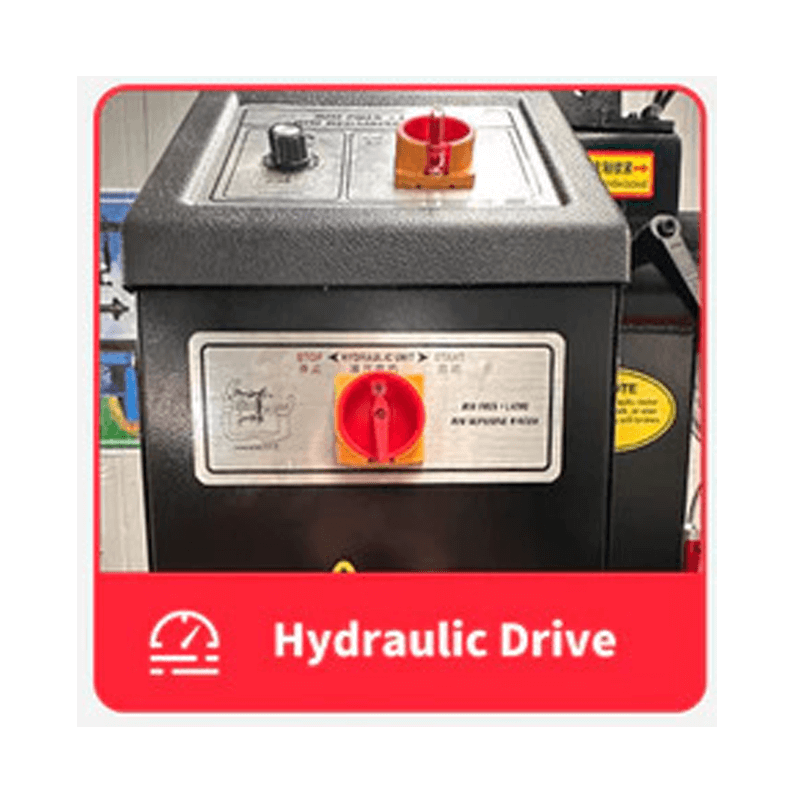

  • Hydraulic Drive System: The automatic hydraulic drive ensures controlled, precise movement for consistent straightening results.

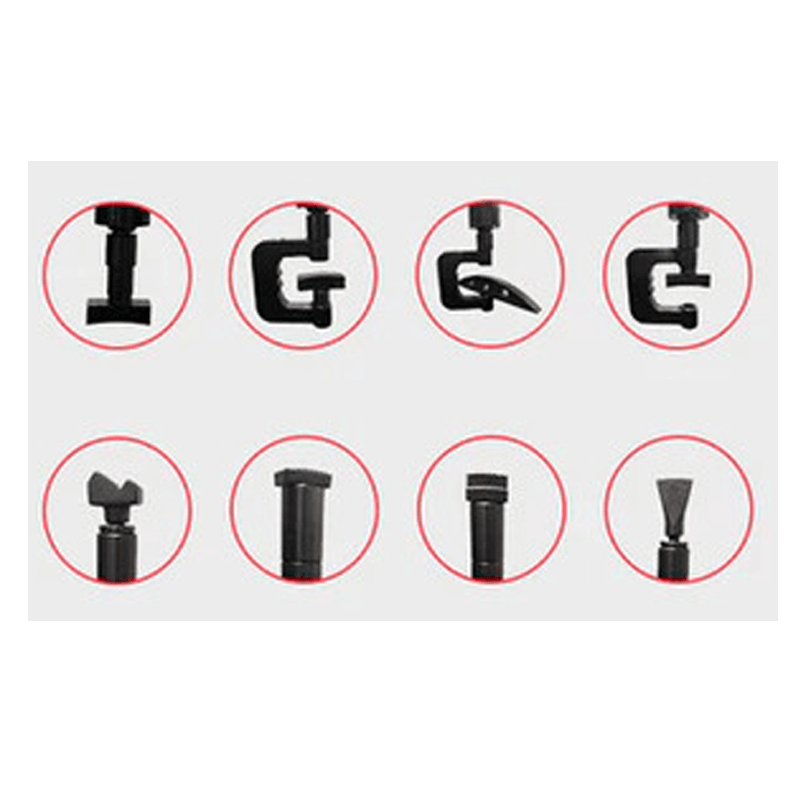

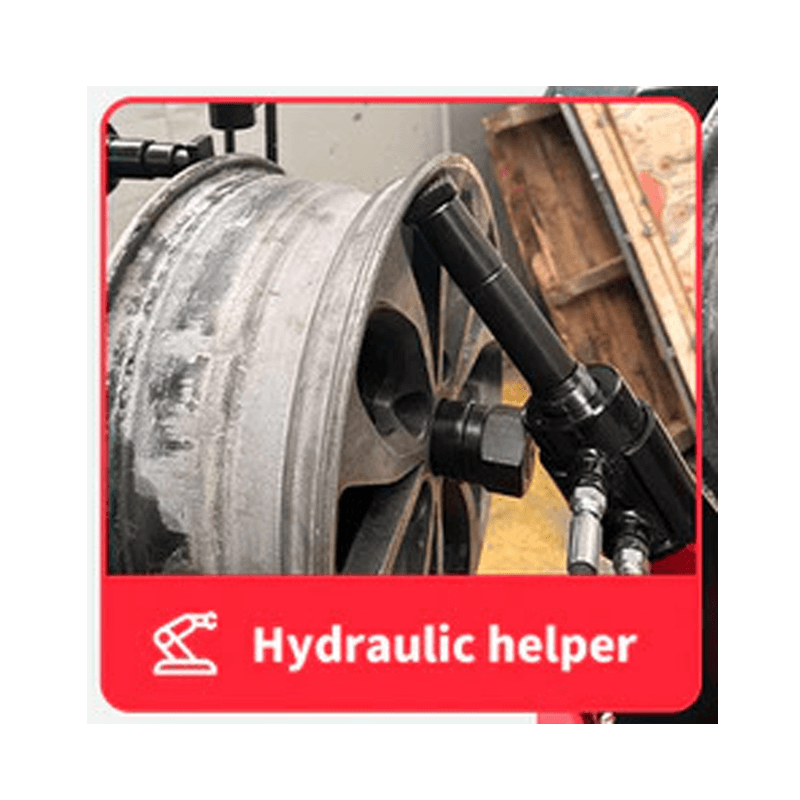

  • User-Friendly Controls: Adjustable assist arms, secure fixtures, and simple operator controls allow for quick setup and accurate wheel alignment adjustments.

Specifications

Specification Detail
Working Limit Diameter 26"
Max Wheel Diameter 30"
Max Wheel Width 21.6"
Working Pressure 15 MPA
Motor Power 15 KW
Power Supply 220V / 380V
Noise Level < 79 dB
Machine Weight 573.2 lbs (260 kg)
Package Dimensions 40" × 19.5" × 55"
Recommended Oil AW-46 or AW-32 (for colder climates)

Warranty

Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost.

Extended Protection:
A 2-year extended warranty is available for Katool and M&E automotive equipment.

Coverage Includes:

  • Cylinders, power units, motors, displays, and electronics

  • Vehicle lifts include an additional 3-year structural warranty

Conditions:

  • Warranty claims must be submitted within the warranty period and include proof of purchase from an authorized vendor.

  • Replacement parts and shipping are covered at no cost (labor excluded).

  • Warranty approval is required before any disassembly or repair.

Resources

For more detailed information and guidance, you can download the following:
