Product Overview

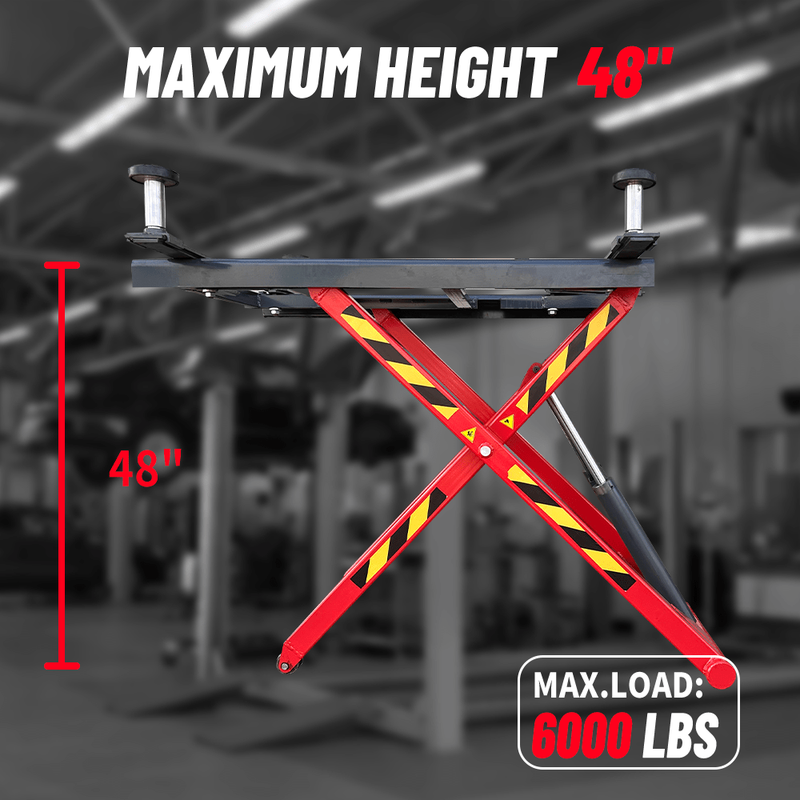

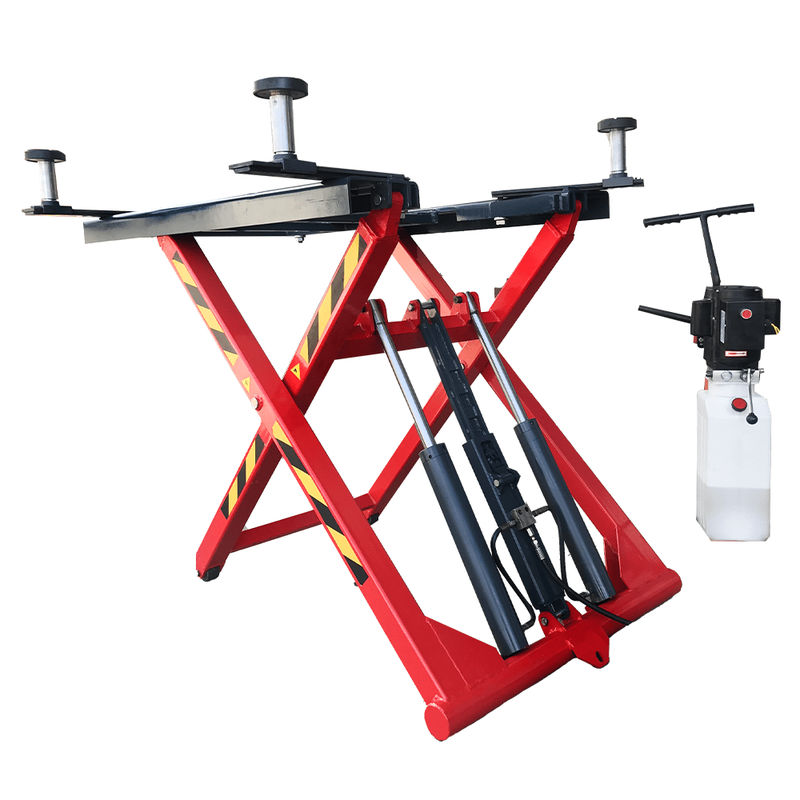

The Katool Portable Mid-Rise Scissor Lift offers a space-efficient and high-performing solution for vehicle lifting needs in auto repair shops, detailing facilities, and home garages. Designed for versatility and convenience, it delivers a lifting capacity of 6,600 lbs (3,000 kg) and reaches a maximum height of 48 inches. Its CE certification ensures superior safety and performance standards, making it a dependable and mobile choice for professional and personal use alike.
Key Features
-
6,600 lbs (3,000 kg) Capacity: Handles a wide range of vehicles with ease.
-
Portable & Mobile Construction: Easily moved and positioned to fit your workspace.
-

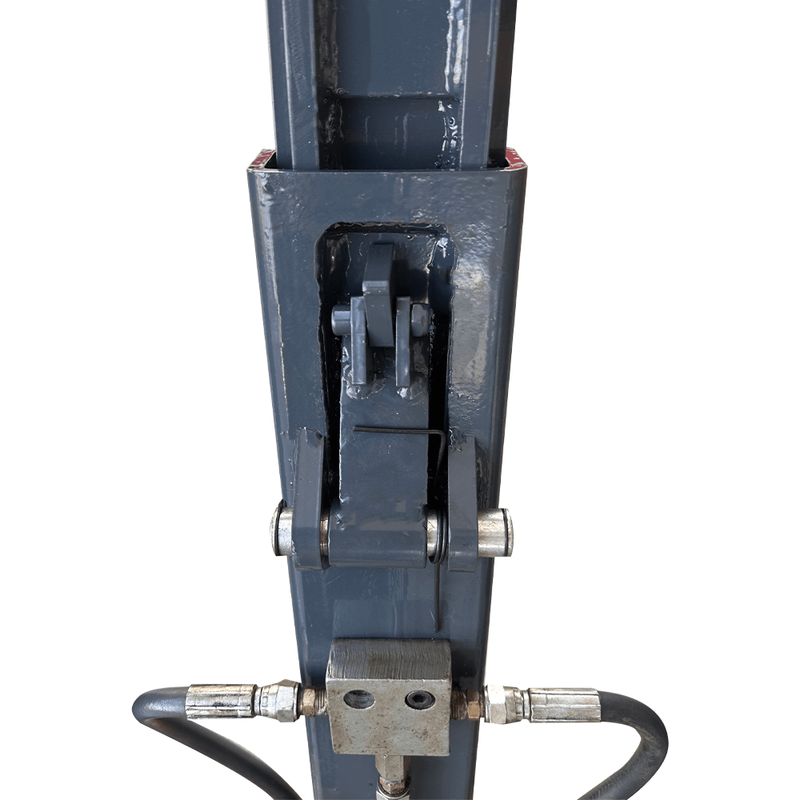

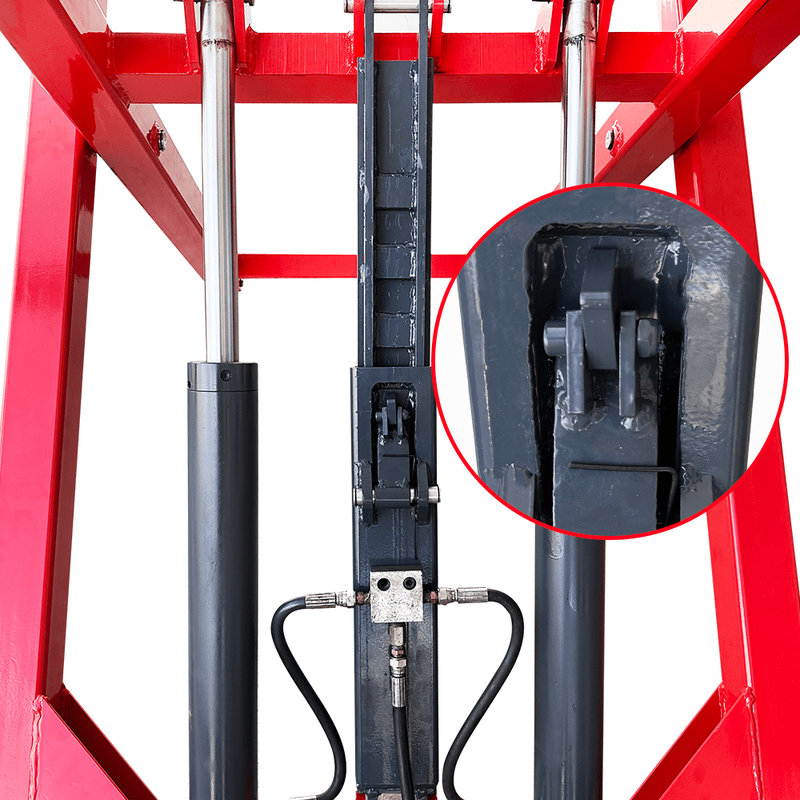

Manual Safety Lock System: Simple, durable, and dependable for secure operation.
-
Self-Lubricating Bushings & Bearings: Minimize maintenance and extend lifespan.
-
CE Approved & Certified: Meets 115% dynamic and 150% static load testing standards.
-

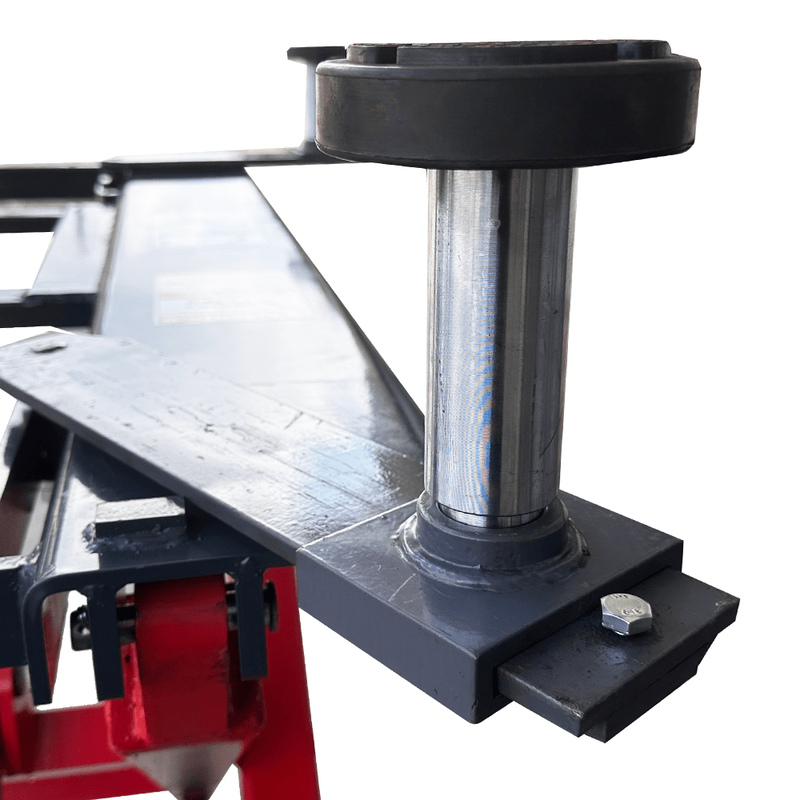

Versatile Support Adapters: Includes +3" (75 mm) and +6.25" (160 mm) height extensions.
-

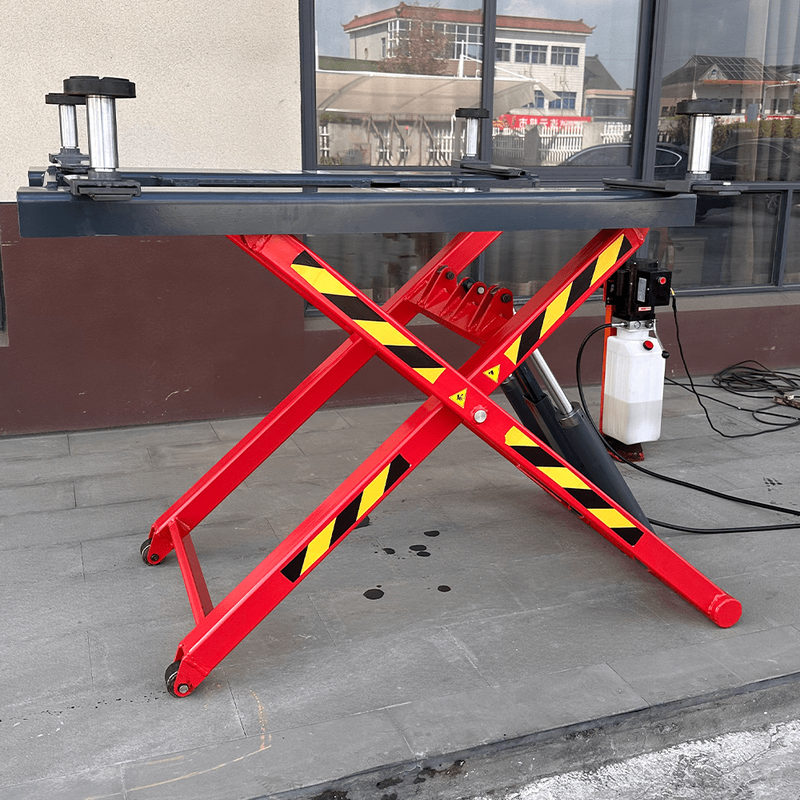

Premium Hydraulic System: Available in 220V/60Hz/1PH or 110V/60Hz/1PH options.
Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 6,600 lbs (3,000 kg) |
| Max Lifting Height | 47.24" (1,200 mm) |

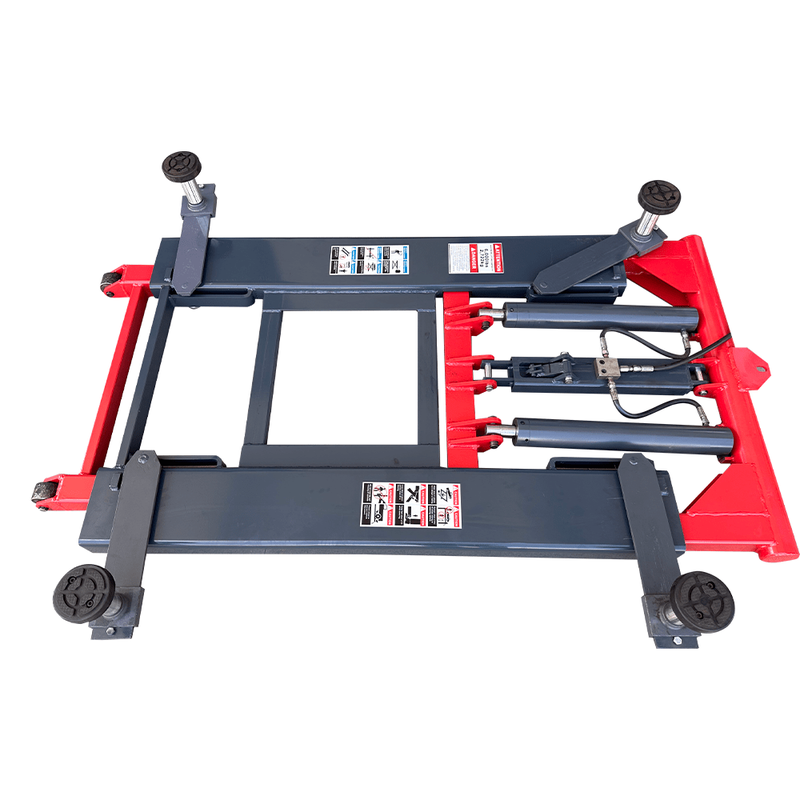

| Minimum Height | 4.72" (120 mm) |
| Overall Length | 91.54" (2,325 mm) |
| Platform Width | 39.57" (1,005 mm) |
| Overall Width | 41.89" (1,064 mm) |
| Motor | Customizable per customer requirement |
| Net Weight | 1,212 lbs (550 kg) |
| Power Unit | 115V AC / 60Hz |
| Lifting Time | 45 seconds |
Warranty & Support
Katool backs its equipment with a 1-year limited warranty covering parts and manufacturing defects, along with a 3-year structural warranty for vehicle lifts. For extended protection, an optional 2-year extended warranty is also available.
Warranty Coverage Includes:
-
Hydraulic cylinders, power units, motors, displays, and electronic components
-
Structural components of the lift
Warranty Terms:
-
Claims must be submitted during the active warranty period
-
Warranty is non-transferable and proof of purchase is required
-
Replacement parts and shipping are provided at no cost
-
Labor costs are not covered
-
Equipment must not be disassembled before receiving warranty approval
