Product Overview

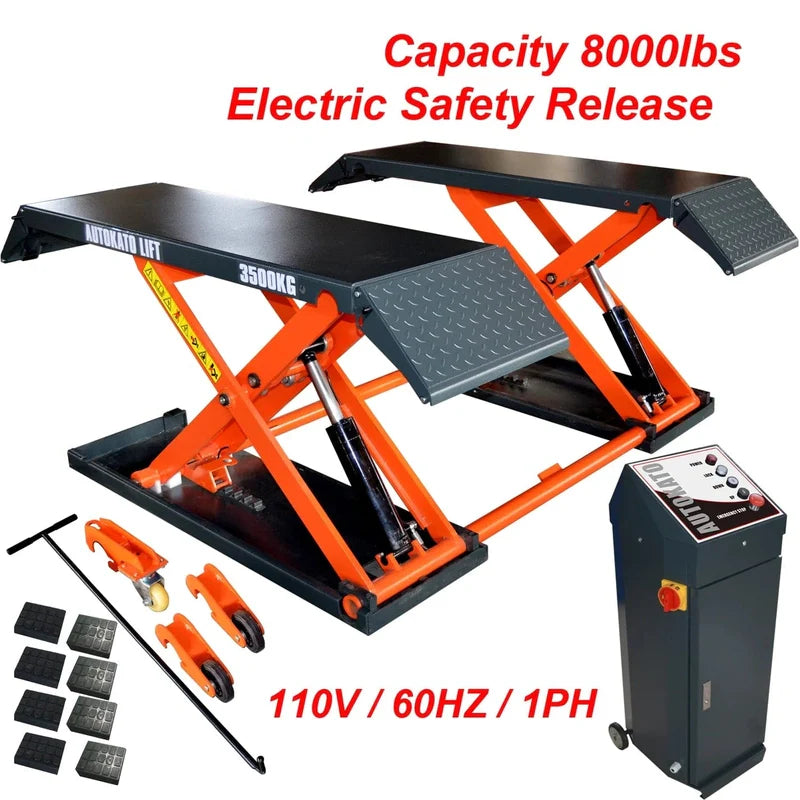

The Katool KT-X80-ELECTRIC Mid-Rise Scissor Lift delivers exceptional lifting performance with an 8,000 lbs (3,500 kg) capacity, making it ideal for professional garages and home workshops. CE Approved and Certified, it meets stringent safety and performance standards with 115% dynamic and 150% static load testing. Designed for flexibility, it can be configured as either a mobile or fixed-mount unit. Its advanced electric safety release and starting-up system provide smooth, efficient operation, while the 24V low-voltage control system, height limit switch, and composite rubber lifting blocks ensure user safety. The drive-up ramp lock design extends the platform for longer vehicles, and the portable mobility kit allows easy repositioning. Built with a premium hydraulic system and an aluminum motor with a cooling fan, this lift is engineered for consistent, heavy-duty performance.
Key Features
-
8,000 lbs (3,500 kg) Capacity: Handles a wide range of vehicles with strength and stability.
-
CE Approved & Certified: Tested to meet 115% dynamic and 150% static load standards.
-

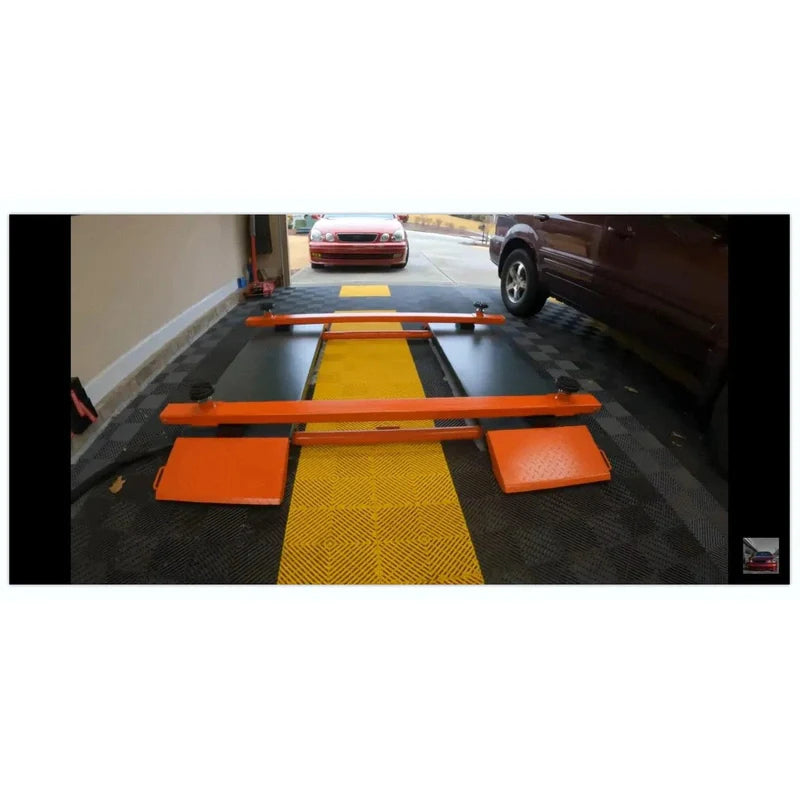

Mobile or Fixed Mount Design: Flexible setup for various garage layouts.
-

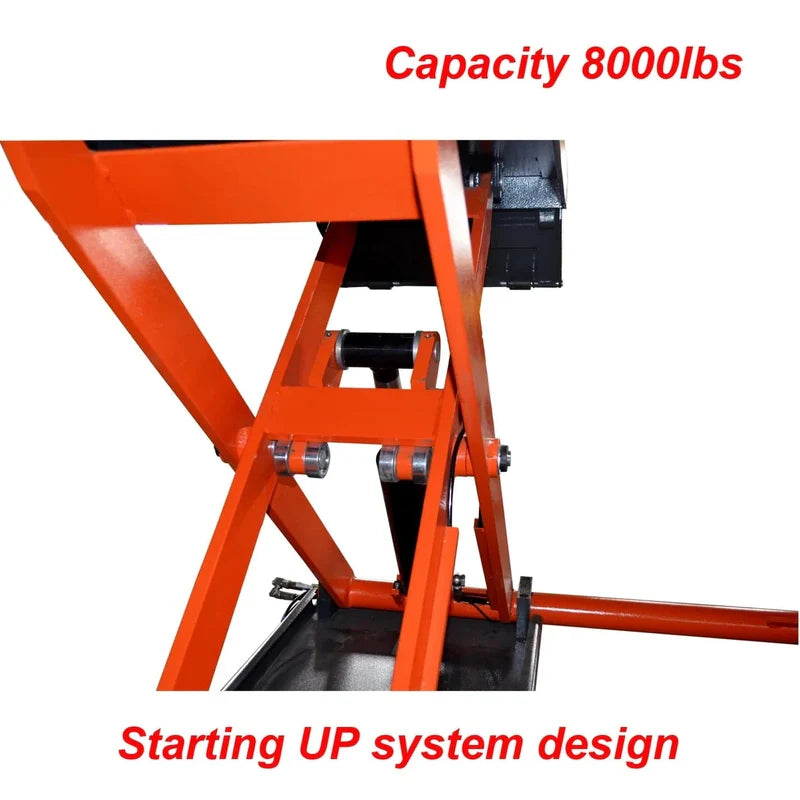

Innovative Starting-Up System: Enhances performance and reliability.
-
Electric Safety Release: Ensures smooth and secure lift operation.
-
24V Safe Control System: Provides a low-voltage safety environment.
-
Height Limit Switch: Prevents accidental overextension.
-
Composite Rubber Lifting Blocks: Protect vehicle frames during lifting.
-
Self-Lubricating Bushings & Bearings: Minimize wear and maintenance.
-

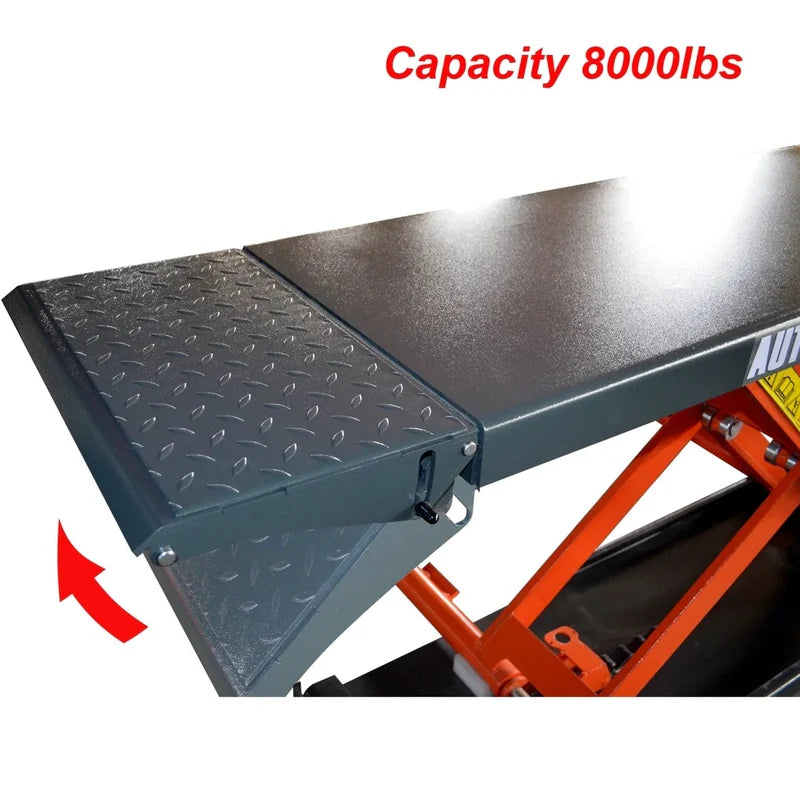

Drive-Up Ramp Lock Design: Extends platform length for longer vehicles.
-
Portable Kit Included: Easily move and position the lift as needed.
-
High-Performance Hydraulic System: Equipped with an aluminum motor and top-mounted fan to prevent overheating during long use.

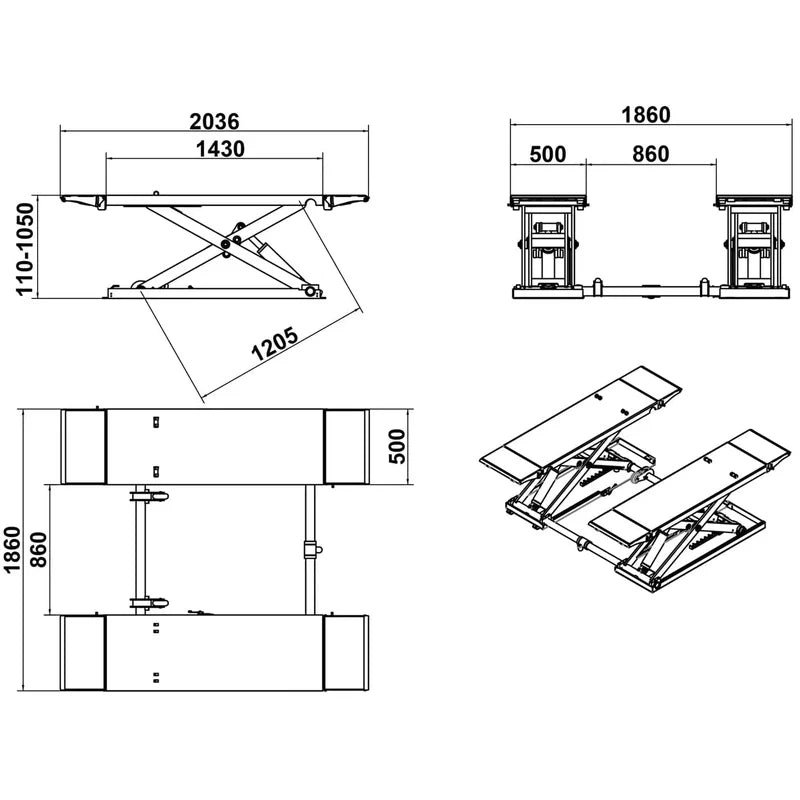

Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 8,000 lbs (3,500 kg) |
| Max Lifting Height | 41.25" (1,050 mm) |
| Minimum Height | 4.25" (110 mm) |
| Platform Length | 56.25" (1,430 mm) |
| Overall Length | 80" (2,036 mm) |
| Platform Width | 19.5" (500 mm) |
| Overall Width | 73.25" (1,860 mm) |
| Motor | 110/220V AC / 60Hz / 1PH |
| Net Weight | 1,213 lbs (550 kg) |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. An optional 2-year extended warranty is available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Hydraulic cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Terms & Conditions:
-
Claims must be made within the active warranty period.
-
Warranty is non-transferable and requires proof of purchase or order number from an authorized vendor.
-
Replacement parts and shipping are provided at no cost.
-
All claims are subject to review and approval by the warranty/service department.
-
Photos or videos may be requested to verify defects.
-
Do not disassemble any equipment before receiving approval.
-
Equipment not covered under warranty will require the buyer to cover replacement and shipping costs.
-
Labor costs are not included under warranty coverage.
