Product Overview

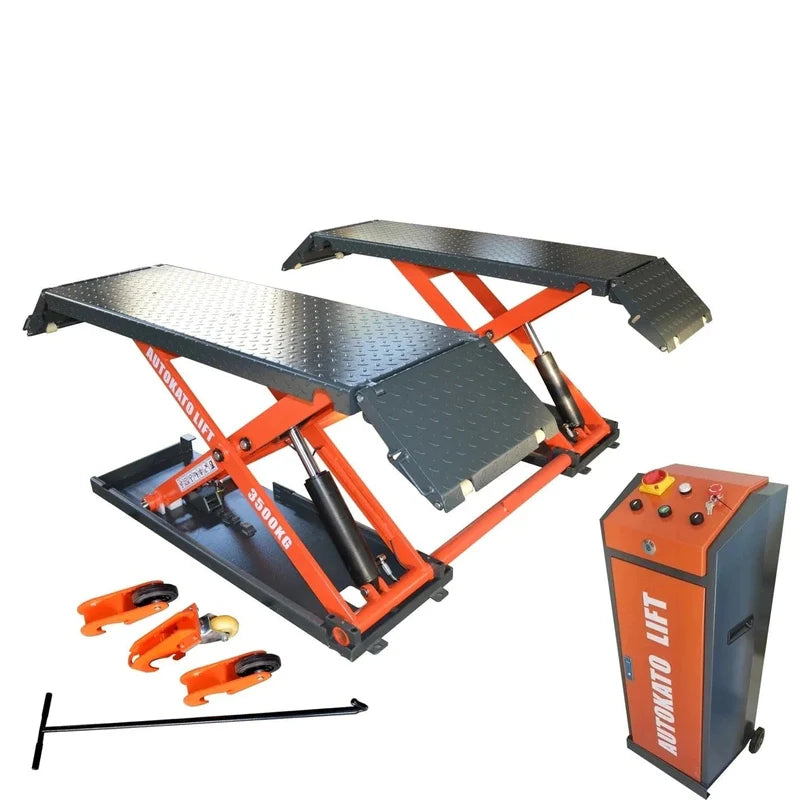

The Katool KT-X85-ELECTRIC Mid-Rise Scissor Lift combines precision engineering and superior performance to deliver an exceptional lifting solution for professional garages and workshops. With an 8,000 lbs (3,500 kg) lifting capacity, this model is CE Approved and Certified, meeting rigorous 115% dynamic and 150% static load tests for outstanding safety and durability.
Designed for versatility, the KT-X85-ELECTRIC can be configured as either a mobile or fixed-mount unit. Its electric safety release and advanced starting-up system ensure smooth and efficient operation. A 24V low-voltage control system, height limit switch, and composite rubber lifting blocks provide reliable safety and precision during every lift. The drive-up ramp lock design extends the platform to accommodate longer vehicles, while the portable mobility kit allows effortless movement around the workspace. Powered by a high-performance hydraulic system and a cooling aluminum motor, this lift is designed for long-term reliability and efficiency under demanding use.
Key Features
-

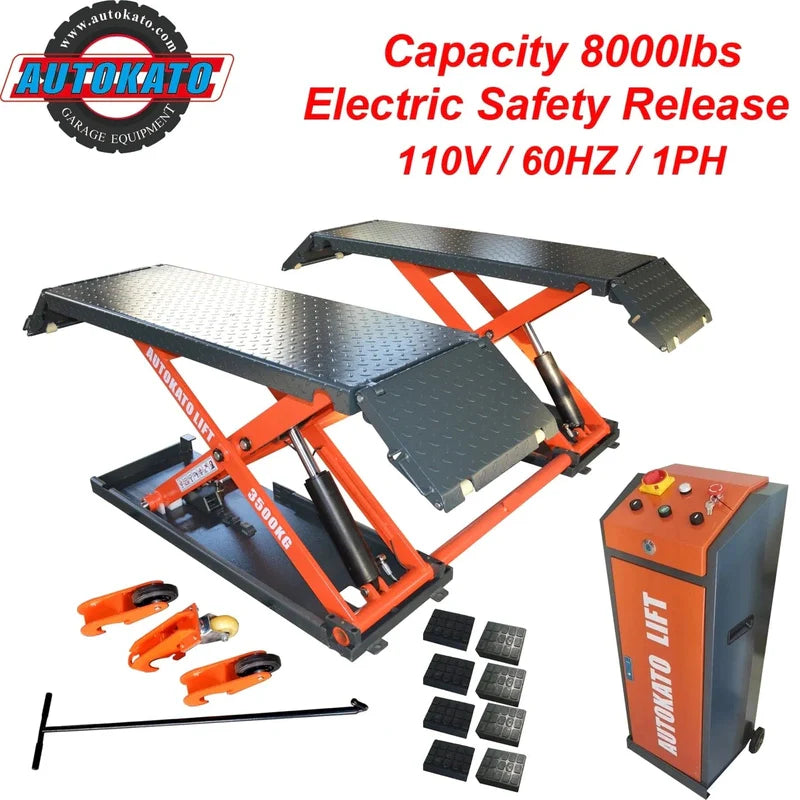

8,000 lbs (3,500 kg) Capacity: Handles a wide range of vehicles with exceptional stability.
-
CE Approved & Certified: Meets 115% dynamic and 150% static loading standards.
-
Mobile or Fixed Mount Design: Flexible installation options for any garage setup.
-
Innovative Starting-Up System: Ensures reliable and consistent operation.
-

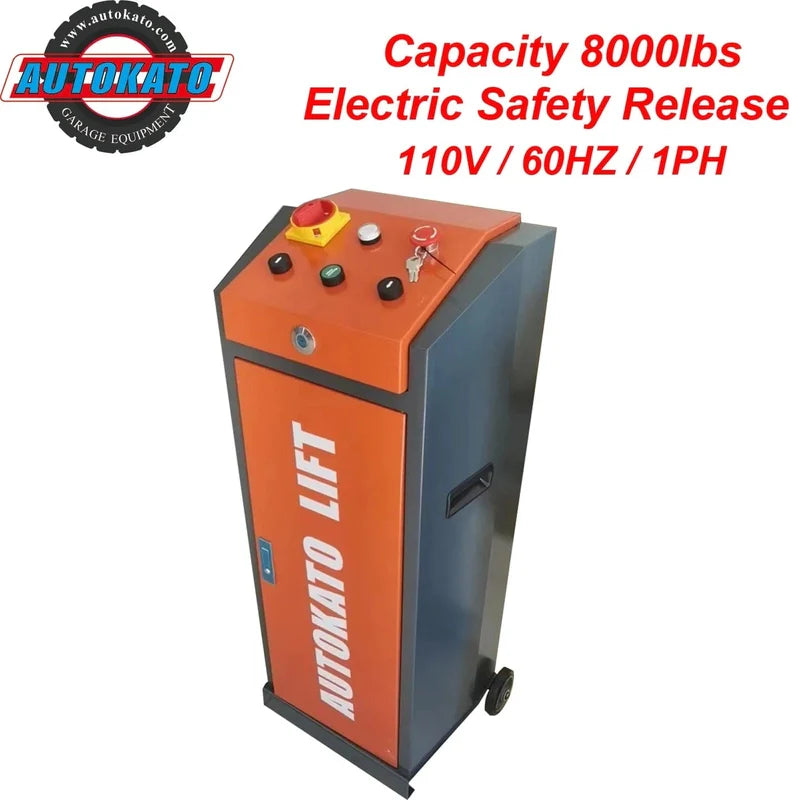

Electric Safety Release: Provides convenient and secure lift control.
-
24V Safe Control System: Enhances safety through low-voltage operation.
-
Height Limit Switch: Prevents over-lifting for user and vehicle protection.
-
Composite Rubber Lifting Blocks: Protects vehicle frames during lifting.
-
Self-Lubricating Bushings & Bearings: Reduces wear and maintenance needs.
-

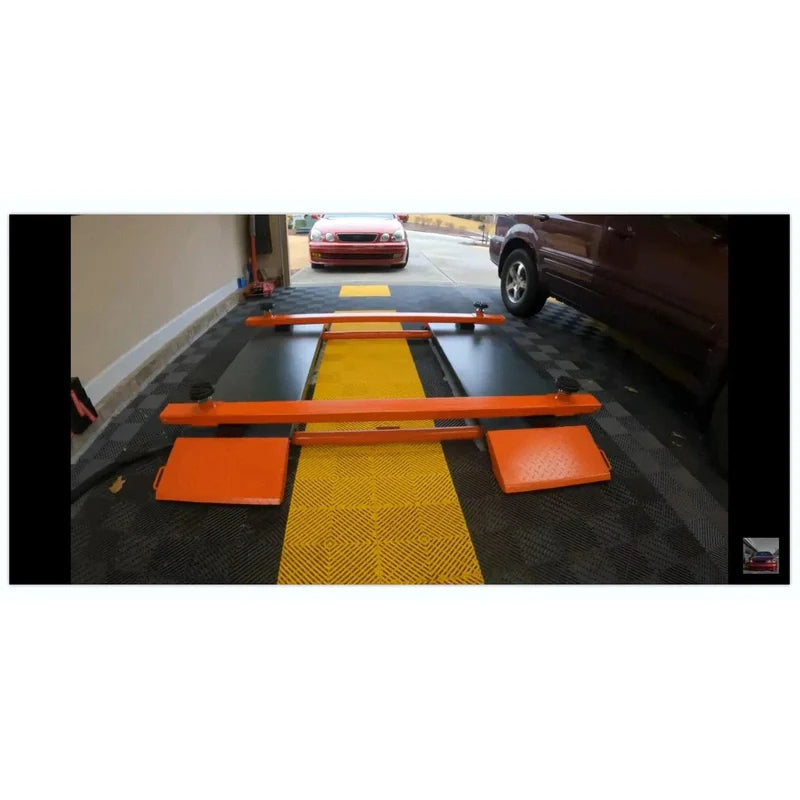

Drive-Up Ramp Lock Design: Extends platform length for larger vehicles.
-

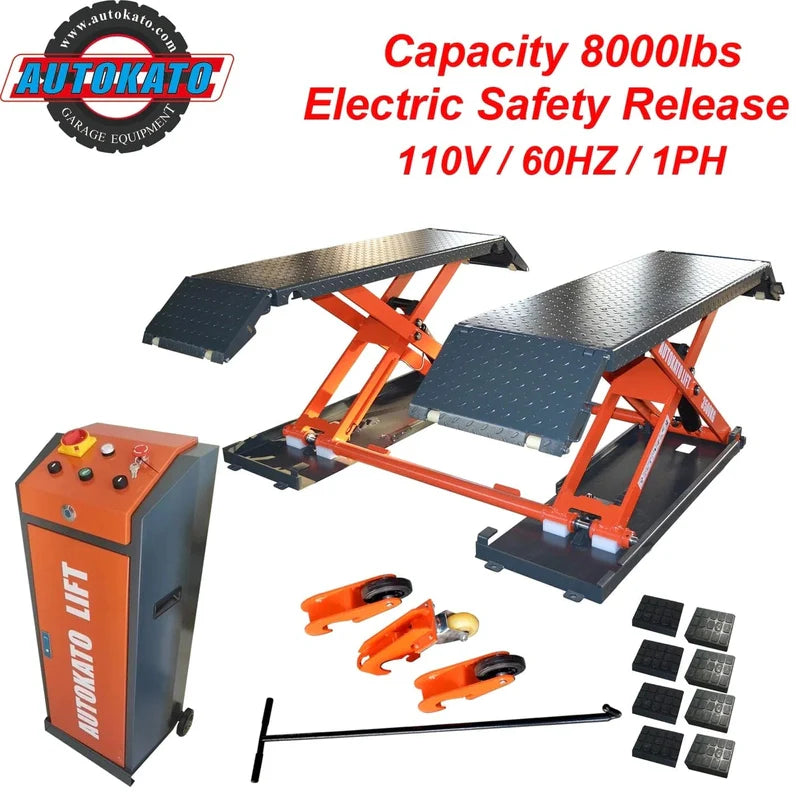

Portable Mobility Kit Included: Allows easy repositioning within your workspace.
-
Durable Hydraulic System: Equipped with an aluminum motor and top-mounted fan to prevent overheating during extended use.
Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 8,000 lbs (3,500 kg) |
| Max. Lifting Height | 40.15" (1,020 mm) |
| Minimum Height | 4.25" (110 mm) |
| Platform Length | 57" (1,450 mm) |
| Overall Length | 83.5" (2,120 mm) |
| Platform Width | 20.5" (520 mm) |
| Overall Width | 76.75" (1,950 mm) |
| Motor | 110(220)V AC / 60Hz / 1PH |
| Net Weight | 1,213 lbs (550 kg) |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and product defects at no charge. Additionally, a 2-year extended warranty is available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Hydraulic cylinders, power units, motors, displays, and electronics
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be made within the active warranty period.
-
Warranty is non-transferable and requires proof of purchase or original order number from an authorized vendor.
-
Replacement parts and shipping are provided free of charge.
-
All warranty claims are subject to review and approval by Katool’s warranty/service department.
-
Photos or videos of defects may be required for verification.
-
Do not disassemble any equipment before a determination is made.
-
Equipment outside warranty coverage will require the buyer to cover replacement and shipping costs.
-
Labor costs are not included under the warranty policy.
