Description

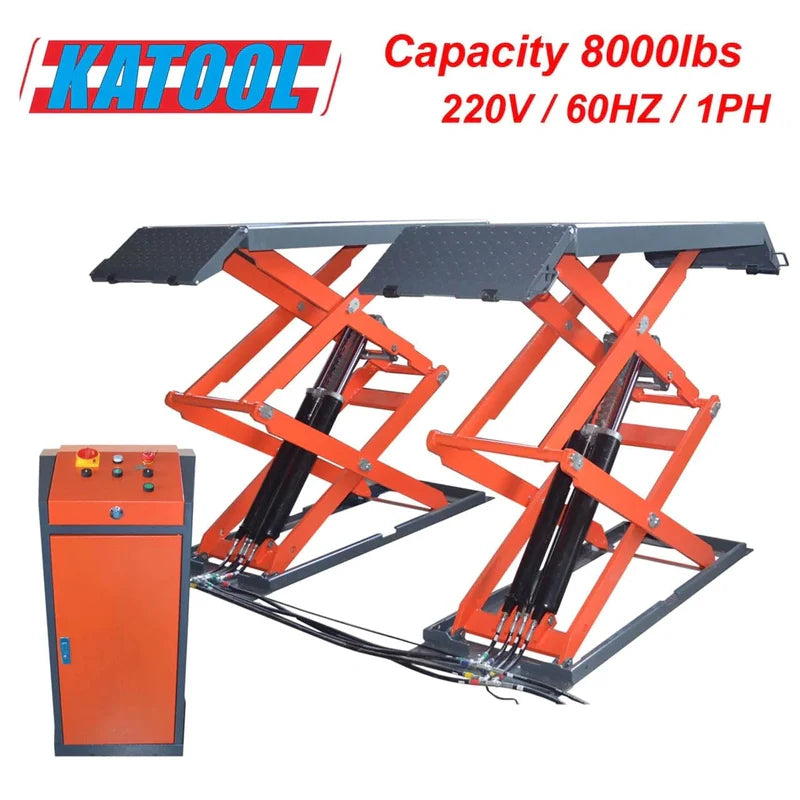

Katool KT-X95 Full Rise Scissor Lift — 8,000 lbs Capacity
The Katool KT-X95 Full Rise Scissor Lift delivers exceptional lifting power and reliability, designed for professional automotive service environments. With an 8,000 lbs (3,500 kg) lifting capacity, this heavy-duty lift combines strength, precision, and advanced safety features for superior performance.
CE Approved and Certified, the KT-X95 exceeds industry safety benchmarks, having successfully passed 115% dynamic and 150% static load capacity tests. Its flush-mount design provides a clean, space-efficient installation, while the innovative start-up system and pneumatic safety release ensure smooth and controlled operation every time.
Built for operator safety, the lift includes a 24V safe control system, height limit switch, and composite rubber lifting blocks for secure vehicle positioning. The drive-up ramp locking design extends platform length, making it ideal for longer vehicles. A premium hydraulic system powered by an aluminum motor with a built-in cooling fan prevents overheating during prolonged use, ensuring lasting performance and reliability.
⚠️ Note: This unit must be connected to a compressed air source for proper operation.
Installation Requirement
This model must be securely anchored to concrete before operation. The concrete surface must have a minimum thickness of 5.9" (150 mm) and a compressive strength of 3,000 PSI.
Failure to install the lift on suitable concrete may result in serious injury or death. Customers are responsible for verifying concrete thickness and strength before purchase and installation.
Key Features
-
8,000 lbs (3,500 kg) lifting capacity
-
CE Approved and Certified — tested to 115% dynamic and 150% static load standards
-
Flush-mount design for a streamlined workspace
-
Innovative start-up system for improved efficiency
-
Pneumatic safety release for secure operations
-
24V safe control system and height limit switch
-
Composite rubber lifting blocks included
-
Self-lubricating bushings and bearings for reduced maintenance
-
Drive-up ramp lock design extends platform for long vehicles
-
High-performance hydraulic system with aluminum motor and cooling fan to prevent overheating
-
Requires connection to a compressed air source

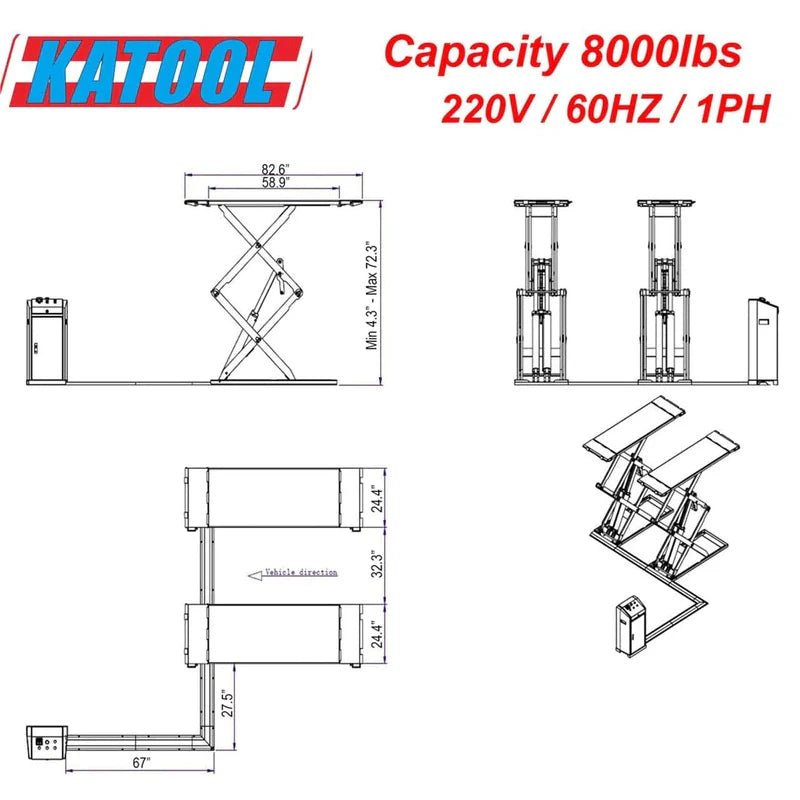

Specifications
| Specification | Details |
|---|---|
| Max. Lifting Capacity | 8,000 lbs (3,500 kg) |
| Lifting Height | 72.3" (1,836 mm) |
| Lifting Time | ≤ 50 seconds |
| Platform Length | 58.9" (1,496 mm) |
| Platform Width | 24.4" (620 mm) |
| Motor Power | 2.2 kW |
| Rated Oil Pressure | 20 MPa |
| Air Pressure | 6–8 kgf/cm² |
Warranty Information
Standard Warranty:
Katool provides a 1-year (12-month) limited warranty covering all parts and product defects at no additional cost.
Extended Warranty Option:
A 2-year extended warranty is available for all Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year (36-month) warranty on structural parts
Warranty Conditions:
-
Claims must be submitted within the warranty period
-
Warranty is non-transferable and requires proof of purchase from our company or an authorized vendor
-
Replacement parts and shipping are provided free of charge
-
Labor costs are not included
-
Do not disassemble equipment before warranty approval
All warranty claims are subject to review and approval by Katool’s service department. Supporting photos or videos may be requested for verification.
Resources
For more detailed information and guidance, you can download the following:
