Description

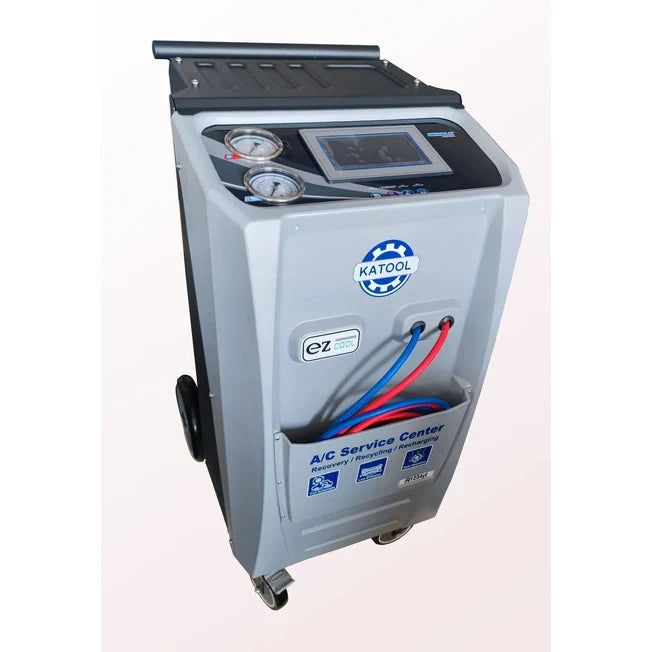

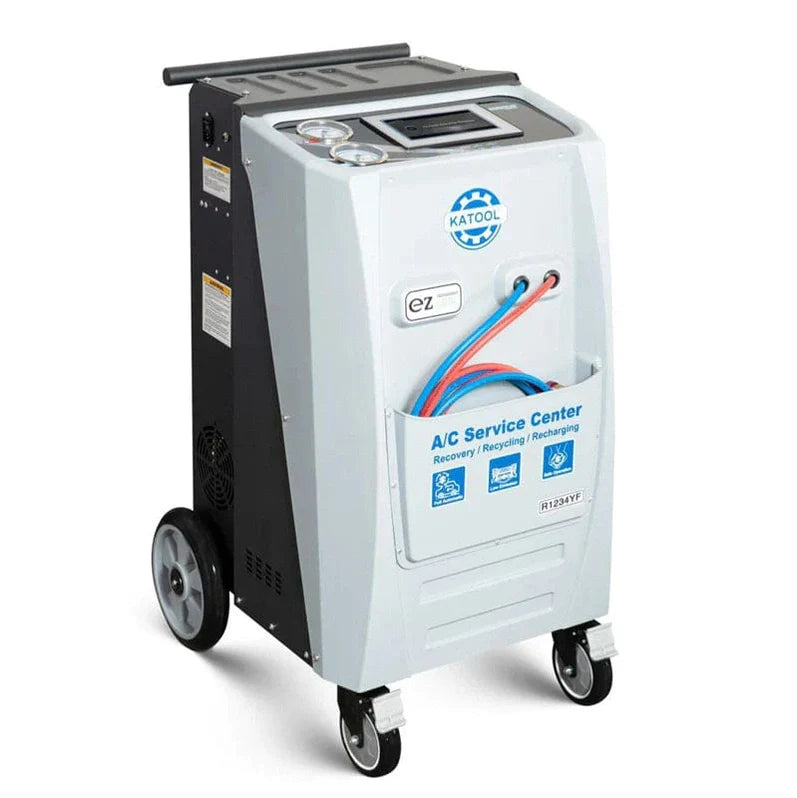

The Katool R-1234YF Fully Automatic Recovery, Recycle & Recharge DUAL AC2100 Machine is a high-efficiency solution for managing automotive refrigerant systems. Designed for precision and productivity, it achieves up to 95% refrigerant recovery in under 30 minutes, minimizing service time while maintaining exceptional accuracy.
Built to handle R-1234YF refrigerant, this unit supports a wide range of vehicles — including domestic, import, electric, and hybrid models — making it a versatile choice for modern workshops. Equipped with advanced load-cell technology, it delivers highly accurate refrigerant and oil measurements with a charging precision of 0.5 oz (15 g).

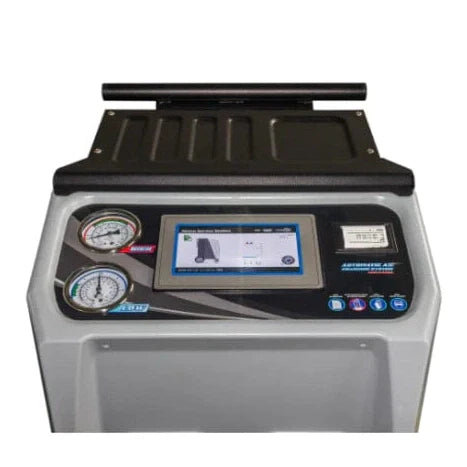

The intuitive 7" HQ touchscreen display ensures seamless operation, while features such as a built-in printer, vacuum testing, optional heating belt, SD database support, and a robust fan and condenser system enhance performance and usability. Designed for both accuracy and convenience, the AC2100 delivers dependable performance for professional HVAC service environments.
Key Features
-
High-Speed Recovery: Recovers up to 95% of refrigerant in less than 30 minutes, reducing service downtime.
-
Multi-Vehicle Compatibility: Suitable for traditional, electric, and hybrid vehicles, ensuring broad application coverage.
-
Precision Measurement: Advanced load-cell technology enables 0.5 oz (15 g) charge accuracy for both refrigerant and oil.
-
Intuitive Touchscreen Interface: 7” high-resolution touchscreen for smooth, user-friendly control.
-
Enhanced Functionality: Includes built-in printer, SD database support, vacuum testing, optional heating belt, and durable fan and condenser assembly.
Specifications
| Specification | Detail |
|---|---|
| Applicable Refrigerant | R1234YF |
| Voltage | 110V AC, 60 Hz |
| Recovery Rate (70–75°F) | Min. 95% in < 30 min |
| Charge Accuracy | 0.5 oz (15 g) |
| Operating Temperature | 41–122°F (5–50°C) |
| Max Pressure | 18 bar |
| Filter-Drier Capacity | 175 lbs (80 kg), spin-on type |
| Gas Loadcell Accuracy | 0.04 oz / 66 lbs (1 g / 30 kg) |
| Oil Loadcell Accuracy | 0.04 oz / 66 lbs (1 g / 30 kg) |
| Vacuum Transducer Accuracy | 1 mBar / 1000 mBar |
| Recovery Speed | 39.7 lbs/hr (18 kg/hr) |
| Charge Speed | 2.2 lbs/min (1 kg/min) |

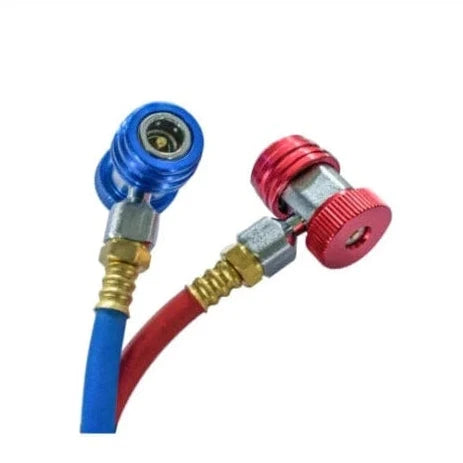

| Hose Length | 9.8 ft (3 m) SAE J2788 |
| Compressor | 1/3 HP (246 W), thermally protected, oiled, hermetically sealed |
| Vacuum Pump | 3.6 CFM (120 L/min), dual stage |
| Display | 7” HQ Touchscreen |
| Tank Volume | 0.5 cu. ft (14.3 L) |

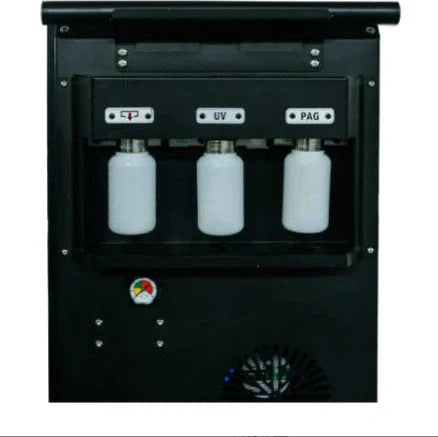

| Oil Bottle Volume | 15 cu. in (250 mL) |
| Printer | Included |
| Heating Belt | Optional |
| SD Database | Yes |
| Vacuum Test | Yes |
| Fan & Condenser | Yes |
| Packing Size | 22" × 28" × 41" (550 × 700 × 1050 mm) |
| Gross Weight | 240 lbs (110 kg) |
Warranty Information
Katool provides a 1-year limited warranty covering all parts and defects at no cost.
Extended Protection:
A 2-year extended warranty is available for any Katool or M&E automotive equipment.
Coverage Includes:
-
Cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Valid only within the warranty period and for purchases from authorized vendors
-
Replacement parts and shipping are provided at no cost (labor excluded)
-
Claims may require photo or video verification
-
Unauthorized disassembly voids coverage
