Description

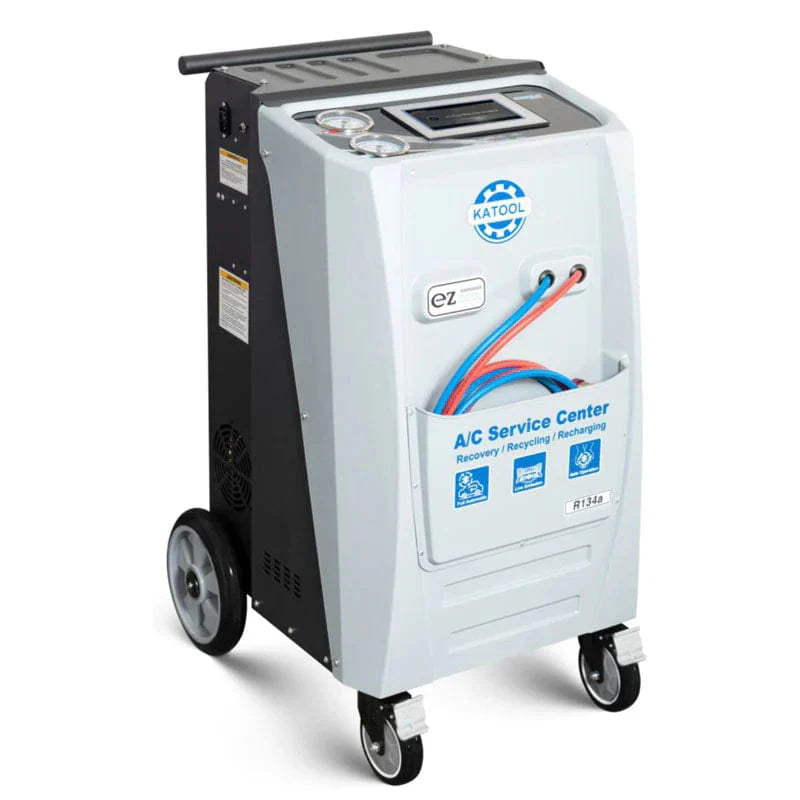

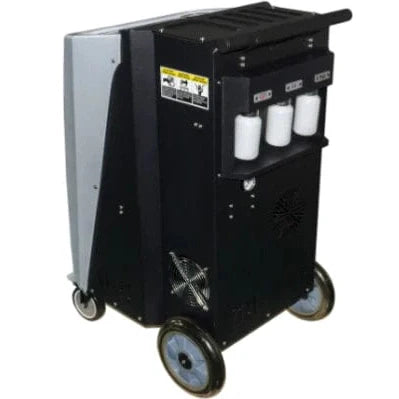

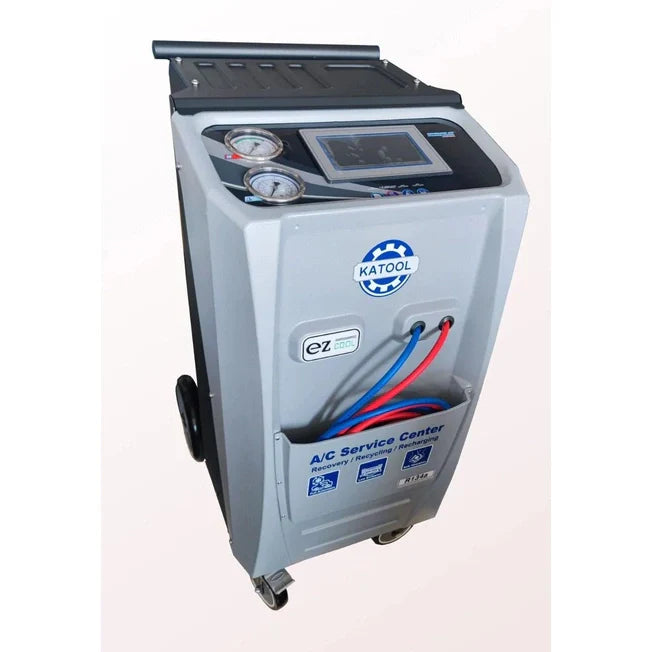

The Katool R-134A Fully Automatic Recovery, Recycle & Recharge DUAL AC1800 Machine delivers fast, precise, and reliable refrigerant service for automotive HVAC systems. Designed for performance and versatility, it achieves a minimum 95% recovery rate in under 30 minutes, reducing service time and improving efficiency.
Compatible with R-134A refrigerant, this system supports a wide variety of vehicles — including domestic, import, hybrid, and electric models — providing comprehensive coverage for modern automotive A/C systems. The advanced load-cell technology ensures exceptional accuracy, with a charging precision of 0.5 oz (15 g) for both gas and oil.
The intuitive 7-inch high-quality touchscreen simplifies operation, while the built-in printer, vacuum testing, optional heating belt, SD database, and high-efficiency fan and condenser ensure smooth, professional results. Engineered for precision and ease of use, the AC1800 offers all the features technicians need for efficient and accurate refrigerant management.
Key Features
-
Fast and Efficient Recovery: Achieves up to 95% refrigerant recovery in less than 30 minutes for reduced downtime.
-
Multi-Vehicle Compatibility: Ideal for use on domestic, import, hybrid, and electric vehicles.
-

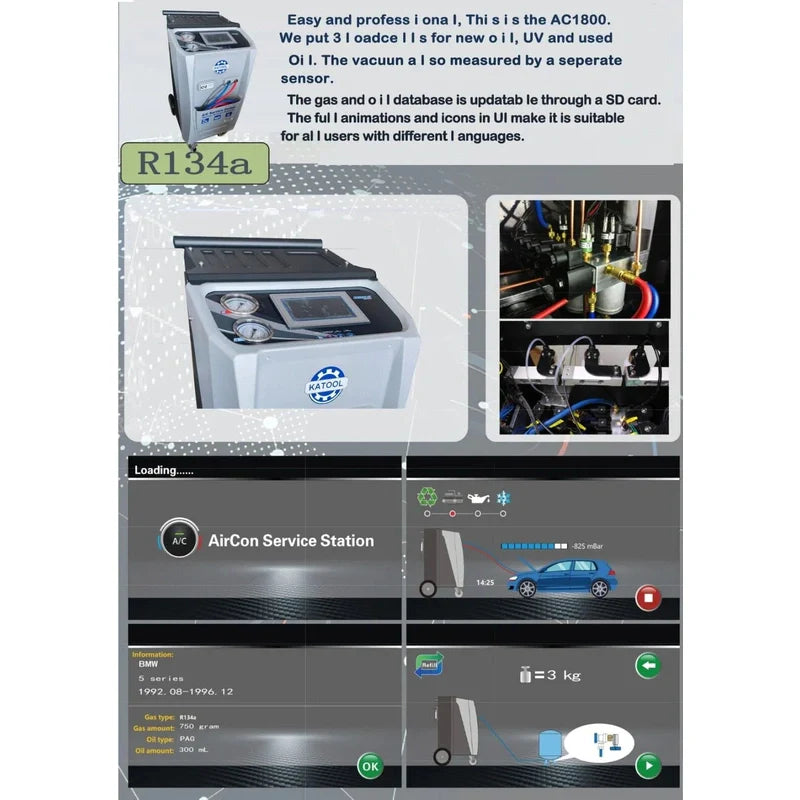

Precision Charging: Maintains 0.5 oz (15 g) accuracy with advanced load-cell measurement technology.
-

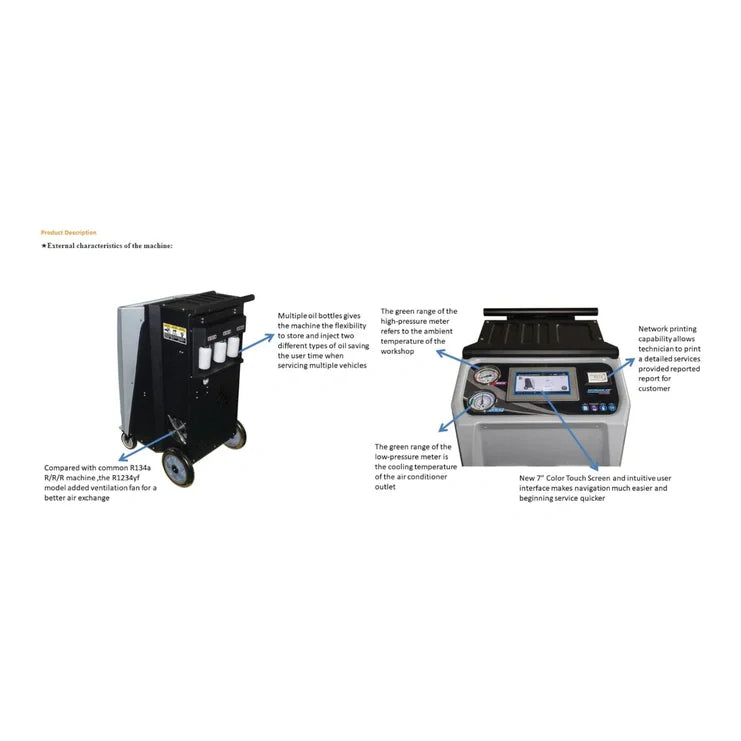

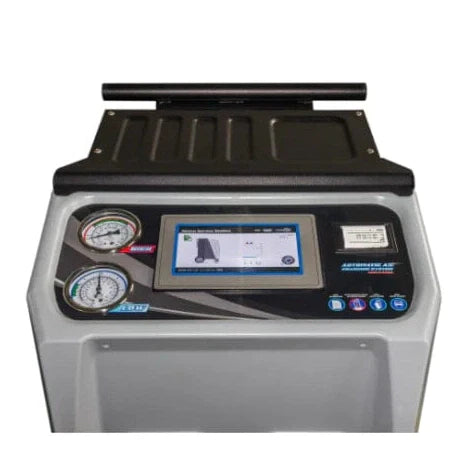

User-Friendly Operation: Features a 7-inch HQ touchscreen for simple, intuitive control.
-

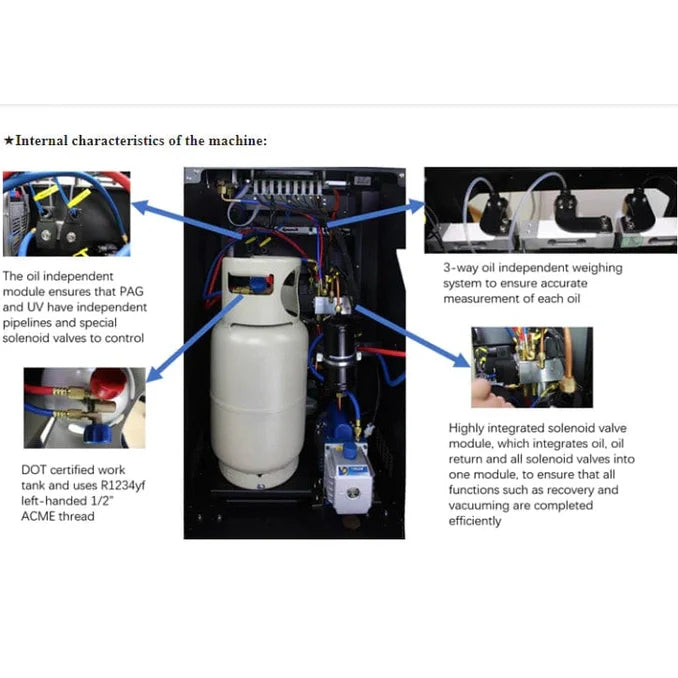

Enhanced Functionality: Equipped with a built-in printer, SD database support, vacuum testing, optional heating belt, and powerful fan/condenser system.
Specifications
| Specification | Detail |
|---|---|
| Refrigerant Type | R134a |
| Voltage | 110V AC, 60 Hz |
| Recovery Rate (70–75°F) | ≥95% in under 30 minutes |
| Charge Accuracy (70–75°F) | 0.5 oz (15 g) |
| Operating Temperature Range | 41–122°F (5–50°C) |
| Max Pressure | 18 bar |
| Filter-Drier Capacity | 175 lbs (80 kg), spin-on type |
| Gas Loadcell Accuracy | 0.04 oz / 66 lbs (1 g / 30 kg) |
| Oil Loadcell Accuracy | 0.04 oz / 66 lbs (1 g / 30 kg) |
| Vacuum Transducer Accuracy | 1 mBar / 1000 mBar |
| Recovery Speed | 39.7 lbs/hr (18 kg/hr) |
| Charge Speed | 2.2 lbs/min (1 kg/min) |
| Hose Length | 9.8 ft (3 m), SAE J2788 |
| Compressor | 1/3 HP (246 W), thermally protected, oiled, hermetically sealed |
| Vacuum Pump | 3.6 CFM (120 L/min), dual stage |
| Display | 7” HQ touchscreen |
| Tank Capacity | 0.5 cu. ft (14.3 L) |
| Oil Bottle Volume | 15 cu. in (250 mL) |
| Printer | Yes |
| Heating Belt | Optional |
| SD Database | Yes |
| Vacuum Test | Yes |
| Fan & Condenser | Yes |
| Packing Size | 22” × 28” × 41” (550 × 700 × 1050 mm) |
| Gross Weight | 240 lbs (110 kg) |
Warranty
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost.
Extended Protection:
A 2-year extended warranty is available for all Katool or M&E automotive equipment.
Warranty Coverage Includes:
-
Cylinders, power units, motors, displays, and electronics
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be within the warranty period and require proof of purchase from an authorized vendor.
-
Replacement parts and shipping are covered at no cost (labor excluded).
-
Photos or videos may be requested for claim verification.
-
Unauthorized disassembly voids the warranty.
Resources
For more detailed information and guidance, you can download the following:
