Description

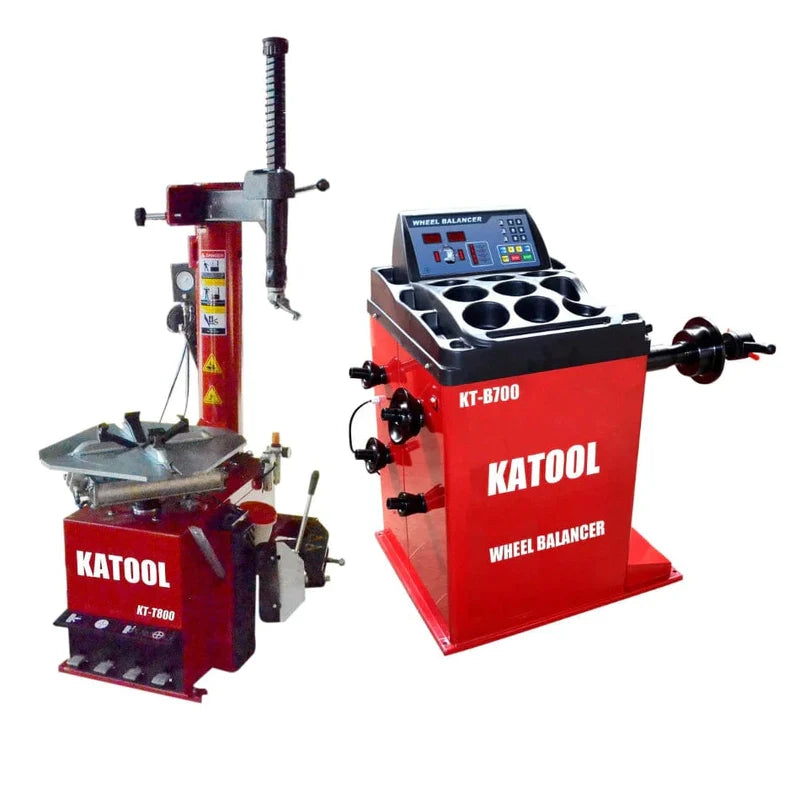

Take your tire service operations to the next level with the Katool Tire Changer KT-T800 & Wheel Balancer KT-B700 Combo — a precision-engineered duo built for durability, performance, and accuracy.
The KT-T800 Wheel Clamp Tire Changer features an alloy steel jaw with advanced carburization treatment and a full quenching process for superior toughness and strength. Its stainless steel mounting head with a rim-protective plastic cover prevents damage during tire changes, while the pedal-controlled inflation gauge and pull-type pedal system make operation simple and efficient. Powered by a top-tier pure copper motor, it ensures powerful output, fast heat dissipation, and long-term reliability. A high-quality lubricator maintains clean air pressure and extends the pneumatic system’s life. Designed for the North American market, it operates on a 110V/1ph/2.0HP system for maximum efficiency, with a closed-body housing that protects internal components from debris and wear.
The KT-B700 Wheel Balancer complements it perfectly, featuring a 3mm-thick steel frame with reinforced welding for reduced vibration and long-lasting stability. Its all-in-one pressure sensor support and quenched 36mm shaft thread deliver exceptional precision and durability. With multiple balance modes, fault diagnosis, and self-calibration, this machine adapts to different rim types with ease. Moisture-proof, dust-proof, and anti-static features ensure dependable performance in any shop environment.
Together, this combo delivers a complete, reliable solution for tire service professionals seeking consistent accuracy and efficiency.
Features

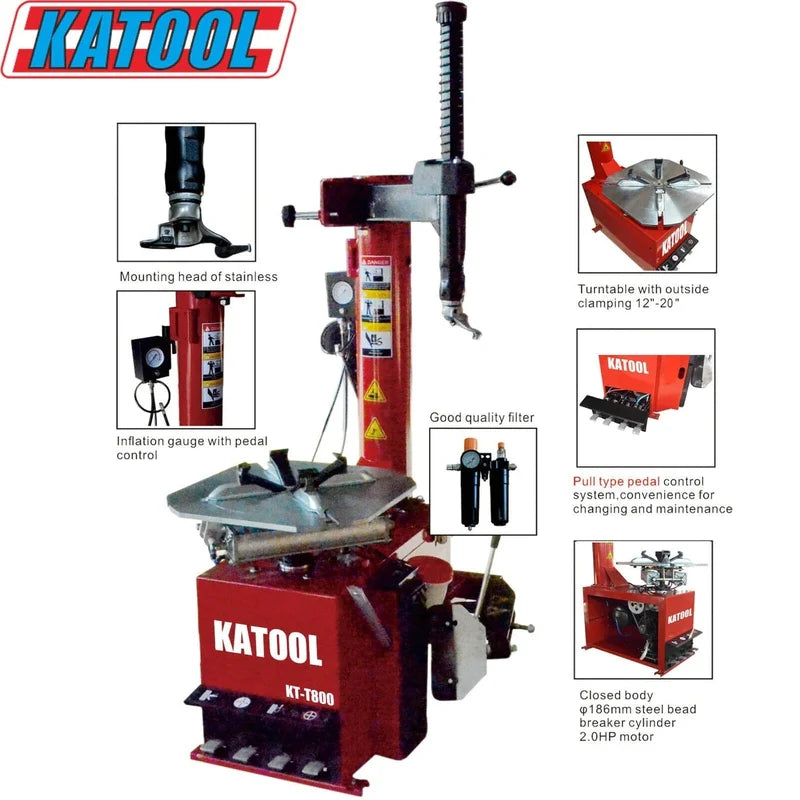

KT-T800 Wheel Clamp Tire Changer Machine
-
Heavy-Duty Alloy Steel Jaw: Carburized to a depth of 0.8–1.1mm and fully quenched for exceptional hardness and tenacity. Includes a jaw cover to protect rims.
-
Stainless Steel Mounting Head: Precision-treated and polished to protect rims; includes a plastic safety cover.
-

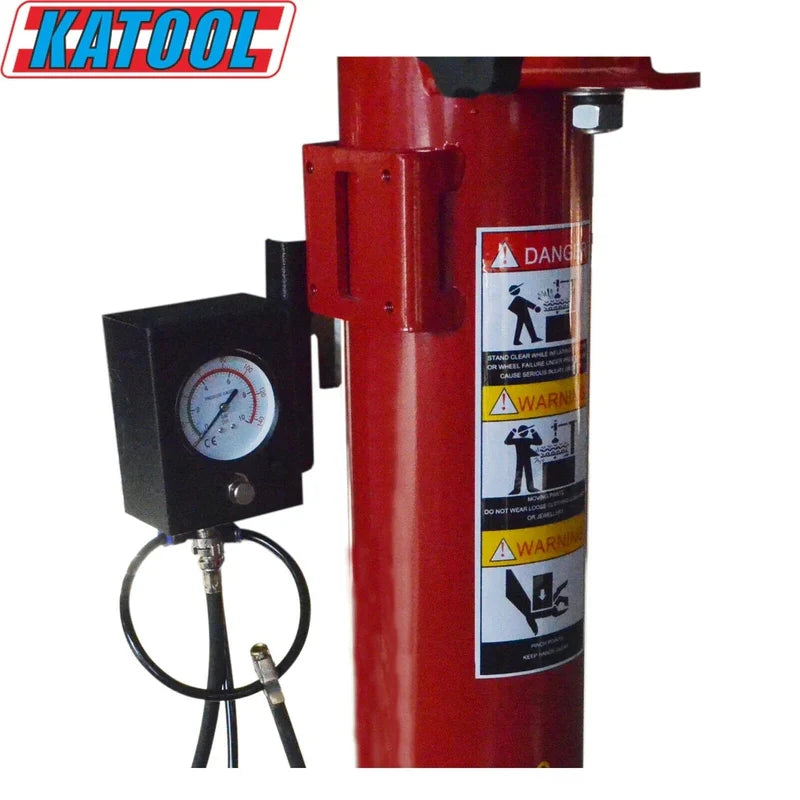

Pedal-Controlled Inflation Gauge: Hands-free tire inflation for convenience and control.
-
Protective Spade Cover: Prevents rim damage during operation.
-
Pull-Type Pedal Control System: Simplifies tire mounting and removal.
-

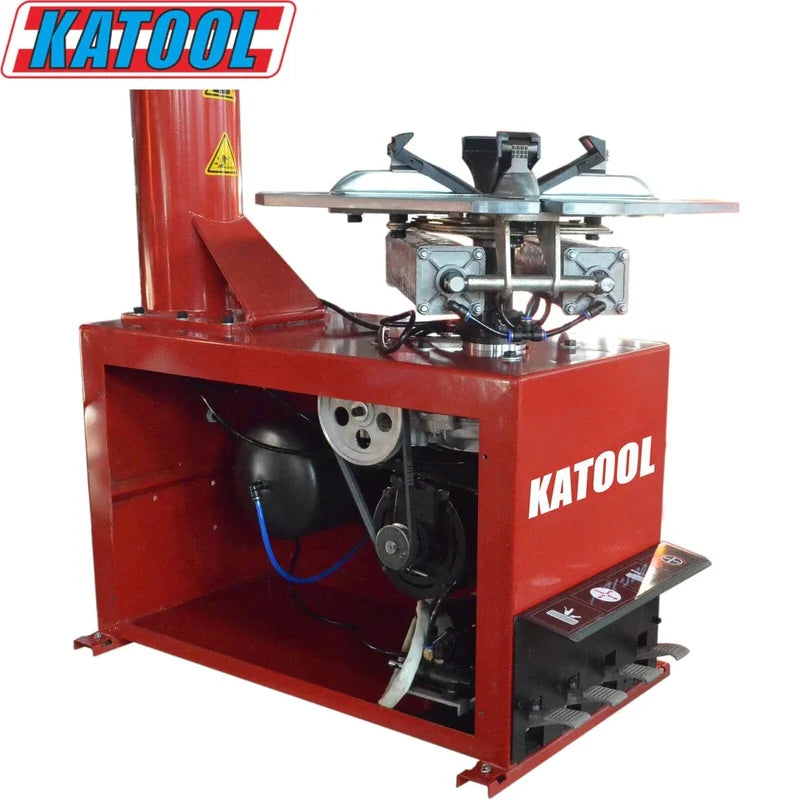

High-Performance Copper Motor: Provides powerful torque, efficient cooling, and long lifespan.
-
High-Quality Lubricator: Ensures clean air and longer pneumatic system service life.
-
Optimized for North America: 110V/1ph/2.0HP motor delivers powerful, efficient operation.
-
Closed Body Design: Protects internal components for extended durability.
KT-B700 Wheel Balancer
-

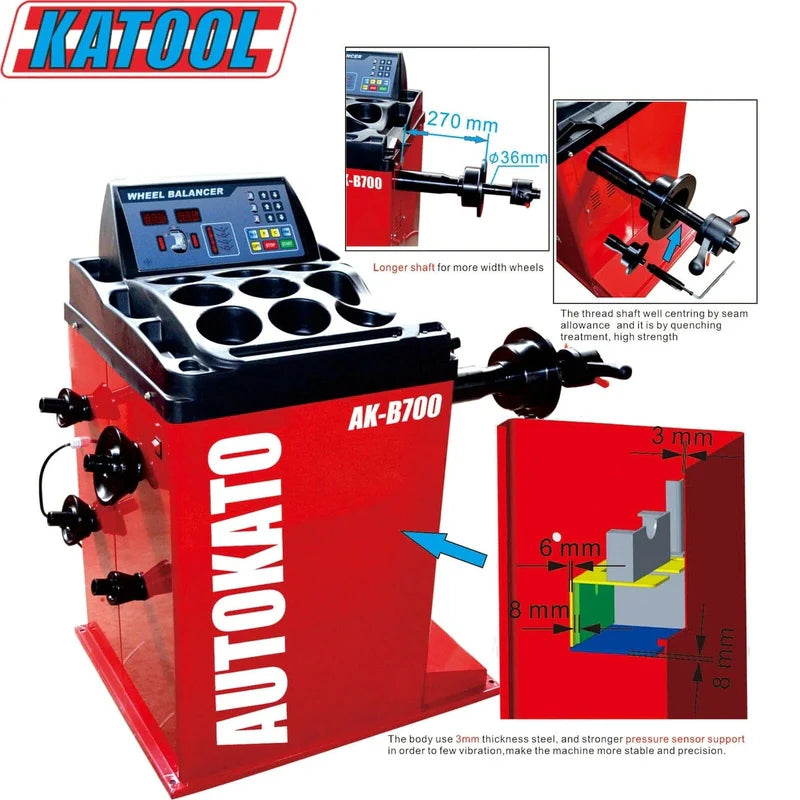

Durable 3mm Steel Body: Strong, vibration-resistant frame ensures stable operation.
-
Integrated Pressure Sensor Design: 8mm-thick bottom and side plates maintain precise sensor stability.
-
Top-Level Copper Motor: Enhanced power, fast heat dissipation, and low failure rate.
-

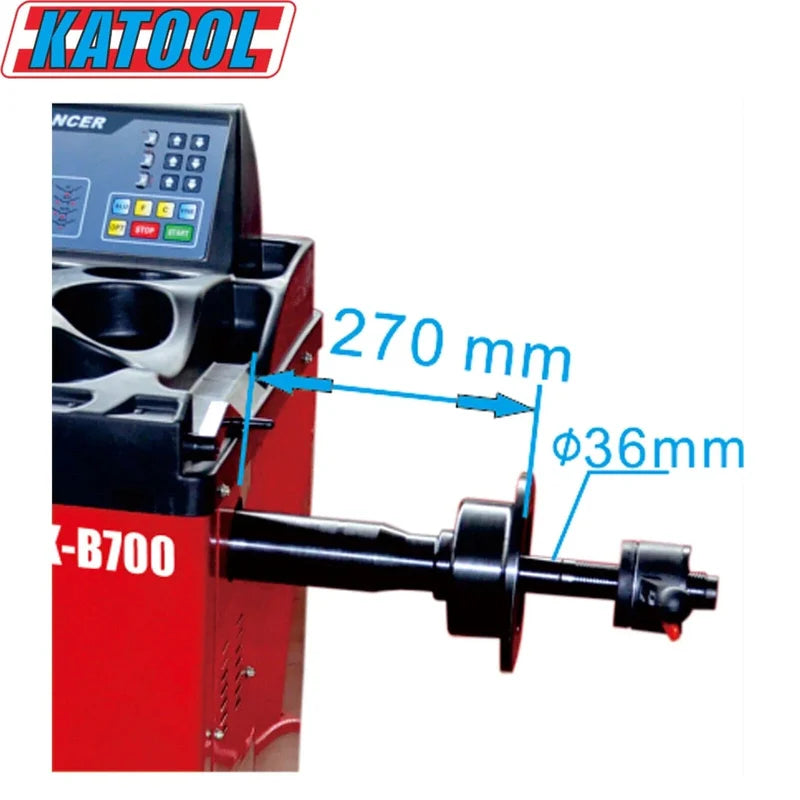

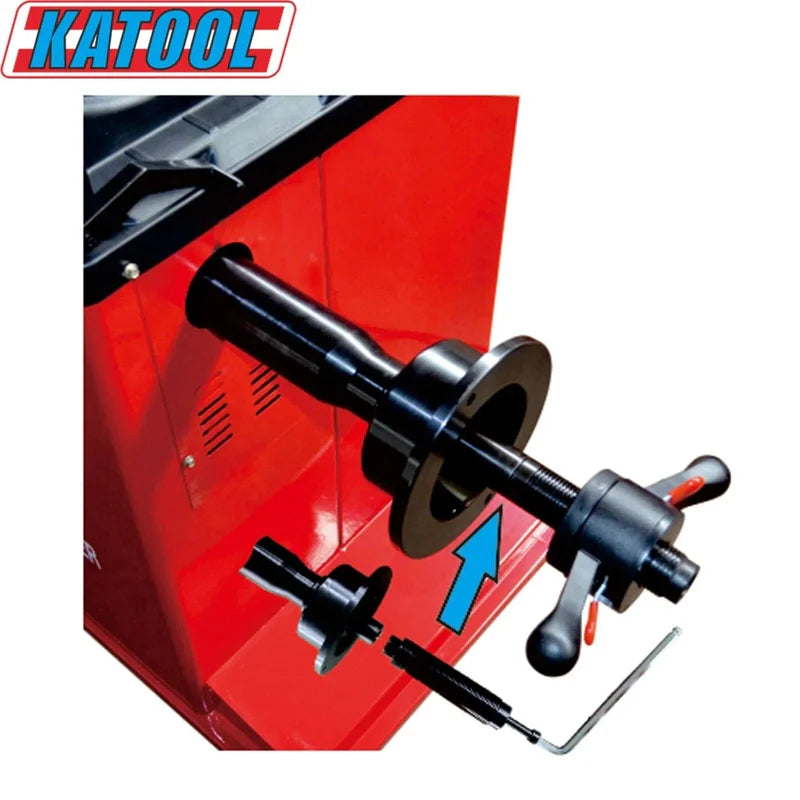

Quenched 36mm Shaft Thread: Built for strength and long-term reliability.
-
Advanced Control Board: Moisture-proof, dust-proof, and anti-static design for superior durability.
-
Multiple Balance Modes: Supports different rim types for optimal precision.
-
Self-Diagnosis & Auto Calibration: Dual-side calibration ensures user-friendly, accurate balancing.
-
Flexible Unit Selection: Choose between Ounce/Gram and MM/Inch.
-
Stable Power Board: Integrated system for reliable operation.
-

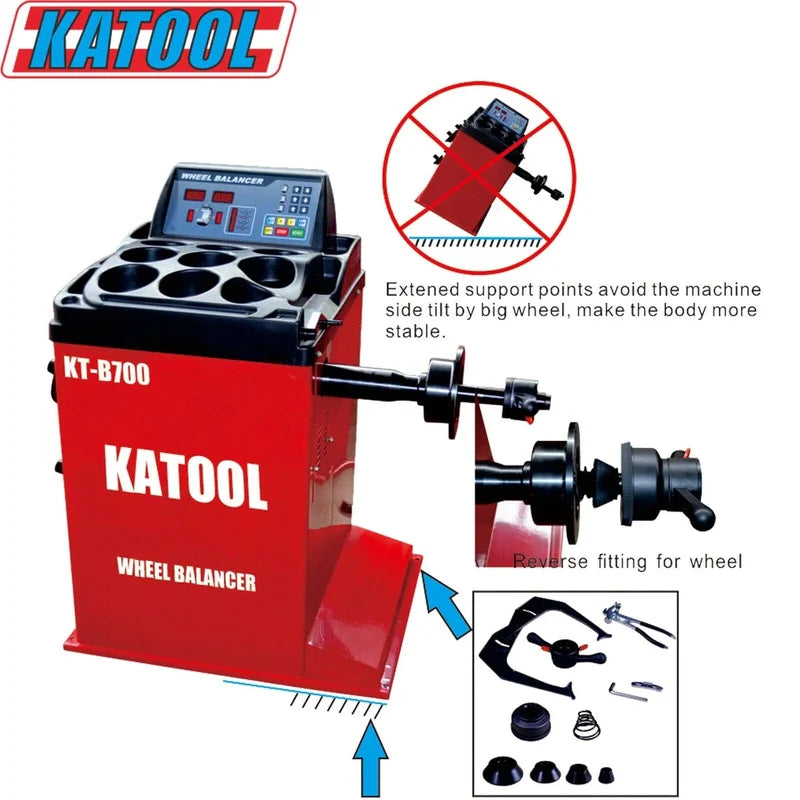

Optional Accessories: Wheel guard and longer shaft for wide-rim compatibility.
Specifications
KT-T800 Wheel Clamp Tire Changer
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040mm) |
| Max Wheel Width | 15" (380mm) |
| Outside Clamp | 12"–20" |
| Inside Clamp | 14"–24" |
| Power Supply | 110V 1PH |
| Motor Power | 2.0HP / 1.5KW |
| Rotation Speed | 6.8 r/min |
| Air Pressure | 0.8–1.0 Mpa (116–145 PSI) |
| Net Weight | 186 KG / 410 lbs |
KT-B700 Wheel Balancer
| Specification | Value |
|---|---|
| Rim Diameter | <30" |
| Wheel Width | 3"–12" |
| Max Wheel Diameter | <880mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 120V 1PH |
| Motor Power | 0.25KW |
| Rim Center Hole Diameter | <135mm (5.31") |
| Max Wheel Weight | <65 KG (143 lbs) |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
Warranty
Katool provides a 1-year (12-month) limited warranty covering all parts and defects.
A 2-year extended warranty is available for Katool and M&E automotive equipment.
Warranty Covers:
-
Cylinders, power units, motors, displays, and electronics.
-
Vehicle lifts include an additional 3-year structural warranty.
Conditions:
-
Claims must be filed within the warranty period.
-
Non-transferable; requires proof of purchase.
-
Replacement parts and shipping covered at no cost.
-
Labor not included.
-
Claims may require photo or video evidence.
-
Unauthorized disassembly voids coverage.
The KT-T800 & KT-B700 Combo delivers professional-grade tire service performance — combining strength, speed, and precision for a seamless workflow in any modern workshop.
