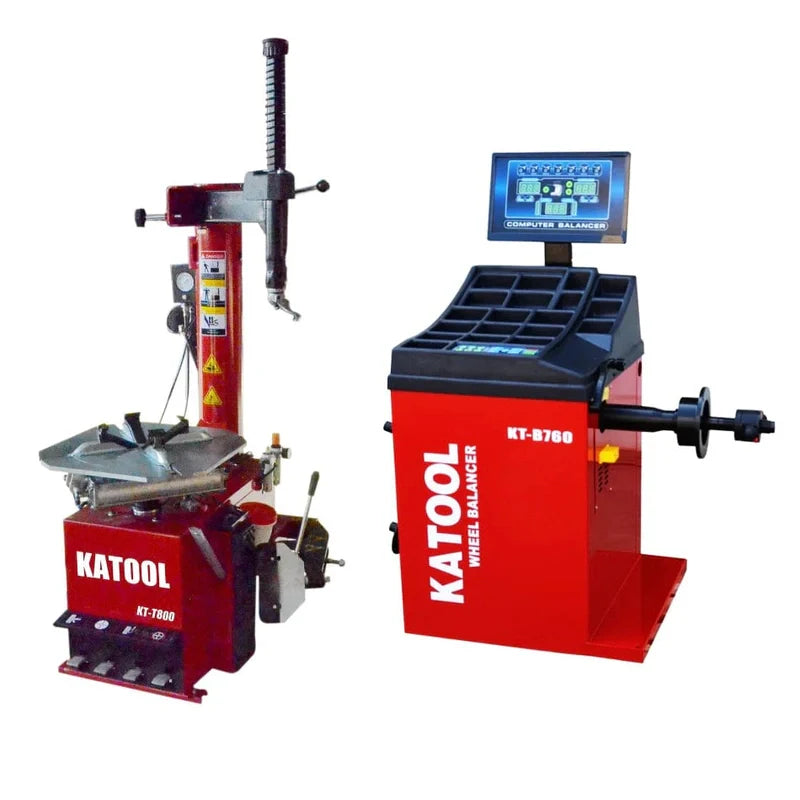

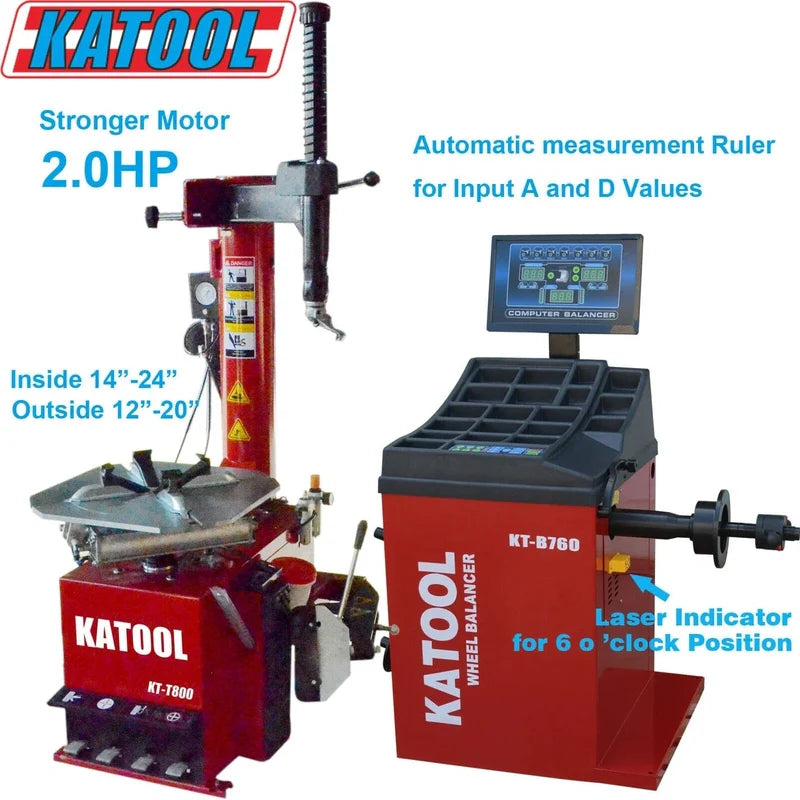

The Katool KT-T800 & KT-B760 Combo is an advanced, high-performance tire service package built for precision, durability, and efficiency. Perfect for automotive shops and service centers, this dynamic duo streamlines both tire changing and wheel balancing operations with professional-level accuracy and ease of use.
The KT-T800 Wheel Clamp Tire Changer features a carburized alloy steel jaw and stainless steel mounting head, ensuring superior strength and rim protection. Its pedal-controlled inflation gauge, pull-type pedal system, and high-quality spade cover make operation smooth and safe. Powered by a 2.0HP pure copper motor (optimized for North America), this machine delivers strong torque, fast heat dissipation, and long-lasting reliability. The closed-body design protects internal components for consistent performance and durability.
The KT-B760 Wheel Balancer complements the tire changer with exceptional precision and stability. Constructed from 3mm-thick high-strength steel and equipped with 8mm-thick reinforced sensor supports, it ensures accuracy and minimal vibration. With multiple balance modes, fault diagnosis, and a self-calibration system, it adapts seamlessly to various rim types. Together, the KT-T800 and KT-B760 provide a complete, efficient, and user-friendly solution for all your tire maintenance needs.
Key Features

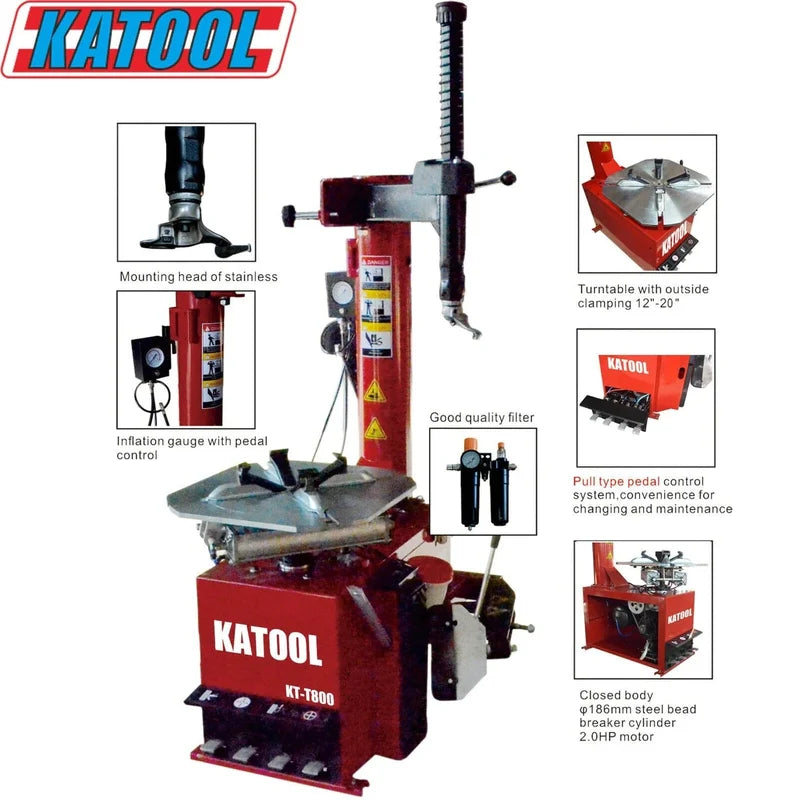

KT-T800 Wheel Clamp Tire Changer
-
Heavy-Duty Alloy Steel Jaws: Carburized to 0.8–1.1mm depth and fully quenched for high strength and durability; includes jaw covers for rim protection.
-
Stainless Steel Mounting Head: Polished and corrosion-resistant with a protective plastic rim cover.
-

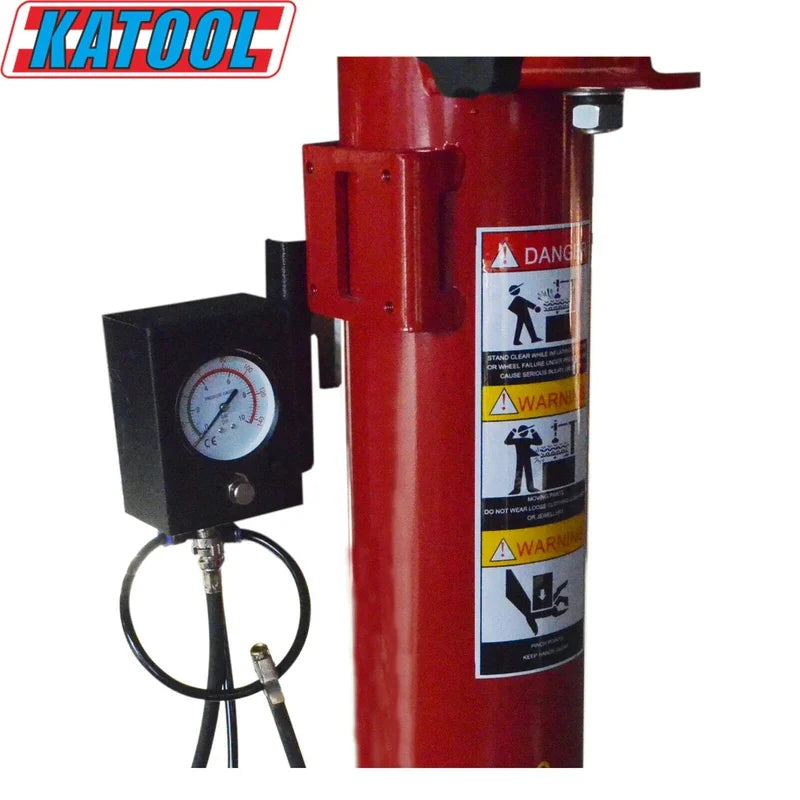

Pedal-Controlled Inflation Gauge: Allows precise, hands-free inflation control.
-
Protective Spade Cover: Prevents rim damage during tire changing.
-
Pull-Type Pedal System: Simplifies operation for faster, smoother workflow.
-

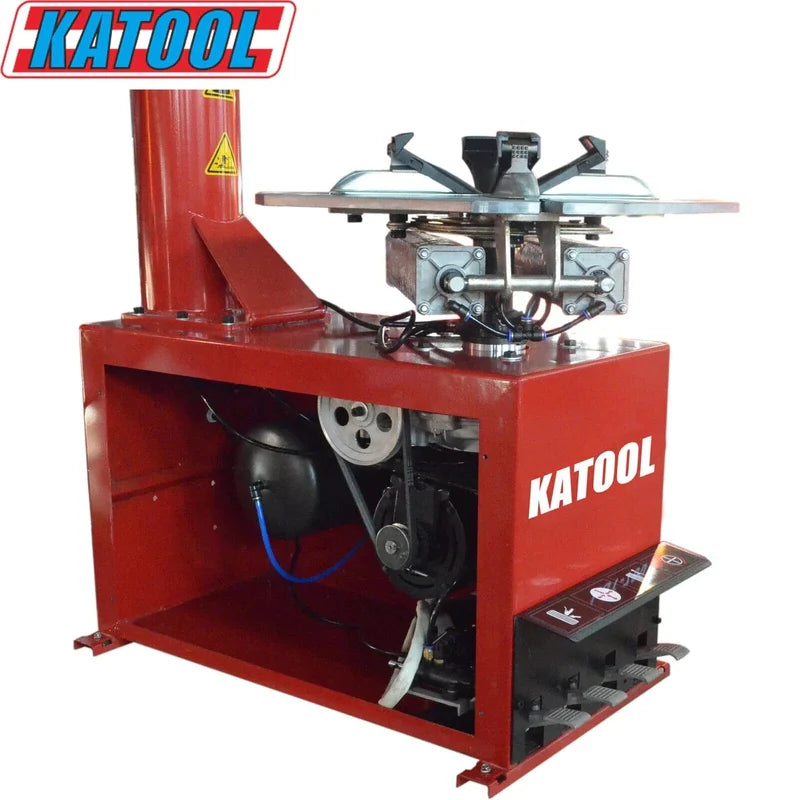

High-Performance Copper Motor: 2.0HP motor provides high power, efficient cooling, and longer lifespan.
-
Advanced Filtration & Lubrication System: Ensures reliable oil delivery and clean compressed air to extend pneumatic system life.
-
Optimized for North America: Operates on 110V/1PH/2.0HP power for strong, efficient performance.
-
Closed-Body Design: Protects internal parts from dust and debris for long-term reliability.
KT-B760 Wheel Balancer
-

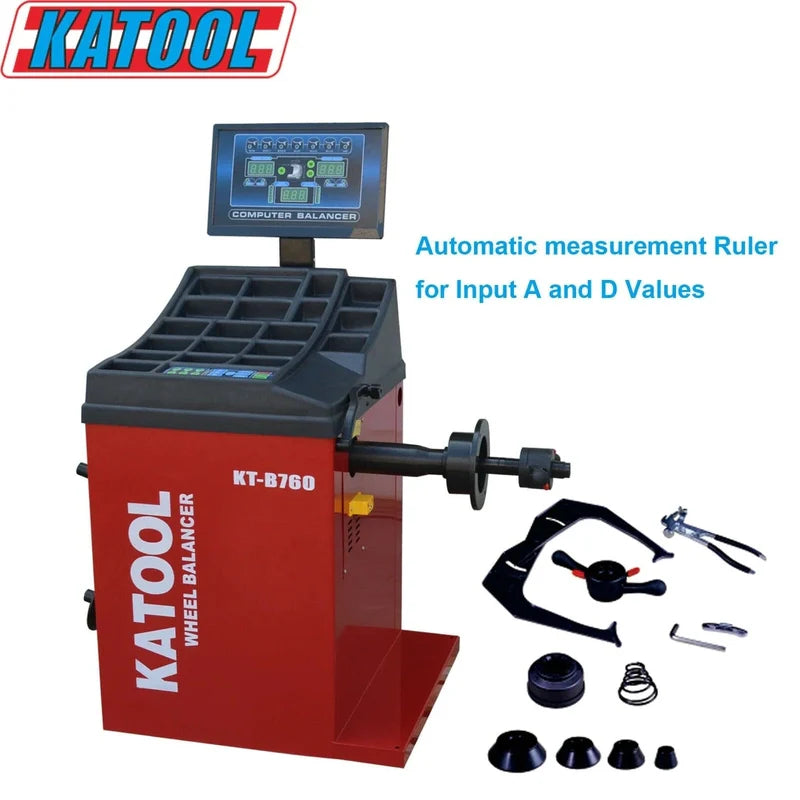

Automatic Measurement Ruler: Auto-inputs A and D values for improved speed and accuracy.
-
Reinforced Steel Construction: 3mm-thick steel frame with precision welding reduces vibration and enhances stability.
-
Integrated Pressure Sensor Support: 8mm-thick base and side panels ensure steady sensor operation and precision.
-
Top-Level Copper Motor: Offers strong performance, efficient heat dissipation, and extended service life.
-

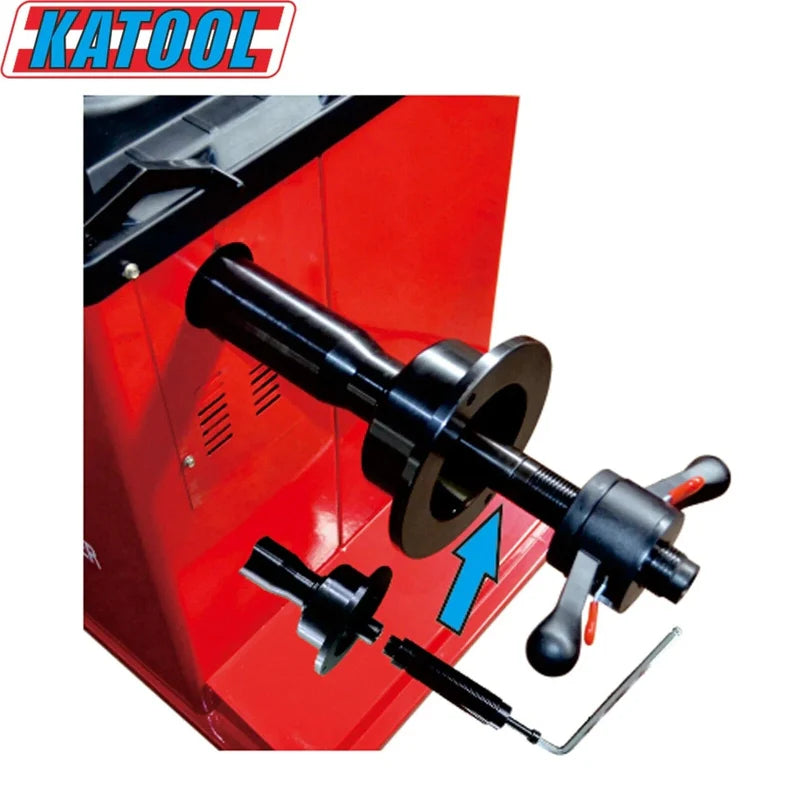

Hardened 36mm Shaft: Quenching treatment improves strength and wear resistance.
-
Durable Control Board: Advanced welding makes it moisture-proof, dust-proof, and anti-static.
-
Multiple Balance Modes: Supports various rim types for highly accurate results.
-
Built-In Calibration & Diagnostics: Self-calibration and dual-sided fault detection eliminate preset parameters for easy operation.
-
Unit Conversion Options: Switch between Ounce/Gram and MM/Inch measurements.
-
Stable Power System: Integrated high-quality power board ensures consistent, reliable operation.
-
Optional Features: Wheel guard for added safety; longer shaft for wider wheels.
Specifications
KT-T800 Wheel Clamp Tire Changer
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp Range | 12" – 20" |
| Inside Clamp Range | 14" – 24" |
| Power Supply | 110V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 186 kg (410 lbs) |
KT-B760 Wheel Balancer
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 110V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty plan is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Motors, power units, cylinders, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be filed within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or original order number from an authorized vendor.
-
Replacement parts and shipping are provided free of charge.
-
All claims must be approved by Katool’s warranty/service department.
-
Photos or videos may be required for defect verification.
-
Equipment must not be disassembled before approval.
-
Items outside warranty coverage will require the buyer to pay for replacement and shipping costs.
-
Labor costs are not included under warranty coverage.
