Description

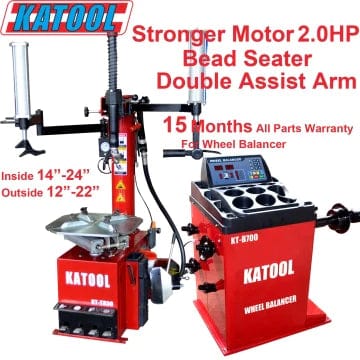

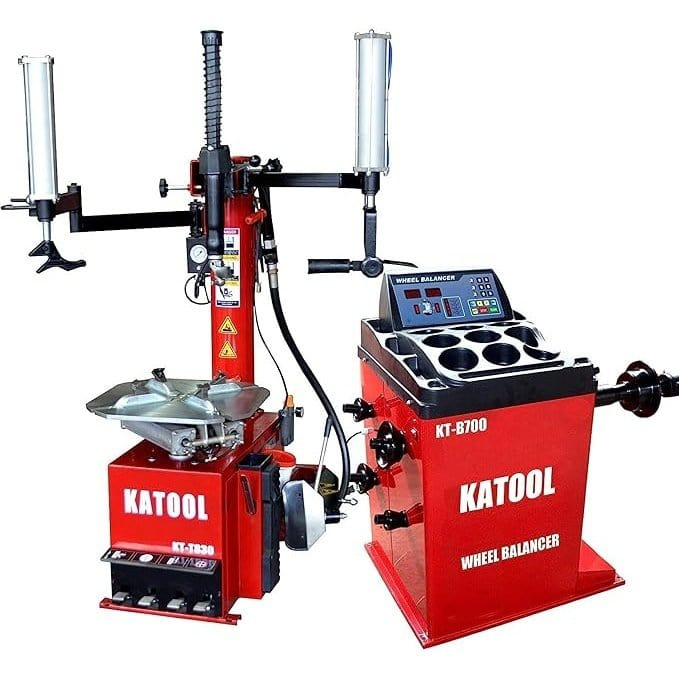

This Katool combo pairs the KT-T830 wheel clamp tire changer with the KT-B700 wheel balancer. The KT-T830 clamps 12″ to 22″ outside or 14″ to 24″ inside, handles tires up to 41″ in diameter and 15″ wide, and has dual assist arms, a bead-blast seater with post tank and a 2 HP motor that runs on 110–120V. The KT-B700 balances rims up to 30″ to within ±1 gram, with multiple balance modes and self-calibration. Compare other tire changer and wheel balancer combos or more Katool equipment. Financing is available through Approve and Shop Pay.
Experience next-level tire service performance with the Katool KT-T830 & KT-B700 Combo, a professional-grade package designed to deliver speed, precision, and long-lasting durability. The KT-T830 Wheel Clamp Tire Changer features a carburized alloy steel jaw for exceptional strength and rim protection, along with a stainless steel mounting head, pedal-controlled inflation gauge, and dual assist arms for smooth and efficient operation. Its 2.0HP pure copper motor ensures powerful output, fast heat dissipation, and extended service life.
Paired with the KT-B700 Wheel Balancer, this combo provides superior accuracy and versatility. The balancer is constructed from 3mm-thick high-strength steel and equipped with an advanced sensor system for stable, high-precision performance. With multiple balance modes, self-calibration, and options such as an extended shaft and wheel guard, this setup provides a complete and reliable tire maintenance solution for professional automotive environments.
Features

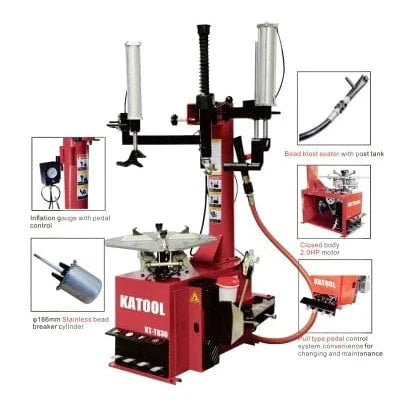

KT-T830 Wheel Clamp Tire Changer
-

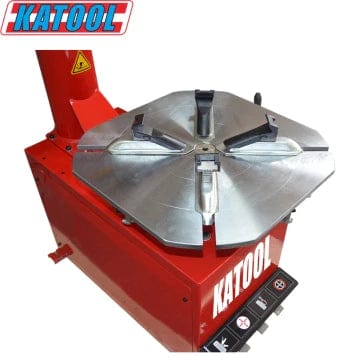

Heavy-Duty Alloy Steel Jaws: Carburization depth of 0.8–1.1mm with full quenching for enhanced strength and flexibility; includes protective jaw covers to prevent rim damage.
-
Stainless Steel Mounting Head: Polished, corrosion-resistant head shaped for mechanical precision, with a plastic protector for rim safety.
-

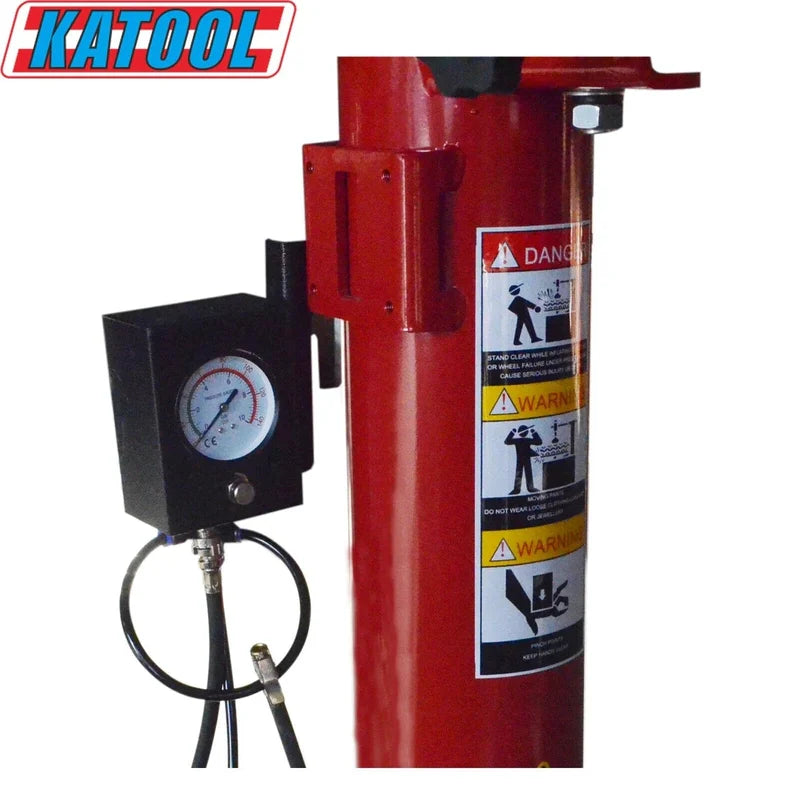

Pedal-Controlled Inflation Gauge: Allows for accurate, hands-free inflation and pressure control.
-
Protective Spade Cover: Prevents scratches and damage during tire removal or mounting.
-
User-Friendly Pull-Type Pedal System: Simplifies tire changing and maintenance for efficient workflow.
-

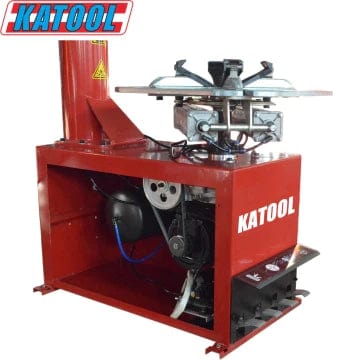

High-Performance Copper Motor: Pure copper winding provides superior torque, fast cooling, lower failure rates, and longer lifespan.
-
Advanced Filtration System: Built-in lubricator filters compressed air and distributes oil evenly to prolong pneumatic system durability.
-
Optimized for North America: Operates with a 110V/1PH/2.0HP motor for optimal efficiency and power.
-
Dual Assist Arms: Enhance handling of low-profile and run-flat tires.
-
Bead Blast Seater with Post Tank: Provides quick and secure tire seating.
-
186mm Stainless Bead Breaker Cylinder: Ensures powerful and consistent performance.
-
Closed-Body Design: Protects internal components from dust and debris, extending machine life.
KT-B700 Wheel Balancer
-

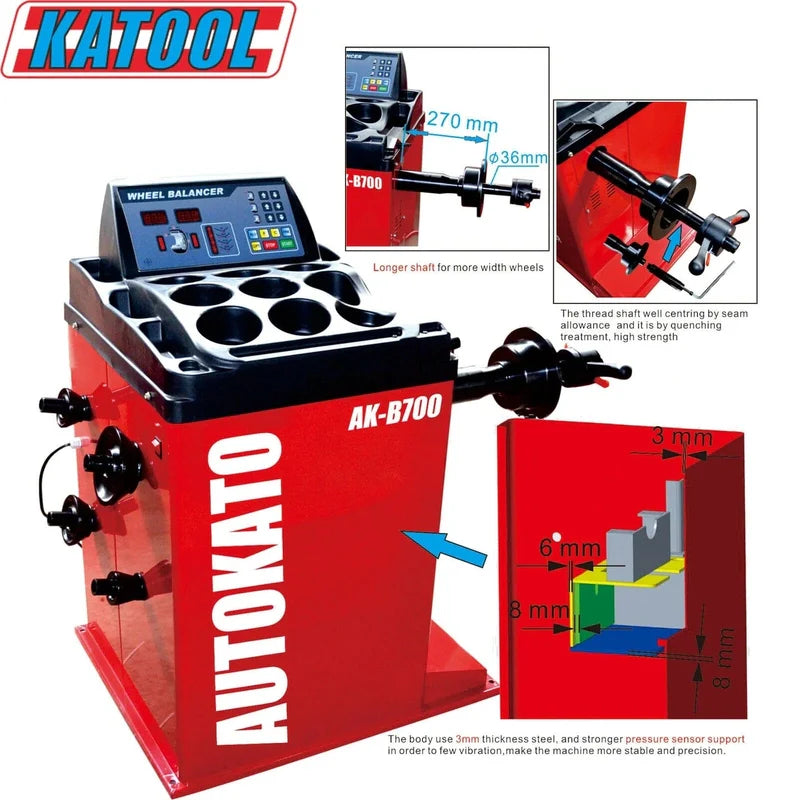

Reinforced Steel Structure: 3mm-thick frame with strong welds minimizes vibration for improved precision.
-
Integrated Pressure Sensor Support: 8mm-thick side and bottom panels ensure stable sensor operation and accuracy.
-
Top-Grade Copper Motor: Offers higher power, efficient heat management, and reliable long-term performance.
-

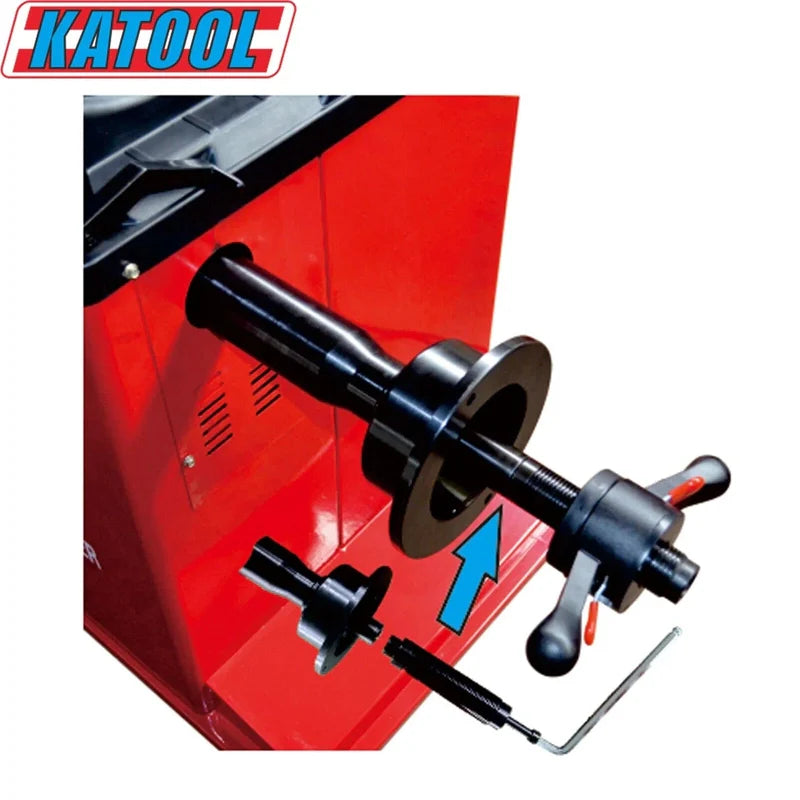

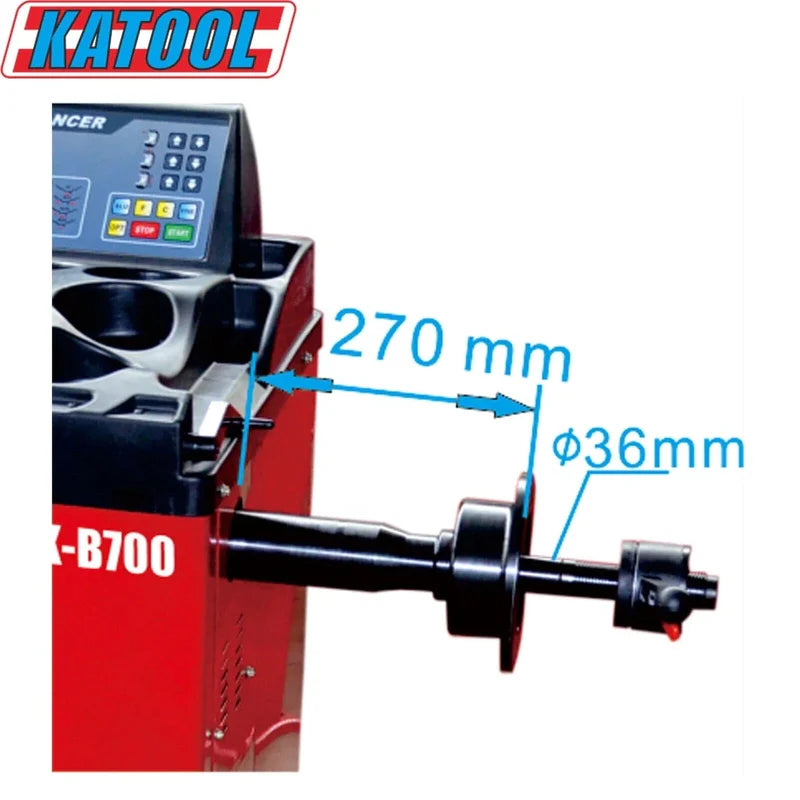

Hardened Shaft (36mm): Quenching treatment enhances durability and load-bearing capacity.
-
Advanced Control Board: Moisture-proof, dust-proof, and anti-static design increases system lifespan.
-
Multiple Balance Modes: Supports various rim types for versatile and precise balancing.
-
Built-In Calibration & Diagnostics: Features dual-sided calibration and fault detection; no preset parameters required.
-
Flexible Unit Selection: Allows switching between Ounce/Gram and MM/Inch measurements.
-
Stable Power Integration: High-quality power board ensures consistent and reliable operation.
-
Optional Wheel Guard: Provides added safety during use.
-
Extended Shaft Compatibility: Accommodates wider wheels with ease.
Specifications

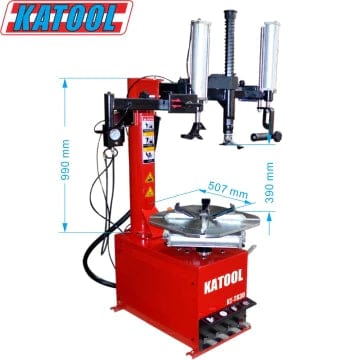

KT-T830 Wheel Clamp Tire Changer
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp Range | 12" – 22" |
| Inside Clamp Range | 14" – 24" |
| Power Supply | 120V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 240 kg (529 lbs) |
KT-B700 Wheel Balancer
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty is available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Motors, power units, cylinders, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or an order number from an authorized vendor.
-
Replacement parts and shipping are covered free of charge.
-
All claims must be approved by Katool’s warranty/service department.
-
Photos or videos may be required to verify defects.
-
Do not disassemble equipment before receiving authorization.
-
Items outside warranty coverage require the buyer to cover replacement and shipping costs.
-
Labor costs are not included under warranty coverage.
