Description

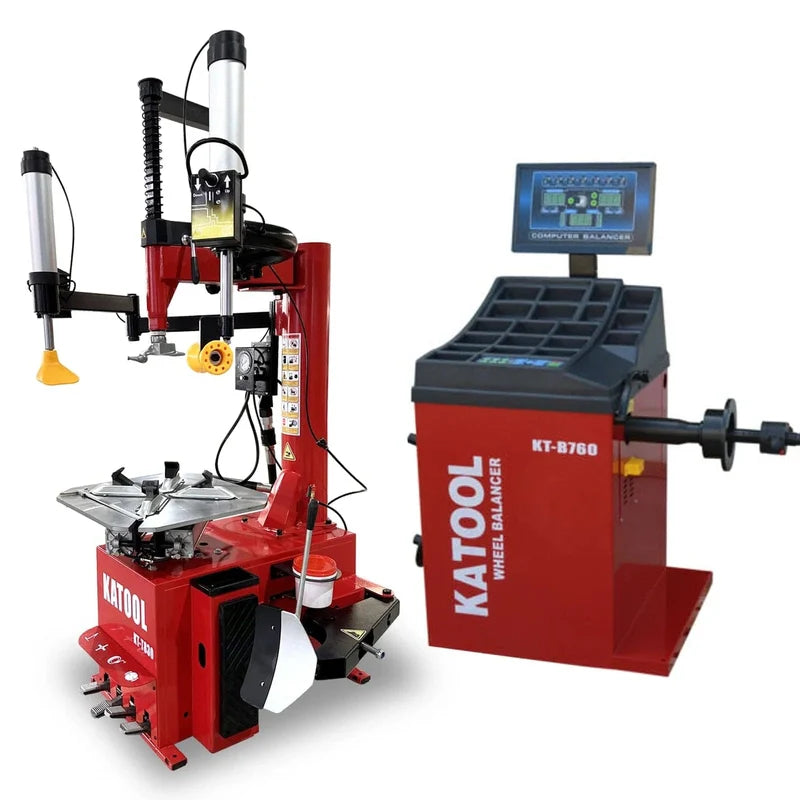

Enhance your tire service operations with the Katool KT-T830 & KT-B760 Combo, a professional-grade solution for efficient tire changing and precision wheel balancing. The KT-T830 Wheel Clamp Tire Changer is built for strength and reliability, featuring an alloy steel jaw with deep carburization and quenching treatment to ensure superior durability and resilience. Its stainless steel mounting head, pedal-controlled inflation gauge, and dual assist arms simplify tire handling while protecting the rim from damage.
Powered by a high-performance 110V/1PH/2.0HP copper motor, the KT-T830 offers powerful operation, rapid heat dissipation, and long-term dependability. A high-quality air filtration and lubrication system keeps the pneumatic components clean and efficient, while its closed-body design protects internal parts for lasting performance.
Paired with the KT-B760 Wheel Balancer, this combo delivers accurate and dependable balancing results. The KT-B760 features an automatic measurement ruler, a 3mm-thick heavy-duty steel body, and 8mm reinforced pressure sensor supports for stable and precise operation. With multiple balance modes, fault diagnosis, and self-calibration, it ensures professional accuracy every time. Optional features such as a wheel guard and extended shaft make this combo ideal for a wide range of wheel types and workshop setups.
Key Features

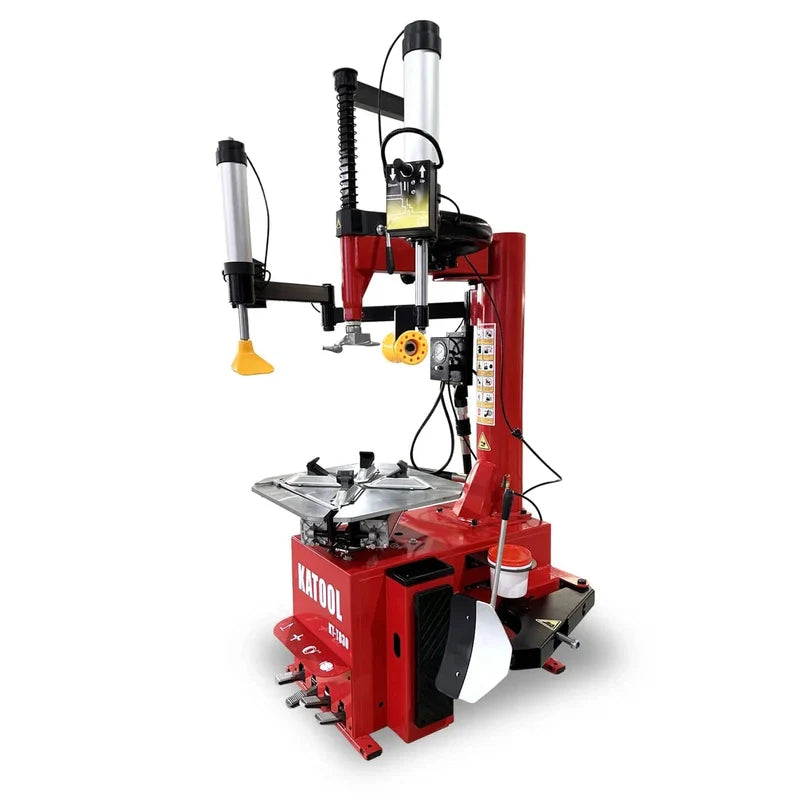

KT-T830 Wheel Clamp Tire Changer
-
Reinforced Alloy Steel Jaws: Carburization depth of 0.8–1.1mm with full quenching treatment for exceptional strength and resilience. Includes protective jaw covers to safeguard rims.
-
Precision Stainless Steel Mounting Head: Engineered with solution treatment and polishing for smooth operation and fitted with a rim-protective plastic cover.
-

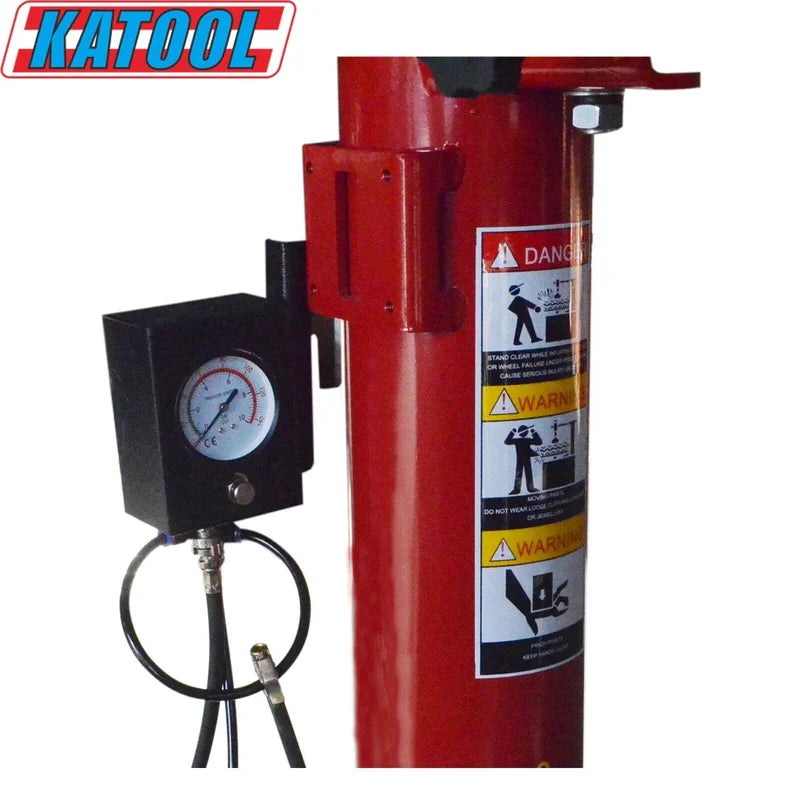

Pedal-Controlled Inflation Gauge: Enables accurate, hands-free tire inflation.
-
Protective Spade Cover: Prevents rim damage during tire removal.
-

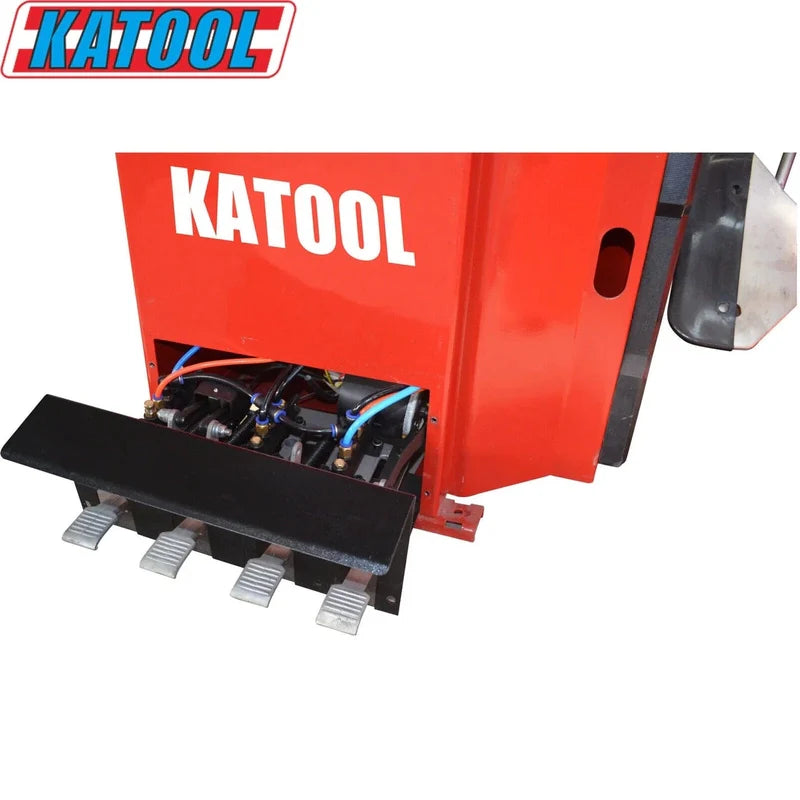

Pull-Type Pedal Control System: Designed for easy and efficient operation.
-
High-Performance Copper Motor: Ensures strong output, quick heat dissipation, and an extended lifespan.
-
Advanced Air Filtration System: High-quality lubricator filters compressed air and distributes oil evenly, extending the pneumatic system’s durability.
-
North America-Ready Design: Equipped with a 110V/1PH/2.0HP motor for enhanced power and energy efficiency.
-
Double Side Assist Arm: Simplifies handling of run-flat, low-profile, or heavy tires.
-
Bead Blast Seater with Post Tank: Ensures fast and secure tire bead seating.
-
186mm (7.32”) Stainless Bead Breaker Cylinder: Offers dependable performance and long service life.
-
Closed-Body Construction: Protects internal components from debris and wear.

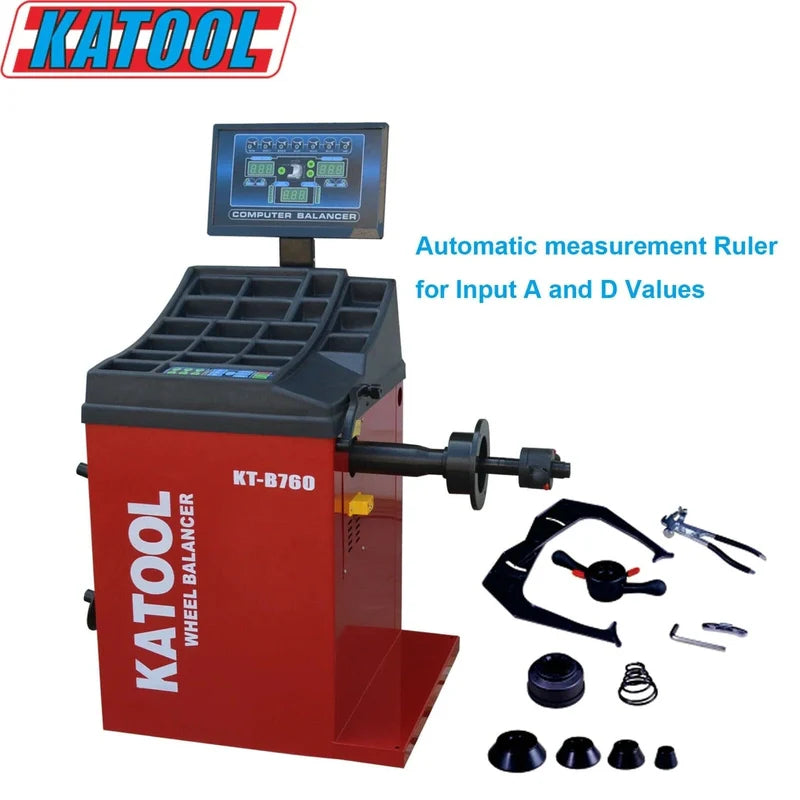

KT-B760 Wheel Balancer
-
Automatic Measurement Ruler: Allows automatic input of A and D values for faster, more accurate setup.
-
Heavy-Duty Steel Body: 3mm-thick frame with solid welding ensures stability and minimal vibration.
-
Integrated Pressure Sensor Support: 8mm-thick base and side plates ensure high precision and consistent sensor performance.
-
Top-Level Copper Motor: Provides efficient power, rapid cooling, and long-lasting reliability.
-
Hardened 36mm Shaft: Quenching treatment adds strength and durability.
-
Advanced Control Board: Moisture-proof, dust-proof, and anti-static to ensure stable performance.
-
Multiple Balance Modes: Optimized for different rim types to guarantee precision.
-
Built-In Diagnostics & Dual Calibration: Simplifies operation and ensures consistent accuracy without preset parameters.
-
Flexible Measurement Units: Supports both Ounce/Gram and MM/Inch for user preference.
-
Stable Integrated Power Board: Ensures reliable operation and power consistency.
-
Optional Accessories: Wheel guard for added safety and extended shaft for wider wheels.
Specifications
KT-T830 Wheel Clamp Tire Changer
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp Range | 12" – 22" |
| Inside Clamp Range | 14" – 24" |
| Power Supply | 120V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 240 kg (529 lbs) |
KT-B760 Wheel Balancer
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm (34.6") |
| Balancing Speed | 180 RPM |
| Power Supply | 110V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and product defects at no cost, with an optional 2-year extended warranty available for additional protection.
Warranty Coverage Includes:
-
Motors, cylinders, power units, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the active warranty period.
-
Warranty is non-transferable and requires proof of purchase or order number from an authorized vendor.
-
Replacement parts and shipping are provided free of charge.
-
Warranty claims are subject to approval by Katool’s service department.
-
Photos or videos may be requested to verify issues.
-
Do not disassemble equipment before warranty approval.
-
Items not covered under warranty will require buyer payment for parts and shipping.
-
Labor costs are not included under warranty coverage.
