Description

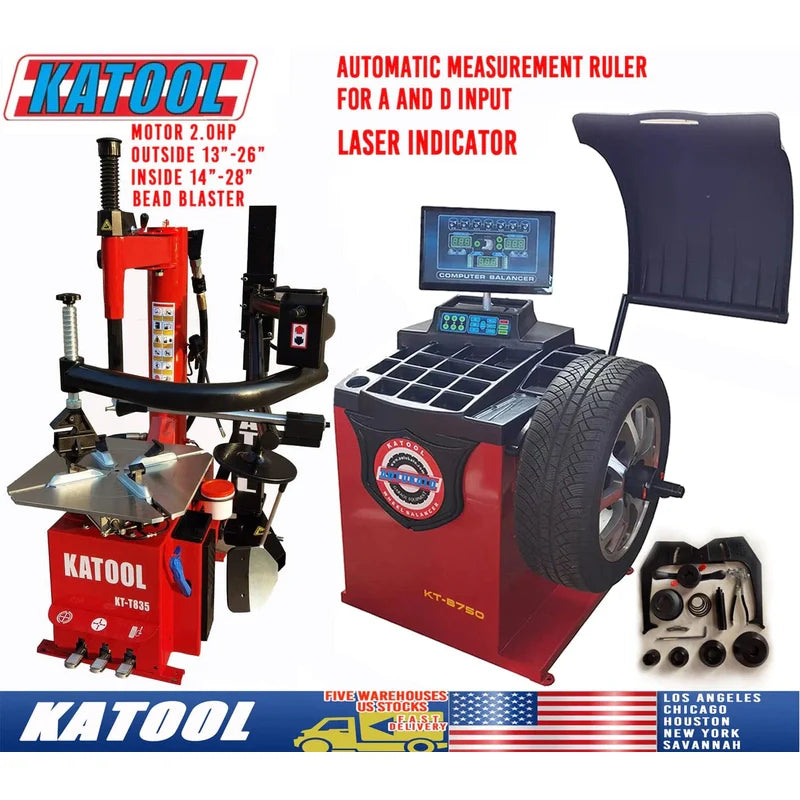

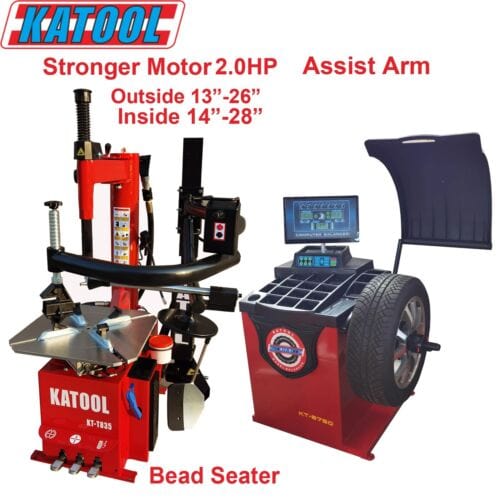

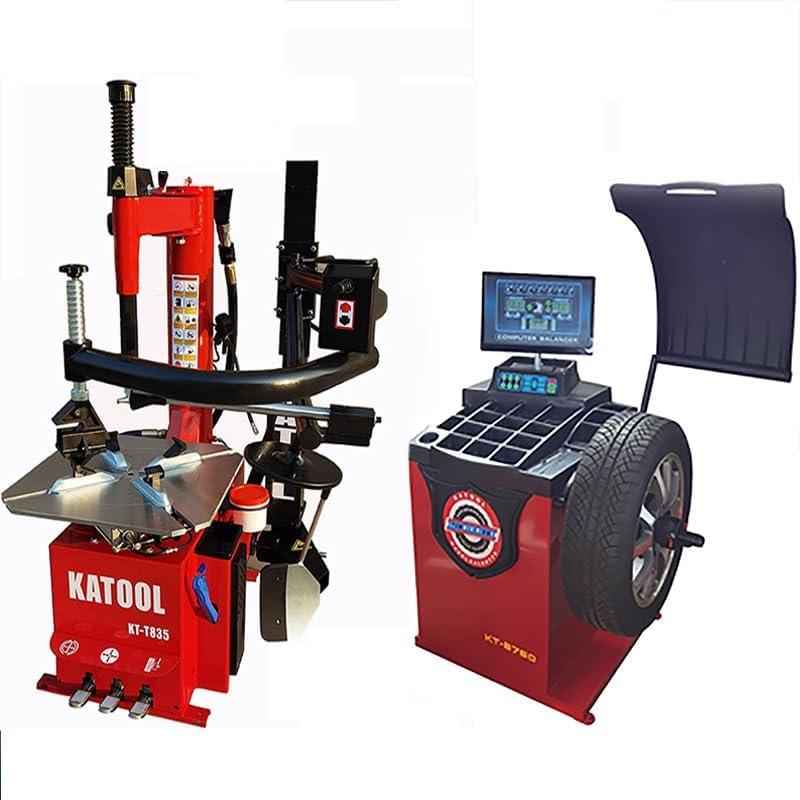

Upgrade your tire service operations with the Katool KT-T835 & KT-B750 Combo, a high-performance pairing engineered for precision, durability, and ease of use. The KT-T835 Wheel Clamp Tire Changer features a rugged alloy steel jaw with advanced carburization and quenching treatment for superior strength and resilience. Its stainless steel mounting head with a protective cover ensures rim safety, while the pedal-controlled inflation system and pull-type pedal operation make tire changing fast and effortless. Powered by a 2.0HP pure copper motor designed for 110V North American systems, this tire changer delivers exceptional performance and longevity. A premium air filtration system and closed-body design extend component life and reliability, while dual assist arms and a 186mm stainless bead breaker cylinder provide unmatched versatility.
The KT-B750 Wheel Balancer complements the setup with cutting-edge accuracy and stability. Built with 3mm-thick reinforced steel and an all-in-one pressure sensor system, it minimizes vibration while delivering highly precise readings. The top-level motor ensures efficient, consistent performance, while its advanced control board is moisture-proof, dustproof, and anti-static for enhanced durability. Multiple balance modes, self-calibration, and fault diagnostics simplify operation for users of all skill levels. Optional upgrades such as a wheel guard and longer shaft for wide wheels make this balancer a flexible, shop-ready solution for professional tire maintenance.
Key Features

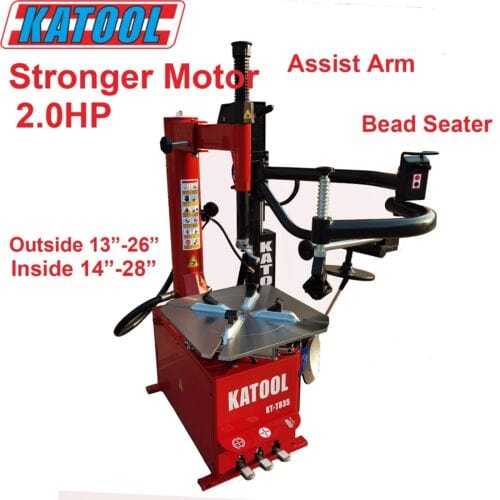

KT-T835 Wheel Clamp Tire Changer
-
Heavy-Duty Alloy Steel Jaw: Carburization depth of 0.8–1.1mm with full quenching treatment for increased toughness and hardness. Includes jaw covers to protect rims.
-
Precision Stainless Steel Mounting Head: Polished and engineered for ergonomic performance; includes plastic cover to prevent rim scratches.
-
Pedal-Controlled Inflation Gauge: Provides hands-free inflation control for safety and convenience.
-
Protective Spade Cover: Prevents rim damage during tire removal and installation.
-
Pull-Type Pedal Control System: Simplifies operation for efficient tire service.
-
Pure Copper Motor: Offers higher power output, faster cooling, lower defect rates, and extended life.
-
Advanced Filtration System: Ensures clean, lubricated air flow to protect the pneumatic system from wear.
-
North America-Ready Power: Equipped with a 110V/1PH/2.0HP motor for superior strength and efficiency.
-

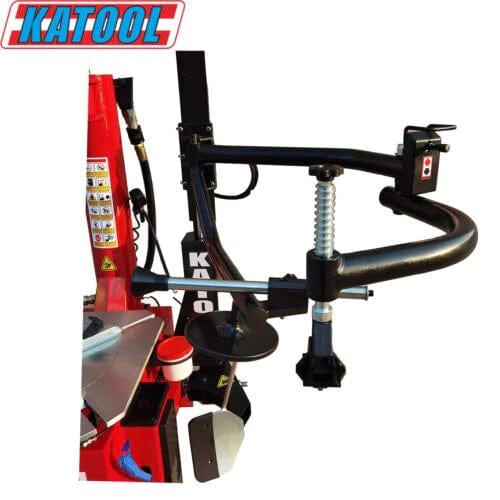

Double Side Assist Arm: Simplifies handling of heavy, low-profile, or run-flat tires.
-
Bead Blast Seater with Post Tank: Assists in quick and secure tire seating.
-
186mm (7.3") Stainless Bead Breaker Cylinder: Designed for strength, corrosion resistance, and long-term reliability.
-
Closed-Body Housing: Protects internal components for extended service life.

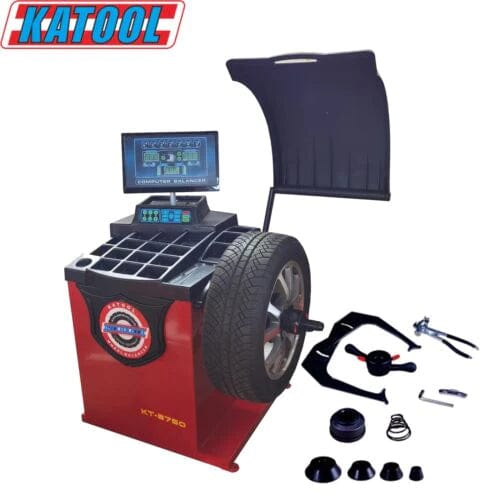

KT-B750 Wheel Balancer
-
Automatic Measurement Ruler: Automatically inputs A and D values for faster setup.
-
Durable Steel Frame: 3mm-thick body with strong welding reduces vibration and enhances stability.
-
Integrated Pressure Sensor Support: 8mm-thick base and side panels ensure precision and sensor consistency.
-
High-Performance Motor: Pure copper winding ensures strong torque, efficient cooling, and long lifespan.
-

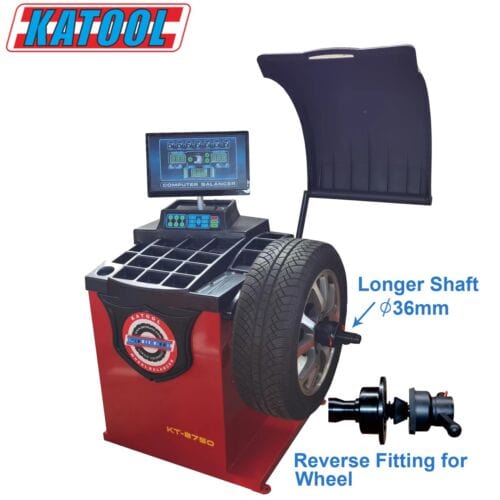

36mm Quenched Shaft Thread: Provides exceptional strength and wear resistance.
-
Advanced Circuit Protection: Control board uses anti-static, dustproof, and moisture-proof technology for extended durability.
-
Multiple Balance Modes: Supports various rim types for professional-level accuracy.
-
Built-In Fault Diagnosis & Dual Calibration: Simplifies troubleshooting and calibration—no preset parameters required.
-
Flexible Unit Options: Select between Ounce/Gram and MM/Inch for measurement convenience.
-
Stable Power Board: High-quality integrated board ensures consistent, reliable performance.
-
Optional Upgrades: Wheel guard for added protection and longer shaft for wide-wheel compatibility.
Specifications
KT-T835 Wheel Clamp Tire Changer
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (350 mm) |

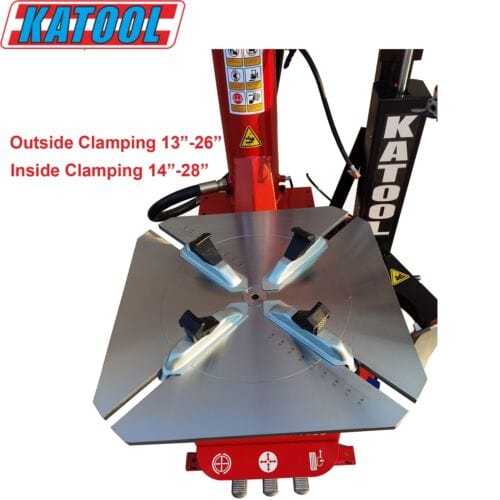

| Outside Clamp Range | 13" – 26" |
| Inside Clamp Range | 14" – 28" |
| Power Supply | 110V / 1PH / 60Hz |
| Motor Power | 2.0HP / 1.5kW |
| Rotation Speed | 6.1 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 582 lbs |
KT-B750 Wheel Balancer
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤880 mm |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤135 mm |
| Max Wheel Weight | ≤65 kg |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty
Katool provides a 1-year limited warranty on all parts and product defects at no cost, along with an optional 2-year extended warranty for additional coverage.
Warranty Includes:
-
Cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or original order number from an authorized vendor.
-
Replacement parts and shipping are provided free of charge.
-
Warranty claims are subject to approval by Katool’s service department.
-
Photos or videos of defects may be requested during evaluation.
-
Equipment must not be disassembled before issue determination.
-
Out-of-policy items are the buyer’s responsibility for parts and shipping.
-
Labor is not included in the warranty.
