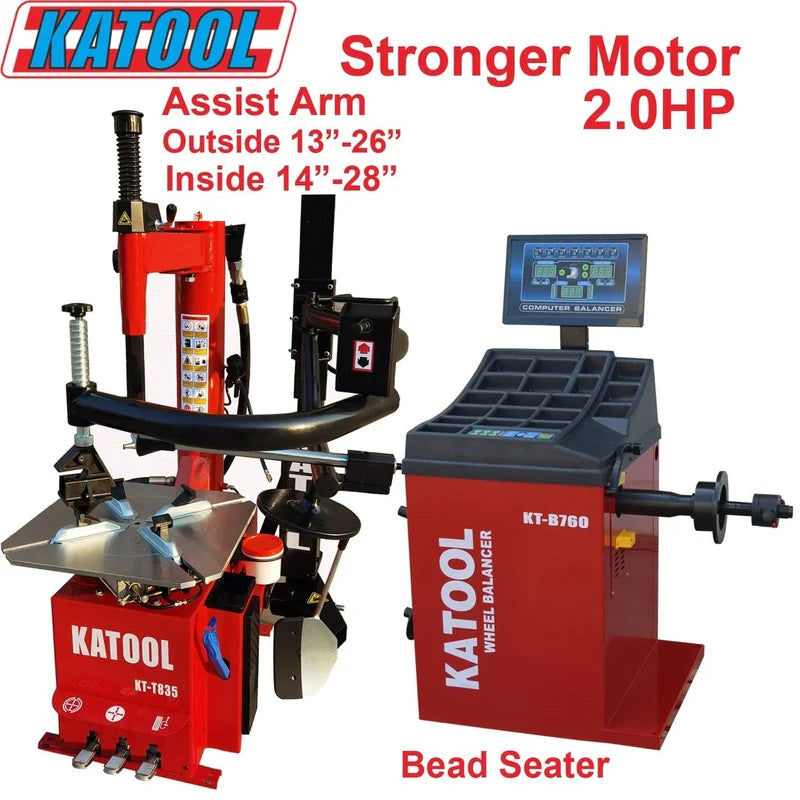

Enhance your tire service capabilities with the Katool KT-T835 & KT-B760 Combo, a professional-grade package engineered for durability, precision, and ease of use. The KT-T835 Wheel Clamp Tire Changer features a carburized alloy steel jaw for superior strength and longevity, paired with a stainless steel mounting head that’s polished and protected to prevent rim damage. Its pedal-controlled inflation gauge, pull-type pedal system, and high-quality spade cover ensure smooth operation and maximum safety. Powered by a top-level 2.0HP copper motor and supported by a premium air filtration system, it’s designed for efficiency and long service life.
The KT-B760 Wheel Balancer complements this setup with precise performance and user-friendly functionality. Constructed with a 3mm-thick steel frame and an 8mm reinforced sensor support system, it minimizes vibration and maintains accuracy under heavy use. The advanced automatic measurement ruler, multiple balance modes, and self-calibration system guarantee precision across various rim types. Optional add-ons such as a wheel guard and extended shaft make this combo a complete solution for modern tire maintenance operations.
Key Features
KT-T835 Wheel Clamp Tire Changer
-
Reinforced Alloy Steel Jaw: Carburization depth of 0.8–1.1mm and full quenching process create exceptional strength and durability; includes protective jaw covers for rim safety.
-
Precision Stainless Steel Mounting Head: Treated and polished to meet engineering standards with a plastic rim guard for protection.
-
Pedal-Controlled Inflation Gauge: Provides precise, hands-free control during tire inflation.
-
Protective Spade Cover: Prevents rim damage and extends tool longevity.
-
Pull-Type Pedal Control System: Simplifies tire changes and reduces operator fatigue.
-
High-Performance Copper Motor: Ensures reliable power, rapid heat dissipation, and longer service life.
-
Advanced Air Filtration & Lubrication System: Filters compressed air and evenly distributes lubrication to extend pneumatic system durability.
-
North American Configuration: Runs on a 110V/1PH/2.0HP motor, providing strong performance and high efficiency.
-

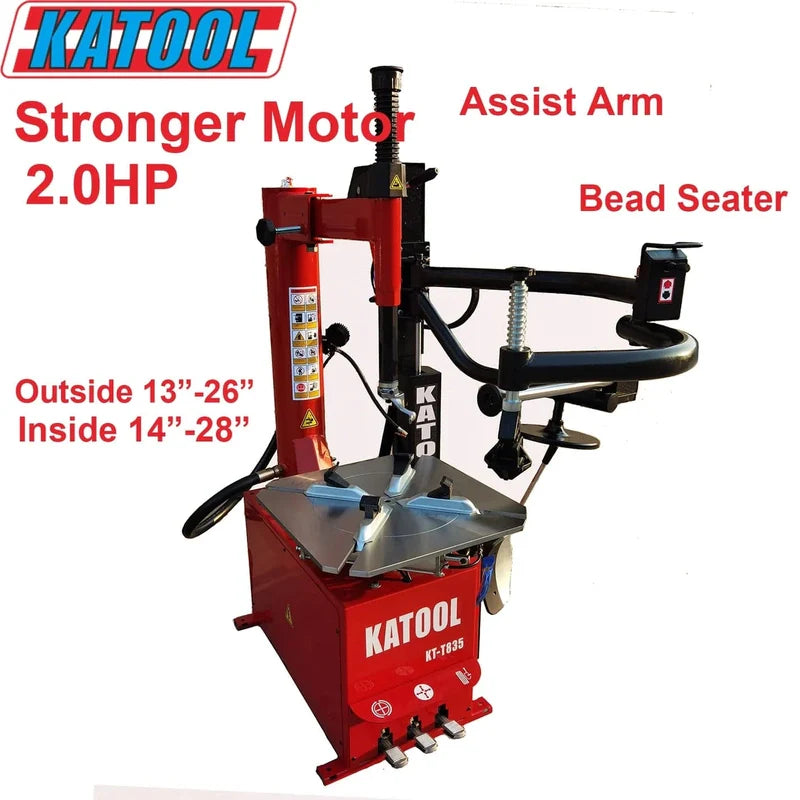

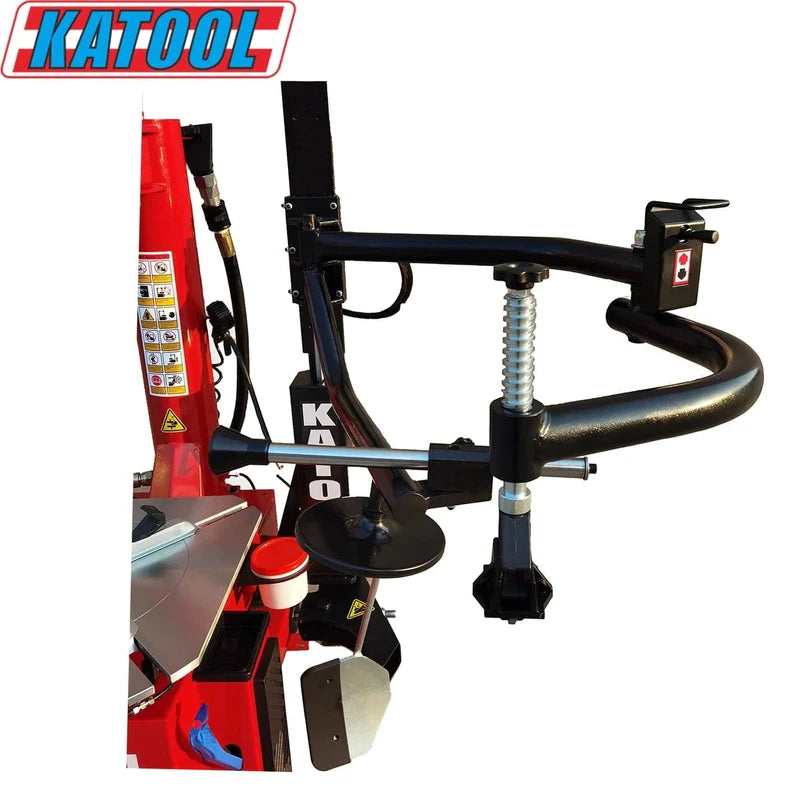

Dual Assist Arms & Bead Blast Seater: Offers increased control when working with low-profile or run-flat tires.
-
186mm Stainless Bead Breaker Cylinder: Delivers consistent power and reliability.
-
Closed-Body Design: Protects internal parts from debris and external damage.
KT-B760 Wheel Balancer
-

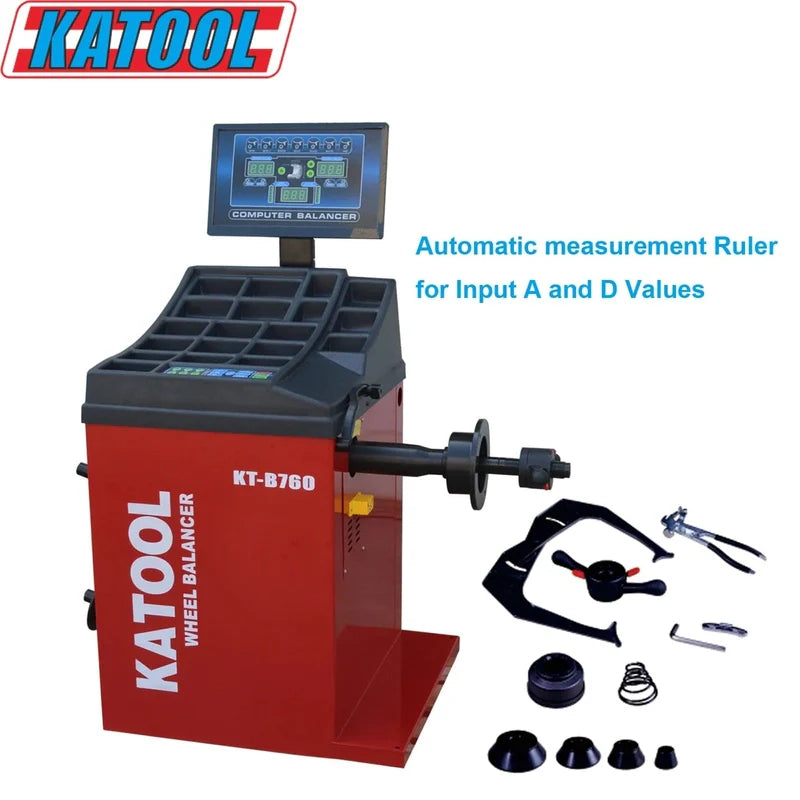

Automatic Measurement Ruler: Auto-inputs A and D values for faster setup and improved accuracy.
-
Heavy-Duty Steel Frame: 3mm-thick body with precision welding ensures stability and minimizes vibration.
-
Reinforced Sensor Support Design: 8mm-thick base and side plates provide steady, high-precision readings.
-
Top-Level Motor with Copper Windings: Delivers high torque, quick cooling, and reduced defect rates.
-
Hardened 36mm Shaft: Quenched for extra strength and long-term performance.
-
Durable Computer Board: Moisture-proof, dust-proof, and anti-static for reliable operation.
-
Versatile Balance Modes: Adapts to multiple rim styles for more accurate results.
-
Built-In Fault Diagnosis & Self-Calibration: Dual calibration system eliminates pre-set parameters, making operation easy and intuitive.
-
Measurement Unit Flexibility: Switch between Ounce/Gram and MM/Inch.
-
High-Quality Power Integration Board: Ensures stable and reliable electrical performance.
-
Optional Add-Ons: Wheel guard for added safety; extended shaft for wider wheels.
Specifications
KT-T835 Wheel Clamp Tire Changer
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (350 mm) |

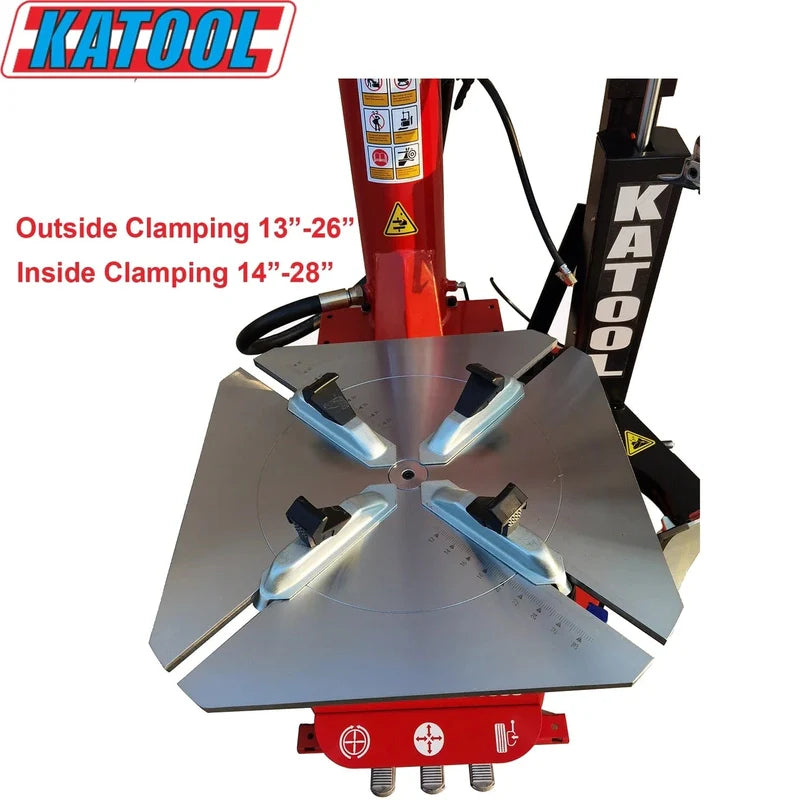

| Outside Clamp Range | 13" – 26" |
| Inside Clamp Range | 14" – 28" |
| Power Supply | 110V / 1PH / 60Hz |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.1 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 582 lbs |
KT-B760 Wheel Balancer
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 110V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Cylinders, power units, motors, displays, electronics, and related components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or order number from an authorized dealer.
-
Replacement parts and shipping are provided free of charge.
-
All claims are subject to approval by Katool’s service department.
-
Photos or videos may be required to confirm defects.
-
Do not disassemble equipment before warranty approval.
-
Items outside the warranty policy are the buyer’s responsibility for parts and shipping costs.
-
Labor costs are not covered under the warranty.
