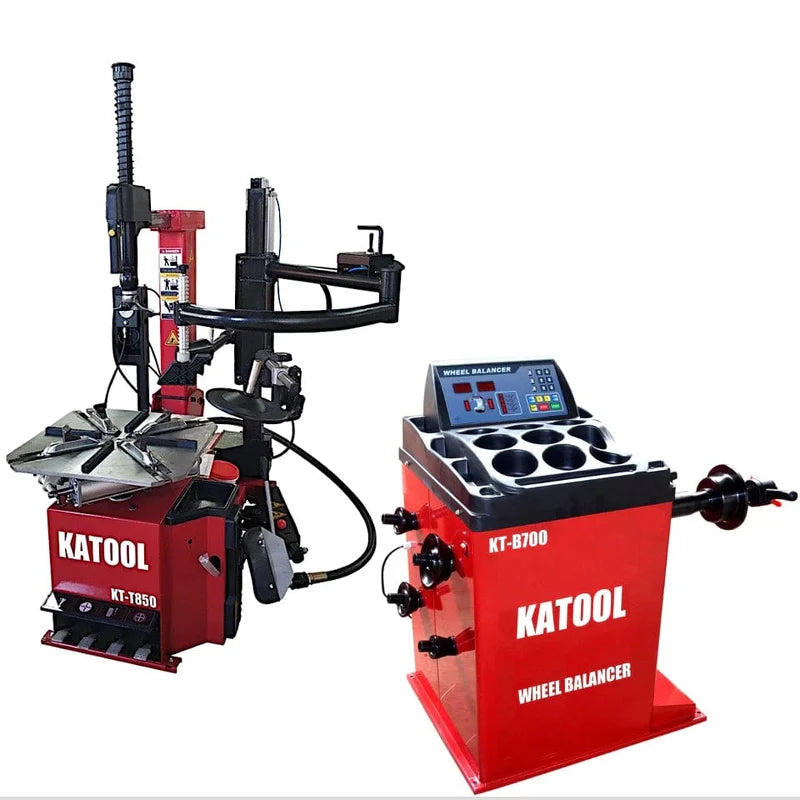

Experience professional-grade tire servicing with the Katool KT-T850 & KT-B700 Combo, a complete solution for efficient and precise tire maintenance. The KT-T850 Tilt-Arm Wheel Clamp Tire Changer is engineered for strength, accuracy, and ease of use — featuring an alloy steel jaw with carburization treatment for enhanced durability and a stainless steel mounting head with a protective plastic cover to prevent rim damage. Its pull-type pedal control system, pure copper motor, and advanced pneumatic system ensure superior performance, longer lifespan, and smoother operation. For North American users, it’s equipped with a 110V/1PH/2.0HP motor for optimal power and efficiency. Additional features include assist arms, a bead blast seater, and a 200mm aluminum bead breaker cylinder, providing versatility for a wide range of tire applications.
The KT-B700 Wheel Balancer complements the package with exceptional precision and durability. Constructed from 3mm-thick reinforced steel, it minimizes vibration while maintaining balance accuracy. Its integrated pressure sensor support, high-quality copper motor, and advanced control board deliver reliable, high-precision operation. With multiple balance modes, built-in calibration, fault diagnostics, and unit selection options, the KT-B700 offers both power and convenience. Optional add-ons like a wheel guard and extended shaft make it adaptable for wider wheels and varied shop needs.
Features

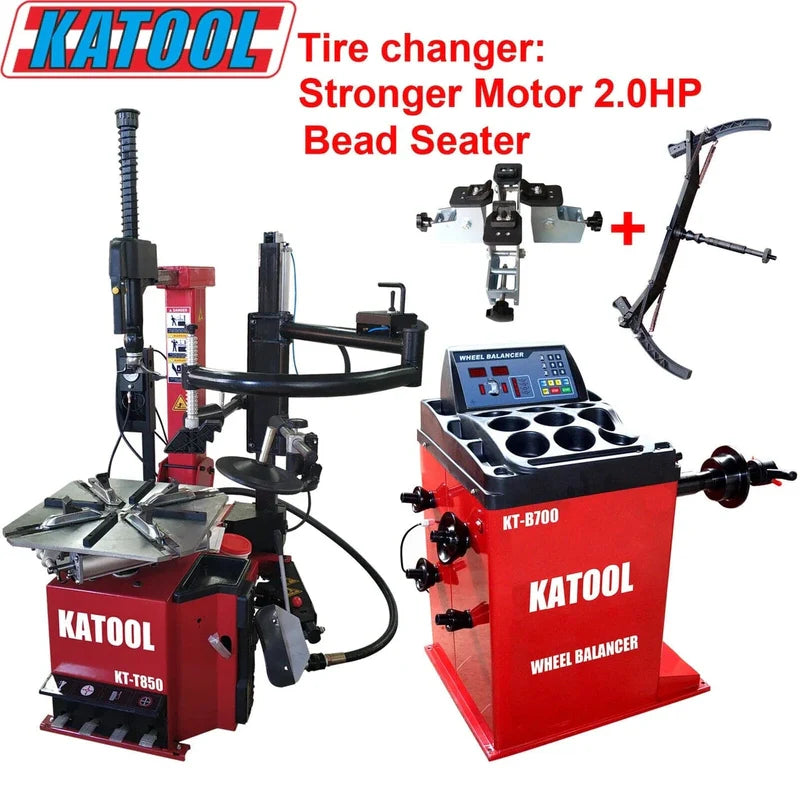

KT-T850 Tilt-Arm Wheel Clamp Tire Changer
-
Durable Alloy Steel Jaw: Carburized (0.8–1.1mm) and fully quenched for optimal toughness and wear resistance. Includes protective jaw covers to prevent rim damage.
-
Precision Mounting Head: Stainless steel with solution treatment and polished finish, ergonomically shaped and fitted with a plastic rim guard.
-
Rim Protection: High-quality spade cover prevents scratches or damage during operation.
-
Pull-Type Pedal System: Simplifies tire mounting and maintenance.
-
Powerful Copper Motor: Provides enhanced output, efficient heat dissipation, and a longer service life.
-
Reliable Pneumatic System: Features a high-quality lubricator and effective air filtration to prolong system lifespan.
-
Optimized for North America: Equipped with a 110V/1PH/2.0HP motor for maximum performance.
-

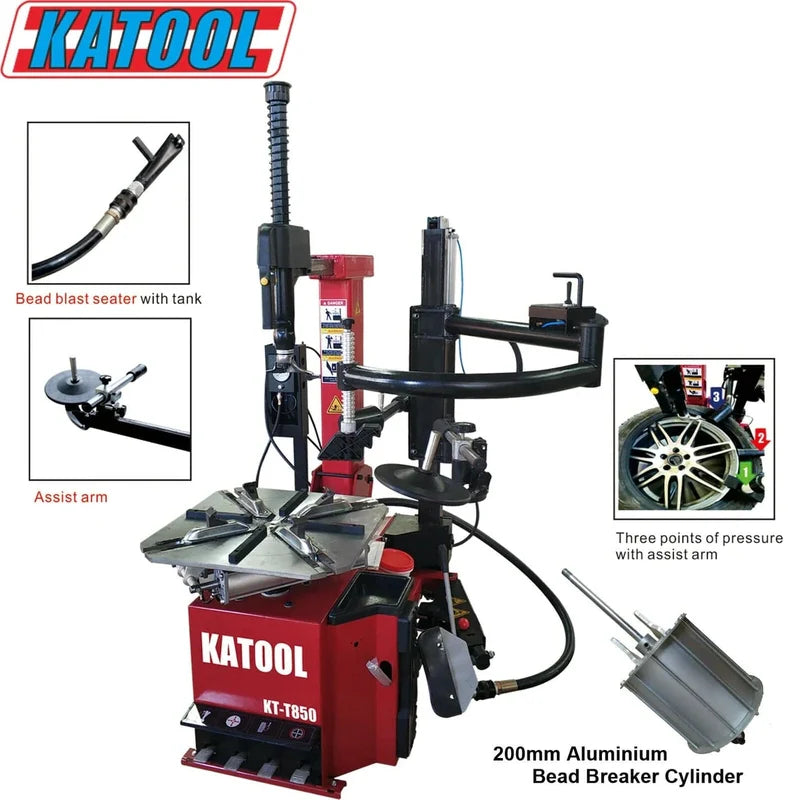

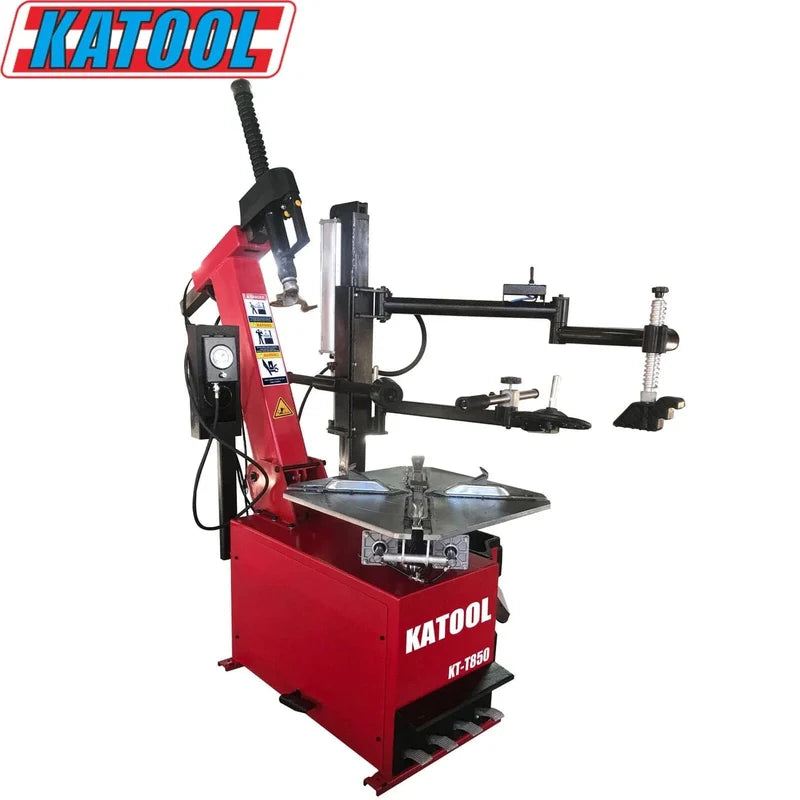

Assist Arms & Bead Seater: Simplifies handling of low-profile and run-flat tires.
-
200mm Aluminum Bead Breaker Cylinder: Ensures smooth, powerful bead separation.

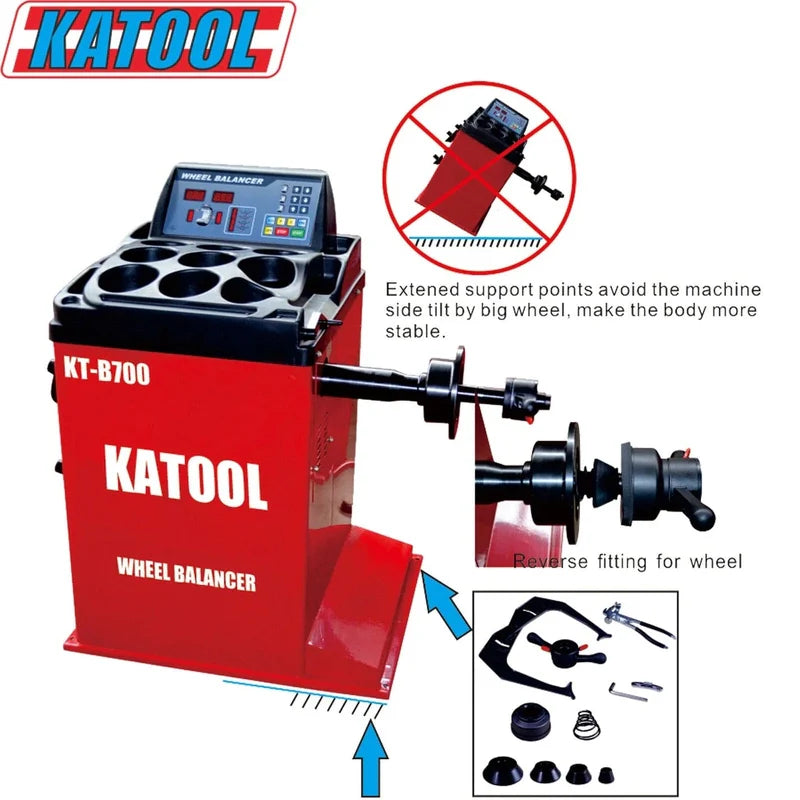

KT-B700 Wheel Balancer
-

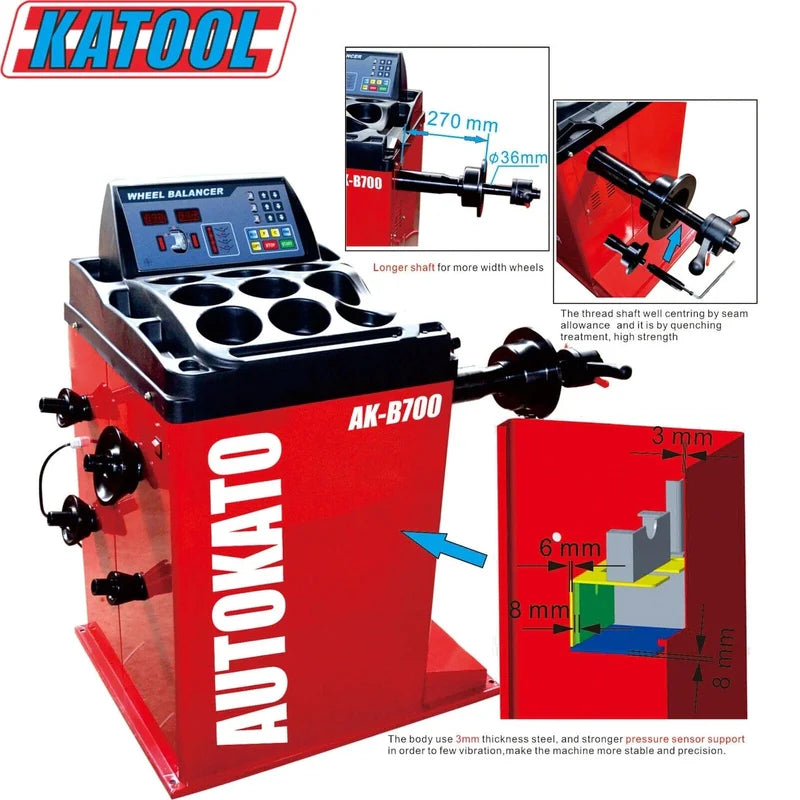

Reinforced Steel Structure: 3mm-thick body with solid welding minimizes vibration and increases stability.
-
Integrated Sensor Support: 8mm bottom and side boards ensure precise sensor performance.
-
Top-Level Copper Motor: Boosts power, improves cooling, and extends service life.
-

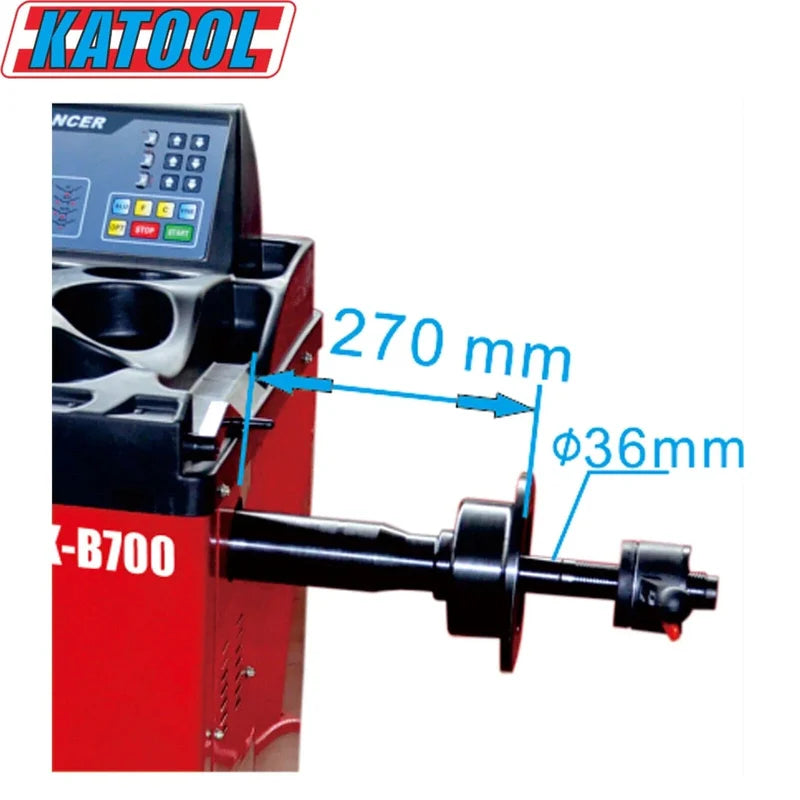

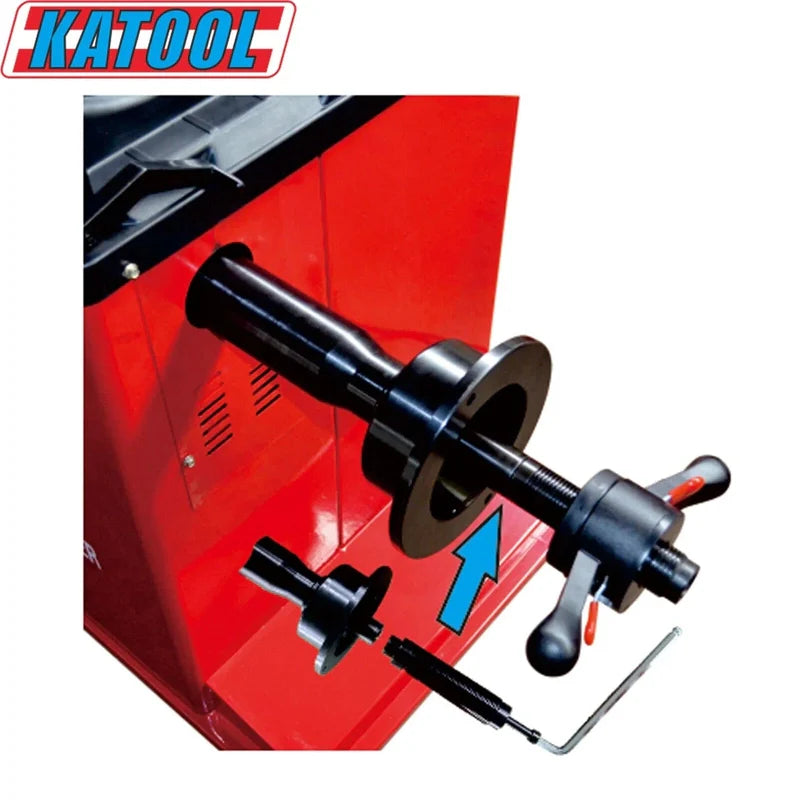

Hardened Shaft Thread (36mm): Quenched for superior strength and durability.
-
Advanced Control System: Moisture-proof, dustproof, and anti-static for dependable operation.
-
Multiple Balance Modes: Adapts to various rim types for accurate results.
-
Self-Diagnostics & Calibration: Double-sided calibration requires no preset parameters, simplifying setup.
-
Flexible Unit Selection: Choose between Ounce/Gram and MM/Inch.
-
Stable Power Supply: Integrated, high-quality power board ensures reliable performance.
-

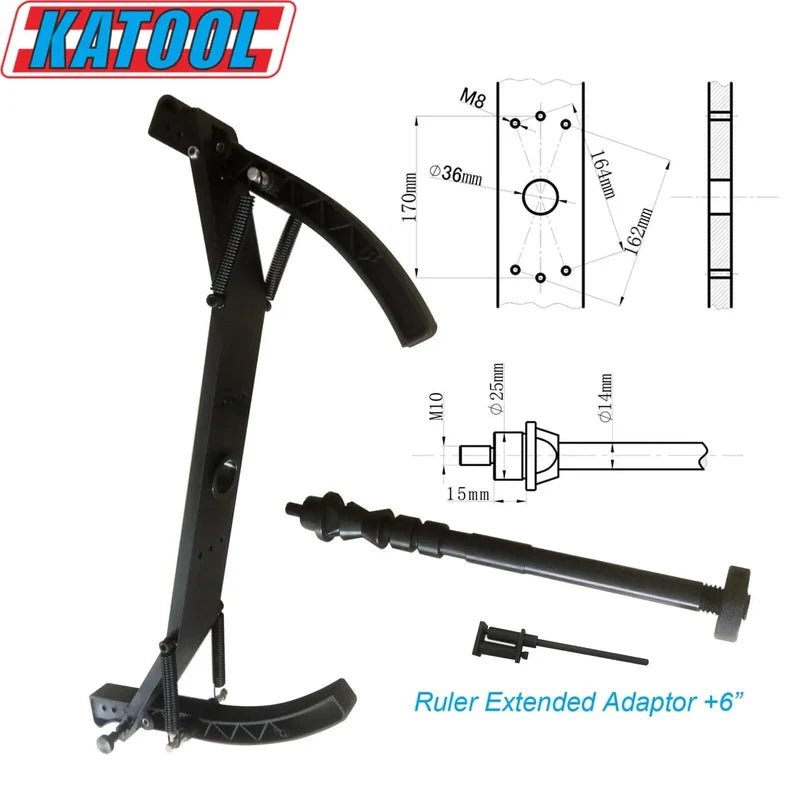

Optional Upgrades: Wheel guard and extended shaft for wider wheel compatibility.
Specifications
KT-T850 Tilt-Arm Tire Changer
| Specification | Value |
|---|---|
| Max Wheel Diameter | 47" (1200 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp | 14" – 26" |
| Inside Clamp | 16" – 28" |
| Power Supply | 110V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 340 kg (750 lbs) |
KT-B700 Wheel Balancer
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Wheel Diameter | ≤ 880 mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty is available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Hydraulic cylinders, power units, motors, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the warranty period.
-
Warranty is non-transferable and requires the original order number or proof of purchase from an authorized vendor.
-
Replacement parts and shipping are provided free of charge.
-
All claims are subject to approval by Katool’s warranty/service department.
-
Photos or videos of the defect may be required for verification.
-
Do not disassemble equipment before receiving authorization.
-
Items outside warranty coverage require the buyer to pay for replacement and shipping costs.
-
Labor costs are not included under warranty coverage.
