Description

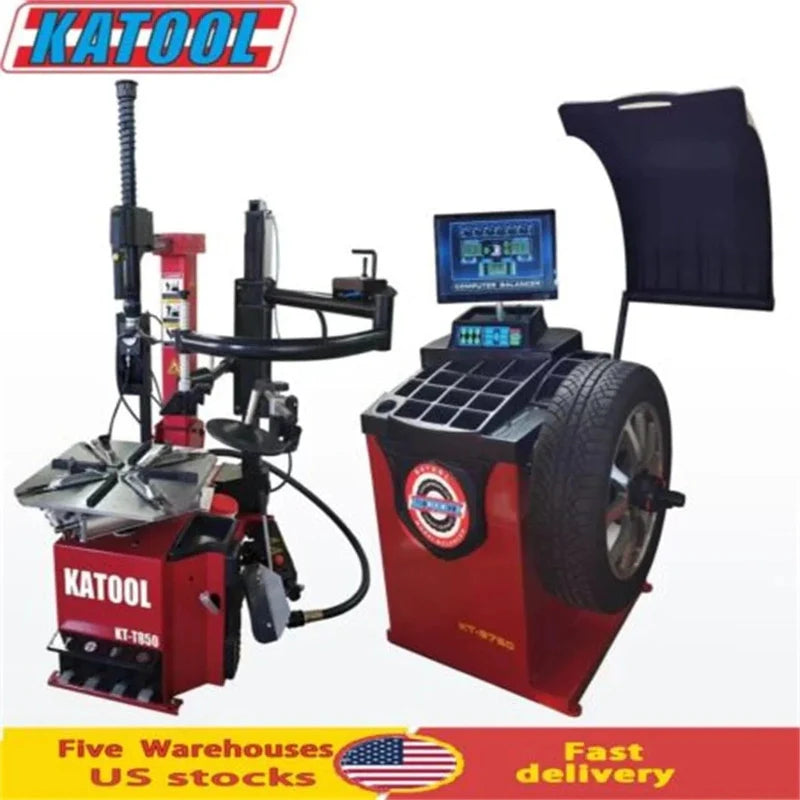

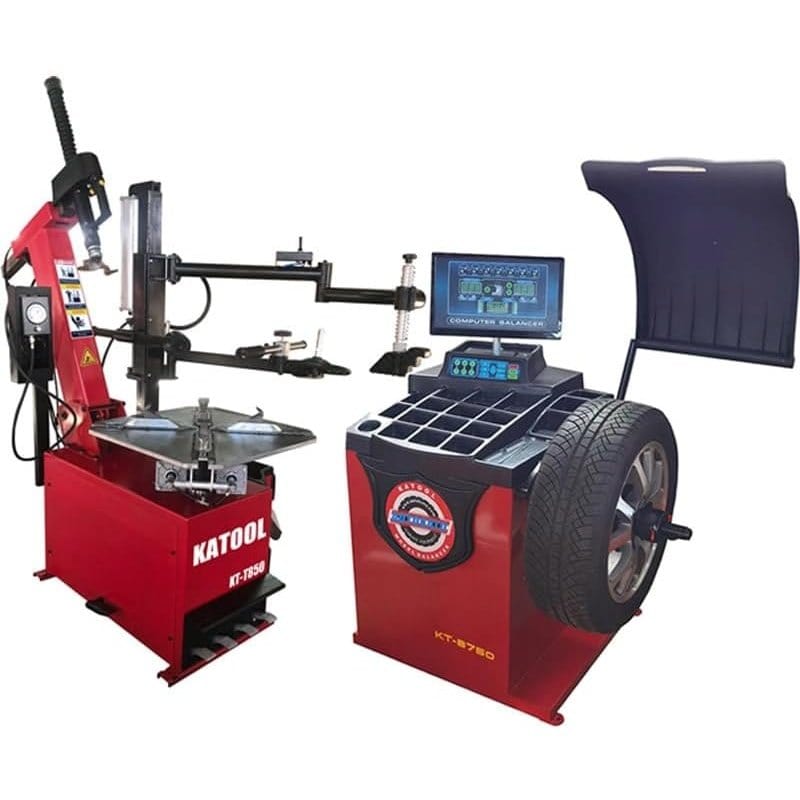

Deliver professional-grade performance with the Katool KT-T850 Tire Changer & KT-B750 Wheel Balancer Combo — a complete setup designed for precision, power, and reliability. The KT-T850 Tilt-Arm Wheel Clamp Tire Changer features a durable alloy steel jaw with deep carburization and quenching treatment for maximum strength and resilience. Its stainless steel mounting head with a plastic rim protector ensures safe operation without surface damage. The pedal-controlled inflation system and pull-type control make tire service smooth and efficient.
Equipped with a top-level copper motor rated at 110V/1PH/2.0HP for North American standards, the KT-T850 delivers exceptional torque, rapid heat dissipation, and long service life. Assist arms, a bead blast seater, and a 200mm aluminum bead breaker cylinder add to its versatility, making it suitable for a variety of tire types and wheel sizes.
The KT-B750 Wheel Balancer complements this setup with automatic measurement, a reinforced 3mm-thick steel body, and an 8mm pressure sensor support system for stability and accuracy. Its advanced computer board ensures dust, moisture, and static resistance for reliable, long-term use. With multiple balancing modes, self-calibration, and fault diagnosis, it guarantees consistent, accurate results. Optional add-ons like a wheel guard and extended shaft make this combo a complete tire service solution for busy automotive workshops.
Key Features

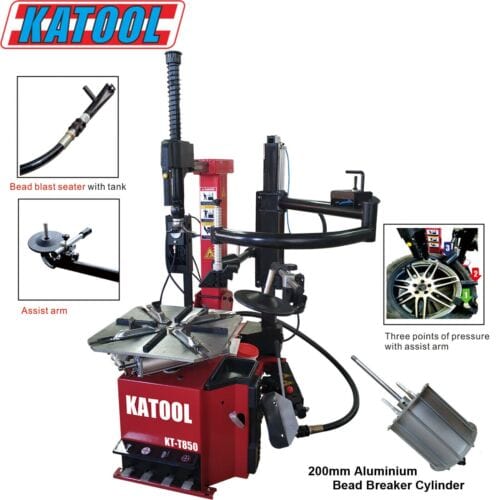

KT-T850 Tilt-Arm Wheel Clamp Tire Changer
-
Reinforced Alloy Steel Jaws: Carburized (0.8–1.1mm depth) and quenched for exceptional durability and precision, with protective jaw covers to safeguard rims.
-
Stainless Steel Mounting Head: Polished and engineered to minimize friction; includes a plastic protector to prevent rim damage.
-
Pedal-Controlled Inflation Gauge: Simplifies inflation while providing accuracy and control.
-
Protective Spade Cover: Prevents rim scratches and extends the tool’s lifespan.
-
Pull-Type Pedal Control System: Streamlines operation for faster and easier tire changes.
-
High-Efficiency Copper Motor: Provides robust power output, fast cooling, and reduced defect rates for long-lasting performance.
-
Lubricated Air Filtration System: Ensures consistent air quality and lubrication, extending the life of pneumatic components.
-
North American Configuration: Operates on 110V/1PH/2.0HP motor for optimal power and efficiency.
-

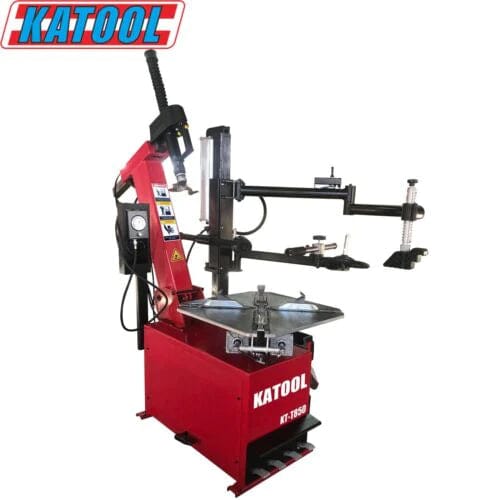

Assist Arms & Bead Blast Seater: Enhance handling of tough, low-profile, or run-flat tires.
-
200mm Aluminum Bead Breaker Cylinder: Provides dependable power and precise bead separation.

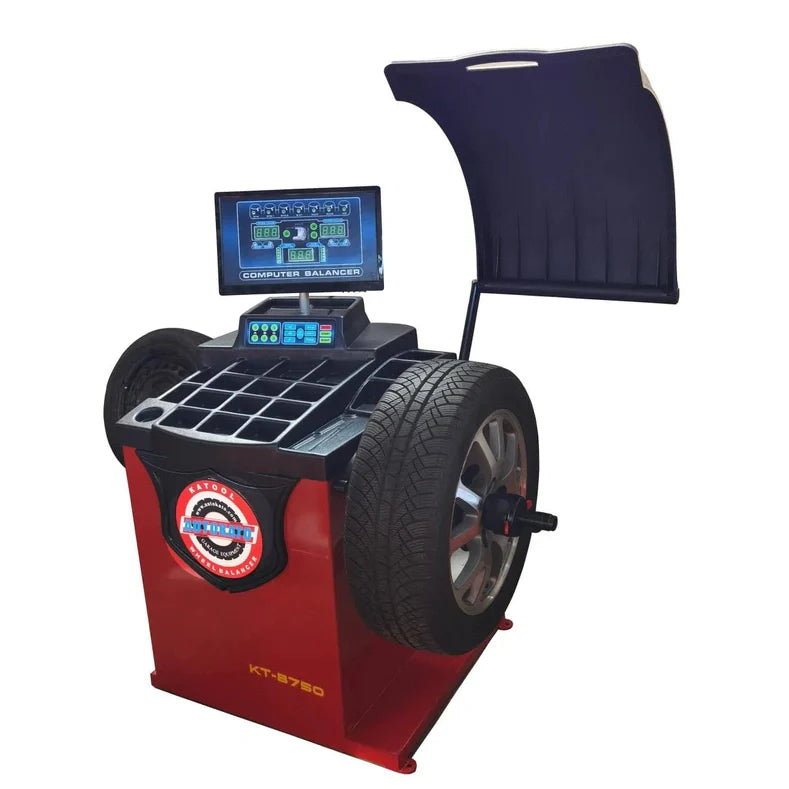

KT-B750 Wheel Balancer
-

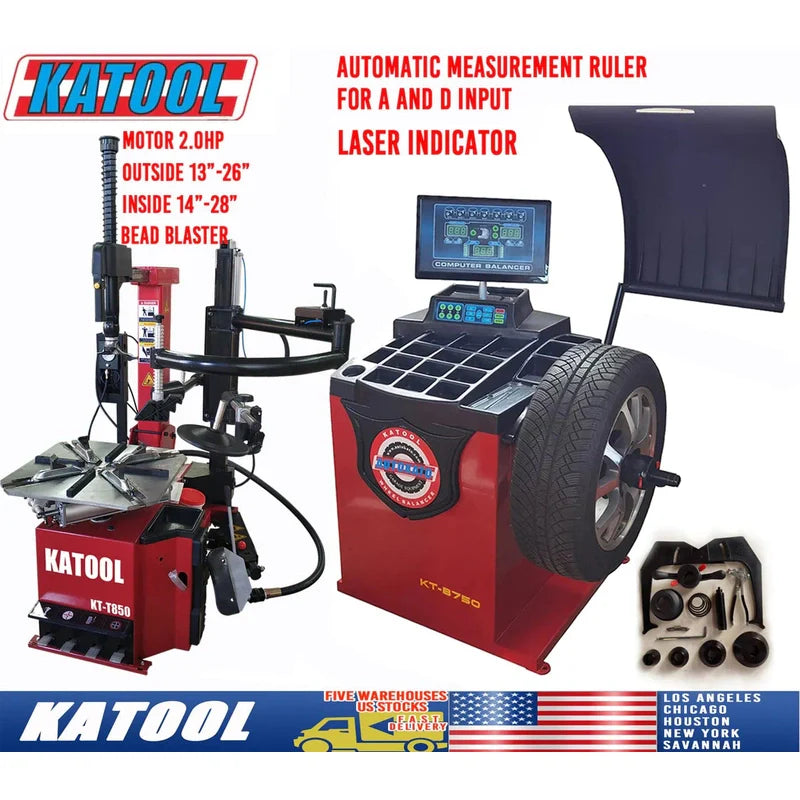

Automatic Measurement Ruler: Automatically inputs A and D values for faster setup and operation.
-
Heavy-Duty Construction: 3mm-thick steel body with precision welding minimizes vibration and enhances stability.
-
Reinforced Sensor Support System: 8mm-thick base and side plates ensure steady, high-accuracy sensor readings.
-
Top-Level Copper Motor: Offers improved torque, rapid heat dissipation, and reliable performance.
-
Hardened 36mm Shaft: Quenched for superior strength and longevity.
-
Advanced Computer Board: Built to resist moisture, dust, and static for enhanced durability.
-
Versatile Balance Modes: Supports multiple rim types for more accurate balancing results.
-
Self-Diagnosis & Dual Calibration: Automatically detects issues and maintains accuracy without preset parameters.
-
Unit Selection Options: Choose between Ounce/Gram and MM/Inch for flexible measurements.
-
Stable Power Board: Integrated high-quality power system ensures steady operation.
-
Optional Accessories: Wheel guard and extended shaft for wider wheels.
Specifications
KT-T850 Tilt-Arm Wheel Clamp Tire Changer
| Specification | Value |
|---|---|
| Max Wheel Diameter | 47" (1200 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp Range | 14" – 26" |
| Inside Clamp Range | 16" – 28" |
| Power Supply | 110V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 340 kg (750 lbs) |
KT-B750 Wheel Balancer
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm |
| Max Wheel Weight | ≤ 65 kg |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and product defects at no cost. A 2-year extended warranty is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Cylinders, motors, power units, displays, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be made within the active warranty period.
-
Warranty is non-transferable and requires proof of purchase from an authorized vendor.
-
Replacement parts and shipping are provided free of charge.
-
Claims are subject to approval by Katool’s warranty department.
-
Photos or videos of the defect may be required for verification.
-
Do not disassemble equipment prior to warranty approval.
-
Out-of-warranty items are the buyer’s responsibility for parts and shipping costs.
-
Labor costs are not covered under warranty.
