Description

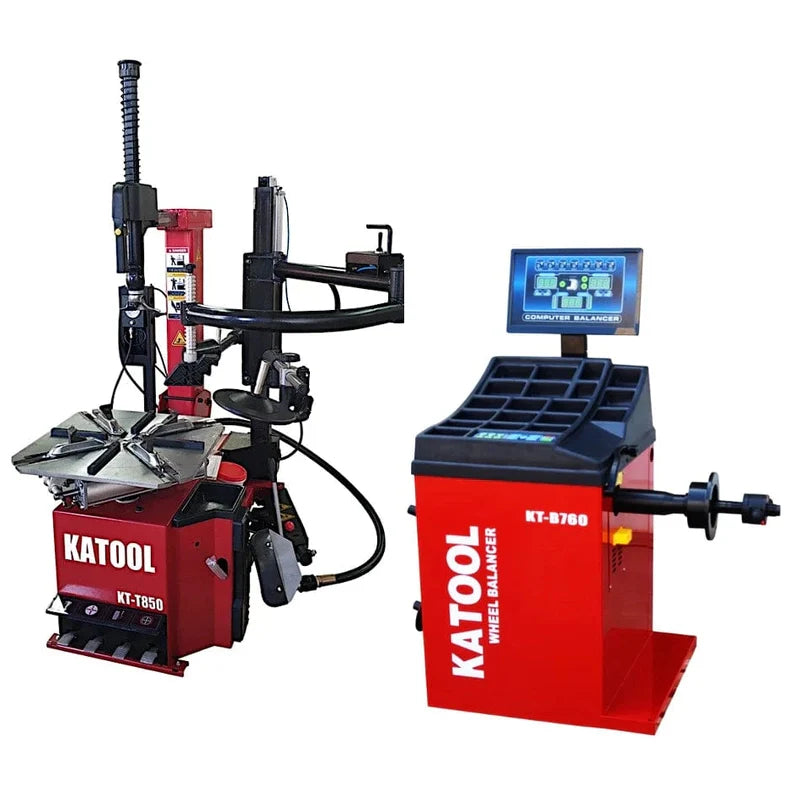

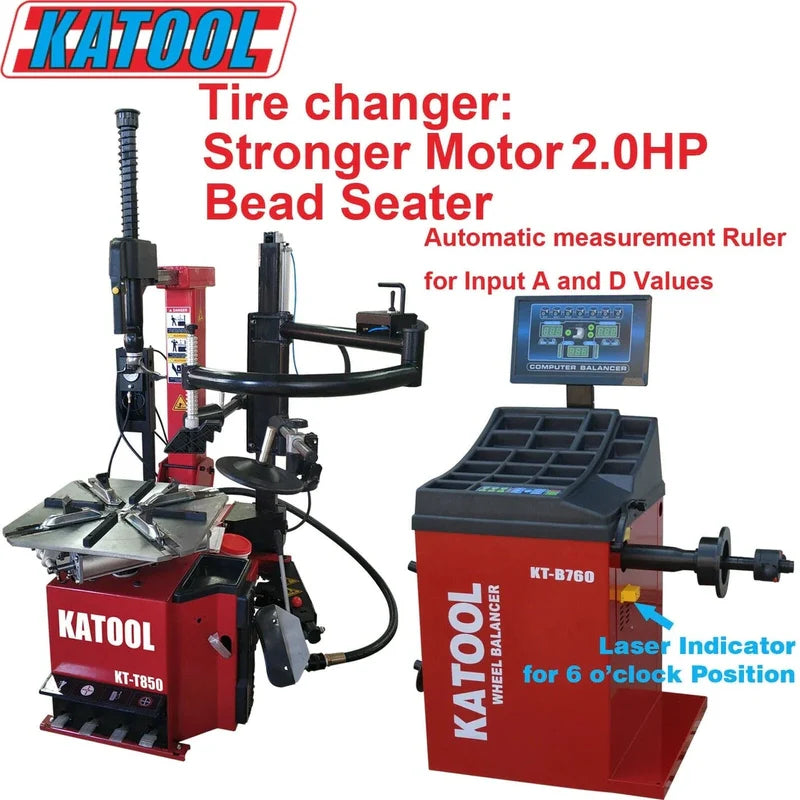

This Katool combo pairs the KT-T850 tilt-arm wheel clamp tire changer with the KT-B760 wheel balancer. The KT-T850 clamps 14″ to 26″ outside or 16″ to 28″ inside, handles tires up to 47″ in diameter, and has assist arms, a bead seater and a 2 HP 110V motor. The KT-B760 balances rims up to 30″ and wheels up to 143 lb to within ±1 gram. Compare other tire changer and wheel balancer combos or more Katool equipment. Financing is available through Approve and Shop Pay.
Enhance your shop’s efficiency and precision with the Katool KT-T850 & KT-B760 Combo, a professional-grade tire service package designed for superior performance and reliability.
The KT-T850 Tilt-Arm Wheel Clamp Tire Changer is built for durability and ease of use, featuring carburized alloy steel jaws for maximum toughness and a stainless steel mounting head with a protective plastic cover to prevent rim damage. Its pull-type pedal control system allows smooth operation, while the pure copper-wound motor ensures powerful output, quick heat dissipation, and long-lasting performance. Designed specifically for North American workshops, it supports a 110V/1PH/2.0HP motor for optimal efficiency. Equipped with assist arms, a bead blast seater, and a 200mm aluminum bead breaker cylinder, it delivers versatility and precision in every application.
The KT-B760 Wheel Balancer complements the setup with advanced balancing technology. Built with a 3mm-thick reinforced steel frame and an 8mm all-in-one pressure sensor support system, it ensures stable, high-precision measurements. The pure copper motor, advanced control board, and multiple balance modes provide consistent accuracy. With automatic A and D value input, self-diagnosis and dual-sided calibration, and unit selection flexibility, this wheel balancer offers effortless operation and reliable performance.
Features

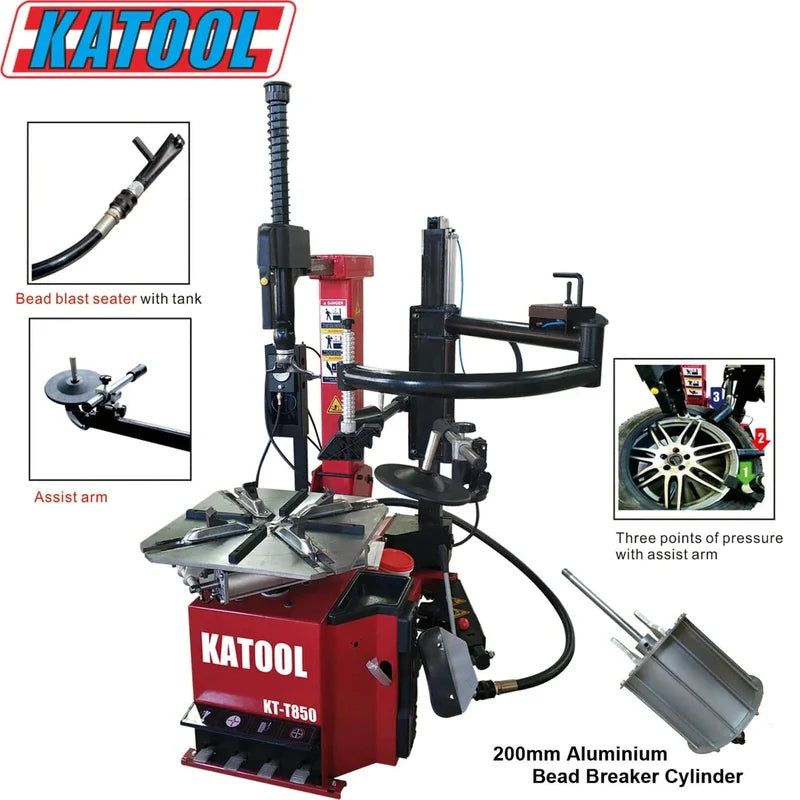

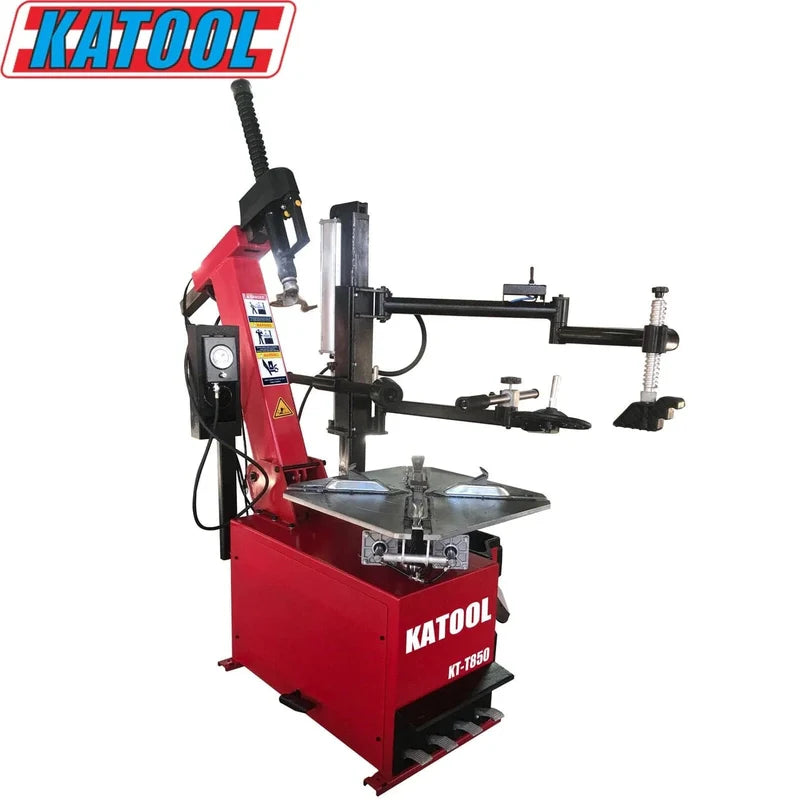

KT-T850 Tilt-Arm Wheel Clamp Tire Changer
-
Heavy-Duty Alloy Steel Jaws: Carburization depth of 0.8–1.1mm and full quenching process provide inner toughness and exterior hardness. Includes protective jaw covers.
-
Precision Mounting Head: Stainless steel design with polished finish and plastic cover ensures smooth, rim-safe operation.
-
Protective Spade Cover: Prevents rim scratches and enhances durability.
-
Pull-Type Pedal System: Provides smooth and precise control during tire mounting.
-
High-Efficiency Copper Motor: Offers superior power, rapid cooling, and an extended lifespan.
-
Reliable Pneumatic System: Built-in lubricator ensures consistent oil distribution and air filtration for longer service life.
-
Optimized for North America: 110V/1PH/2.0HP configuration for enhanced power and performance.
-
Assist Arms & Bead Seater: Simplifies handling of run-flat and low-profile tires.
-
200mm Aluminum Bead Breaker Cylinder: Ensures strong and smooth bead separation.

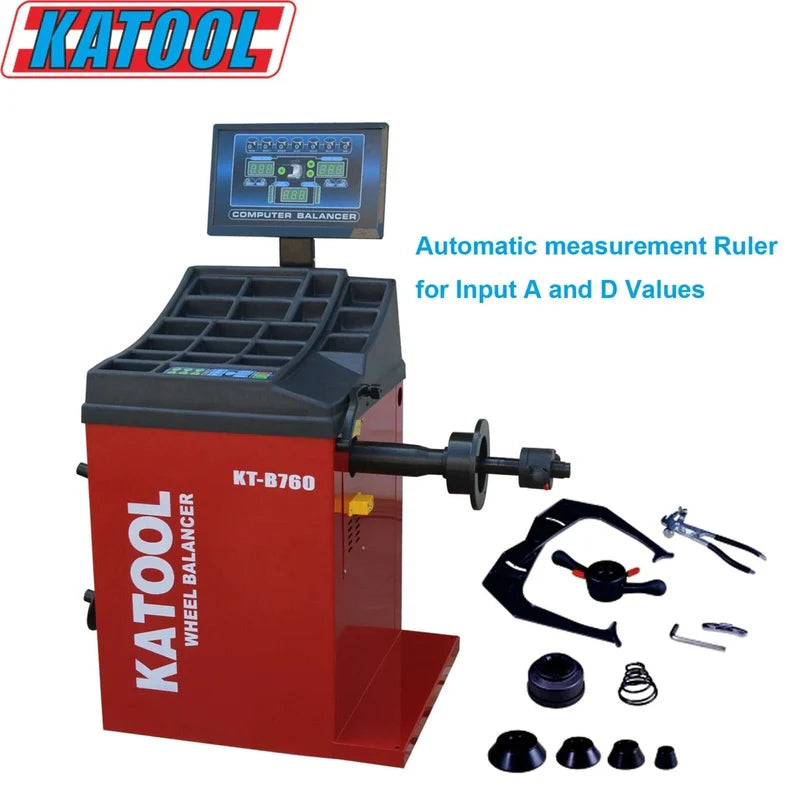

KT-B760 Wheel Balancer
-
Automatic Measurement Ruler: Automatically inputs A and D values for faster operation.
-
Reinforced Steel Body: 3mm-thick welded construction minimizes vibration for improved stability.
-
Integrated Pressure Sensor Support: 8mm-thick bottom and side panels provide accurate and stable readings.
-
Top-Grade Copper Motor: Enhances power output, cooling efficiency, and motor longevity.
-
Hardened Shaft Thread (36mm): Quenching treatment ensures superior strength.
-
Advanced Control Board: Moisture-proof, dust-proof, and anti-static for reliable long-term use.
-
Multiple Balance Modes: Adaptable for various rim types to ensure precision.
-
Self-Diagnostics & Dual Calibration: Simplifies operation — no preset parameters required.
-
Measurement Unit Selection: Choose between Ounce/Gram and MM/Inch for flexibility.
-
Stable Power Integration: High-quality power board for reliable performance.
-
Optional Accessories: Includes an optional wheel guard and longer shaft compatible with wider wheels.
Specifications
KT-T850 Tilt-Arm Wheel Clamp Tire Changer
| Specification | Value |
|---|---|
| Max Wheel Diameter | 47" (1200 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp Range | 14" – 26" |
| Inside Clamp Range | 16" – 28" |
| Power Supply | 110V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 340 kg (750 lbs) |
KT-B760 Wheel Balancer
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 110V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Motors, power units, displays, cylinders, and electronic components
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be filed within the warranty period.
-
Warranty is non-transferable and requires proof of purchase or an order number from an authorized vendor.
-
Replacement parts and shipping are provided at no cost.
-
All claims are subject to approval by Katool’s warranty/service department.
-
Photos or videos may be requested to verify defects.
-
Equipment must not be disassembled before authorization.
-
Items outside warranty coverage require the buyer to pay for parts and shipping.
-
Labor costs are not covered under warranty.
