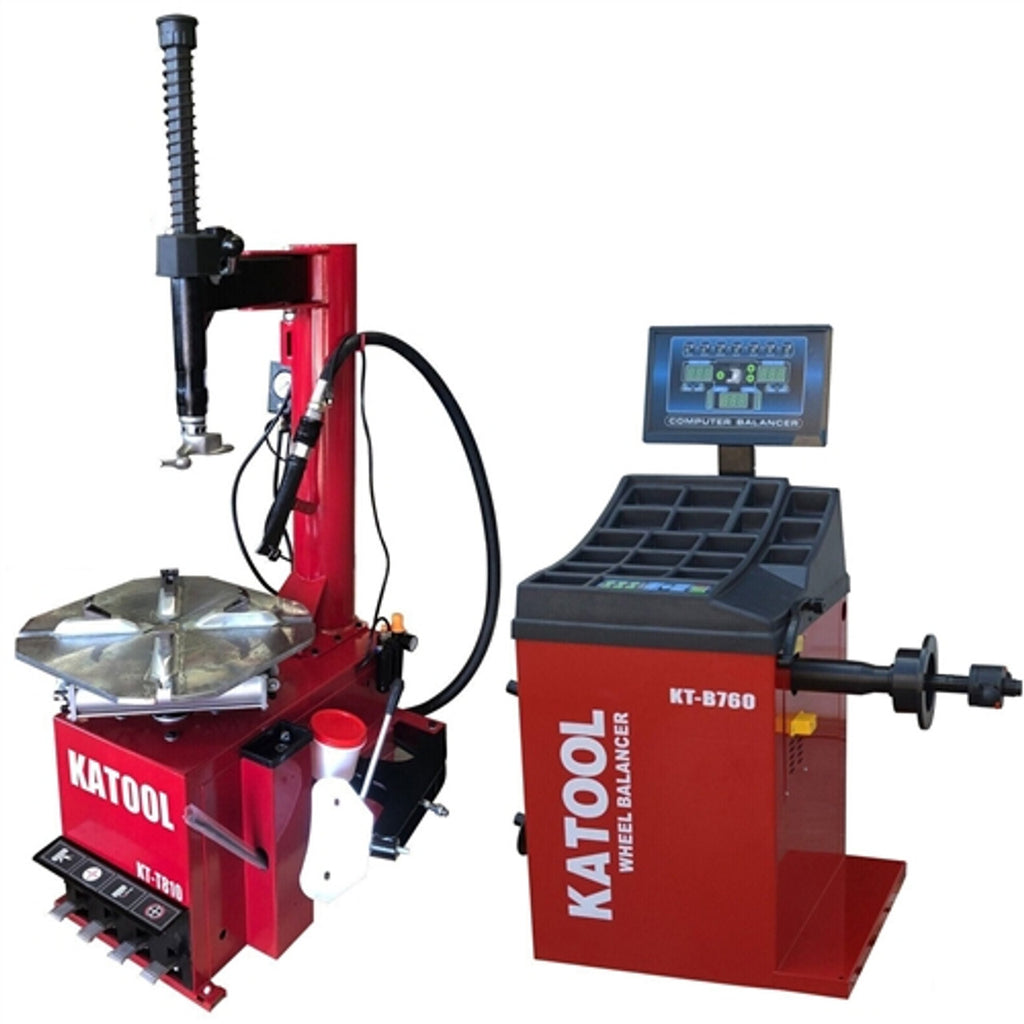

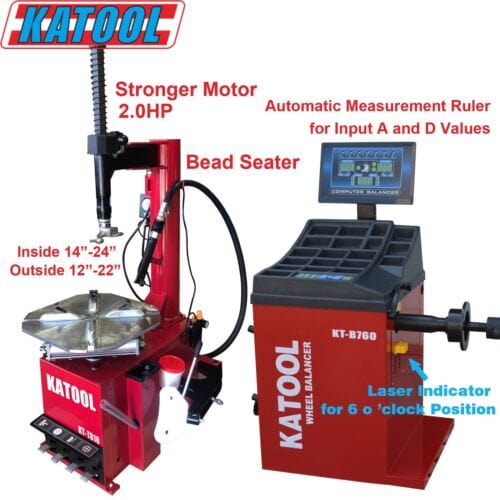

Boost your tire service productivity with the Katool KT-T810 & KT-B760 Combo, a professional setup engineered for precision, durability, and efficiency. The KT-T810 Wheel Clamp Tire Changer features a carburized alloy steel jaw for superior strength and longevity, paired with a stainless steel mounting head and protective plastic cover to prevent rim damage. The pedal-controlled inflation gauge and pull-type pedal system make tire changing smooth and efficient, while the high-quality spade cover adds an extra layer of rim protection.

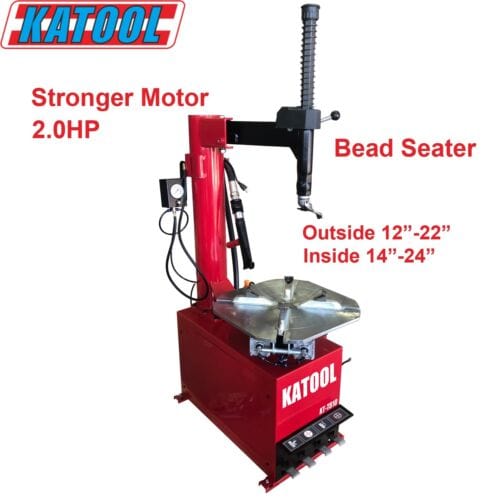

Powered by a 120V/1PH/2.0HP pure copper motor, this tire changer delivers powerful, stable performance specifically designed for North American standards. Its closed-body design ensures internal components remain well-protected for long-term reliability.
The KT-B760 Wheel Balancer complements the tire changer with its automatic measurement ruler, 3mm-thick steel frame, and 8mm reinforced sensor support for unmatched stability and precision. Featuring multiple balance modes, built-in fault diagnosis, and self-calibration, it ensures accurate results for a variety of rim types. Optional add-ons like a wheel guard and extended shaft further enhance its versatility. Together, this combo delivers a powerful, professional-grade solution for modern tire service operations.
Key Features
KT-T810 Wheel Clamp Tire Changer
-
Heavy-Duty Alloy Steel Jaws: Carburization depth of 0.8–1.1mm and full quenching process deliver superior toughness and durability; includes jaw covers for rim protection.
-
Stainless Steel Mounting Head: Polished and precision-engineered, complete with a plastic rim guard to prevent scratches.
-
Pedal-Controlled Inflation Gauge: Enables accurate and hands-free tire inflation.
-
Protective Spade Cover: Prevents rim damage and extends component life.
-
Pull-Type Pedal System: Simplifies tire mounting and dismounting, improving workflow efficiency.
-
Top-Level Copper Motor: Offers strong power output, quick heat dissipation, low defect rate, and long service life.
-
Air Filtration & Lubrication System: Ensures consistent oil delivery and filtered compressed air, extending pneumatic system life.
-

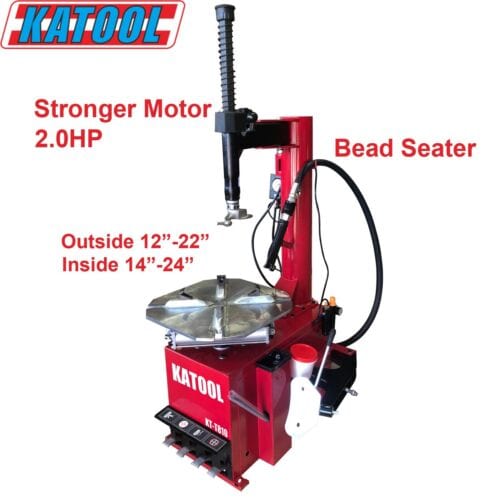

Optimized for North America: Equipped with a 120V/1PH/2.0HP motor for powerful and energy-efficient performance.
-
Closed-Body Construction: Protects internal parts from dust and damage, ensuring lasting reliability.
KT-B760 Wheel Balancer
-

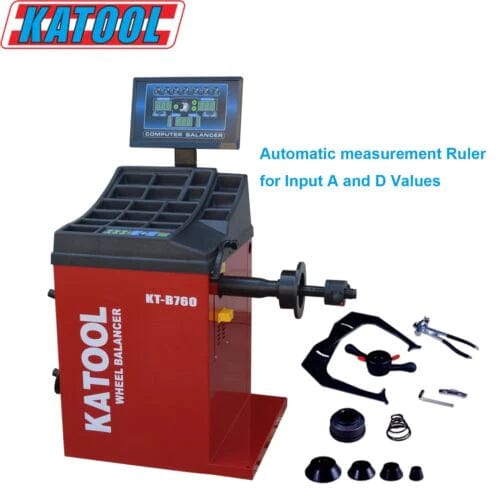

Automatic Measurement Ruler: Allows automatic input of A and D values for faster operation.
-
Reinforced Steel Frame: 3mm-thick high-strength body with precision welding for reduced vibration and improved stability.
-
Integrated Pressure Sensor Support: 8mm-thick bottom and side panels enhance sensor stability and precision.
-
Top-Tier Copper Motor: Provides superior performance with efficient cooling and reduced wear.
-
Hardened 36mm Shaft: Quenching treatment ensures maximum strength and long-term durability.
-
Advanced Control Board: Moisture-proof, dust-proof, and anti-static design increases reliability and lifespan.
-
Multiple Balance Modes: Supports various rim types for precise and adaptable balancing.
-
Built-In Diagnostics & Self-Calibration: Dual calibration system simplifies operation and improves accuracy.
-
Unit Conversion Options: Easily switch between Ounce/Gram and MM/Inch.
-
Stable Power Board: Integrated, high-quality design for reliable operation.
-

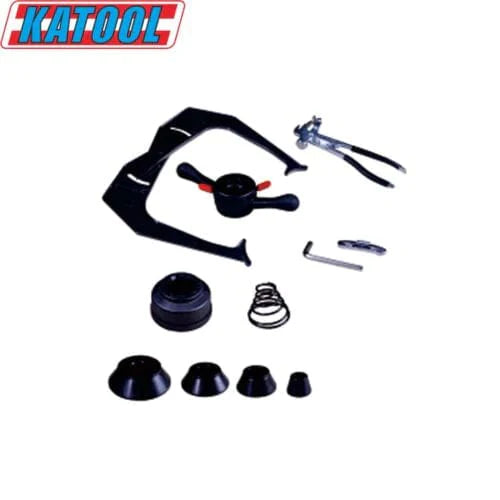

Optional Add-Ons: Wheel guard for added safety; longer shaft for wider wheel compatibility.
Specifications
KT-T810 Wheel Clamp Tire Changer
| Specification | Value |
|---|---|

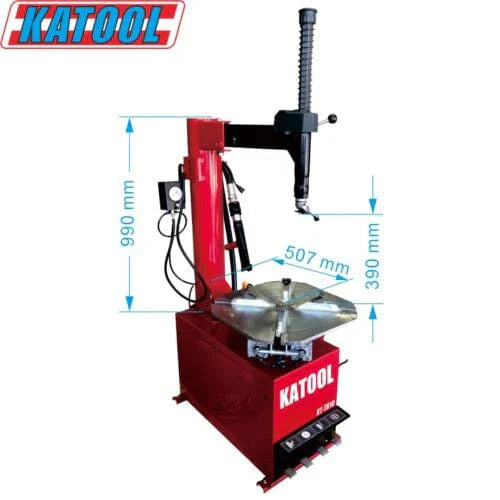

| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp Range | 12" – 22" |
| Inside Clamp Range | 14" – 24" |
| Power Supply | 120V / 1PH |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net Weight | 186 kg |
KT-B760 Wheel Balancer
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm |
| Max Wheel Weight | ≤ 65 kg |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. A 2-year extended warranty plan is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
-
Motors, cylinders, power units, displays, and electronics
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be filed within the active warranty period.
-
Warranty is non-transferable and requires proof of purchase or order number from an authorized vendor.
-
Replacement parts and shipping are covered free of charge.
-
All claims are subject to approval by Katool’s service department.
-
Photos or videos may be requested for verification.
-
Do not disassemble equipment before warranty approval.
-
Items not covered under warranty are the buyer’s responsibility for parts and shipping.
-
Labor costs are not included under warranty coverage.
