Description

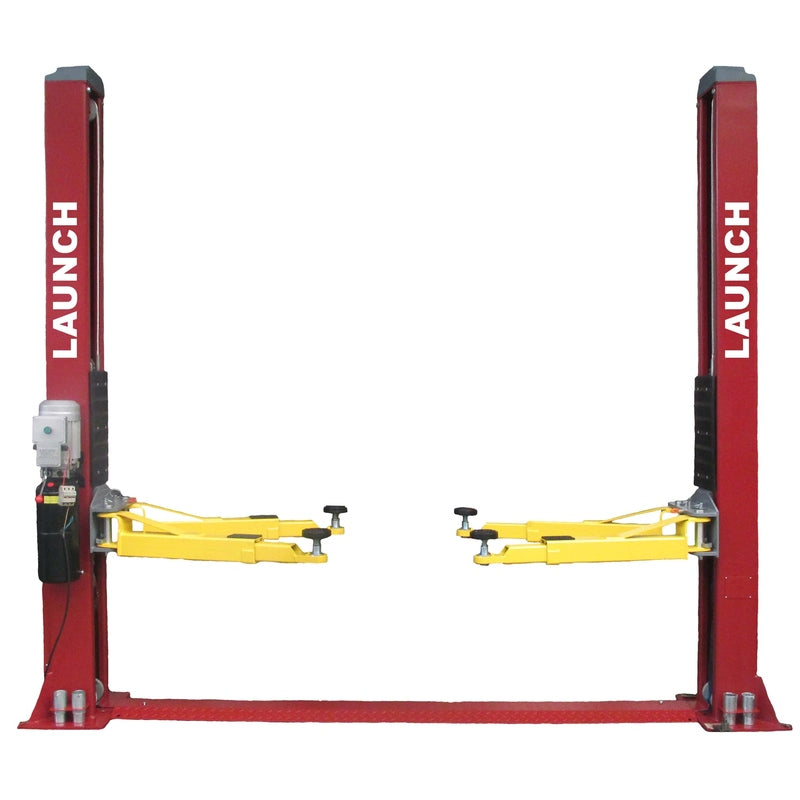

The Launch TLT240SB-R 9,000 lb. 2-Post Baseplate Lift is a commercial-grade lifting system built for reliability and performance. Featuring a baseplate design with symmetric straight-column posts and arms, this lift is perfectly suited for pickup trucks, SUVs, and passenger cars.
Its chain-driven cylinders and dual-point lock release system offer smooth, durable operation — a proven design trusted by professionals for years. The TLT240SB-R also includes rubber door guards, hose guards, and double telescoping screw pads with stackable adapters for added versatility and protection.
Ideal for both professional shops and enthusiasts, this lift provides consistent lifting power, straightforward operation, and a space-efficient design backed by Launch’s industry-leading support.

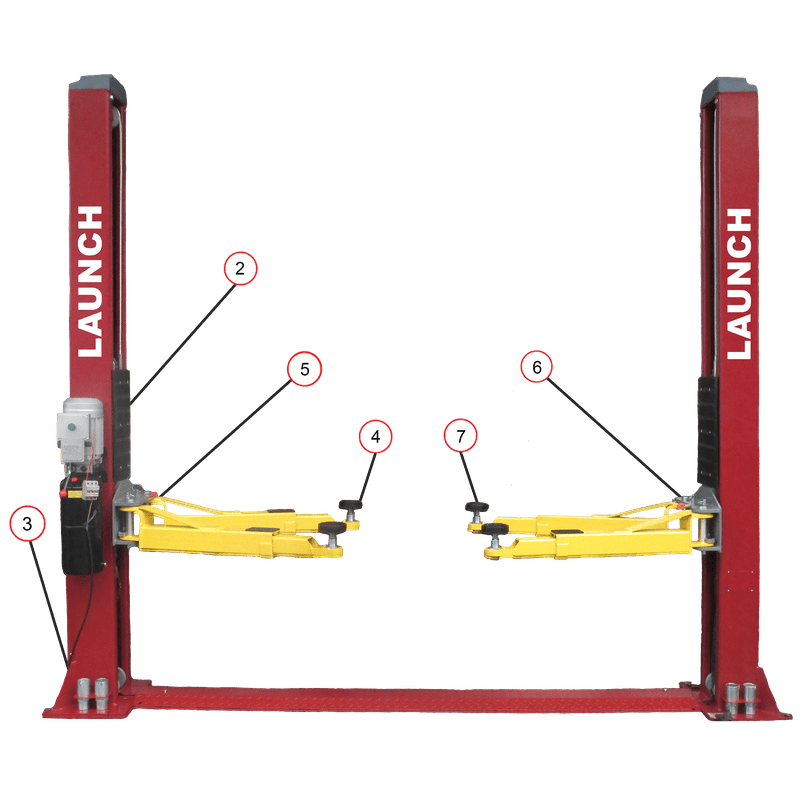

Key Features
-
9,000 lb. lifting capacity — ideal for cars, SUVs, and light trucks
-
Symmetric arm configuration with straight column posts
-
Baseplate design for low-ceiling applications
-
Chain drive system for dependable lifting performance
-

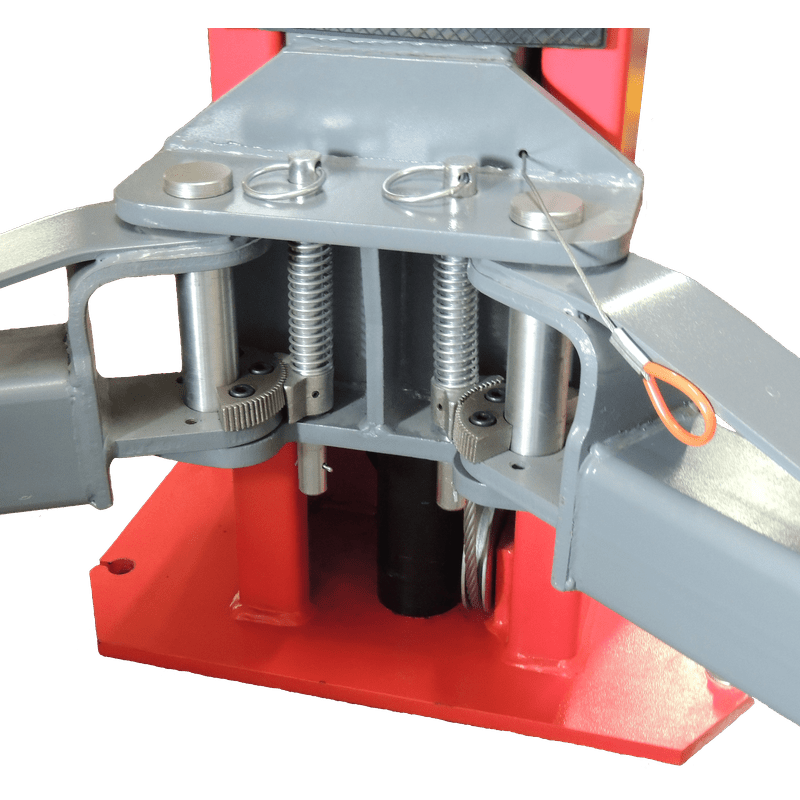

Dual-point lock release for smooth operation
-
Heavy-duty arm restraint system for stability and safety
-

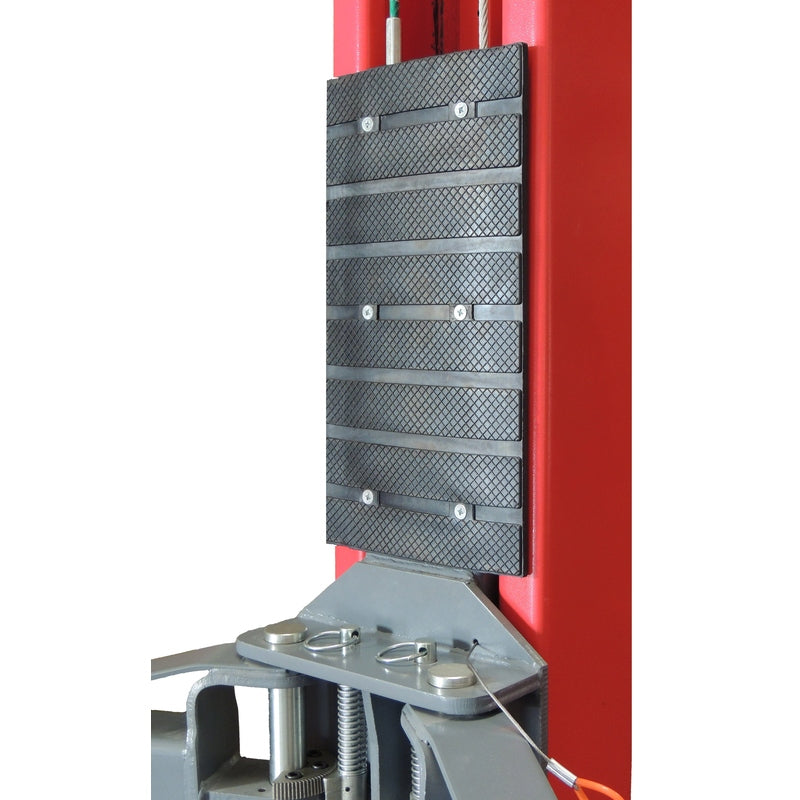

Rubber door guards to protect vehicle finishes
-

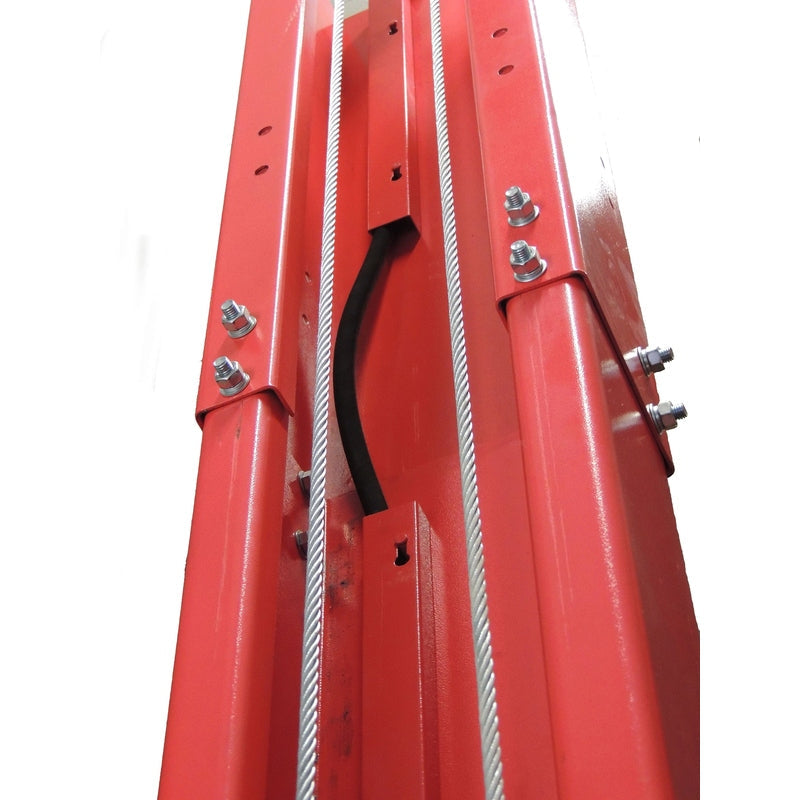

Hose guards for added durability
-

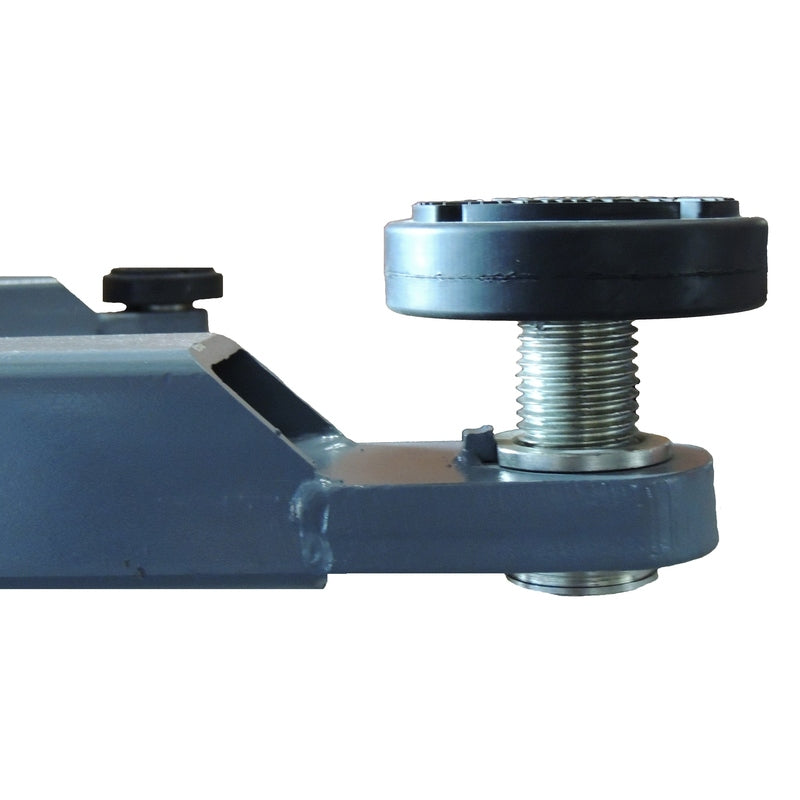

Double telescoping screw pads for precise contact
-

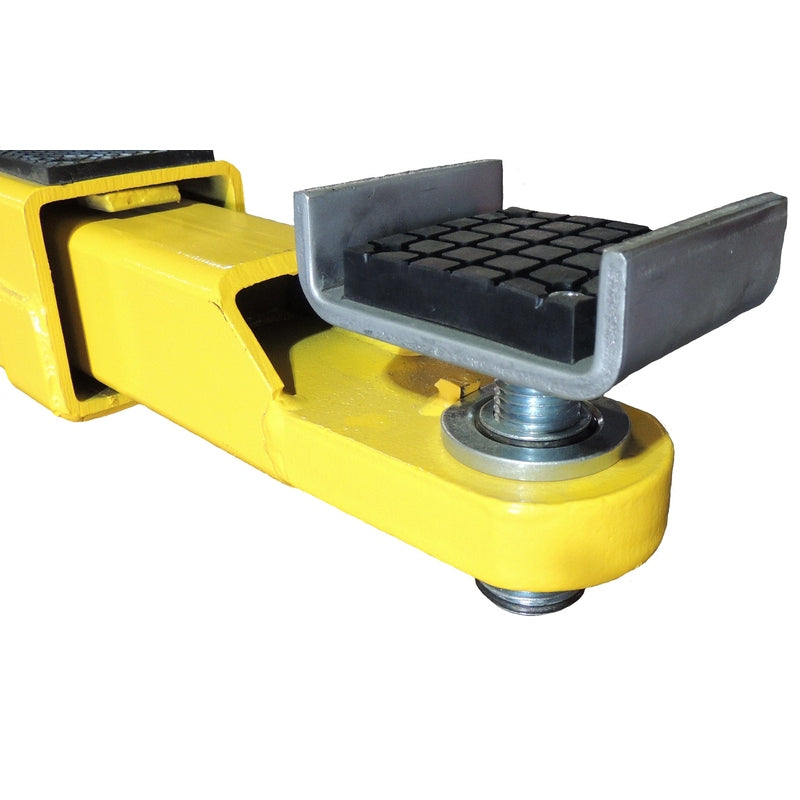

Stackable foot pad adapters included

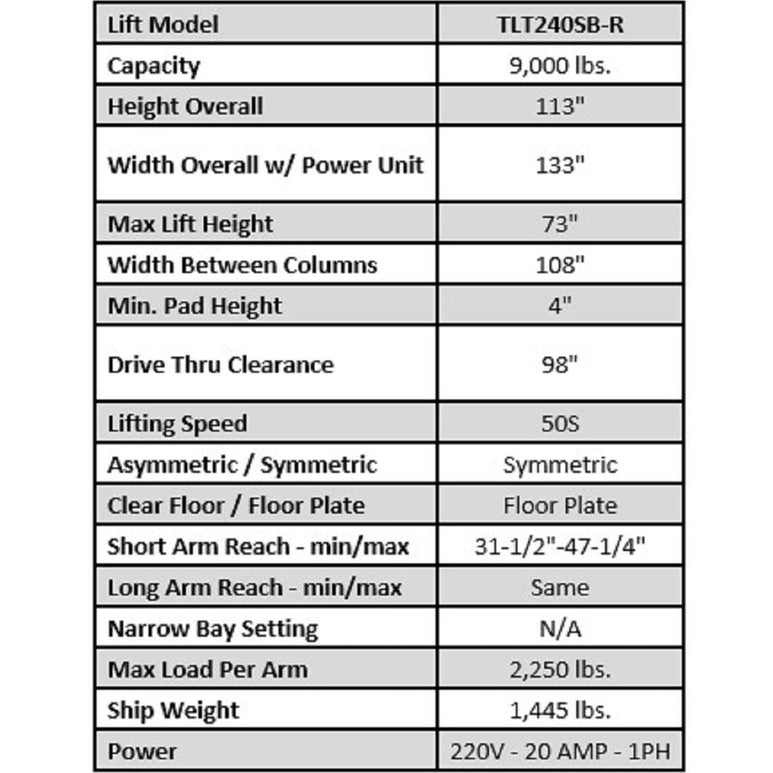

Specifications
| Specification | Detail |
|---|---|
| Model | TLT240SB-R |
| Capacity | 9,000 lbs |
| Overall Height | 113″ |
| Overall Width (with Power Unit) | 133″ |
| Max Lift Height | 73″ |
| Width Between Columns | 108″ |
| Min. Pad Height | 4″ |
| Drive-Thru Clearance | 98″ |
| Lifting Speed | 50 sec |
| Configuration | Symmetric |
| Design Type | Floor Plate |
| Arm Reach (Short / Long) | 31.5″–47.25″ / Same |
| Max Load Per Arm | 2,250 lbs |
| Power Requirement | 220V, 20 Amp, 1PH |
| Shipping Weight | 1,445 lbs |
