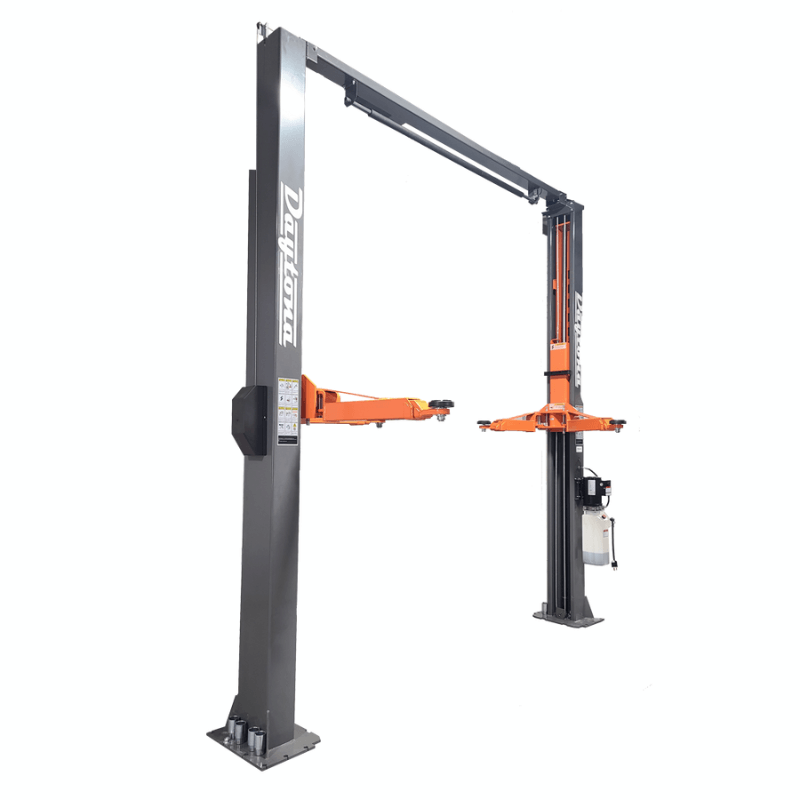

Daytona LTPA12 12,000 lb Adjustable 2-Post Lift
Heavy-Duty 12,000 lb Adjustable 2-Post Lift for Professional Automotive Service
The Daytona LTPA12 12,000 lb Adjustable 2-Post Lift is designed to deliver the strength, versatility, and reliability demanded by professional automotive repair shops and fleet service facilities. With a 12,000-pound lifting capacity, this heavy-duty lift is ideal for servicing passenger cars, SUVs, light-duty trucks, and commercial vehicles. Its adjustable-width design allows you to configure the lift for different vehicle sizes and shop layouts, making it a flexible solution for a wide range of applications.
Engineered for dependable, long-term performance, the LTPA12 features dual direct-drive hydraulic cylinders with a cable equalization system to provide smooth, synchronized lifting. Automatic safety locks with a single-point lock release enhance operator safety, while high-density polyethylene slide blocks reduce friction and minimize maintenance. A built-in height limit switch, full-length rubber door guards, and a durable powder-coated finish further improve safety, durability, and everyday usability.
Designed with versatility in mind, the LTPA12 includes three-stage front and rear arms, allowing technicians to easily position a wide variety of vehicles. Standard truck adapters are included for servicing taller vehicles, and an optional 2-foot height extension kit is available to provide additional overhead clearance for specialized applications.
Daytona LTPA12 Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Maximum Lifting Height | 68.9" |
| Minimum Lifting Height | 3.9" |
| Overall Height | 141.7" |
| Overall Width (Adjustable) | 150.3" – 162.1" |
| Drive-Through Clearance | 107", 113", or 119" |
| Width Between Columns | 122" – 133.9" |
| Internal Base Width | 140.9" – 152.7" |
| Arm Reach | 32.3" – 63.8" |
| Motor | 3 HP |
| Power | 240V, 13A, Single Phase, 60Hz |
| Control Box Height | 66.5" |
| Safety Lock Release Height | 59.7" |
| Base Plate Footprint | 18.7" × 20.9" |
| Base Plate Thickness | 0.8" |
| Concrete Requirement | Minimum 4" thick, 3,500 PSI |
Shipping Information
- Main Lift: 138" L × 22" W × 41" H — 2,400 lbs
- Power Unit: 31" L × 11" W × 12" H — 60 lbs
- Optional Height Extension Kit: 32" L × 15" W × 18" H — 210 lbs
Key Features
- 12,000 lb lifting capacity for cars, SUVs, trucks, and commercial vehicles
- Adjustable-width design accommodates various shop layouts and vehicle sizes
- Dual direct-drive hydraulic cylinders with cable equalization for smooth, balanced lifting
- Automatic safety locks with convenient single-point lock release
- Three-stage front and rear arms provide flexible lifting point access
- High-density polyethylene slide blocks reduce wear and maintenance
- Screw-up lifting pads for precise vehicle positioning
- Integrated height limit switch helps prevent overhead contact
- Full-length rubber door guards protect vehicle finishes
- Durable powder-coated finish resists corrosion and everyday shop wear
- Includes standard truck adapters for servicing larger vehicles
- Optional 2-foot height extension kit available for increased overhead clearance and taller vehicle applications
