Description

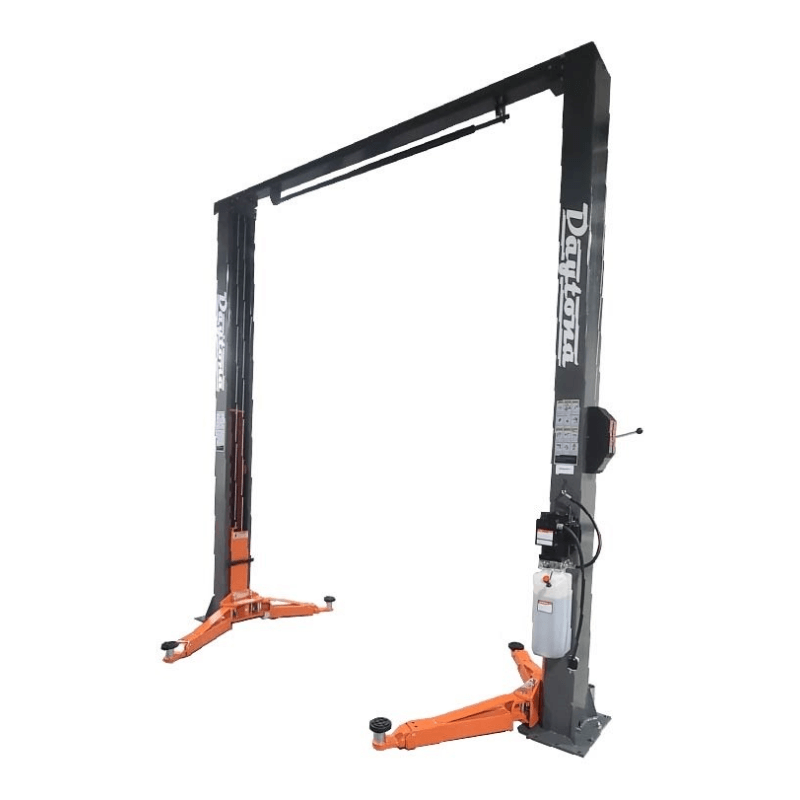

Daytona LTPO15 15,000 lb Overhead 2-Post Lift
Heavy-Duty 15,000 lb Overhead Lift for Trucks & Commercial Vehicles
The Daytona LTPO15 15,000 lb Overhead 2-Post Lift is built for professional repair facilities that require exceptional lifting capacity, durability, and reliability. Designed to handle trucks, commercial vehicles, fleet vehicles, and other heavy-duty applications, this overhead lift delivers a full 15,000-pound lifting capacity with the arms fully extended, making it an ideal choice for high-volume automotive and commercial service shops.
Engineered for dependable performance, the LTPO15 utilizes dual direct-drive hydraulic cylinders and high-density polyethylene slide blocks to provide smooth, balanced lifting while minimizing wear and extending the lift's service life. Automatic safety locks with a single-point lock release ensure secure vehicle support and controlled lowering, while screw-up lifting pads, full rubber door guards, and an integrated height limit switch enhance both safety and day-to-day convenience.
Designed specifically for heavy-duty service environments, the LTPO15 includes three-stage front and rear arms for exceptional lifting flexibility, along with standard truck adapters for servicing larger vehicles. A 2-foot height extension kit is included and required for installation, providing the additional overhead clearance necessary for proper cable routing, hydraulic hose fitment, and servicing taller commercial vehicles.
Daytona LTPO15 Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 15,000 lbs |
| Maximum Lifting Height | 74.8" |
| Minimum Pad Height | 3.9" – 7.48" |
| Overall Height | 176.8" |
| Overall Width | 152.8" |
| Overall Floor Width | 163.0" |
| Width Between Columns | 133.9" |
| Drive-Through Width | 119.2" |
| Column Base Width | 18.1" |
| Column Offset Distance | 9.5" |
| Overhead Clearance | 6.5" |
| Base Plate Thickness | 0.8" |
| Arm Reach | 35.4" – 70.8" |
| Arm Sweep Width | 23.6" |
| Inner Arm Clearance | 13.5" |
| Lower Column Height | 65.6" |
| Motor | 240V, 3 HP, 13A, Single Phase, 60Hz |
| Concrete Requirement | Minimum 8" thick, 3,000 PSI |
Shipping Information
- Lift: 155" L × 25" W × 40" H — 2,700 lbs
- Power Unit: 31" L × 11" W × 12" H — 60 lbs
- Height Extension Kit (Included): 26" L × 12" W × 18" H — 200 lbs
Key Features
- 15,000 lb lifting capacity for trucks, commercial vehicles, and fleet service
- Overhead 2-post design provides maximum floor clearance
- Dual direct-drive hydraulic cylinders for smooth, balanced lifting
- Automatic safety locks with convenient single-point lock release
- Three-stage front and rear arms for versatile vehicle positioning
- High-density polyethylene slide blocks reduce wear and maintenance
- Screw-up lifting pads for precise lifting point adjustment
- Integrated height limit switch helps prevent overhead contact
- Full rubber door guards protect vehicle finishes
- Durable powder-coated finish resists corrosion and everyday shop wear
- Includes standard truck adapters for servicing larger vehicles
- Includes required 2-foot height extension kit for proper installation and increased overhead clearance
